JL AUDIO RD1000/1
JL AUDIO RD1000/1 RD SERIES 1000 WATT MONOBLOCK
- Additional information
Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω – 14.4V
Purpose-built for subwoofer applications, the RD1000/1 monoblock amplifier delivers 1000 watts of jaw-dropping bass output into 2 ohms (14.4V, 1% THD). At the heart of this ultra-sleek and compact power plant is JL Audio’s exclusive NexD™ Class D technology, permitting high power output with exceptional efficiency and low distortion.

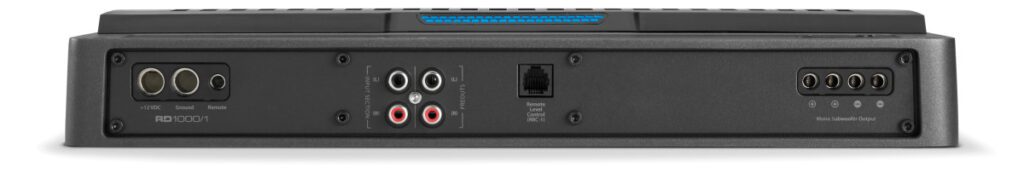

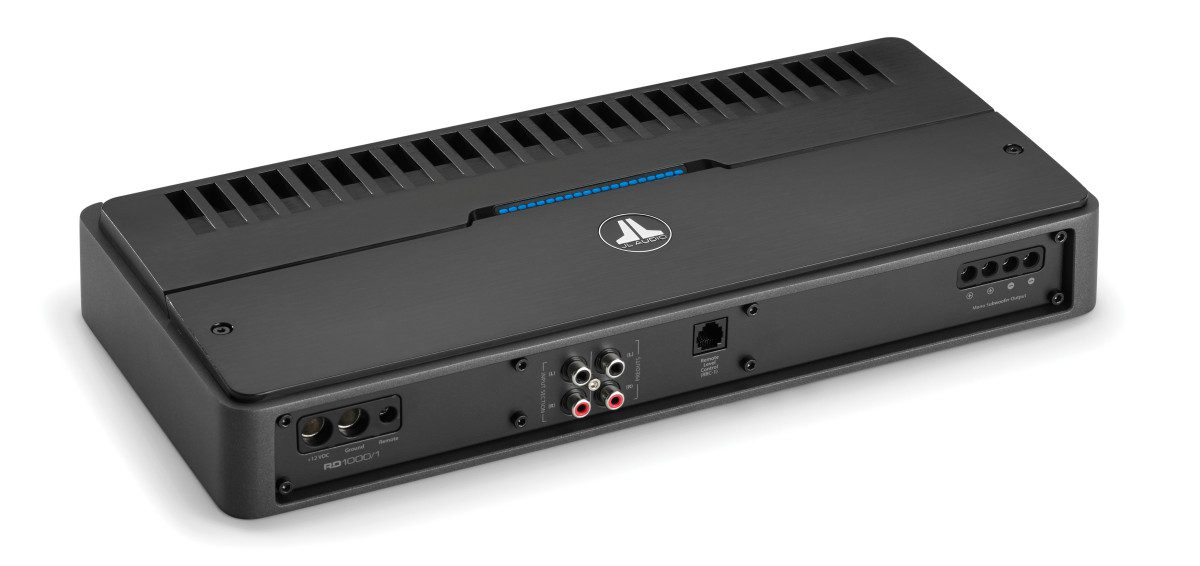

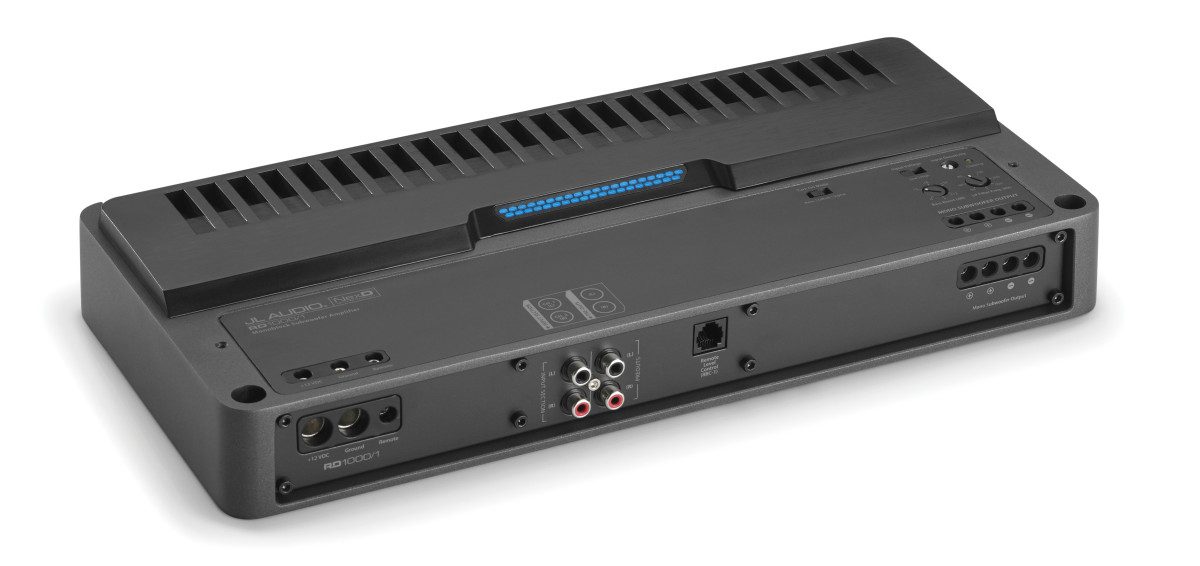

For your convenience, all of the RD1000/1’s controls are located on top of the amplifier, beneath a protective cover, with all connections found along one side of its chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balance inputs are also onboard, capable of accepting most input voltage levels. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
JL AUDIO RD1000/1 RD SERIES
Frequency Response 7 Hz – 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >50 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)

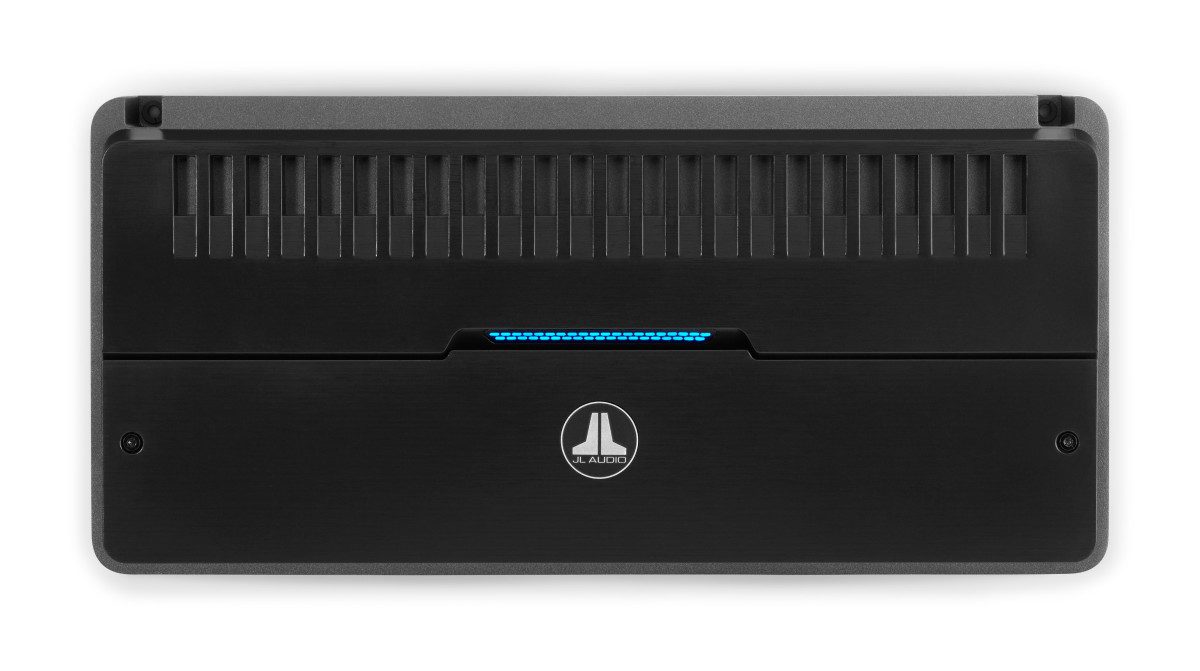

The RD1000/1 is also equipped with an onboard LED-clipping indicator. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity setting, quickly and accurately, with no special equipment needed. The RD1000/1 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. Control of the subwoofer level from the driver’s seat is easily accomplished with the addition of the optional RBC-1 remote level control (sold separately).
|Dimensions||14.66 × 6.96 × 2.13 in|
