JVC KD-TD91BTS

Technical Specifications
KD-TD91BTS
Display
Display Type 2-Line VA LCD Display
LCD Color White
Key Color Variable Color
Music Sync. Effect Yes
Spanish Text Display Compatible Yes
French Text Display Compatible Yes (Canadian French)
Auto Dimmer Yes
Brightness Control Yes
Media Playback
MP3 Compatible with Tag CD/USB
WMA Compatible with Tag CD/USB
WAV Compatible with Tag USB
AAC Compatible with Tag CD/USB
FLAC Compatible with Tag USB ( Up to 96kHz/24bit )
Bluetooth Control
Built-in Bluetooth[1] Yes (Ver 4.2, Wired-Mic included)
Hands Free Call Yes (HFP 1.7.1)
2 Phones Full-Time Connection Yes
Audio Streaming & Control (A2DP, AVRCP) Yes (AVRCP 1.6.1)
Supported Audio Formats AAC / SBC
5 BT-Audio Connection [JVC Streaming DJ] Yes
Voice Dialing (voice recognition compatible mobile phone required) Yes
Phone Book Access Profile (PBAP) Yes
iPhone & Android Automatic Pairing Yes (iPhone only)
Low Battery Information Yes
Android Control
Android Music Playback Yes (via Bluetooth(R))
iPod/iPhone Control
iPod/iPhone Music Playback Yes (via USB or Bluetooth(R))
Amazon Alexa
Amazon Alexa Compatible Yes
USB
Position Front
USB Power Supply Yes (1.5A)
Drive Change Mode for Mass Storage Class Yes

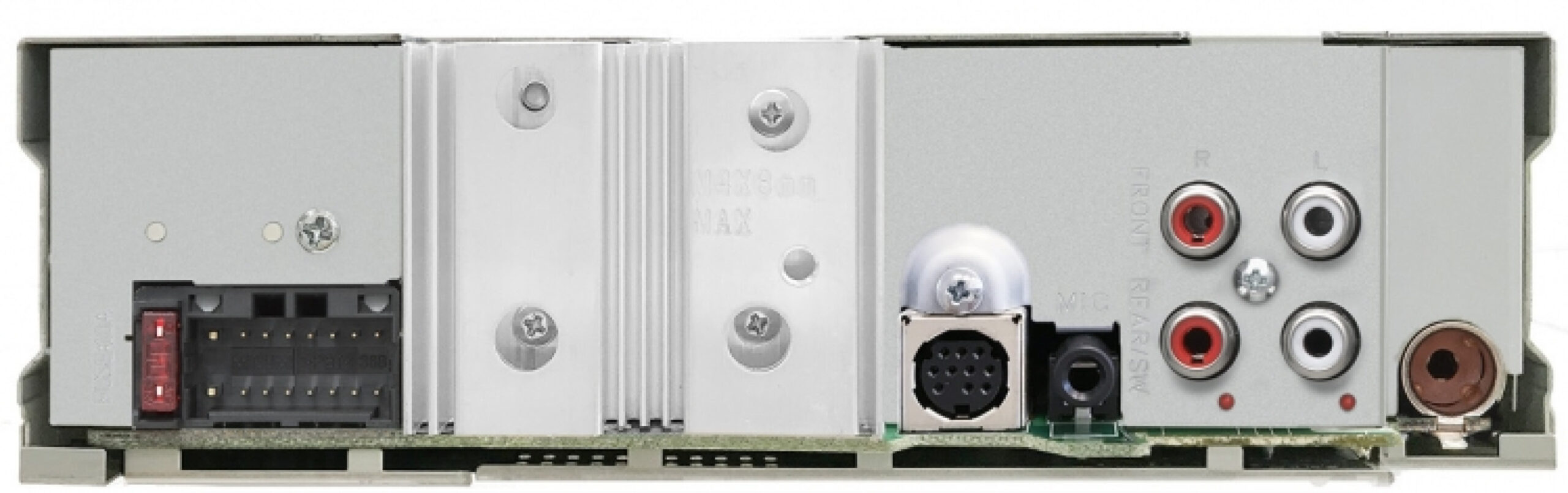

Inputs and Outputs
AUX Input 1 (Front)
Line Output Terminals (Pair) 2 Pairs (Front + Rear/Subwoofer Selectable)
Pre-Output Level 2.5V
Subwoofer Output with Level/Frequency Control Yes (Level -50 to +10)
Subwoofer Output Level 2.5V
Tuner
SiriusXM Ready Yes
Radio Data Broadcast System (RBDS) Yes
Preset Stations 18FM + 6AM
Strong Station Memory (for FM) Yes
Radio Timer Yes (Once/Daily/Weekly)
Tuner Preset Memory (for power disconnection) Yes
FM
Frequency Range (Frequency Step) 87.9 - 107.9MHz (200kHz)
AM
Frequency Range (Frequency Step) 530 - 1,700kHz (10kHz)
Audio
Maximum Power Output 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
Full Bandwidth Power (at less than 1%THD) 22W x 4
Subwoofer Direct Connection (Mono Lch) Yes
EQ Yes (13-Band Graphic EQ)
Preset EQ Yes (11-Preset)
Bass Boost Yes
Loudness Control Yes
High-Pass Filter/Low-Pass Filter Yes/Yes
K2 Technology Yes
Time Alignment Yes
Space Enhancement Yes
Sound Response Yes
Sound Lift Yes
Volume Link EQ Yes
General
Back Up Memory Yes
Detachable Face Panel Yes
Wireless Remote Control Ready (RM-RK52 required)
Steering Remote Control Ready Yes
Remote Control Application Yes
Dimensions (W x H x D)
Installation Size 7-3/16" x 2-1/8" x 6-3/16" (182 x 53 x 156mm)
Weight 2.6 lbs. (1.2kg)
Unit weight in individual package 3.31 lbs. (1.5kg)
