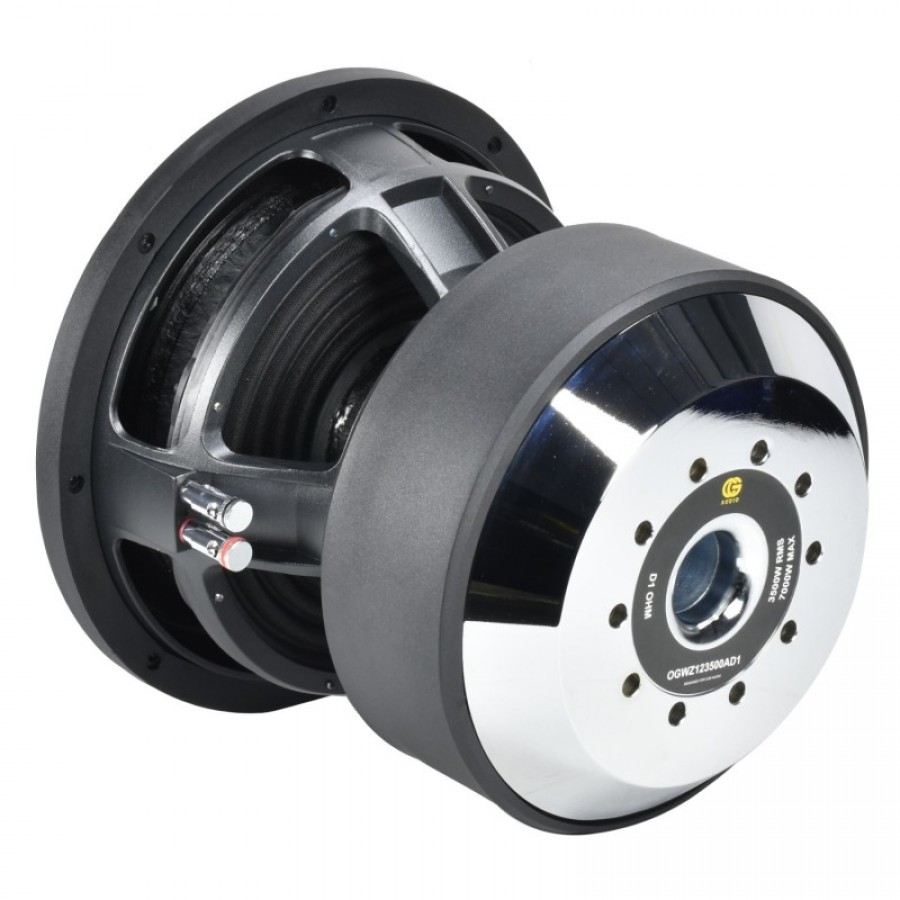

OG AUDIO OGWZ123500A 12″ 3500 WATTS RMS 2Ω SUBWOOFER – GOLD

OG AUDIO OGWZ123500A 12" 3500 WATTS RMS 2Ω GOLD
The OGWZ123500AD2 12-inch dual 2-ohm, OR 1ohm subwoofer is an ultimate powerhouse driver, unrivaled in performance and reliability. The WZ123500AD offers the perfect combination of size and power, conservatively boasting a 3500 watt max power rating. This 12-inch transient power subwoofer 7000 watts was engineered to with stand brutal everyday use while performing efficiently at the highest levels of output power.
The OGWZ123500AD2 12-inch series utilizes a 3.9-inch high temperature voice coil and a massive 4 layers with magnet system type ferrite, which deliver the riveting lows this subwoofer can produce. Combine those features with its high roll foam surround and cone material is kraft pulp fiber non-pressed cone which make this product AWESOME FOR ALL YOU NEED
Overall Dimensions

320*293mm

Nominal Power Handling

3500 W

Transient Power 10ms

7000 W

Sensitivity

83.1dB

83.5dB

Frequency Response

39-300Hz

38-300Hz

Cone Material

Kraft pulp fiber non-pressed cone

Net Weight

35.8kg

Electrical Data

Nominal Impedance

Dual 1.0Ohm

Dual 2.0Ohm

DC Resistance

Dual 0.75 Ohm

Dual 1.4Ohm

Voice Coil and Magnet Parameters

Voice Coil Diameter

99.3 mm

Voice Coil Height

83.8 mm

HE Magnetic Gap Height

35mm

Max.Linear Excursion

24.4mm

Voice Coil bobbin

Black Aluminum

Voice Coil Wire

Flat Aluminum

Number Of Layers

4 layers

Magnet System Type

Ferrite

BL Product

19.19 N.A

11.2N.A

T-S Parameters

Suspension Compliance

Cms

0.02

0.3

Mechanical Q Factor

Qms

4.04

4.17

Electrical Q Factor

Qes

0.59

0.56

Total Q Factor

Qts

0.52

0.5

Moving Mass

Mms

523.9

460.2

Eq.Cas Air Load( liters)

VAS

9.02Liter

9.95Liter

Resonant Frequency

Fs

39Hz

38Hz

Effective Piston Area

SD

510.7 cm²

NOTE:TS Measurement Connection:

Series

Parallel
