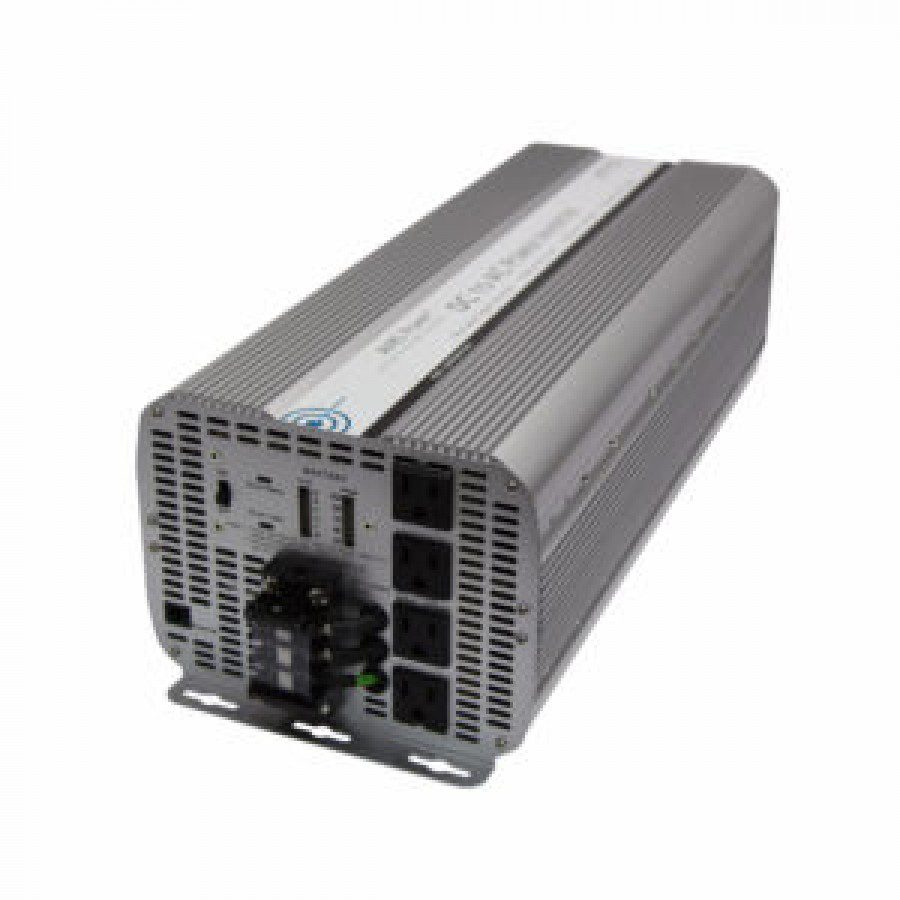

AIMS PWRINV10KW12V 10000 WATT POWER INVERTER

AIMS PWRINV10KW12V
Continuous output power: 10000 Watts
Surge power capability (peak power): 20000 Watts

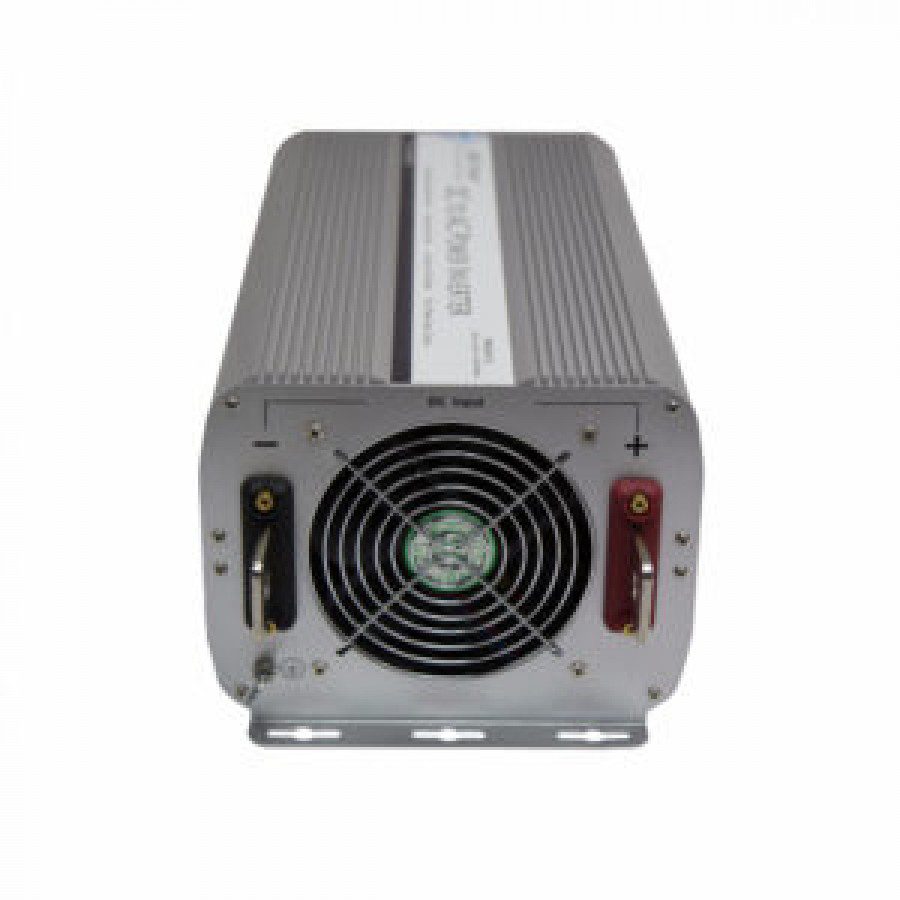

dc input / operating voltage: 10 to 16 Volts
Output voltage: 120 Volts ac +/- 10%
Output wave form: modified sine wave with phase correction
Output frequency: 60 Hz +/- 1 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
No load current: < 1.8 DC amps
Full load efficiency: 90%
1/3 load efficiency: 95%
No load minimum operating temperature: 30ºF
Full load maximum operating temperature: 140ºF (automatic shutdown)

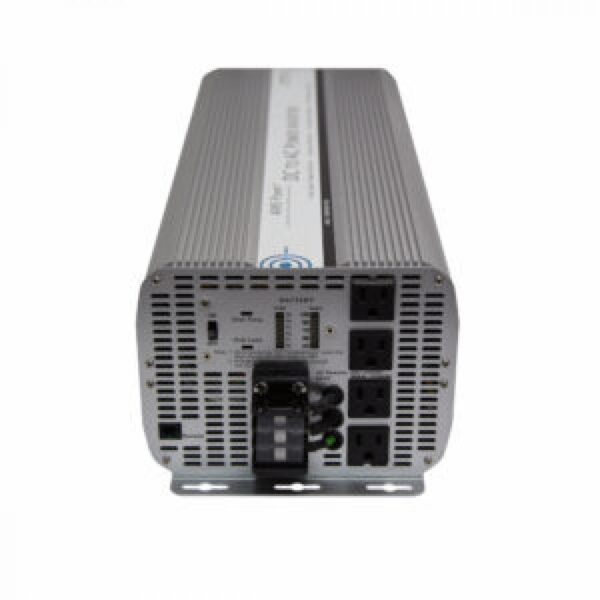

AC Output Socket Type: quadruple Type 2 -3 prong
High input voltage protection: 15V-17V
Low input voltage shutdown: 10V Internal fuse protection
Product size (L x W x H): 21 3/8 x 7 7/8 x 6 inches
Weight: unit 23.1 lbs. boxed 25 lbs.
UL maximum recommended per outlet 1500W
This inverter requires 2 sets of 4/0 AWT cable if you are going to run at 10000 watts.
