AUDIOCONTROL THREE.2

AUDIOCONTROL THREE.2

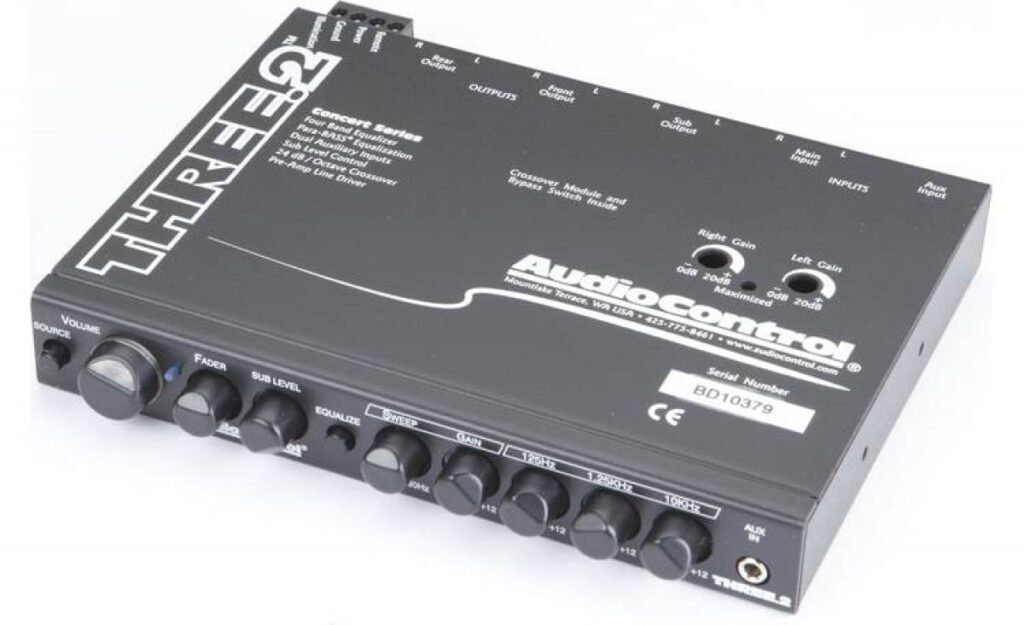

If you want great sound and love to “tweak” your system, then you will truly appreciate the AudioControl THREE.2. Affectionately called the “EQ on steroids”, the THREE.2 is a high-end pre-amplifier that offers equalization and crossover controls for enhanced sound quality. Multiple audio inputs, both front and rear allow for maximum connectivity with all of your favorite source units.
While being housed in a compact ½ DIN sized chassis, the THREE.2 is truly a feature-laden processor. The THREE.2 starts with four stereo equalization filters including AudioControl’s proprietary Para-BASS controls, which give subwoofers extra kick and detail as needed. It also features a 4 channel, 2-way, 24 dB/octave car audio crossover with a fader. To round out the package the THREE.2 also includes a subwoofer level control, master volume control, and the ability to select the back lighting illumination color between Cool Blue and Hot Red.

Given that many of today’s audio enthusiasts like to carry their music with them, the THREE.2 is equipped with dual, 3.5mm auxiliary input jacks located on the front and rear of the chassis. This helps facilitate the permanent installation of cabling or lets a user plug in their portable audio device on the fly. Like all AudioControl autosound products, the THREE.2 is built in our factory in the Pacific Northwest, USA and carries a full 5-year parts and labor warranty when installed by an authorized dealer.

features
Stereo graphic equalization
Front and Rear, Dual Auxiliary inputs
Para-BASS® low frequency contouring
Selectable Cool Blue or Hot Red back-lighting
24dB/Octave Linkwitz Riley crossover
Pre-amp gain of 20dB
Line driver: 13 volts peak output
Subwoofer level control
High headroom PWM switching power supply
Master volume and fader control
inputs
Preamp Inputs: 1 (2 channels)
Input Gain: 0-20dB
Aux Inputs: 2 (⅛” stereo)
Input Impedance: 20kΩ
outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 9.5Vrms
Output Impedance: 150Ω
