JL AUDIO C5-570X

Description

JL AUDIO C5-570X
General Features:

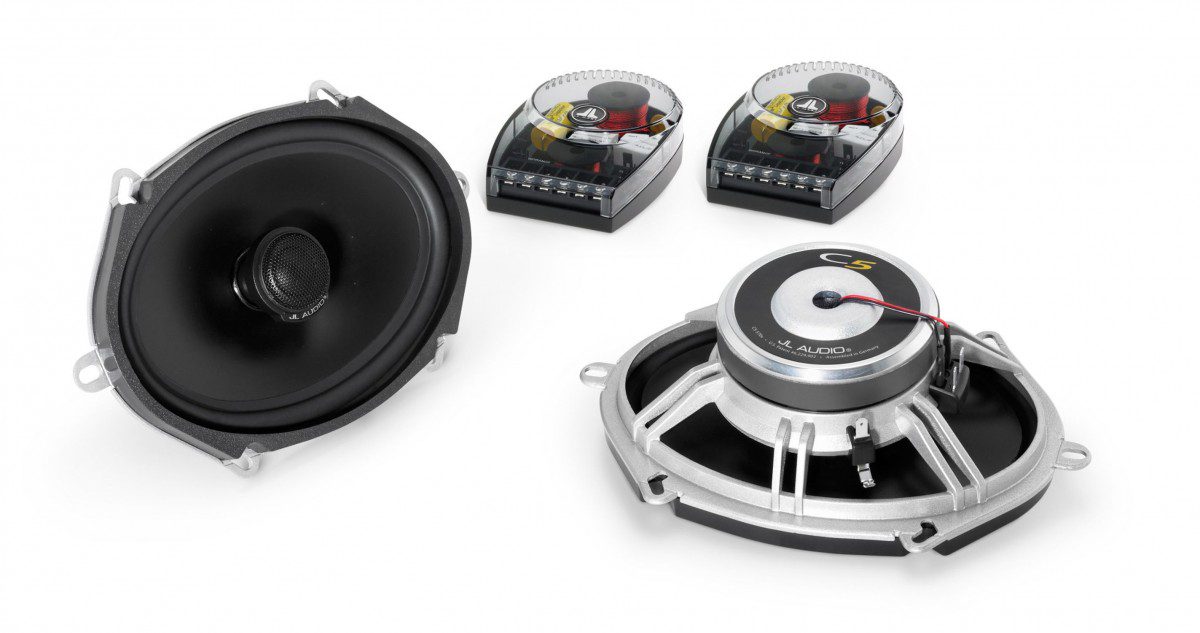

5″ x 7″ / 6″ x 8″ Evolution C5 Series 2-way Coaxial Car Speakers
Power Handling:
Peak: 450 watts per set / 225 watts per channel
RMS: 150 watts per set / 75 watts per channel
Woofer Dimensions:
Top-mount depth: 2.45 ”
Frame Outer Diameter: 5.47″ x 7.68″
Crossover Dimensions:
Width: 3.36″
Height: 1.44″
Depth: 4.72″
Nominal Impedance: 4 ohm
Efficiency: 90.5 dB @ 1 watt / 1 meter
Frequency Response: 48 Hz – 25 KHz ± 3 dB
Recommended Power Range: 25 – 150 watts per channel
Mineral-Filled Polypropylene Cone
Butyl Rubber Surround
Cast Alloy Frame/Basket
Elevated Frame Cooling
Ferrite Woofer Magnet
1.00″ Voice Coil on Kapton® Former
Low-Profile, Symmetrical Roll Spider
Dynamic Motor Analysis (DMA) Optimized Motor
0.75″ Silk Soft Dome Tweeter
Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
Premium Mylar® Capacitors w/ Air-Core Inductors
4-Position Adjustable Tweeter Output Level
3-position Mid-range Presence Control
Polyswitch Tweeter Protection
