JL AUDIO M600/6
JL AUDIO M600/6 M SERIES 600 WATT 6 CHANNEL MARINE
- Additional information
JL AUDIO M600/6 M SERIES
6-Channel Class D Marine Full-Range Amplifier, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω – 14.4V
This incredibly flexible amplifier packs a serious full-range punch, and delivers a staggering 100 watts to each of its six channels into 2 Ω (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
With the M600/6, you have lots of great options. Use it as a six-channel satellite amplifier with 75 W x 4 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200W x 2 @ 4 Ω to one pair of satellites and 75 W x 2 @ 4 Ω to a secondary pair of satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2. The M600/6 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four or all six of the amplifier’s channel levels from a remote location.

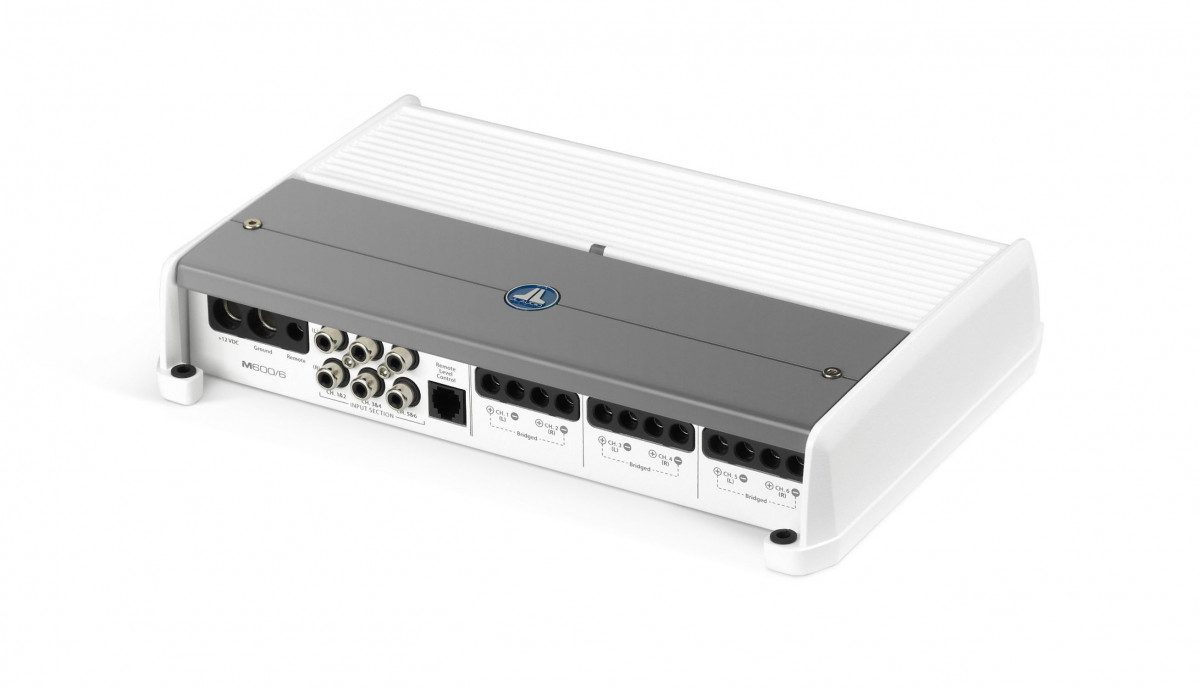

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Frequency Response 12 Hz – 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV – 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
