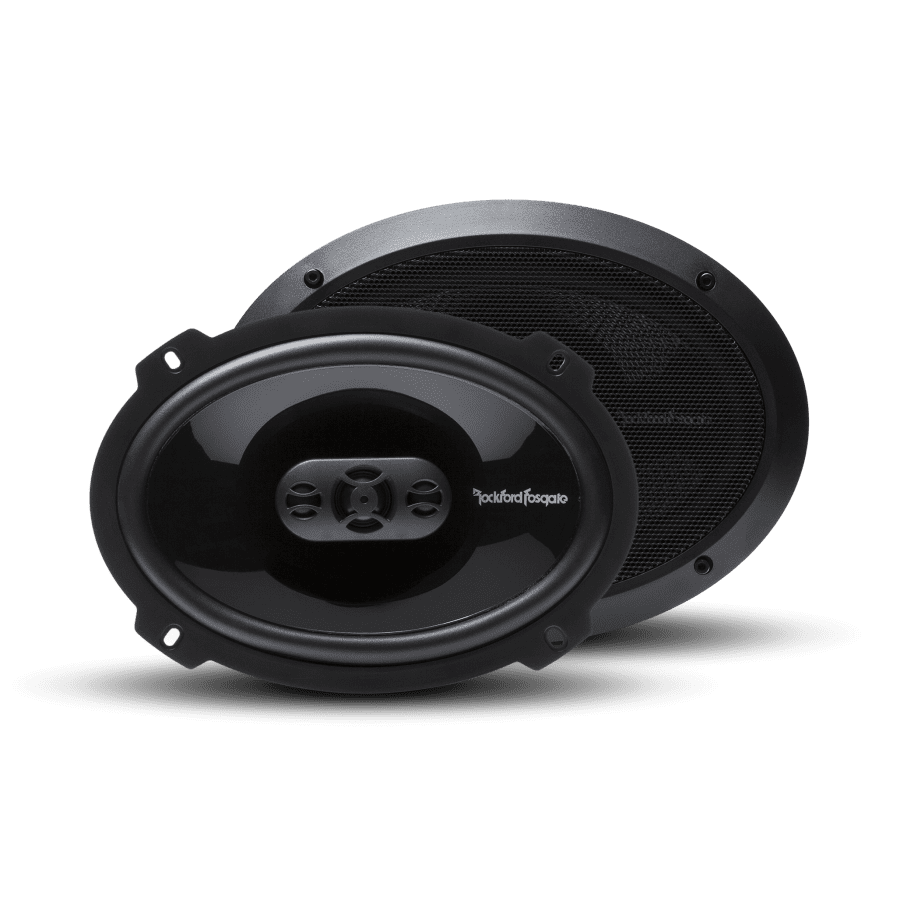

Rockford Fosgate Punch P1694 6x9in 4-Way Coaxial 75 Watts RMS Door Speaker

The Rockford Fosgate P1694 6 x 9-inch 4-way coaxial speakers deliver 75 Watts RMS with a mineral-filled polypropylene cone and PEI dome tweeter for a detailed factory audio upgrade.

$119.99

Out of stock

Description

The Speaker At A Glance:

  • Clear, detailed highs: A 0.75-inch PEI dome tweeter helps bring definition to vocals and high-frequency details.
  • 4-way full-range design: The P1694 delivers a layered listening experience across a frequency response of 60 Hz to 24 kHz.
  • Strong power handling: Rated for 75 Watts RMS and 150 Watts Max.
  • Controlled mid-bass: An injection-molded, mineral-filled polypropylene cone and butyl midrange rubber surround support responsive sound reproduction.
  • Efficient factory replacement: A sensitivity of 91 dB at 1 Watt per 1 meter helps the speakers produce useful output in factory replacement systems.
  • Installation-friendly design: The FlexFit basket accommodates odd-shaped factory speaker locations, while the Integrated Concealed Crossover eliminates separate crossover boxes.

The Rockford Fosgate P1694 is designed to lift the sound of a factory system with greater detail, clearer vocals, and more distinct high-frequency information. Its 4-way configuration gives music a more complete presentation, helping individual elements sound better defined than they may through typical factory speakers.

The mineral-filled polypropylene cone and butyl midrange rubber surround provide a solid foundation for mid-bass, while the PEI dome tweeter adds clarity up top. Sold as a pair with grilles and mounting hardware, these Punch Series speakers combine premium factory-replacement sound with a practical drop-in design.

Speaker Specifications & Thiele/Small Parameters
Speaker Type Coaxial
Speaker Configuration 4-Way
Speaker Size 6x9in
Tweeter Size (Nominal Diameter) 0.75″ (19.0mm)
Speaker RMS 75 Watts RMS
Speaker Max Power 150 Watts Max
Speaker Impedance 4 Ohm
Sensitivity (dB @ 1W/1M) 91
Frequency Response (Hz) 60Hz – 24kHz
Crossover Design Integrated
Installation Specifications
Midrange Mounting Depth 3.07″ (78mm)
Grille/Trim Ring Included Yes
Mounting Hardware Yes
Sold As Pair
Shipping Weight 8.8 Lbs. (3.99 Kg.)

Additional information

Weight 9 lbs
Dimensions 17.25 × 11.5 × 14.75 in
Speaker Type

Speaker Configuration

4-Way

Sold As

Pair

Speaker Features

Grilles Included, Mounting Hardware Included

Speaker Impedance

4 Ohm

Speaker Max Power

150 Watts Max

Speaker RMS Power

Speaker Size

Crossover Design

Integrated

Series

Punch

Tweeter Material

PEI
