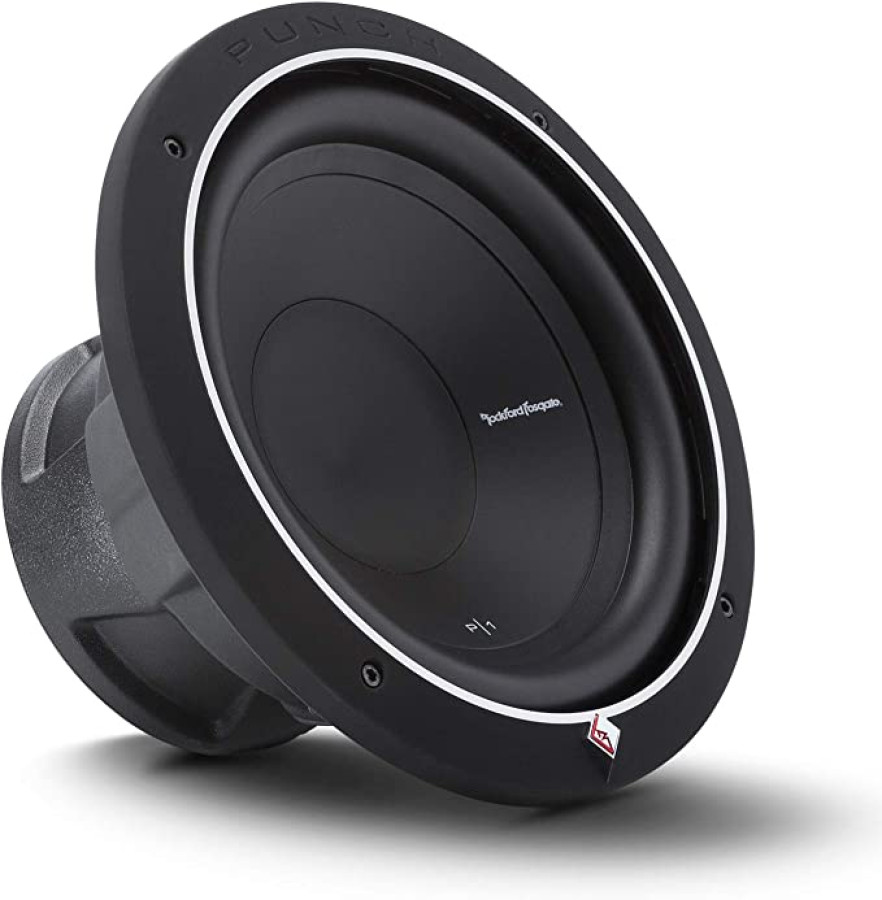

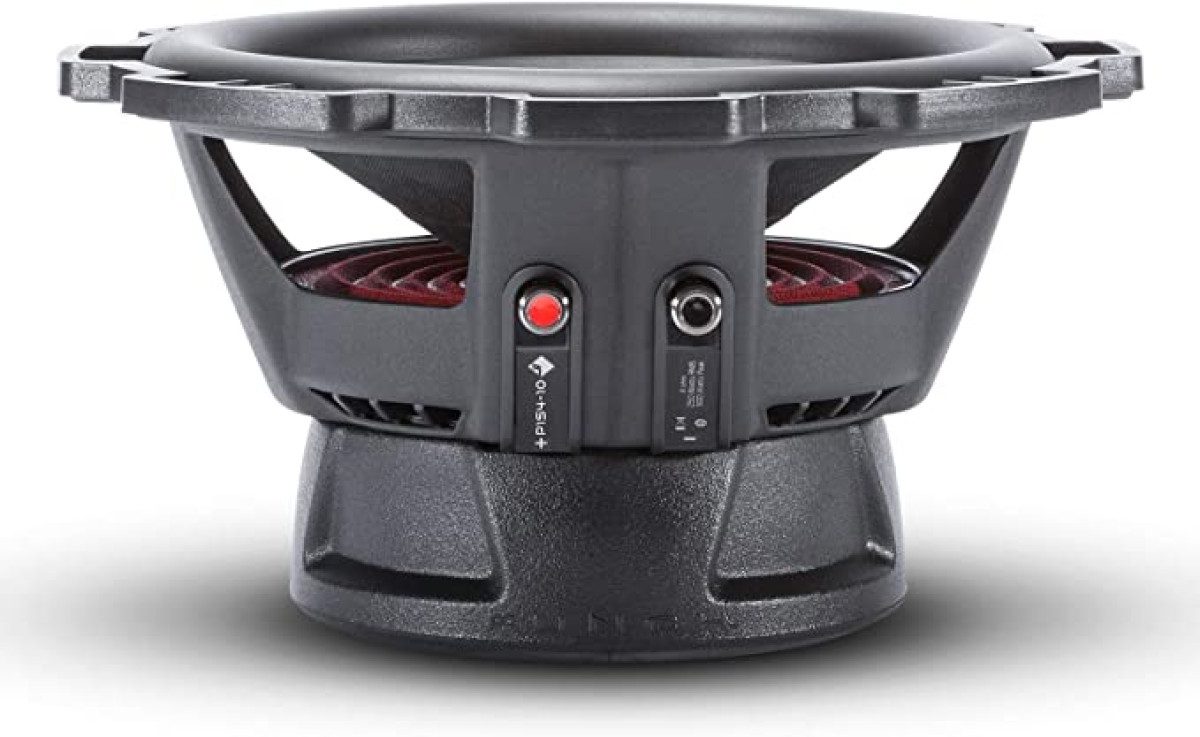

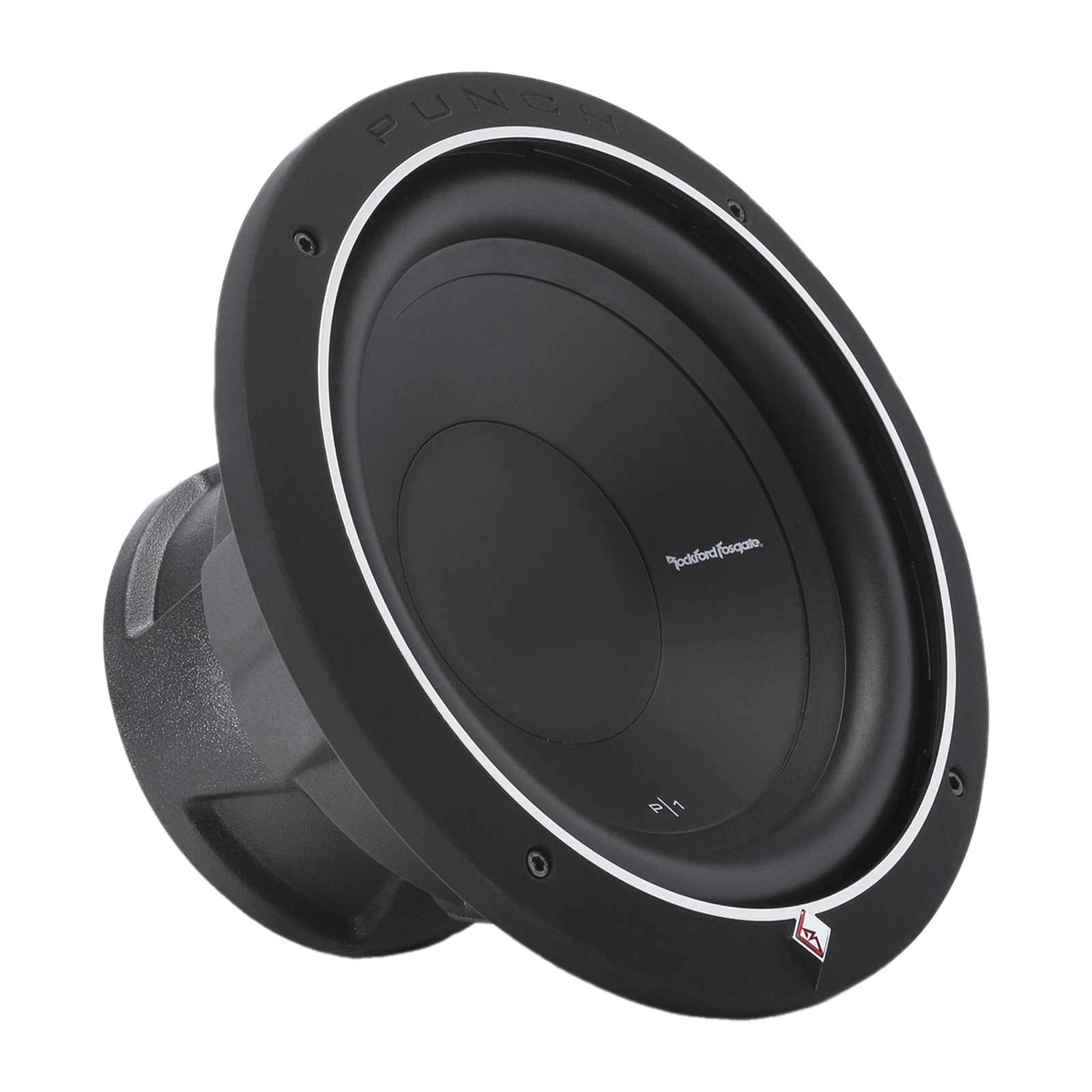

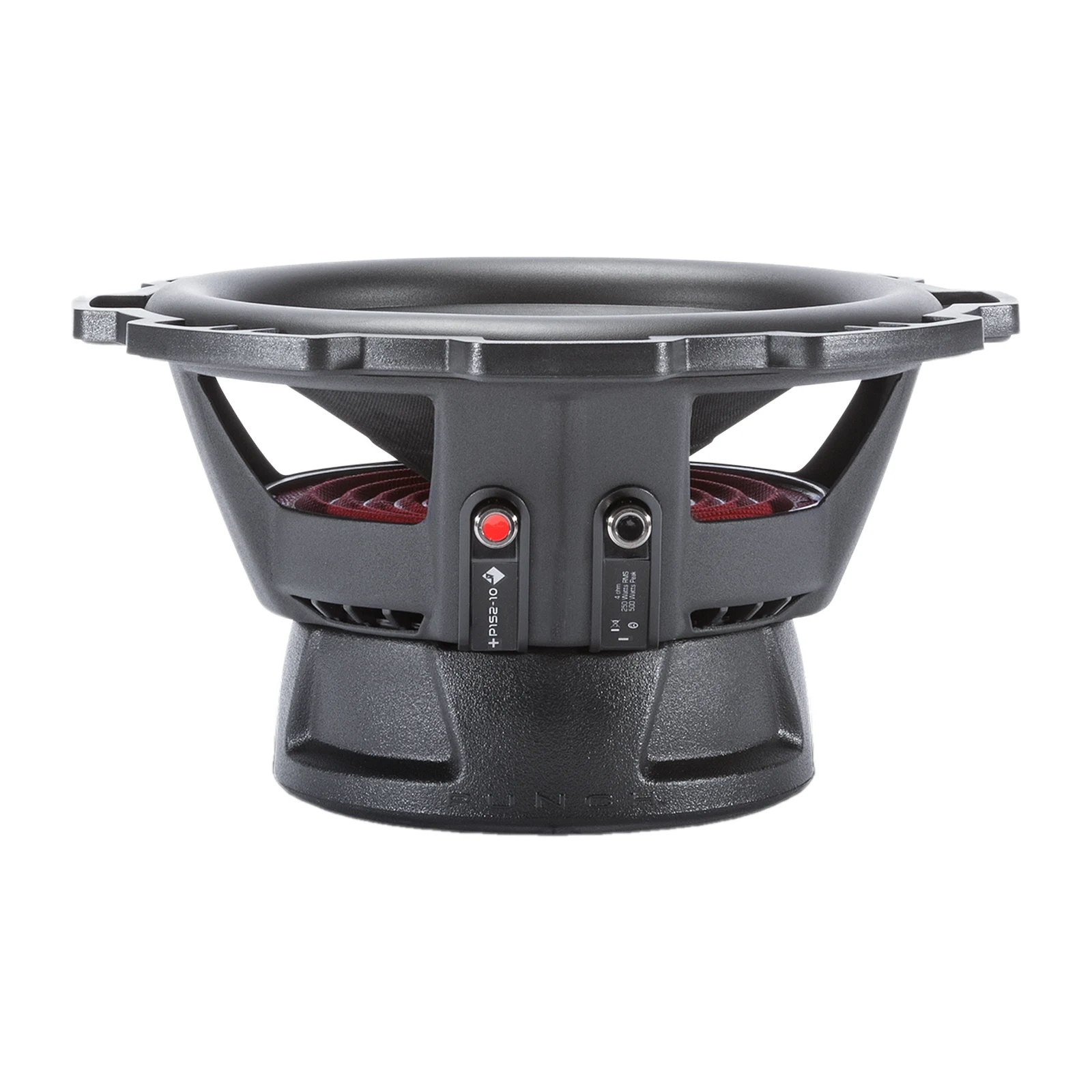

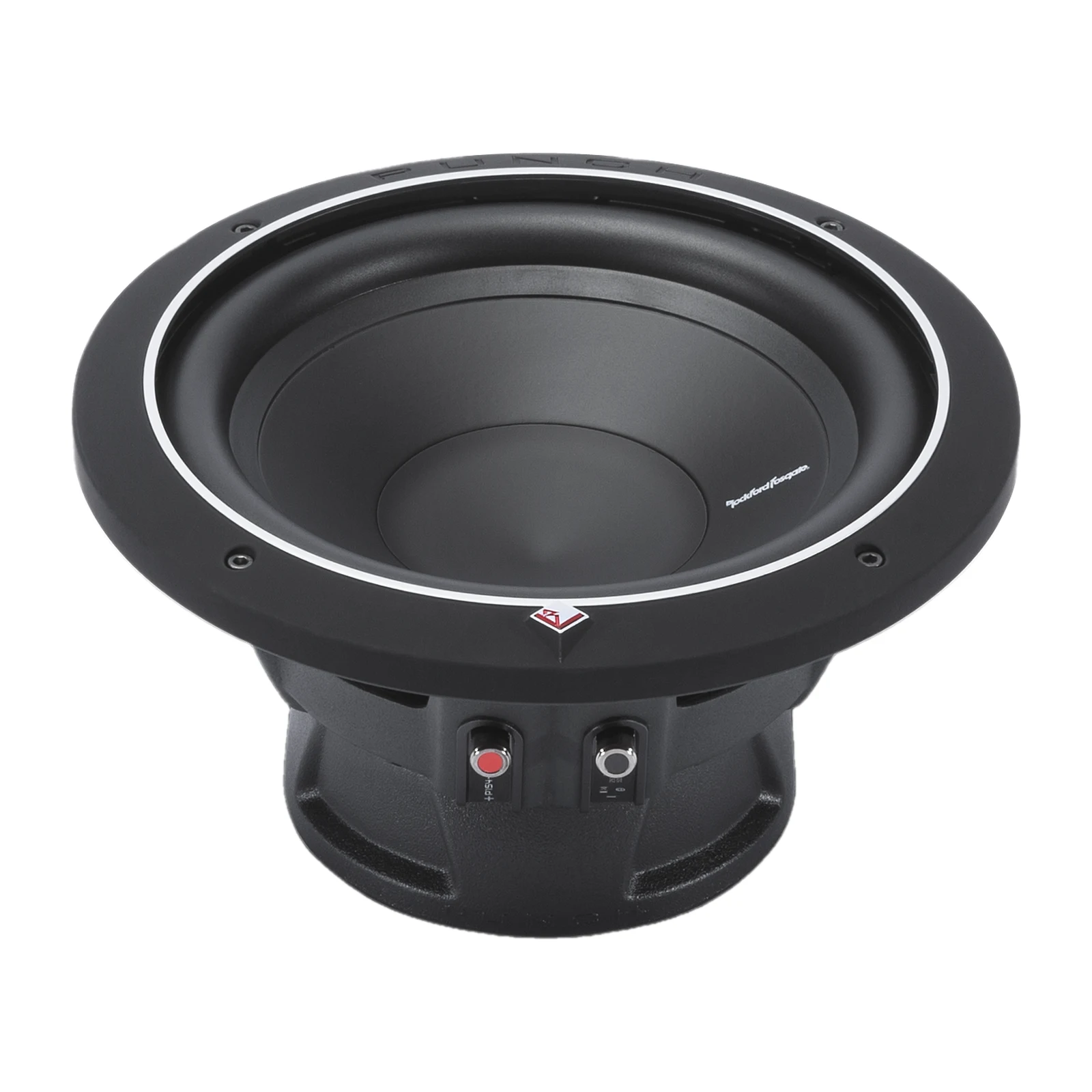

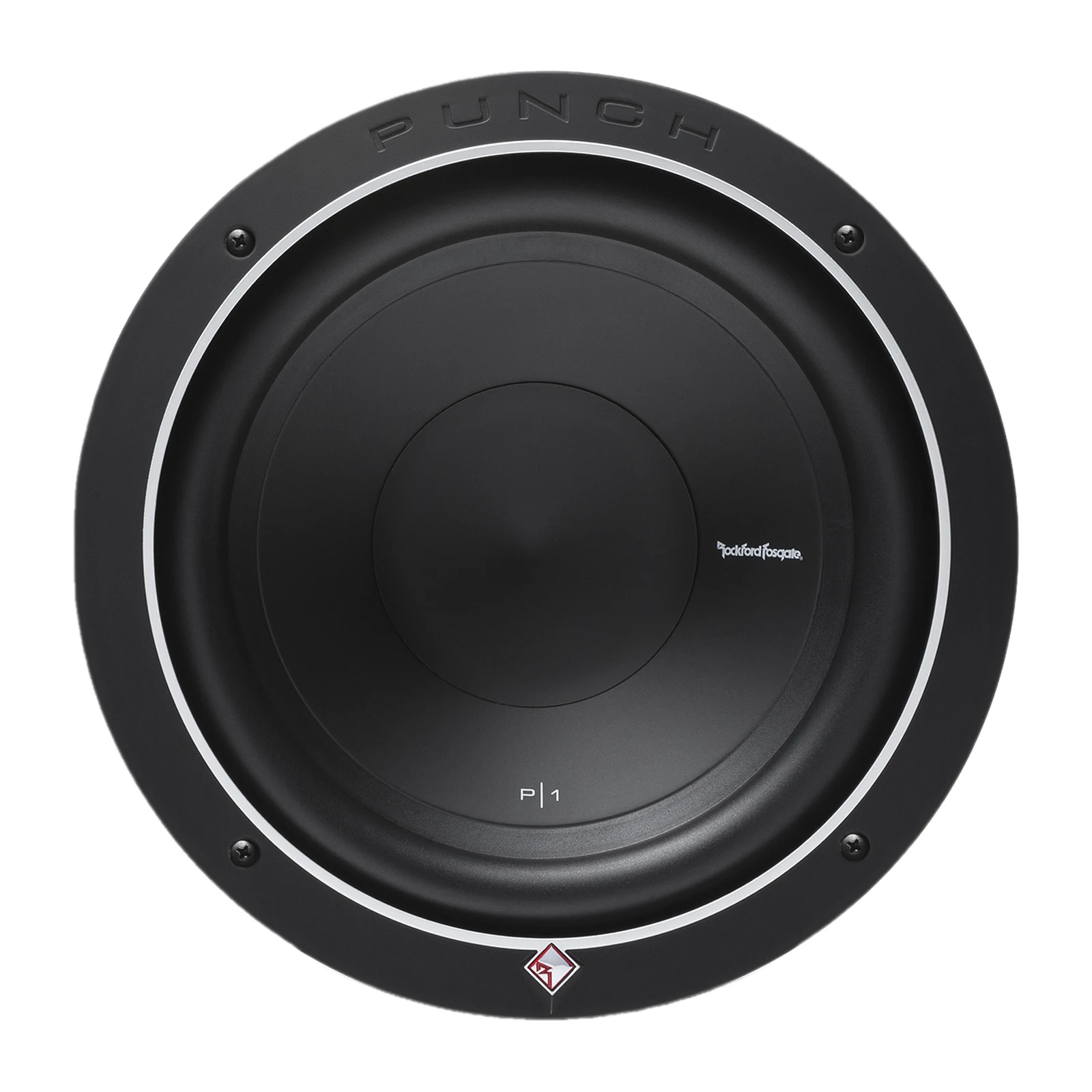

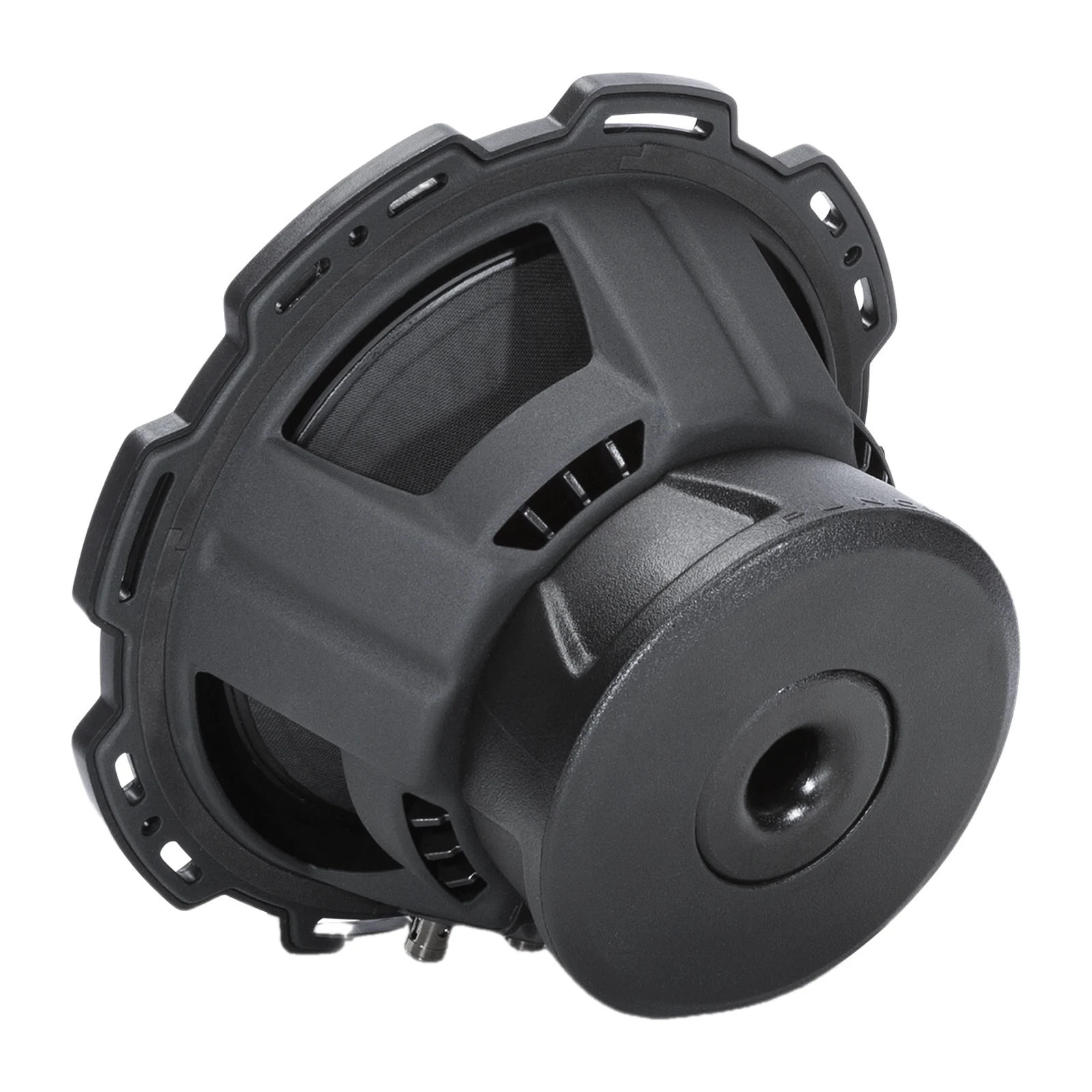

ROCKFORD FOSGATE P1S2-10

ROCKFORD FOSGATE P1S2-10
Power Handling (Watts RMS)250 Watts RMS
500 Watts Max
Size10"
Subwoofer TypeStandard
CEA-2031 CompliantCEA-2031 Guidelines
Nominal Impedance2-Ohm
Magnet Weight (oz)45 oz. (1.28 kg.)
Voice Coil TypeSingle Voice Coil
Voice Coil Diameter2.0" (51.6 mm)
Fs (Hz)30
Qms2.70
Re (Ohms)1.60
Xmax (mm)9.0
Qts0.52
Speaker ConnectorDual 10 AWG compression
Qes0.75
Vas (Liters)35.4
Le (mH)1.16
Mounting Depth5.33 in. (135.4 mm)
Sd (cm2)370
SPL (dB @ 1w/1m)85
Cutout Diameter9.14 in. (232 mm)
SPL (dB @ 2.8v/1m)88
Woofer Displacement0.056 cu. ft. (1.6 Liters)
Sealed Box Volume (Vb)0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb)1.4 cu. ft. (39.6 Liters)
Shipping Weight11.1 Lbs. (5.03 kg)
Linear spider with embedded 16 AWG tinsel leads
Kevlar fiber reinforced paper cone
StampCast basket with integrated spider venting
Rubberized ABS trim ring with optional grille
Custom 10-AWG nickel plated push terminals
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Extended pole piece and bumped vented backplate
1 Year Warranty
Protective PVC textured magnet cover
