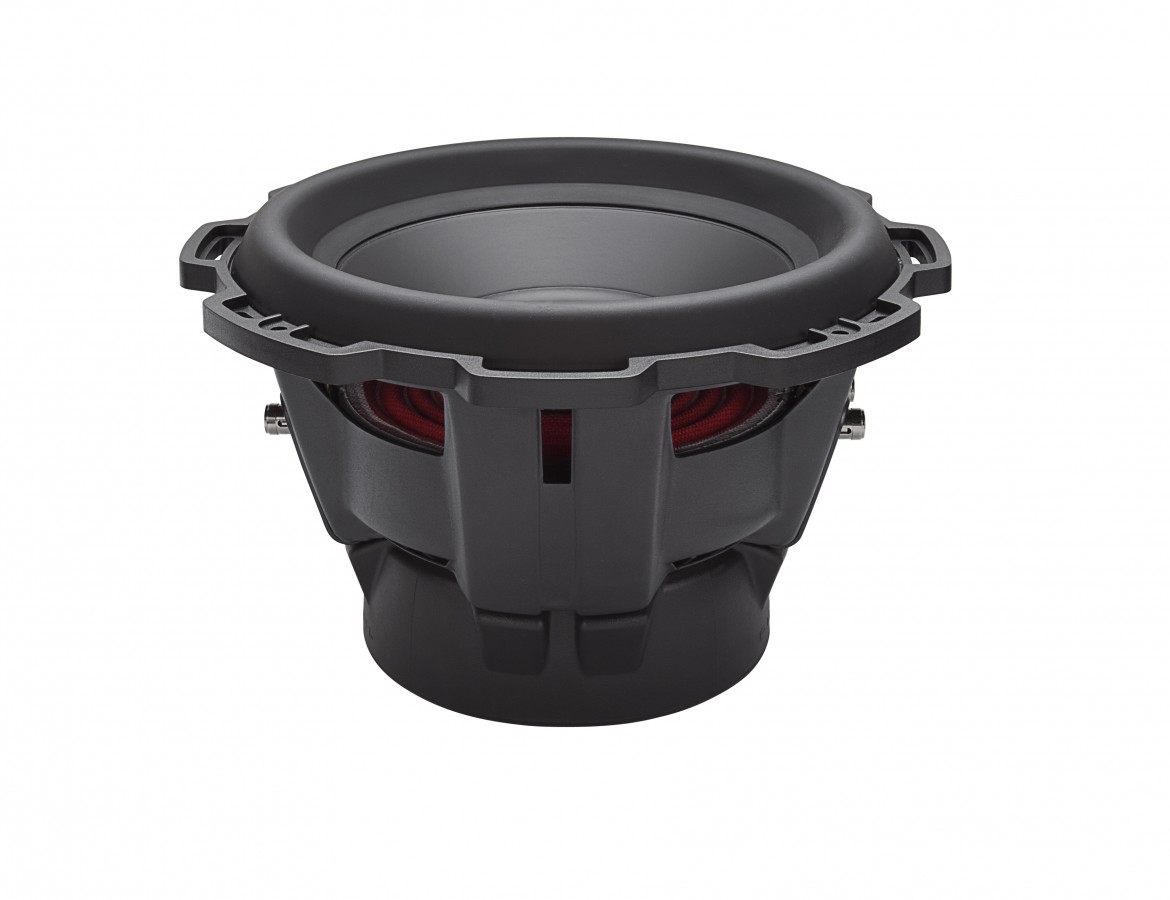

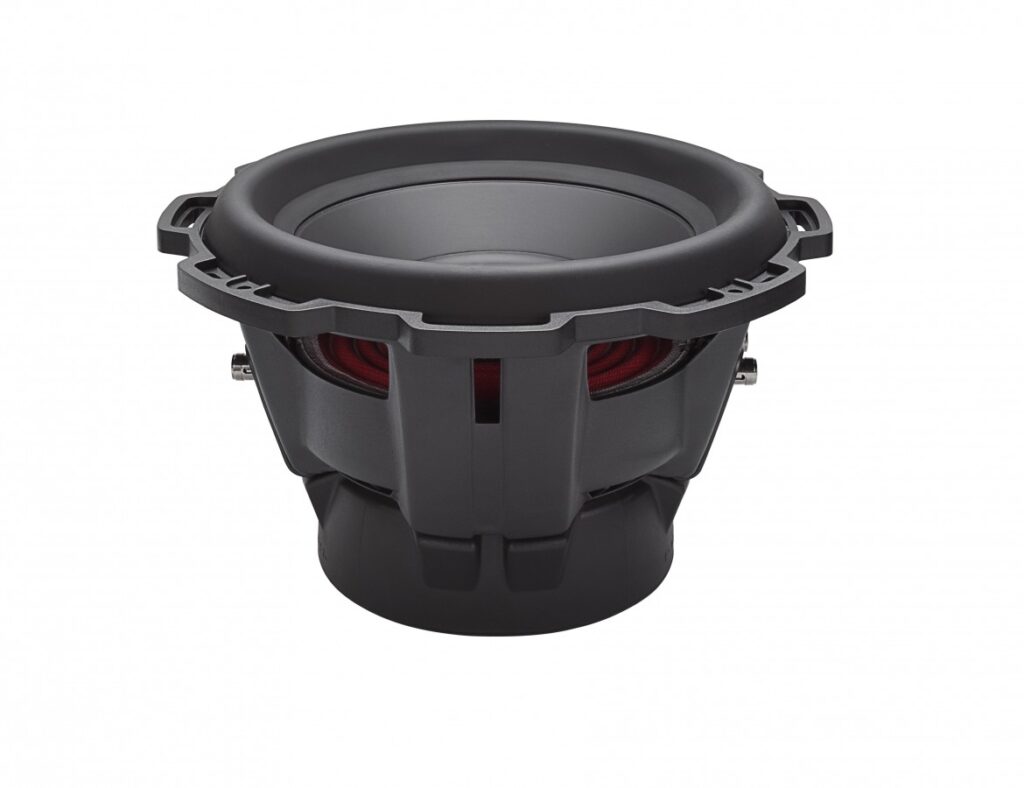

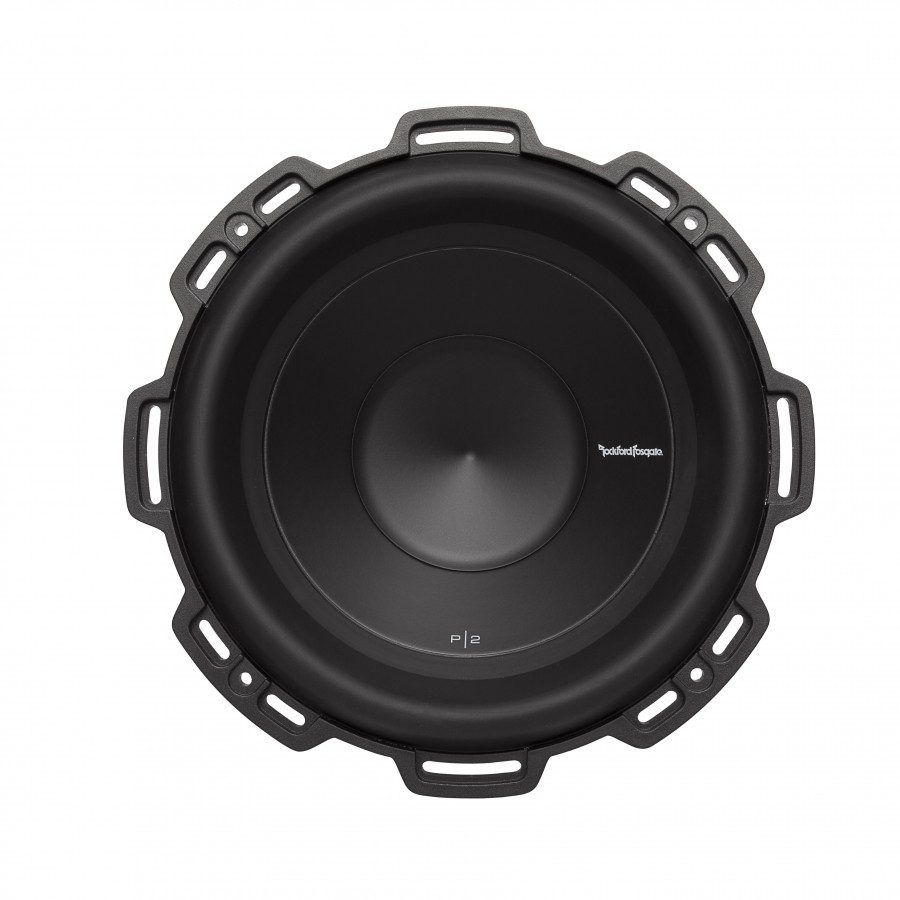

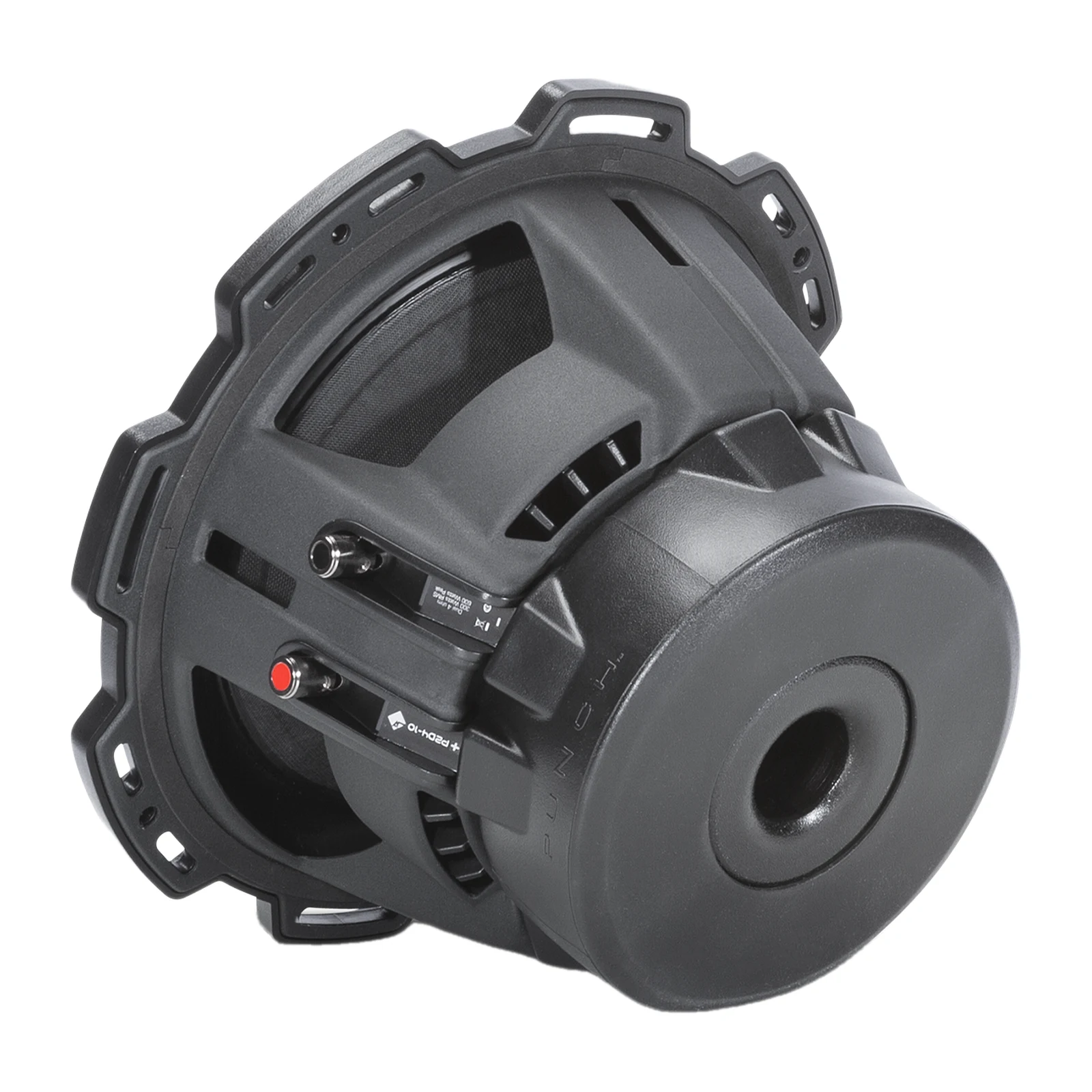

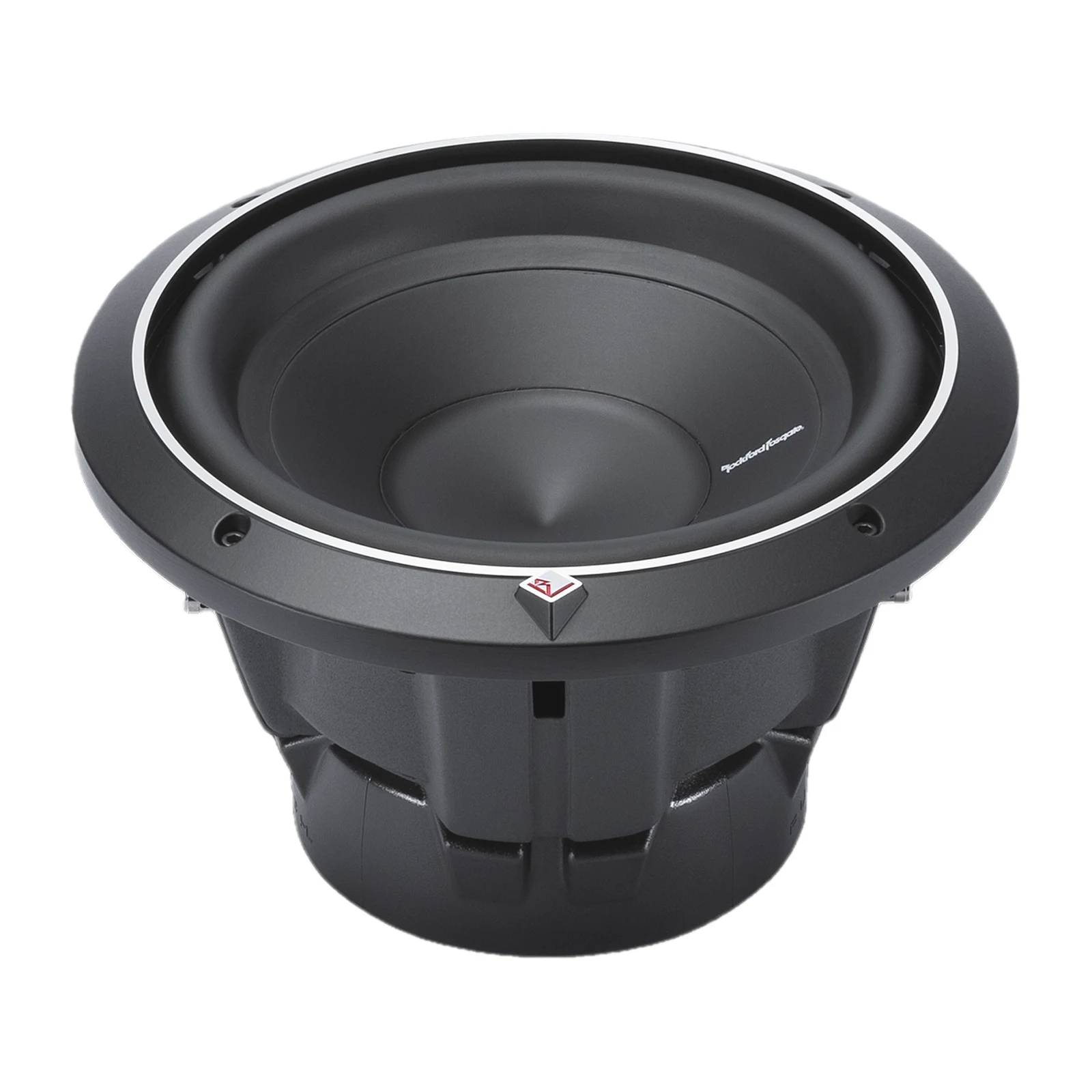

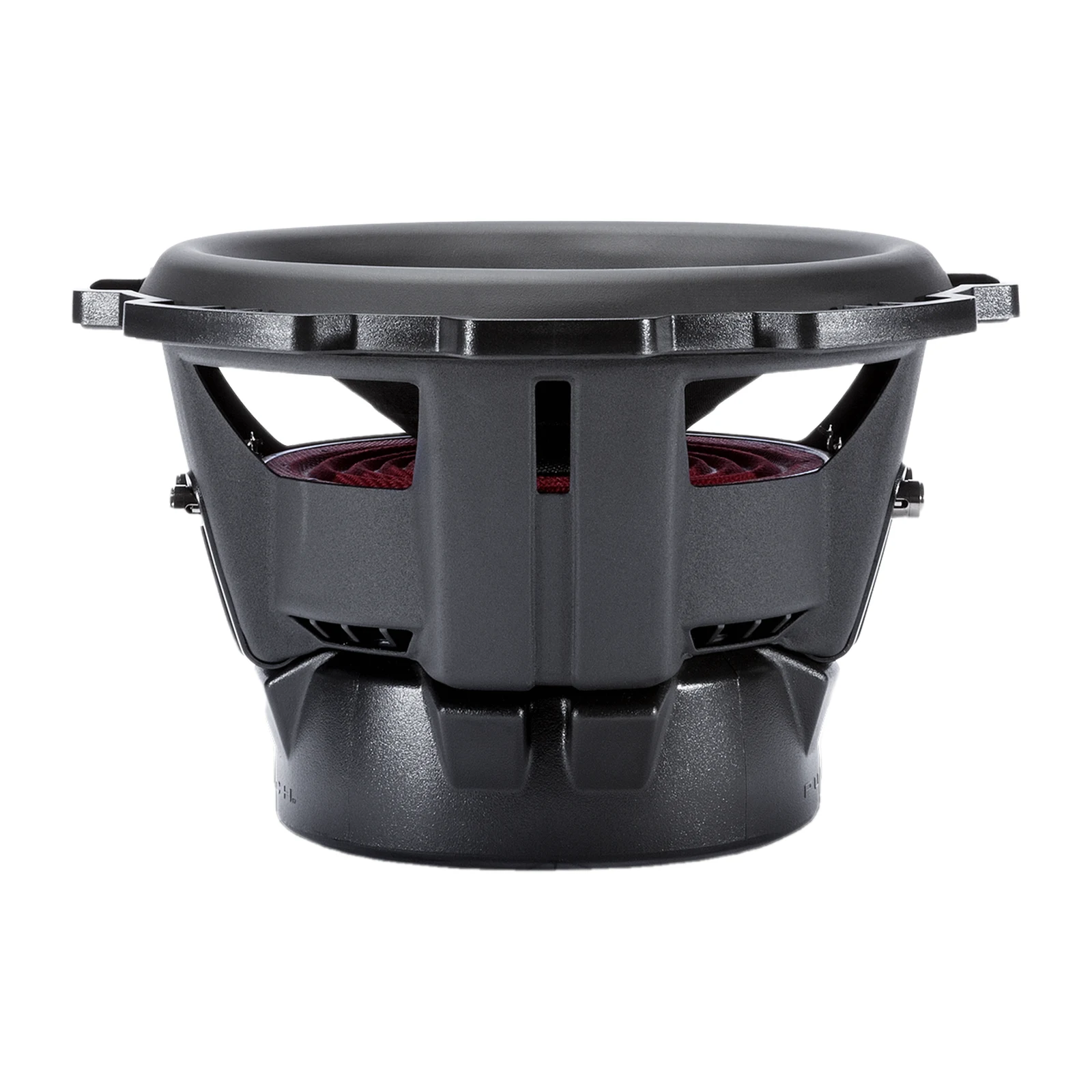

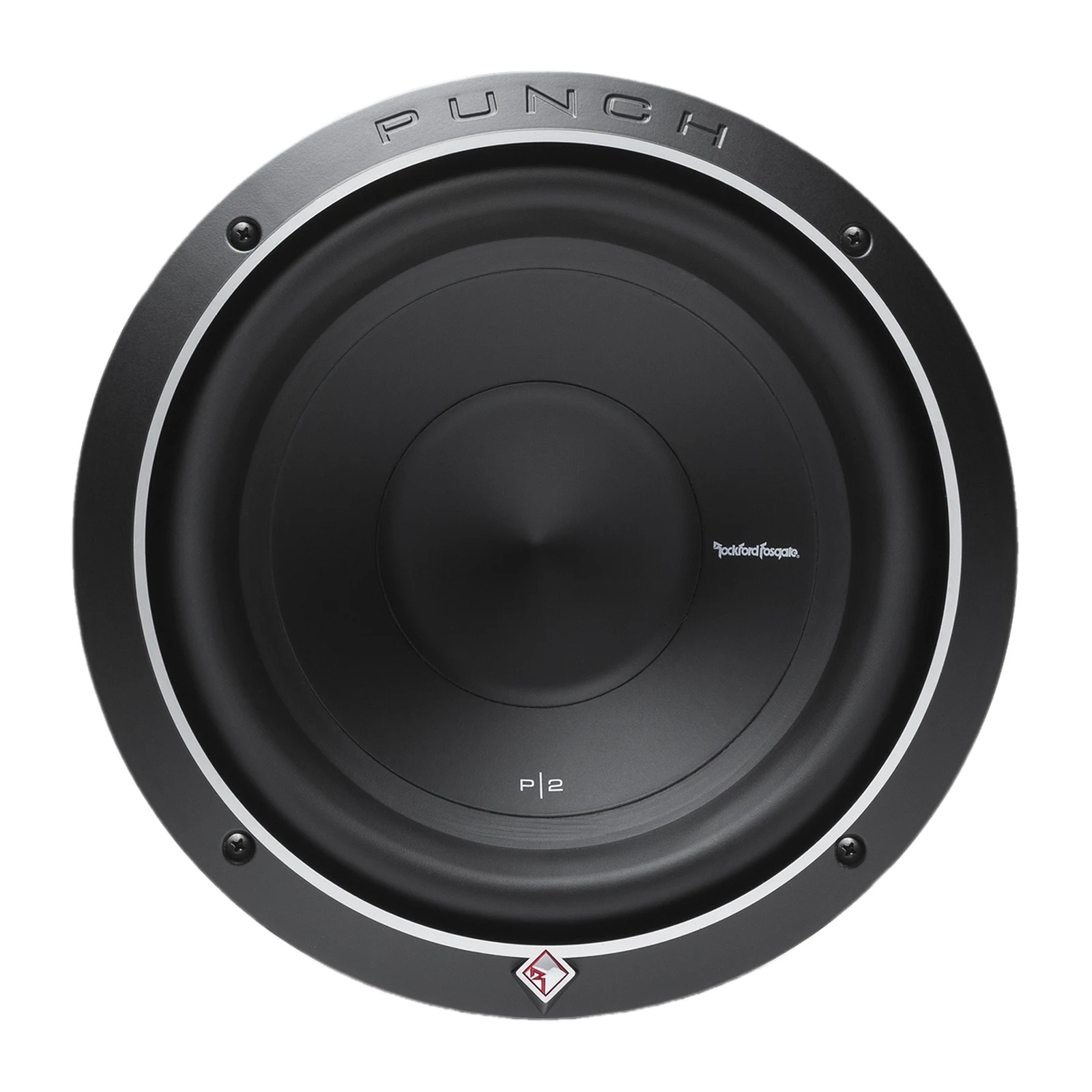

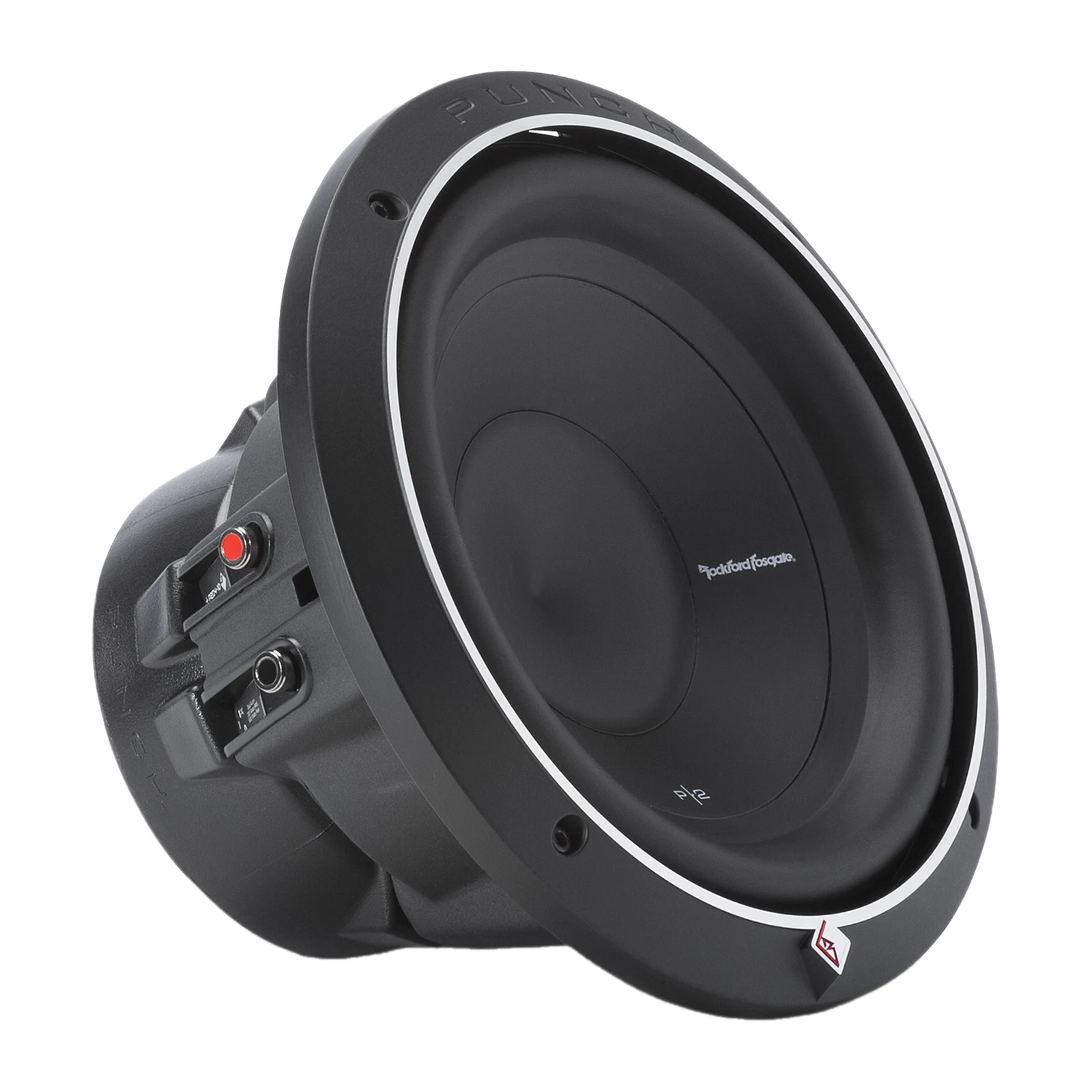

Rockford Fosgate Punch P2D4-10 10in Dual 4 Ohm 300 Watts Subwoofer

Rockford Fosgate P2D4-10 10-inch dual 4-ohm car subwoofer with 300 watts RMS power handling, a Kevlar fiber-reinforced paper cone, and VAST technology for hard-hitting bass.

$179.99

3 in stock

Description

The Sub At A Glance:

  • Power handling: Handles 300 watts RMS and 600 watts max.
  • Dual voice coils: Dual 4-ohm configuration with a 2.25-inch (57.15 mm) voice coil.
  • Reinforced cone: Kevlar fiber-reinforced paper cone delivers bass impact you can feel.
  • VAST technology: Increases usable cone surface area by up to 25%.
  • Durable suspension: Dual linear spider with embedded 16-AWG tinsel leads supports reliable cone movement.
  • Rugged frame: StampCast basket with integrated spider venting adds structural durability.
  • Enclosure flexibility: Performs best in standard sealed and vented enclosures.

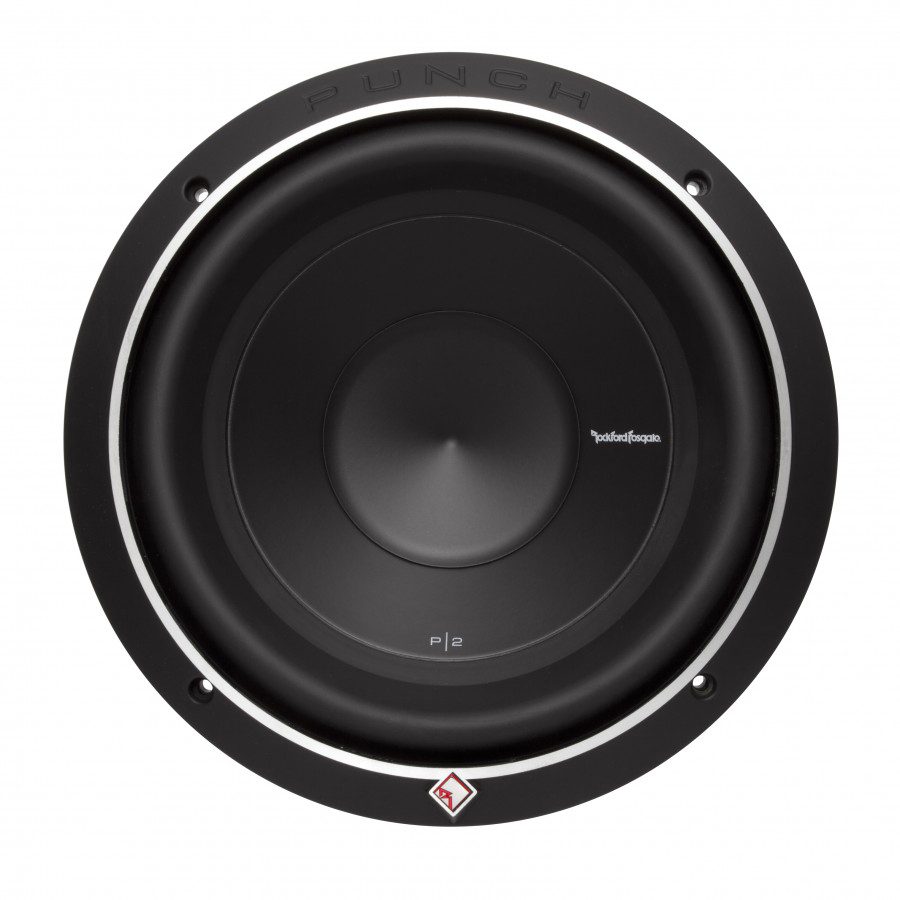

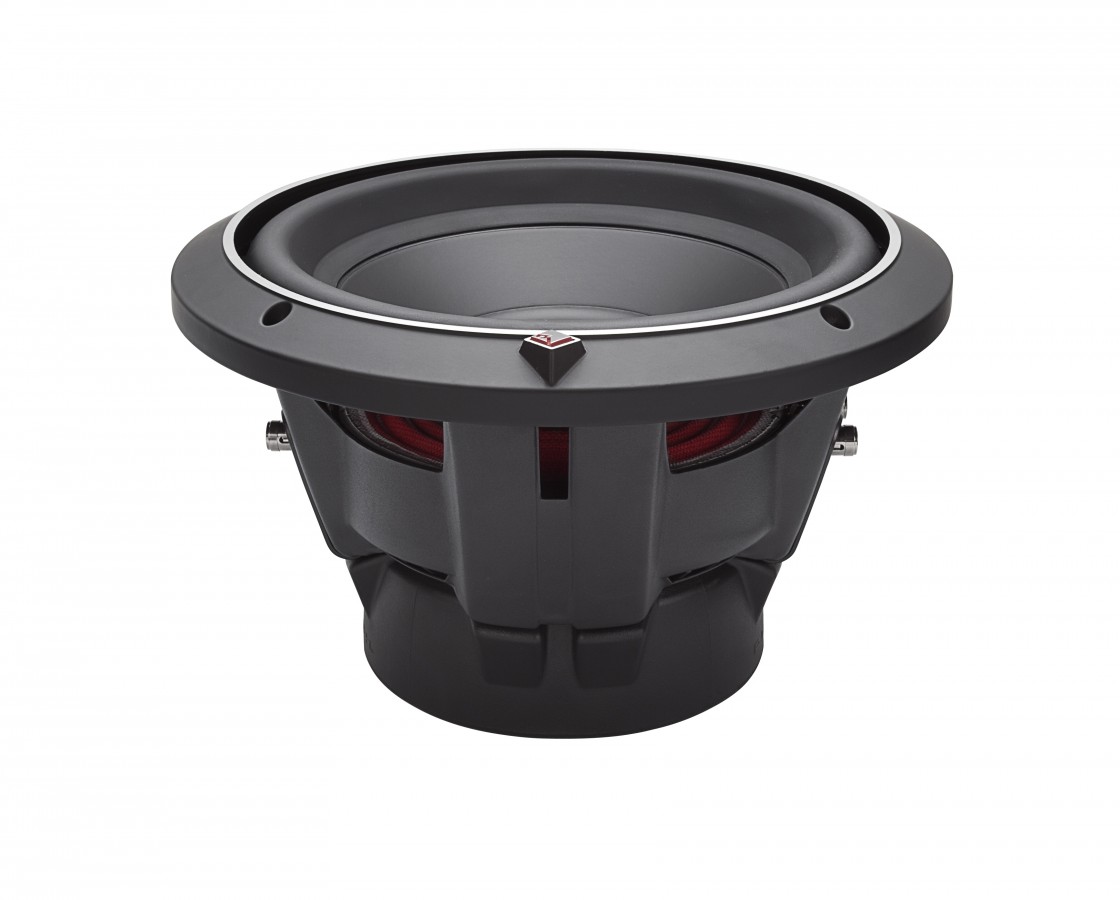

  • Finished protection: Includes a protective PVC-textured magnet cover and diamond-cut cast aluminum trim ring that accepts an optional grille insert.

The P2D4-10 carries on Rockford Fosgate’s PUNCH tradition with low-frequency impact that gives music real weight inside the vehicle. Its reinforced cone and VAST technology move the bass with a deep, forceful presence, bringing out the rumble of sustained notes and the physical hit of every beat.

Subwoofer Specifications
Sub Size 10in
Sub Type Standard
Sub Power RMS 300 Watts
Sub Max Power 600 Watts
Sub Impedance Dual 4 Ohm
Voice Coils Dual
Voice Coil Diameter 2.25in (57.15 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 11mm
Sound Pressure Level (SPL) @ 1W/1m 84dB
Resonant Frequency (Fs) 30.8Hz
DC Resistance (Re) 6.40Ohm
Voice Coil Inductance (Le) 5.3mH
Total Q (Qts) 0.57
Electrical Q (Qes) 0.62
Mechanical Q (Qms) 7.00
Equivalent Compliance Volume (Vas) 35.4Liters
Effective Cone Area (Sd) 360cm²
Fitment & Dimensions
Woofer Displacement 0.060 cu. ft. (1.7 Liters)
Mounting Depth 5.92 in. (150.4 mm)
Cutout Diameter 9.13 in. (232 mm)
Magnet Weight (oz) 66.4 oz. (1.88 kg.)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)

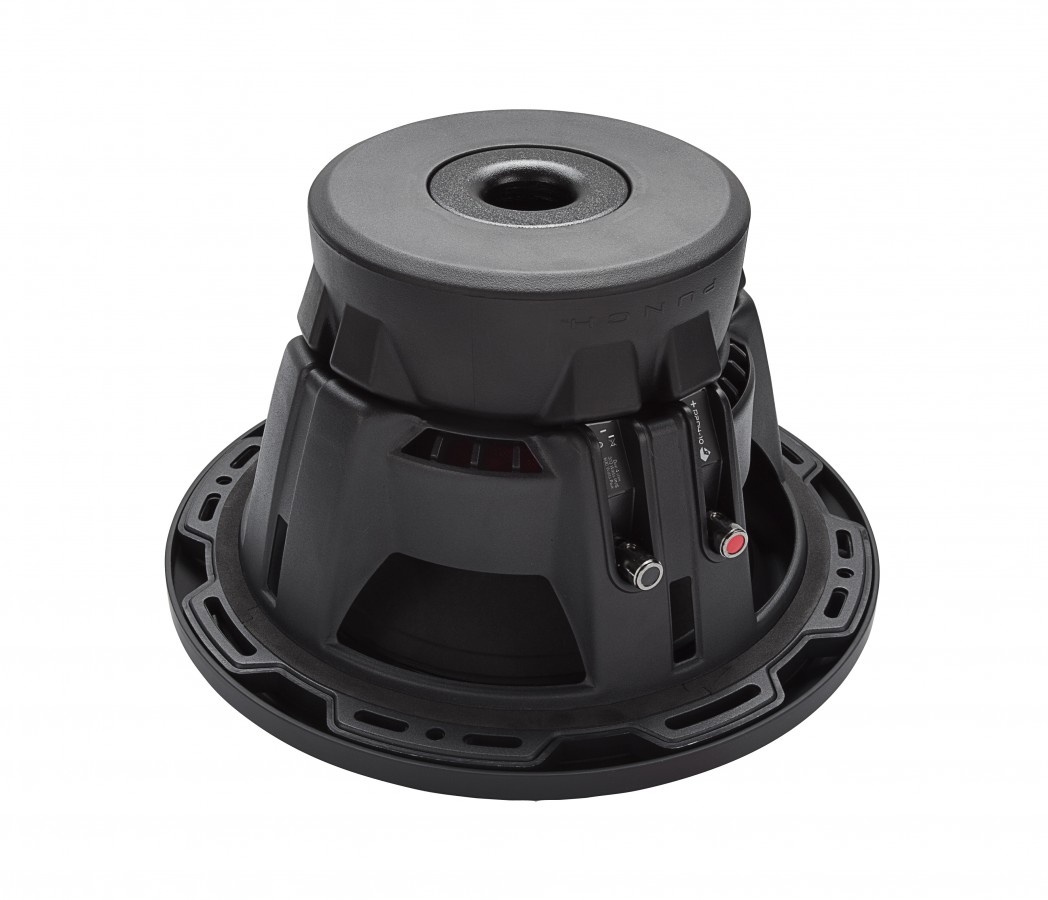

Speaker Connector Dual 10 AWG compression
Shipping Weight 13.6 Lbs. (6.16 kg)

Additional information

Weight 14 lbs
Sub Size

Sub Impedance

Sub Max Power

600 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Dual

Series

Punch
