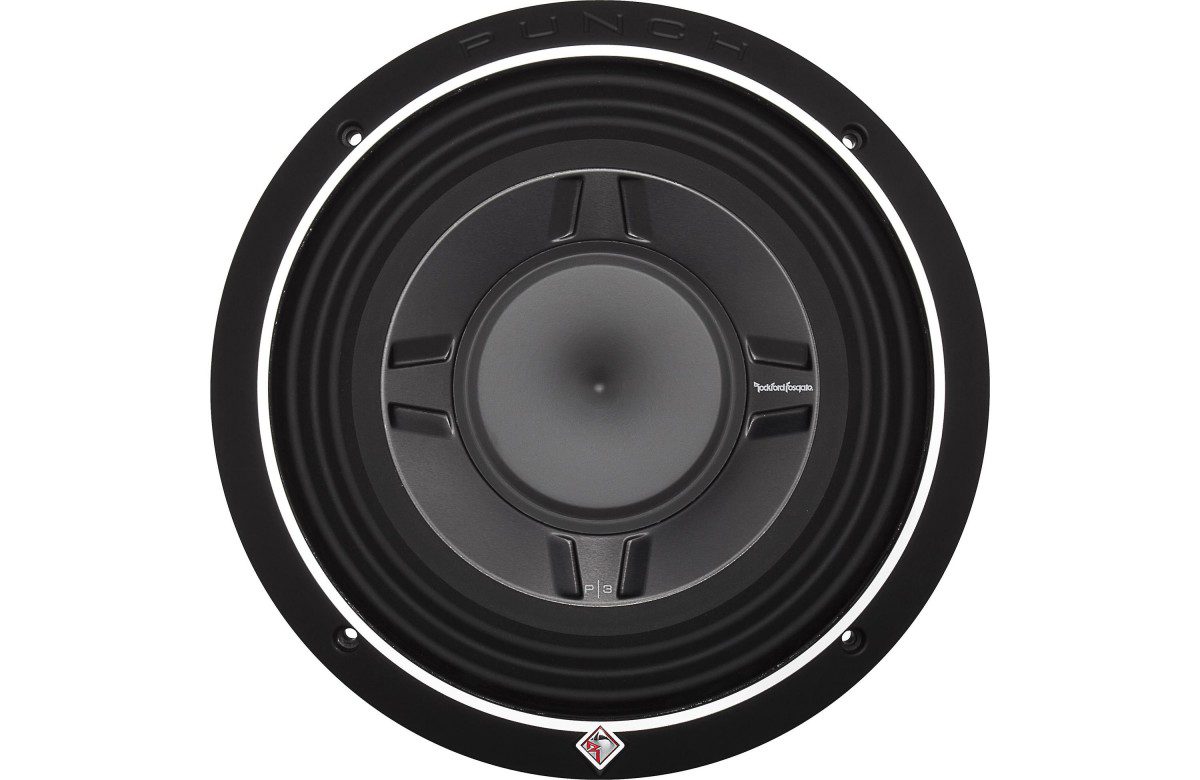

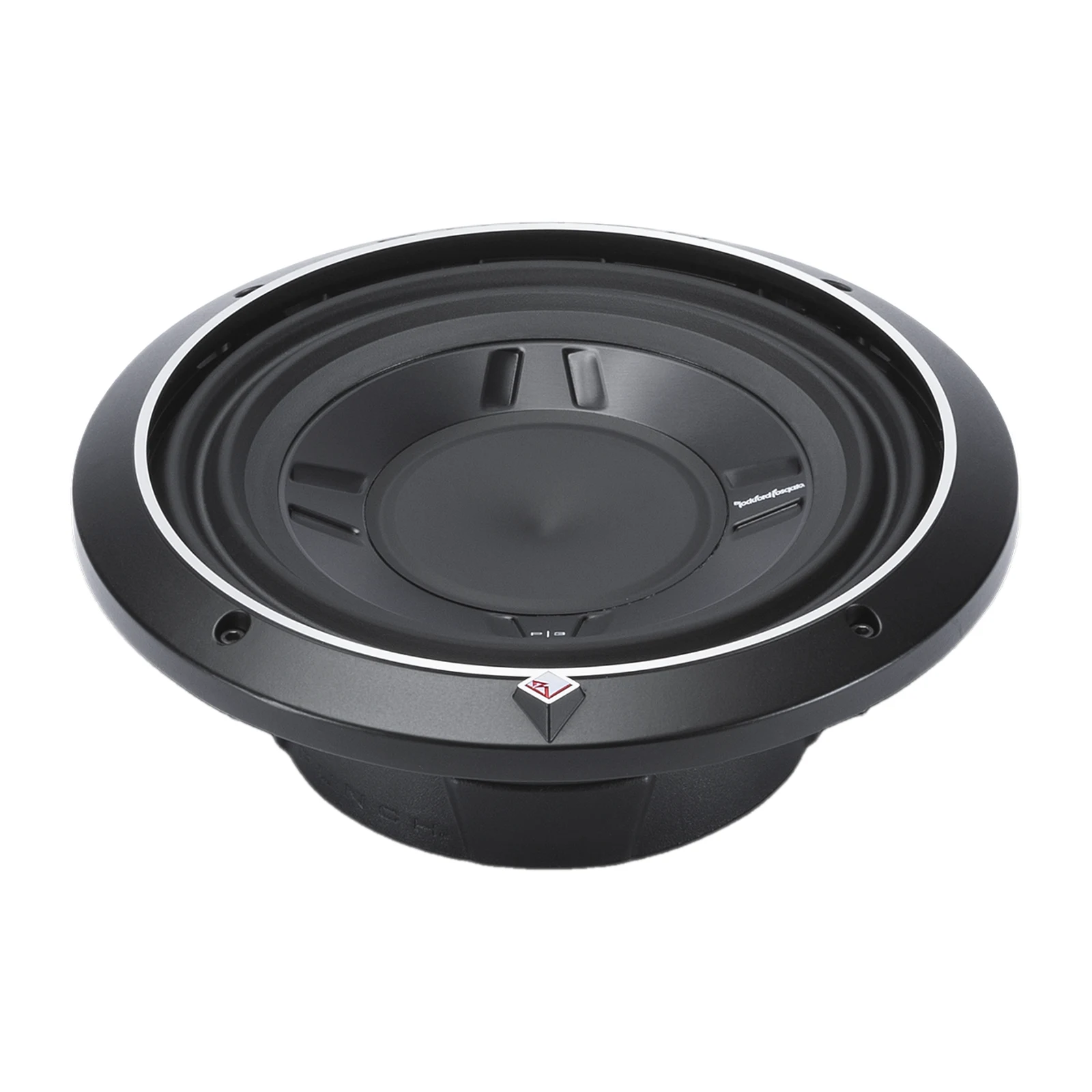

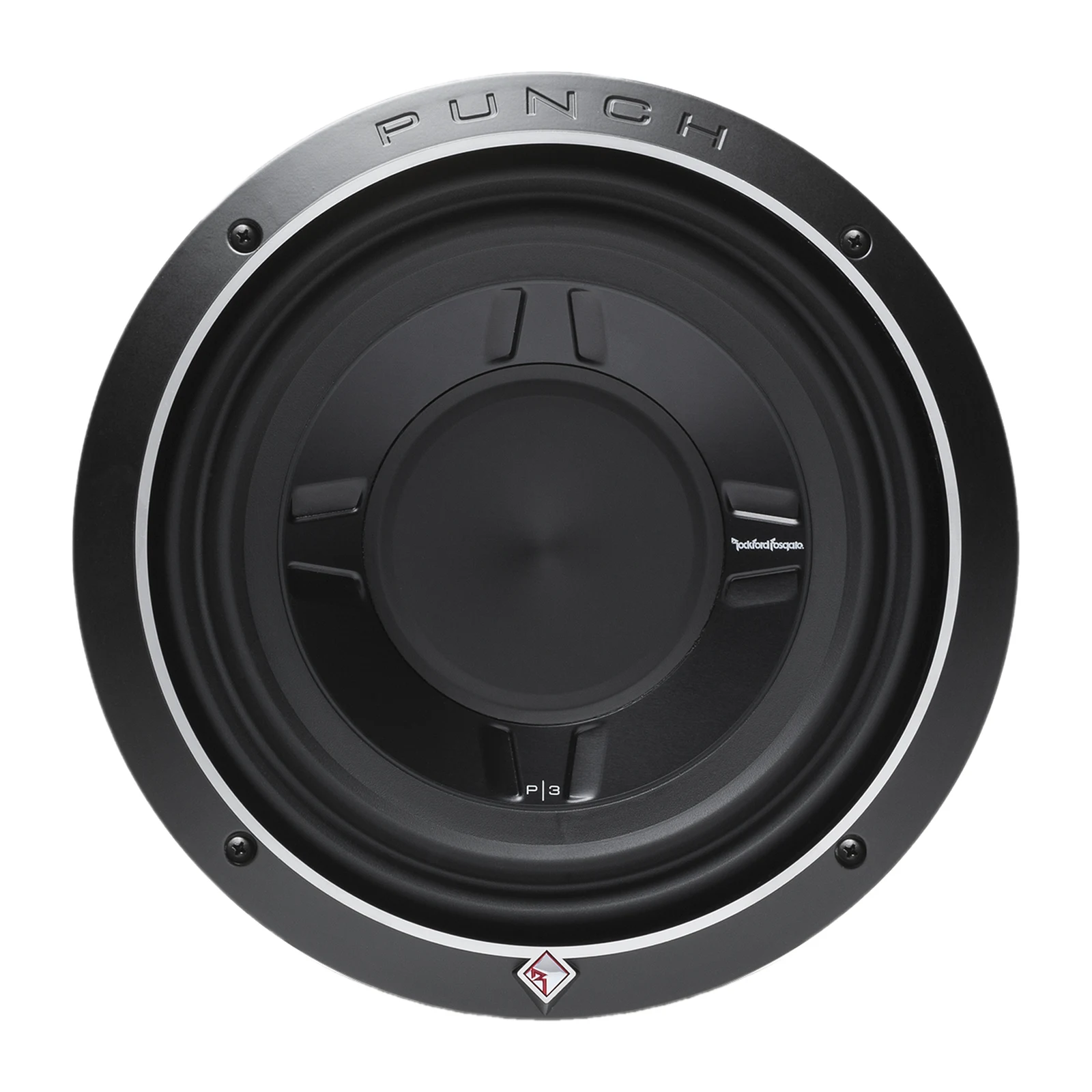

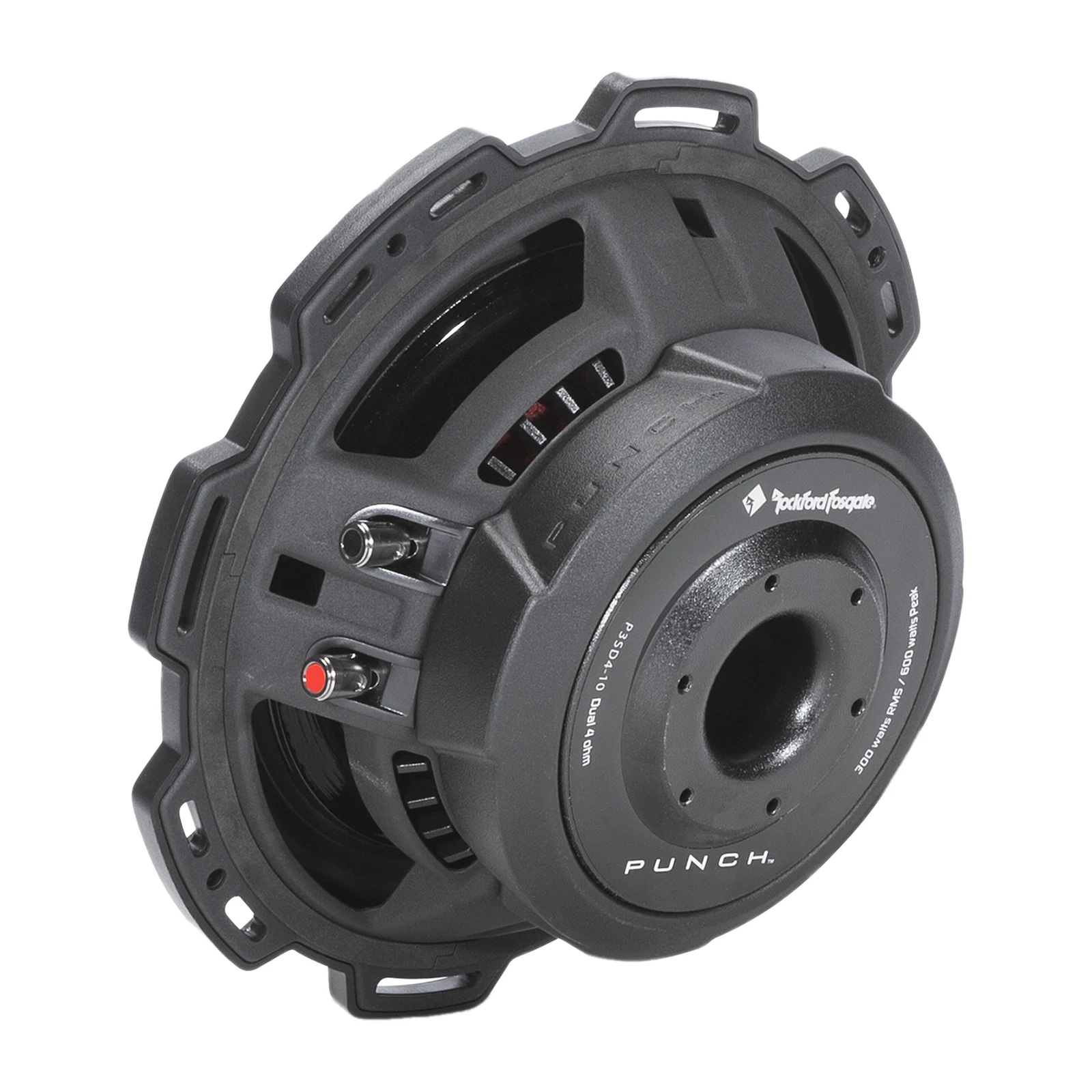

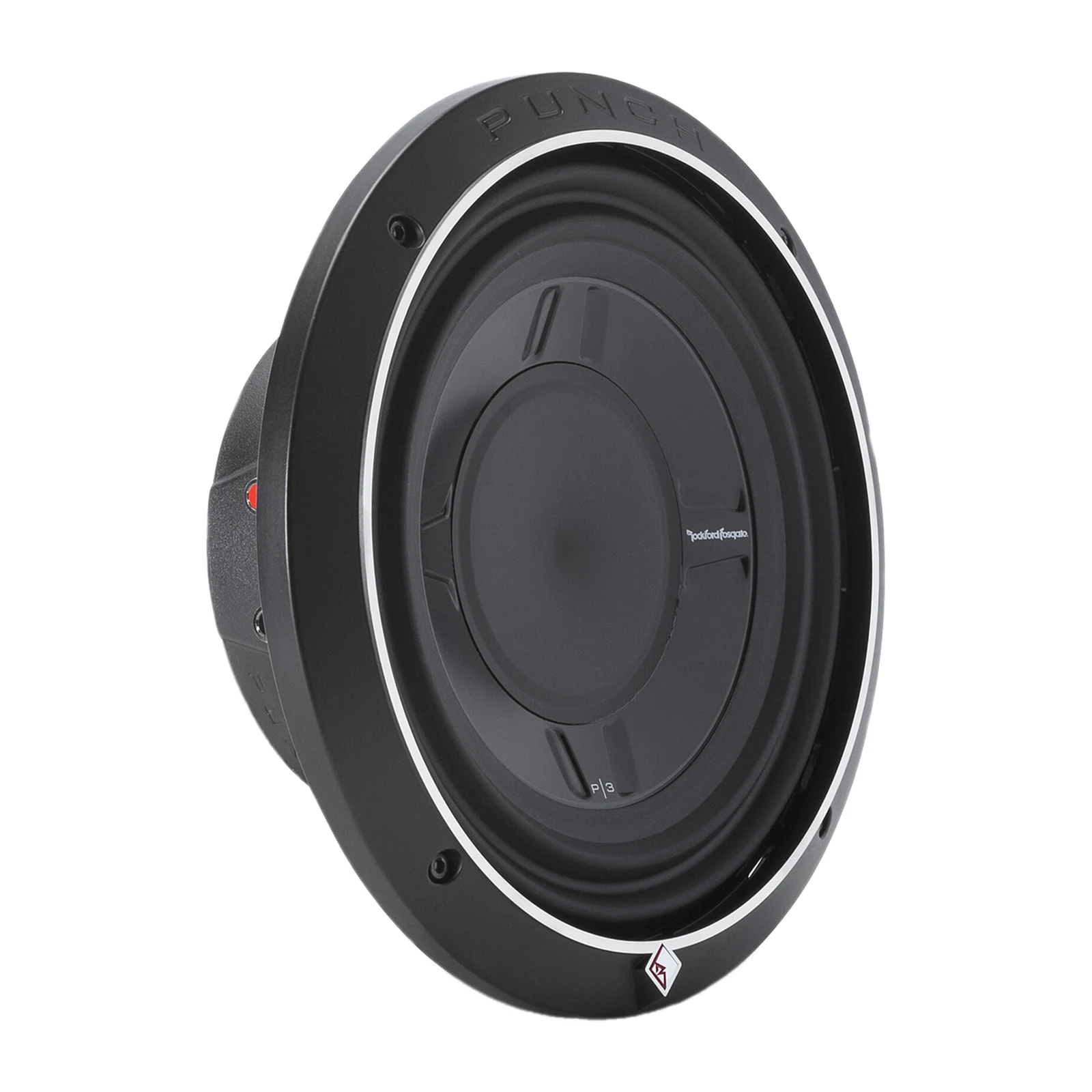

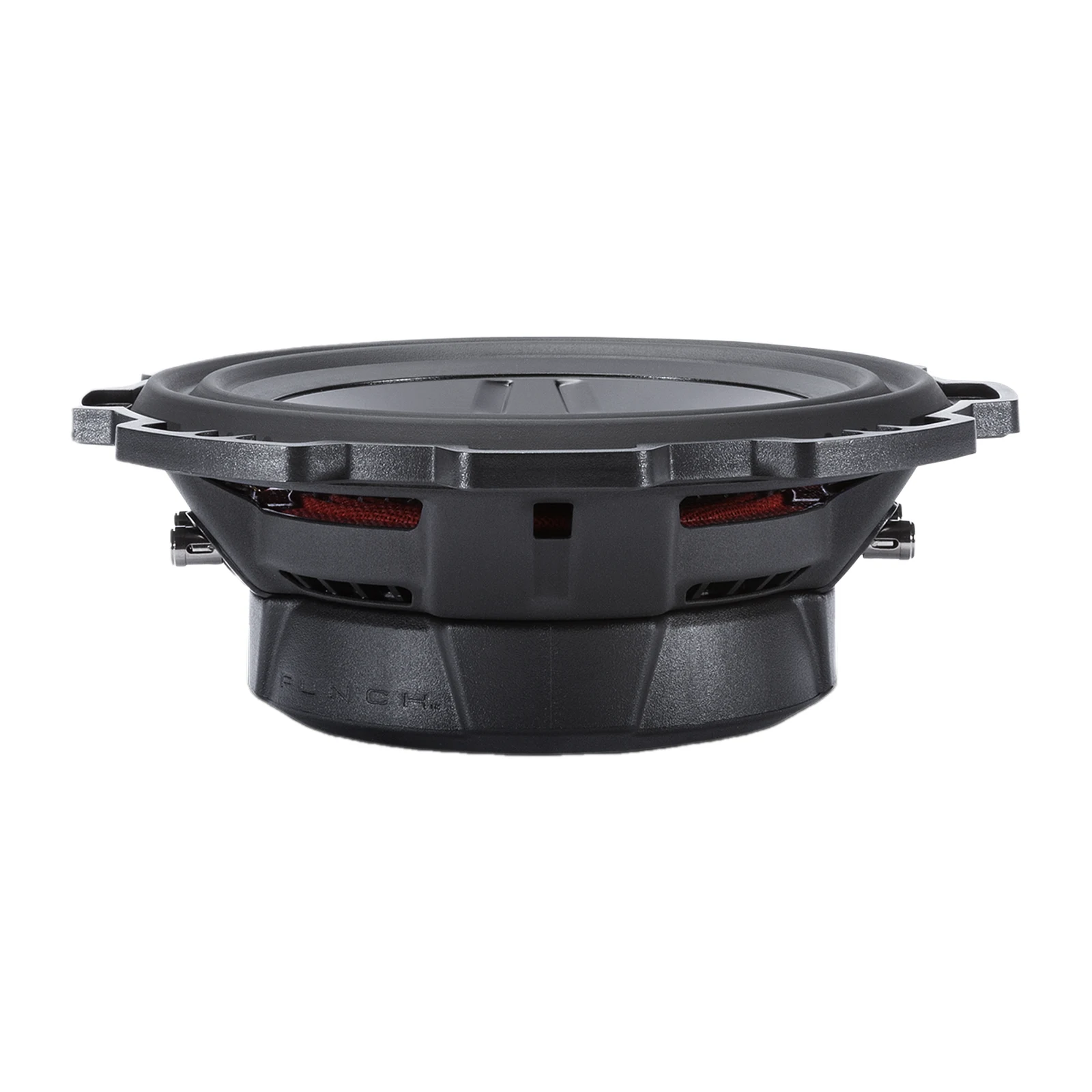

Rockford Fosgate Punch P3SD4-10 10in Dual 4 Ohm 300 Watts Subwoofer

Rockford Fosgate P3SD4-10 10-inch shallow-mount subwoofer with dual 4-ohm voice coils, 300 watts RMS power handling, and an anodized aluminum cone. Designed for sealed or vented enclosures where mounting depth is limited.

$229.99

4 in stock

Description

The Sub At A Glance:

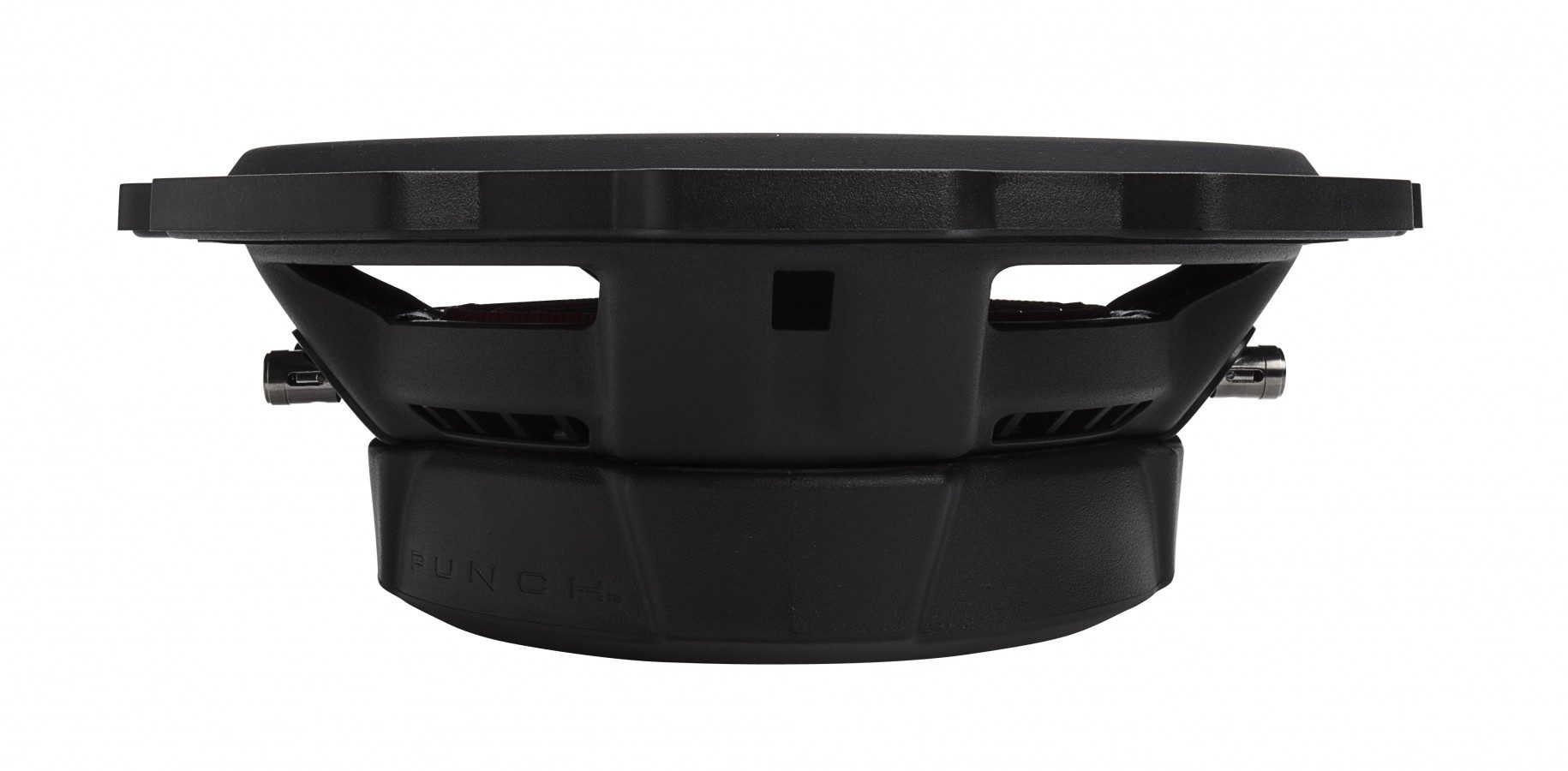

  • Shallow-mount design: Built for depth-limited installations where a traditional subwoofer cannot be used.
  • 300 watts RMS power handling: Delivers the power capacity needed to bring Rockford Fosgate Punch bass into space-conscious systems.
  • Dual 4-ohm voice coils: Provides flexible wiring options for a variety of system configurations.
  • Anodized aluminum cone and dust cap: A durable cone assembly designed for dependable bass reproduction.
  • M-Roll Santoprene surround: Supports controlled cone movement while standing up to the demands of subwoofer use.

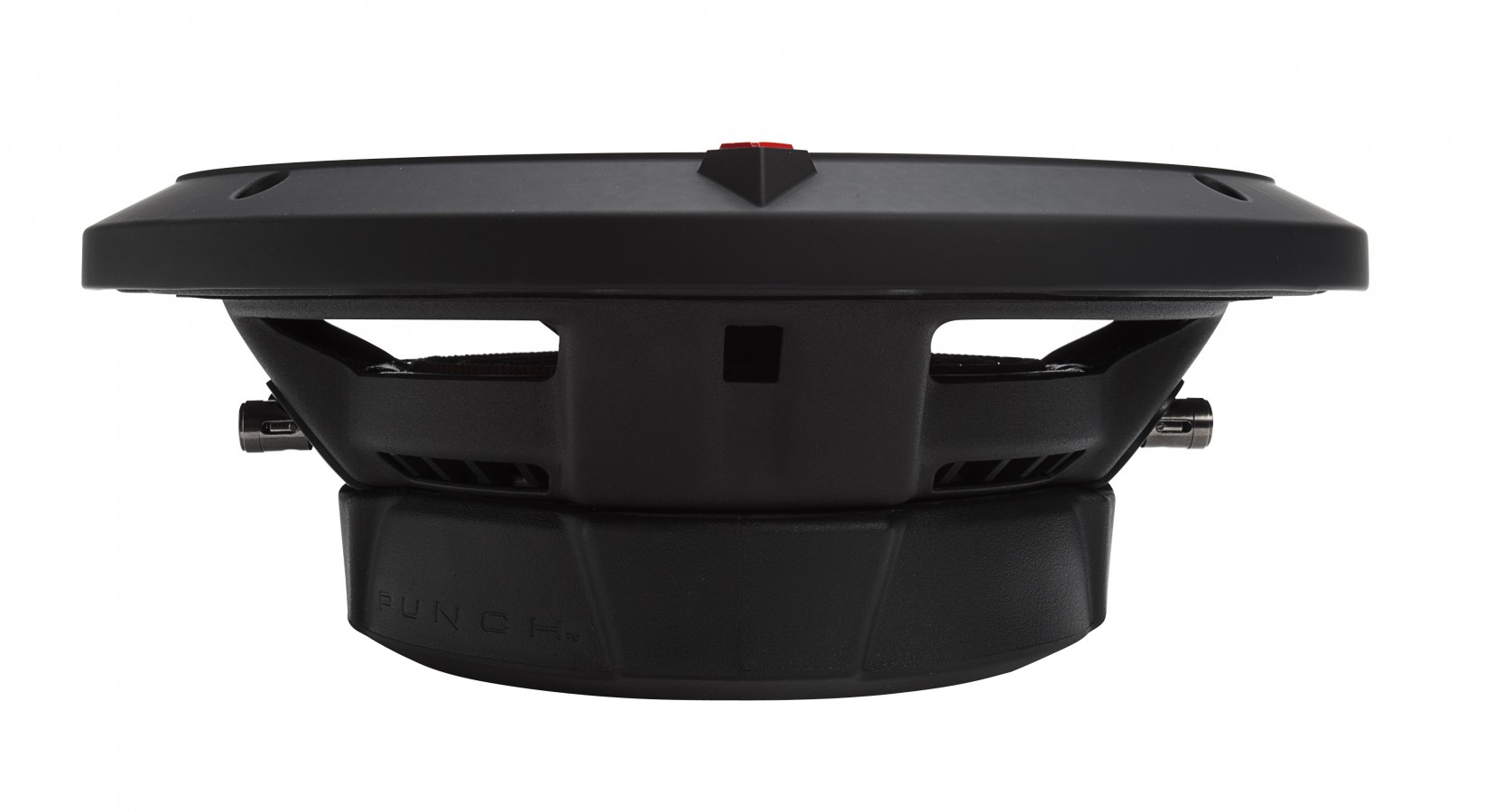

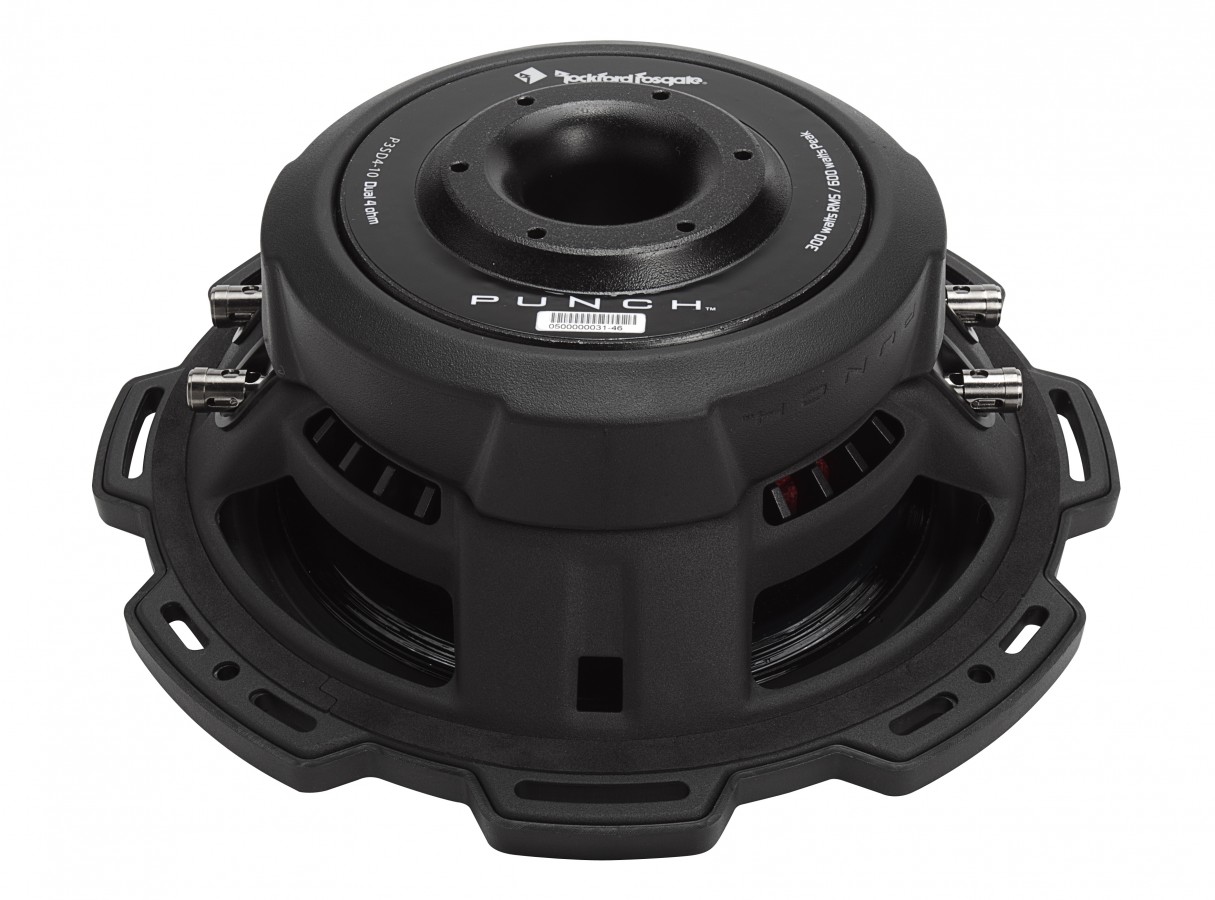

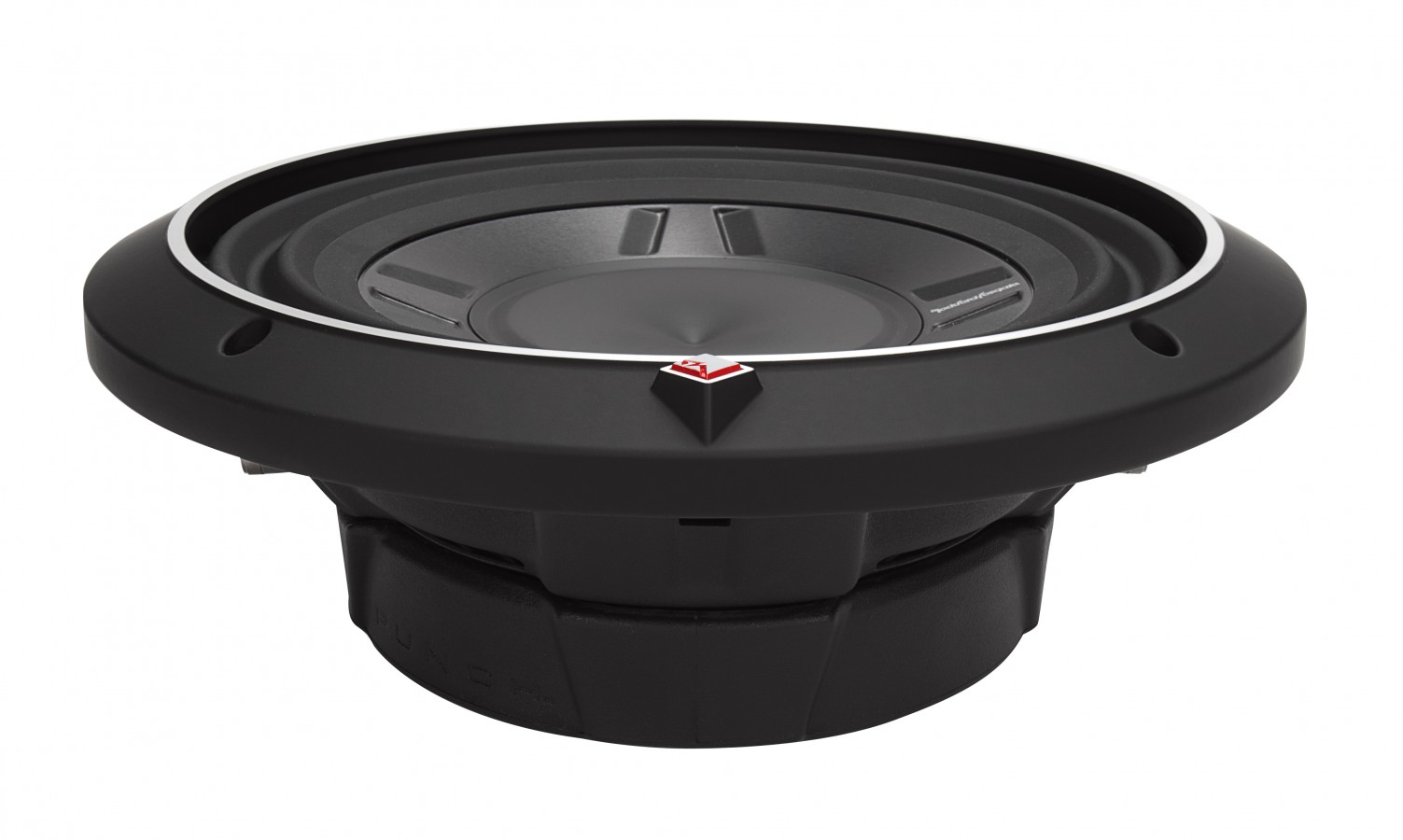

  • Durable frame construction: The StampCast basket features integrated spider venting, while a diamond-cut cast aluminum trim ring adds a finished look and accepts an optional grille.
  • Flexible enclosure options: Optimized for use in both sealed and vented enclosures.
  • Reinforced suspension: A dual linear spider with embedded 16 AWG tinsel leads supports reliable operation.

The P3SD4-10 brings deep, physical bass to vehicles where installation depth is at a premium. Its 10-inch shallow-mount design lets low notes add rumble and impact without requiring the space of a traditional subwoofer. Whether installed in a sealed or vented enclosure, it gives music the weight and Punch that make bass feel present inside the vehicle.

Subwoofer Specifications
Sub Size 10in
Sub Type Shallow
Sub Power RMS 300 Watts
Sub Max Power 600 Watts
Sub Impedance Dual 4 Ohm
Voice Coils Dual
Voice Coil Diameter 2.5in (65.5 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 8.1mm
Sound Pressure Level (SPL) @ 1W/1m 83dB
Resonant Frequency (Fs) 42Hz
DC Resistance (Re) 6.80Ohm
Voice Coil Inductance (Le) 4.3mH
Total Q (Qts) 0.78
Electrical Q (Qes) 0.90
Mechanical Q (Qms) 6.00
Equivalent Compliance Volume (Vas) 14.3Liters
Effective Cone Area (Sd) 333cm²
Fitment & Dimensions
Woofer Displacement 0.074 cu. ft. (2.1 Liters)
Mounting Depth 3.50 in. (89.0 mm)
Cutout Diameter 9.06 in. (230.0 mm)
Magnet Weight (oz) 47 oz. (1.32 Kg)
Sealed Box Volume (Vb) 0.5 cu. ft. (14.1 Liters)
Vented Box Volume (Vb) 1.0 cu. ft. (28.3 Liters)
Speaker Connector Dual 10 AWG Compression
Shipping Weight 11.9 Lbs. (5.39 kg.)
Additional Specifications
Magnet Weight (kg) NOT USED 1.32 oz. (47 kg.)

Additional information

Weight 12 lbs
Sub Size

Sub Impedance

Sub Max Power

600 Watts Max

Sub Power RMS

Sub Type

Shallow

Voice Coils

Dual

Series

Punch
