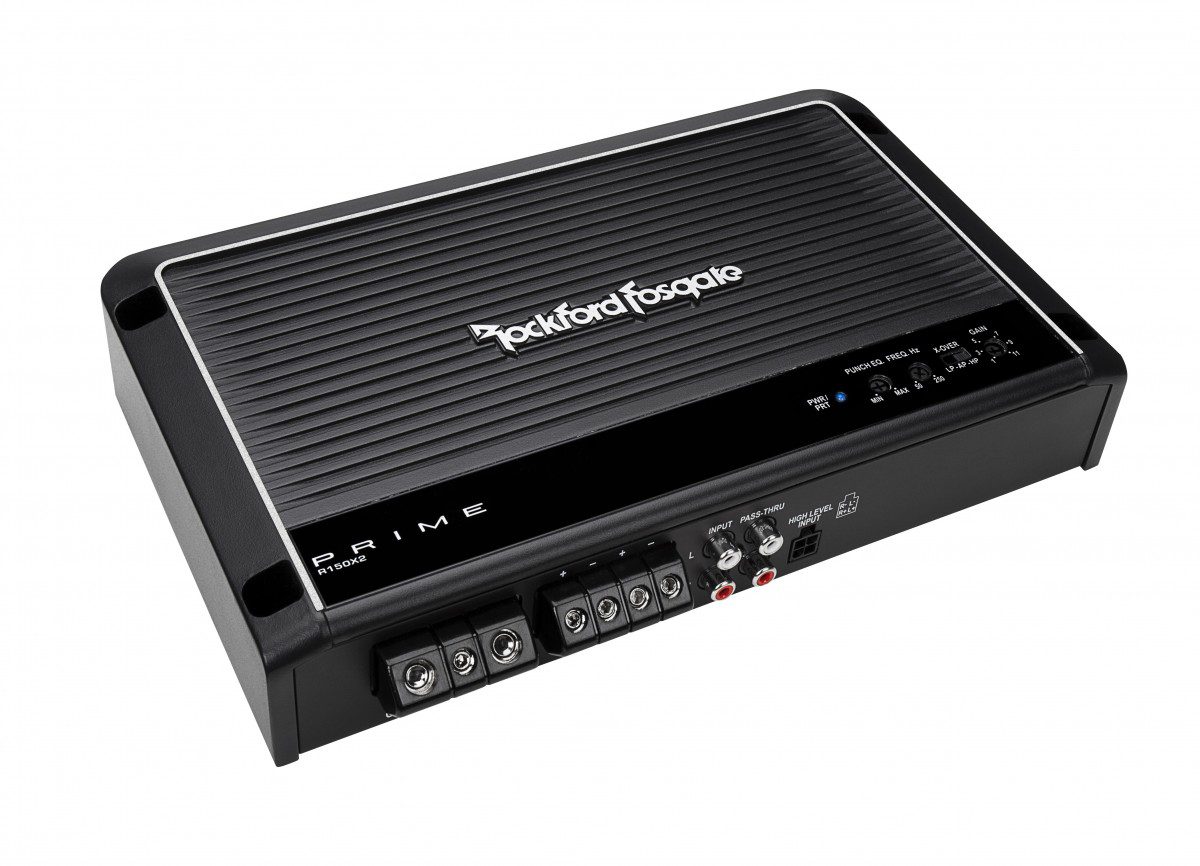

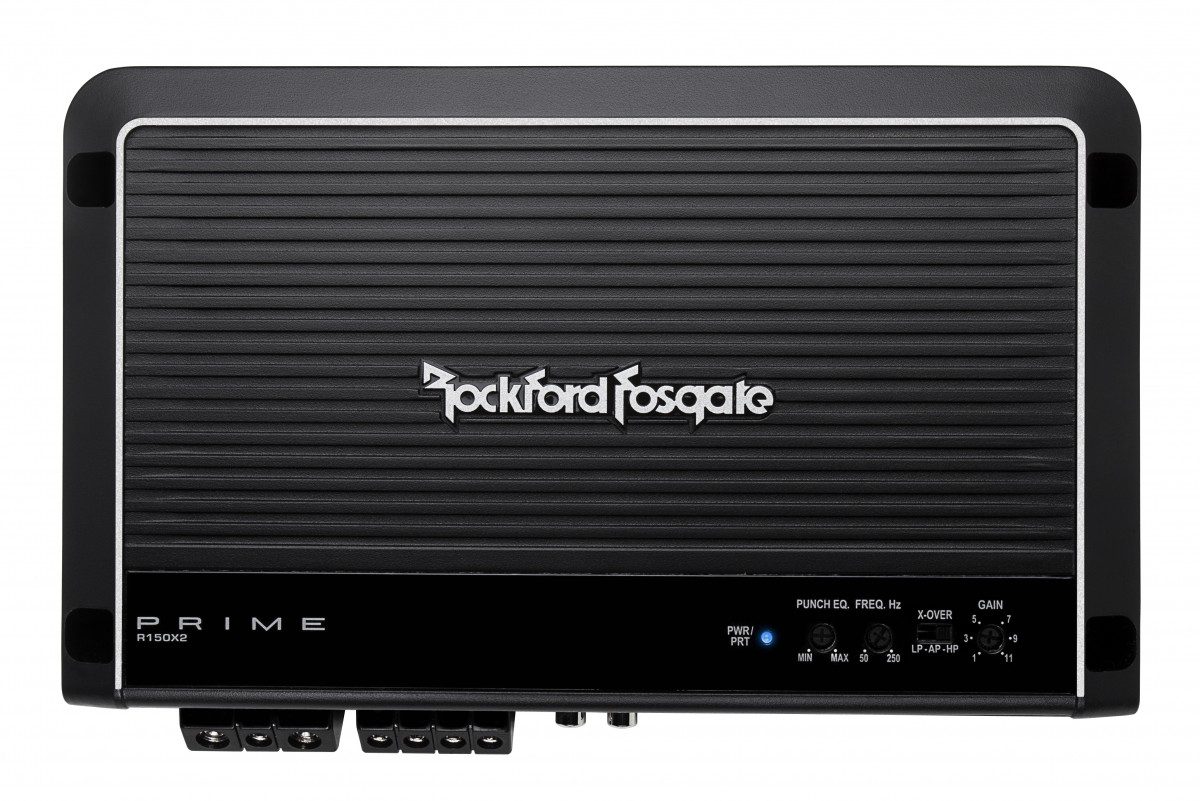

The Rockford Fosgate PRIME R150X2 is a 2-channel, 2 Ohm stable Class A/B amplifier delivering up to 75 Watts RMS per channel, or 150 Watts RMS bridged at 4 Ohm for a subwoofer.
$129.99
1 in stock
The PRIME R150X2 gives your music the power and control needed to bring out clear vocals, defined instruments, and confident dynamics from a full-range or component speaker system. Its 2-channel design provides dependable output while maintaining a clean, focused presentation.
When more low-frequency output is the goal, the amplifier can be bridged into a 4 Ohm mono load for a compatible subwoofer. The built-in Butterworth crossover and Punch EQ give you useful control over the final sound, helping the amplifier integrate smoothly into your car audio system.
| Amplifier Specifications | |
|---|---|
| Amp Channels | 2 Channel |
| Amp Power | 150/2 Watts |
| Amp Class | Class A/B |
| Amp Stability | 2 Ohm Stable |
| Bridgeable | Yes |
| Crossover Controls | High-Pass/Low-Pass (HP/LP): 50-250Hz @ 12dB/octave Butterworth |
| Tone Controls | Punch Bass: 0dB to +12dB @ 45Hz |
| Amp Remote Control | No |
| Rated Power (RMS Continuous Power) | 50 Watts x 2 @ 4Ohm 75 Watts x 2 @ 2Ohm 150 Watts x 1 @ 4Ohm Bridged |
| Dynamic Power (PVC/PowerCube) | 61 Watts x 2 @ 4Ohm 0° Res 94 Watts x 2 @ 2Ohm 0° Res |
| Frequency Response (Hz) | 20Hz to 20kHz +/-1dB |
| Total Harmonic Distortion (THD+Noise) | 4Ohm: <1.0% 2Ohm: <1.0% |
| Input Sensitivity | 150 mV to 4 V |
| Efficiency (average) | 66% @ 4Ohm |
| Electrical & Connections | |
|---|---|
| Power Input Connector | Screw terminal |
| Power Wire Gauge | 4 AWG |
| Speaker Output Connector | Screw terminal |
| Speaker Wire Gauge | 8 AWG |

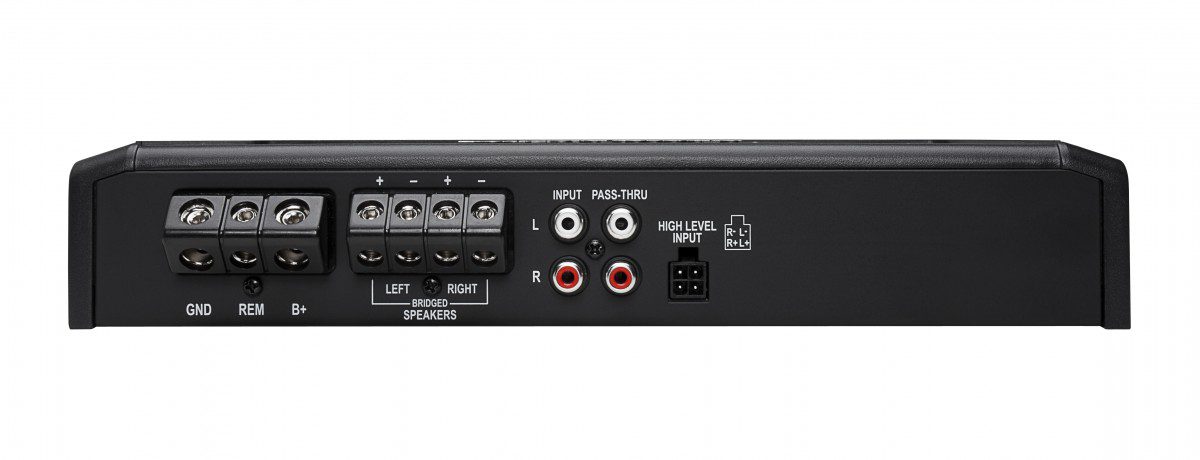

| Signal Input | High Level: 4-pin molex Low Level: 1 RCA pair |
| Signal Output | Low Level: 1 RCA pair |
| Operating Voltage | 9 – 16 VDC |
| Max. Current Draw (13.8V Sinewave) | 20 A |
| Average Current Draw (13.8V Music) | 10 A |
| Recommended Fuse (not included) | 20 A |
| Suggested Alternator | 75 A |
| Physical Specifications | |
|---|---|
| Cooling | Convection |
| Dimensions (H x W x D) | 1.98 x 6.77 x 11.22 (in) 5 x 17.2 x 28.5 (cm) |
| Shipping Weight | 6.6 Lbs. (2.99 Kg.) |
| Weight | 7 lbs |
|---|---|
| Amp Channels | 2 Channel |
| Amp Class | Class A/B |
| Amp Features | Bass Boost, High-Level Inputs, MOSFET |
| Amp Stability | 2 Ohm Stable |
| Bridgeable | Yes |
| Series | Prime |
| Amp Remote Control | No |
| Amp Power |
