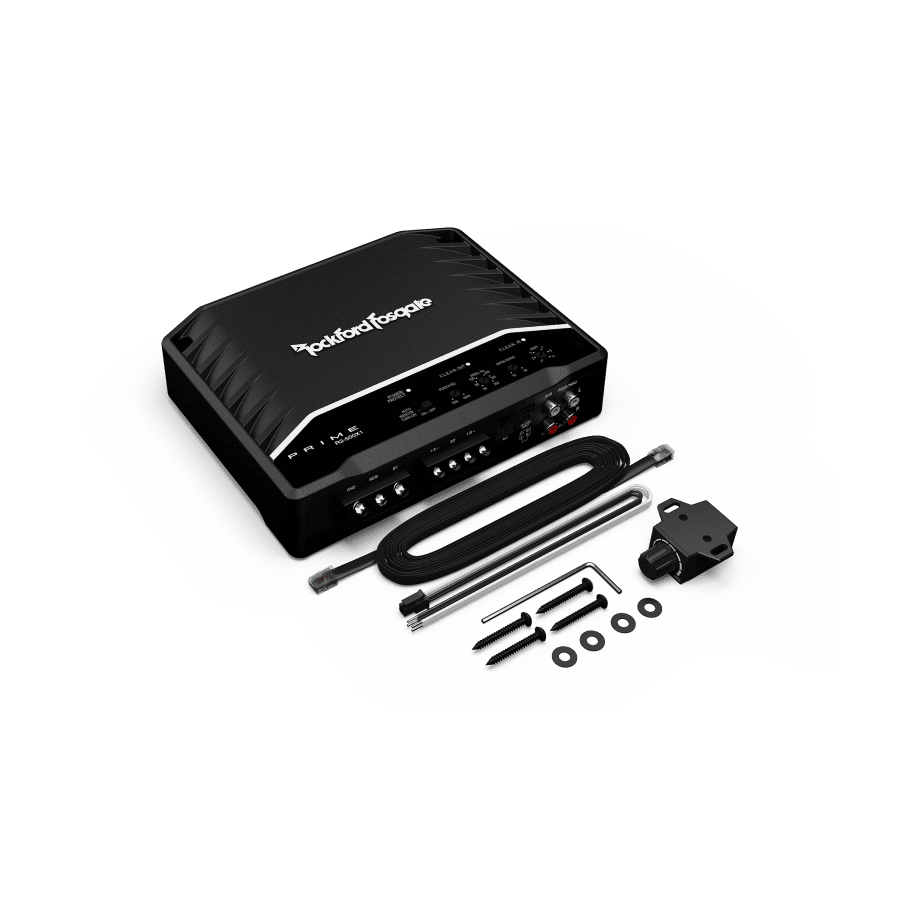

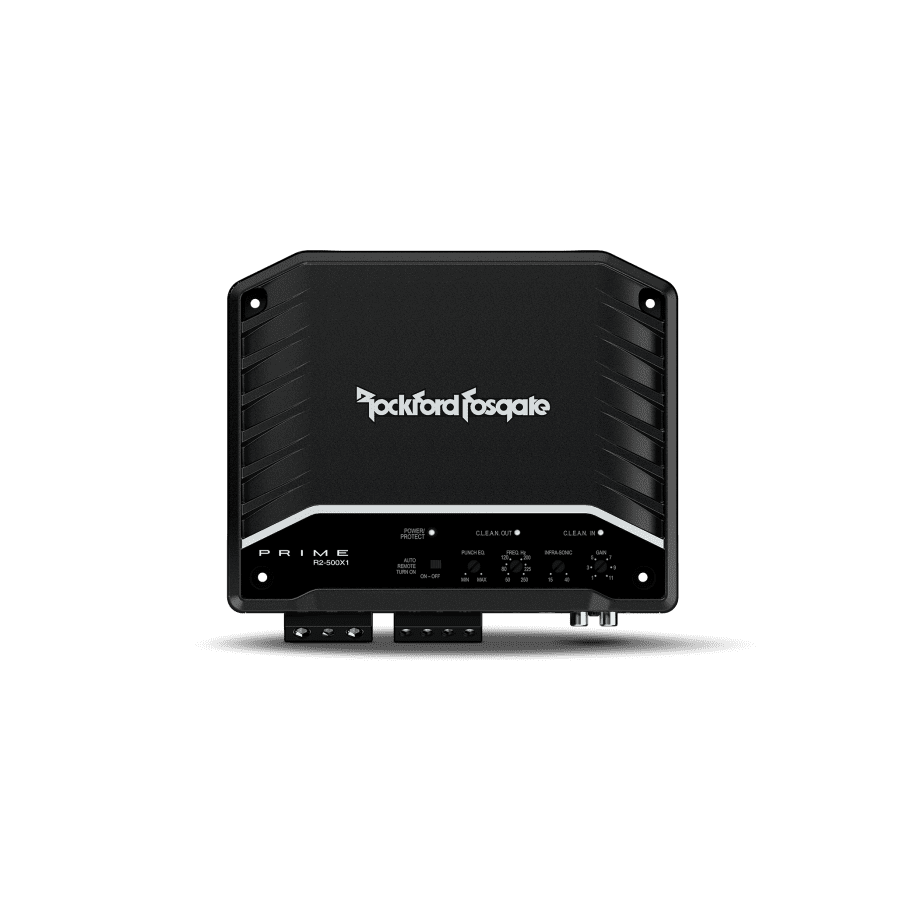

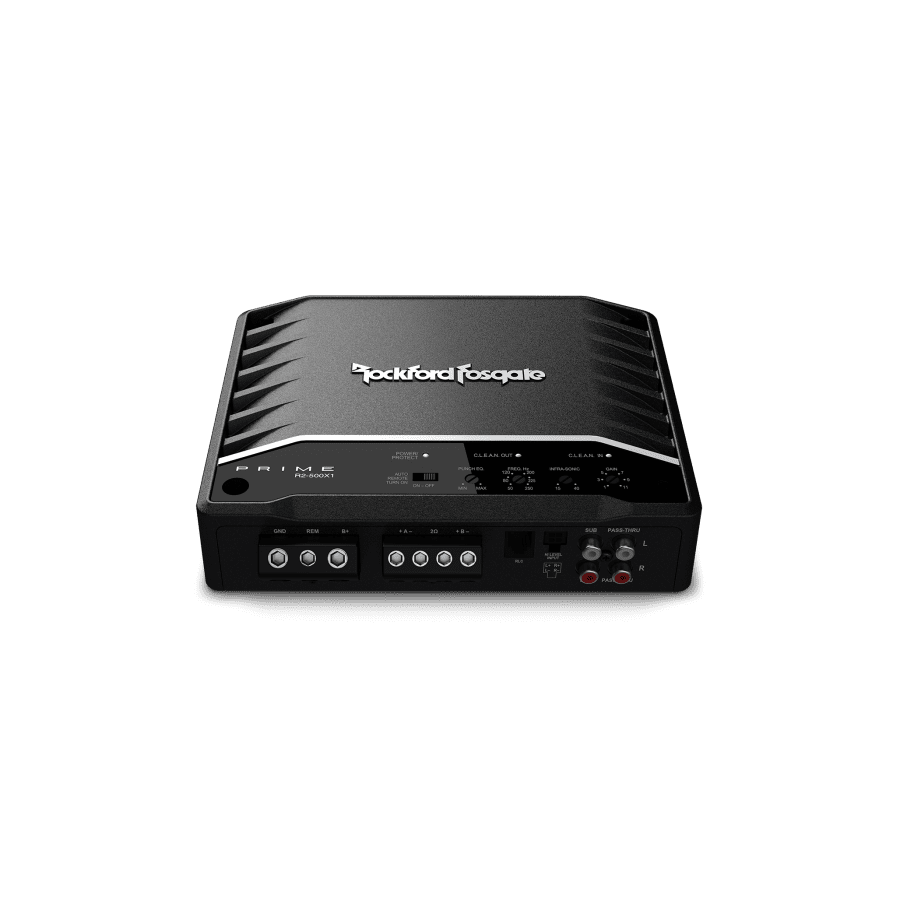

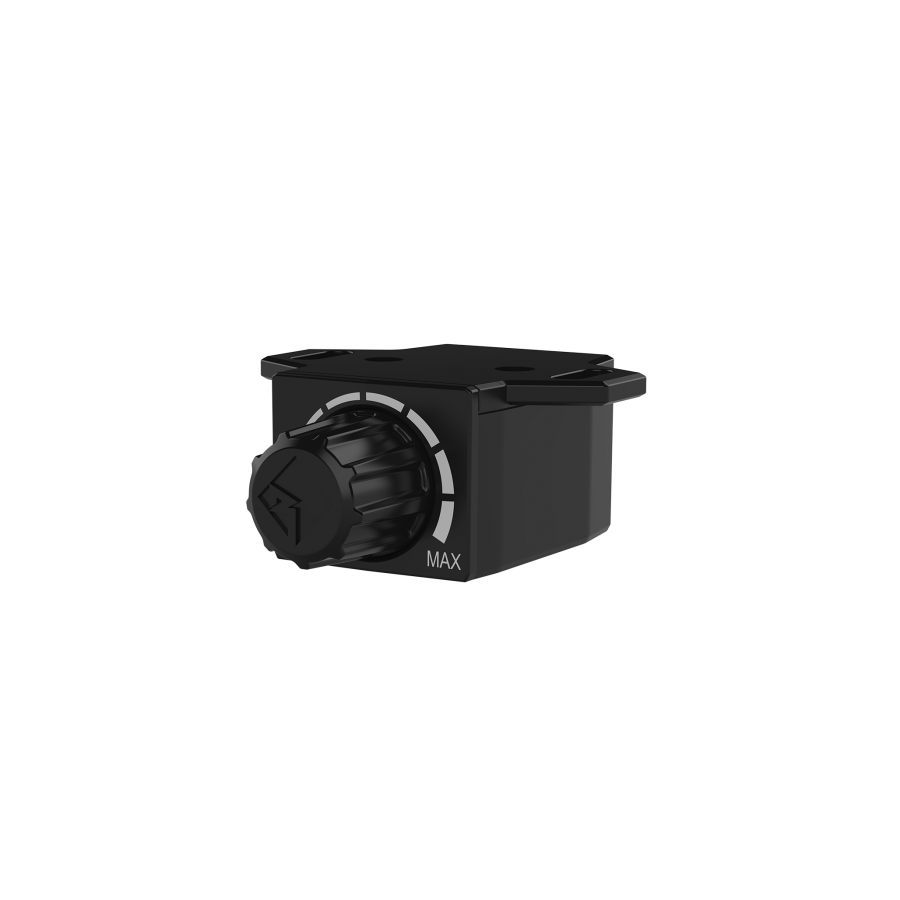

The Rockford Fosgate R2-500X1 is a 2 Ohm stable, 500 Watts monoblock amplifier with efficient Class D topology, C.L.E.A.N. setup circuitry, Punch EQ, and an included remote level control.
$309.99
37 in stock
The Amp At A Glance:
The R2-500X1 gives a subwoofer the focused power it needs to bring weight and definition to the low end. Its monoblock design keeps bass output strong and controlled, helping drums hit with authority while lower notes remain clear.
Built-in setup and tuning tools make it easier to match the amplifier to the system and listening preference. From gain adjustment to filtering and on-the-fly level changes, the R2-500X1 puts practical control over bass response within easy reach.
| Amplifier Specifications | |
|---|---|
| Amp Channels | Monoblock |
| Amp Power | 500 Watts |
| Amp Class | Class D |
| Amp Stability | 2 Ohm Stable |
| Bridgeable | No |
| Crossover Controls | Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth |
| Tone Controls | 0 to +18 dB @ 45 Hz |

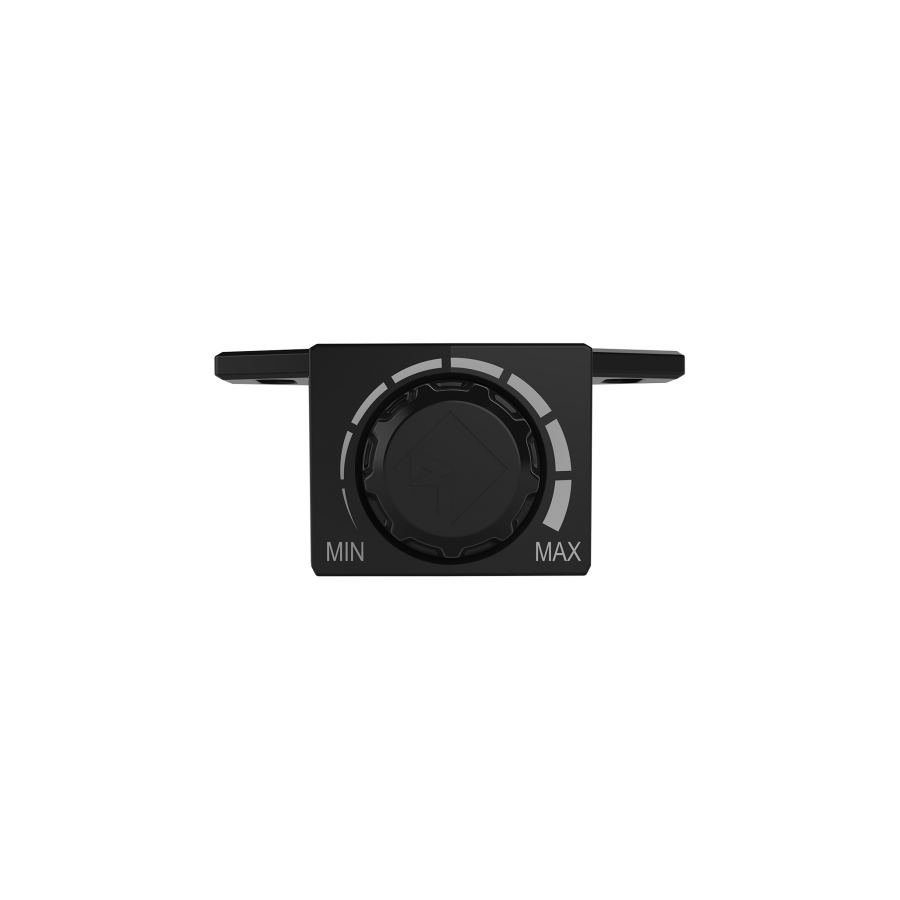

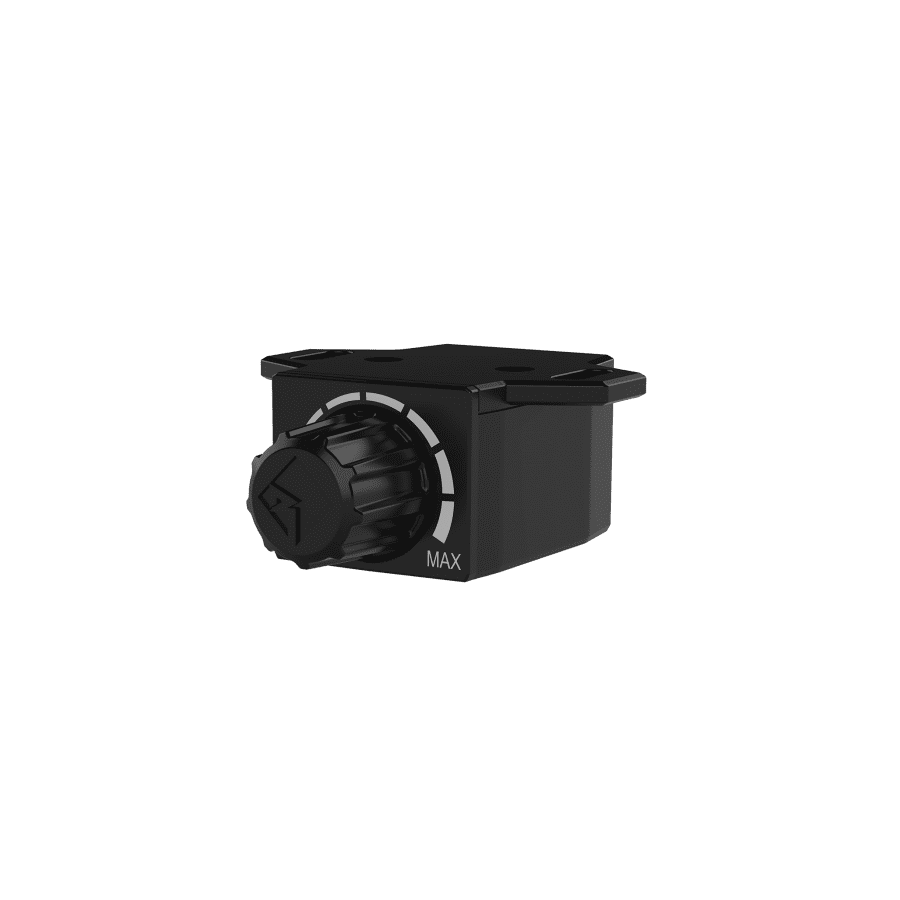

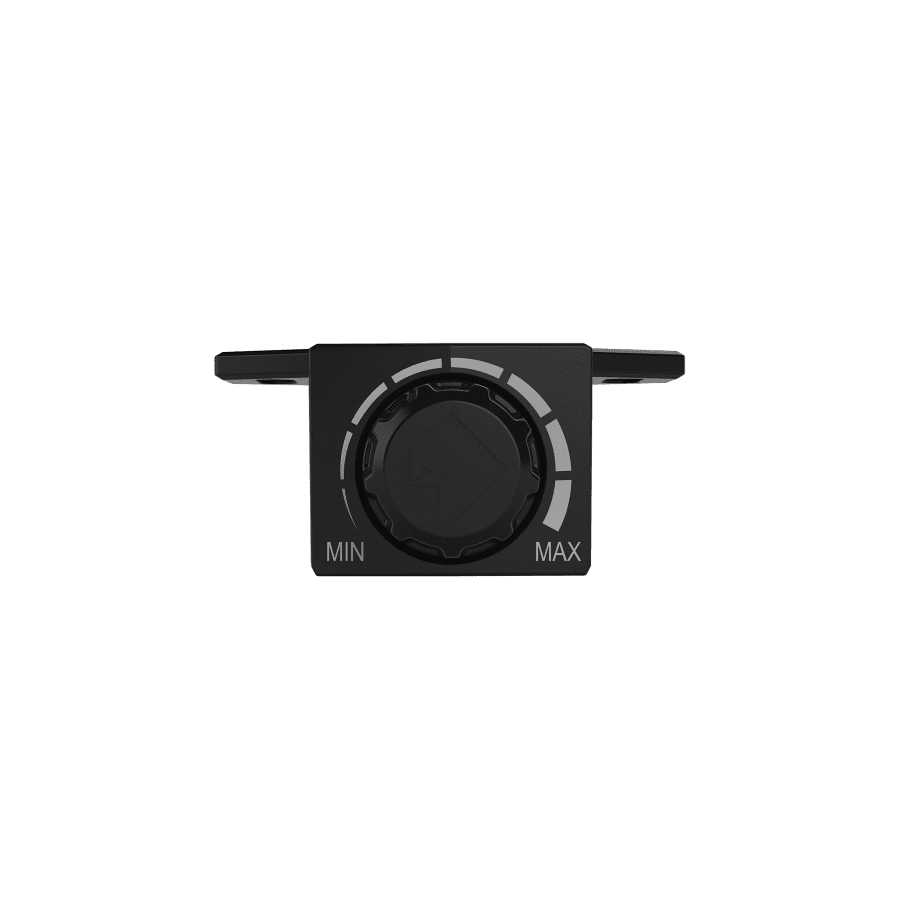

| Amp Remote Control | Included |
| Rated Power (RMS Continuous Power) | 300 Watts x 1 @ 4Ohm 500 Watts x 1 @ 2Ohm |
| Dynamic Power (PVC/PowerCube) | 350 Watts x 1 @ 4Ohm 590 Watts x 1 @ 2Ohm |
| Frequency Response | 20 Hz – 250 Hz |
| Total Harmonic Distortion (THD+Noise) | 4Ohm: <1.0% 2Ohm: <1.0% |
| Input Sensitivity | Low-Level: 150 mV – 4 V High-Level: 450 mV – 12 V |

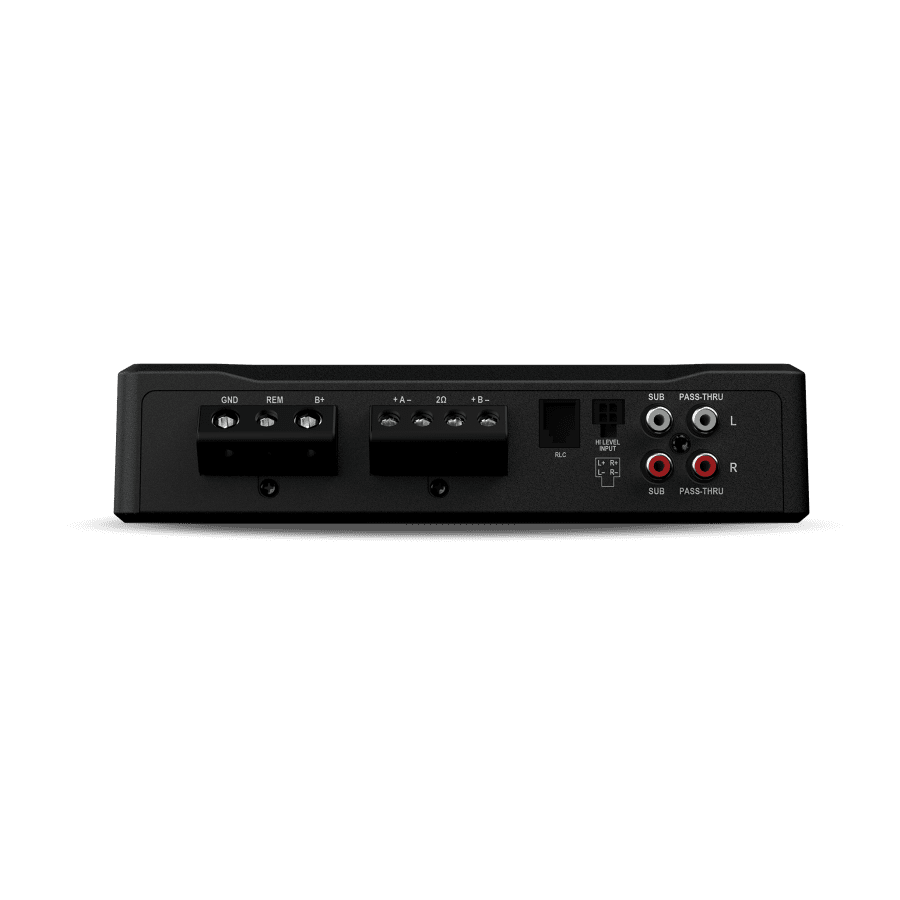

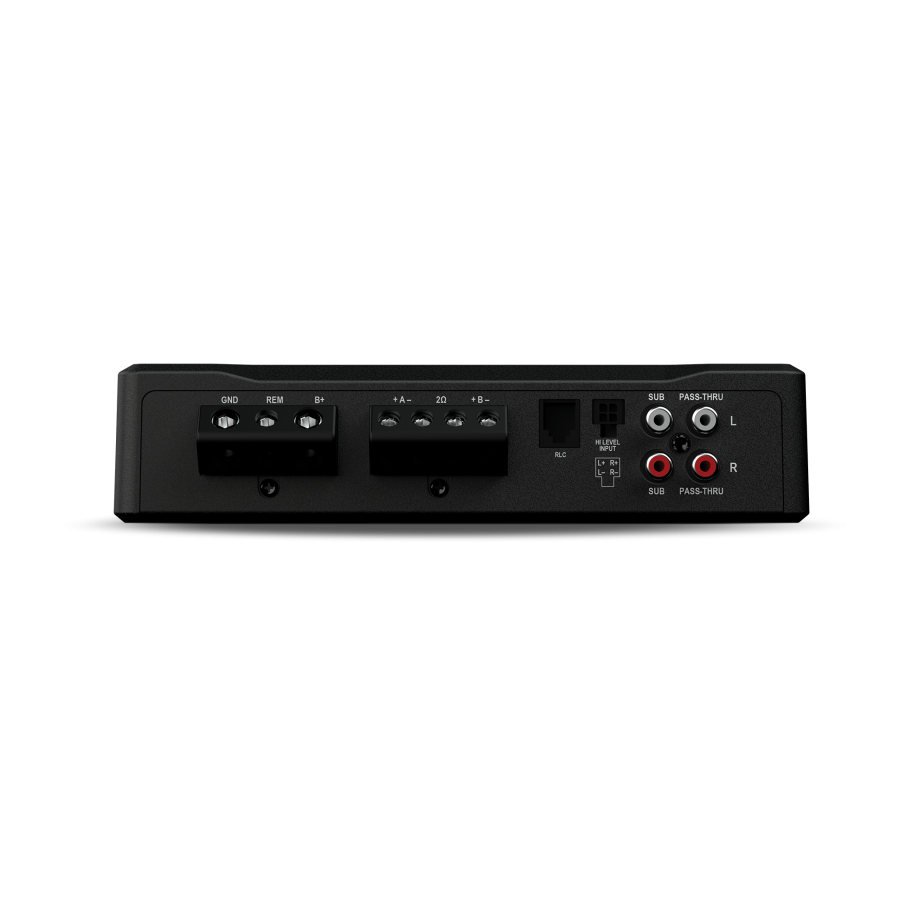

| Electrical & Connections | |
|---|---|
| Power Input Connector | Compression Terminal Block |
| Power Wire Gauge | 4 AWG |
| Speaker Output Connector | Compression Terminal Block |
| Speaker Wire Gauge | 8 AWG |
| Signal Input | Low-Level: 2 RCA High-Level: 4-Pin Molex |
| Signal Output | Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) |
| Operating Voltage | 9 – 16 VDC |
| Max. Current Draw (13.8V Sinewave) | 52 A |
| Recommended Fuse (not included) | 80 A |
| Physical Specifications | |
|---|---|
| Cooling | Convection |
| Dimensions (H x W x D) | 1.9in x 6.8in x 8.5in (4.9 cm x 17.3 cm x 21.5 cm) |
| Weight | 5 lbs |
|---|---|
| Amp Channels | Monoblock |
| Amp Features | Bass Boost, Clip Indicator, High-Level Inputs, Remote Level Control, Subsonic Filter |
| Amp Stability | 2 Ohm Stable |
| Amp Remote Control | Included |
| Amp Class | Class D |
| Amp Power | |
| Bridgeable | No |
| Series | Prime |
