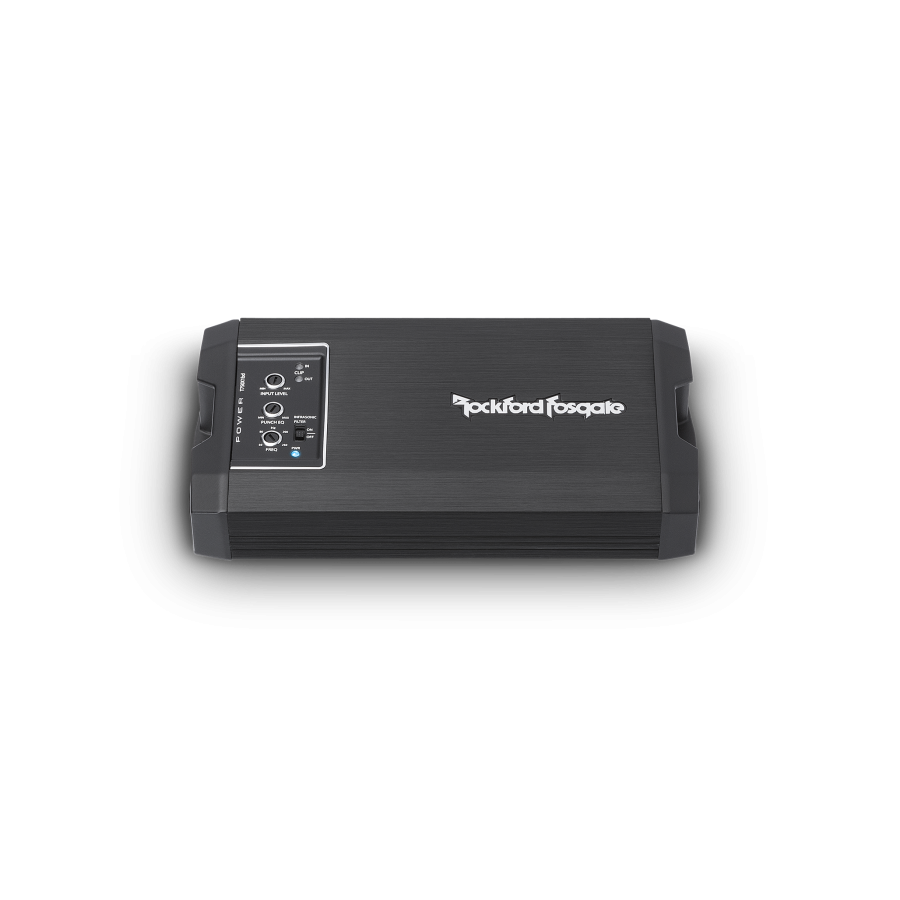

Rockford Fosgate Power T750X1BD Monoblock 750 Watts Amplifier

The Rockford Fosgate Power T750X1bd is an ultra-compact, 1 Ohm stable 750 Watt mono car amplifier featuring efficient Class B/D technology, C.L.E.A.N. clip detection, and flexible high- or low-level integration.

$549.99

5 in stock

Description

The Amp At A Glance:

  • 1 Ohm stable power: Produces 750 Watts x 1 at 1 Ohm, 750 Watts x 1 at 2 Ohm, or 500 Watts x 1 at 4 Ohm.

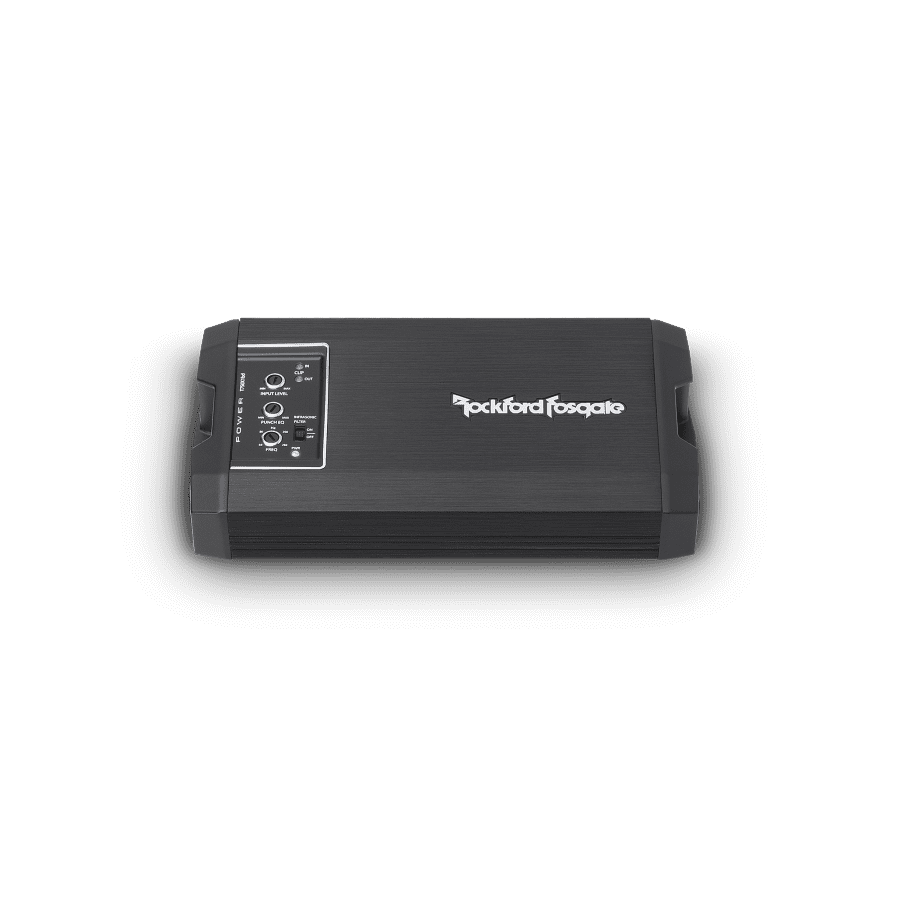

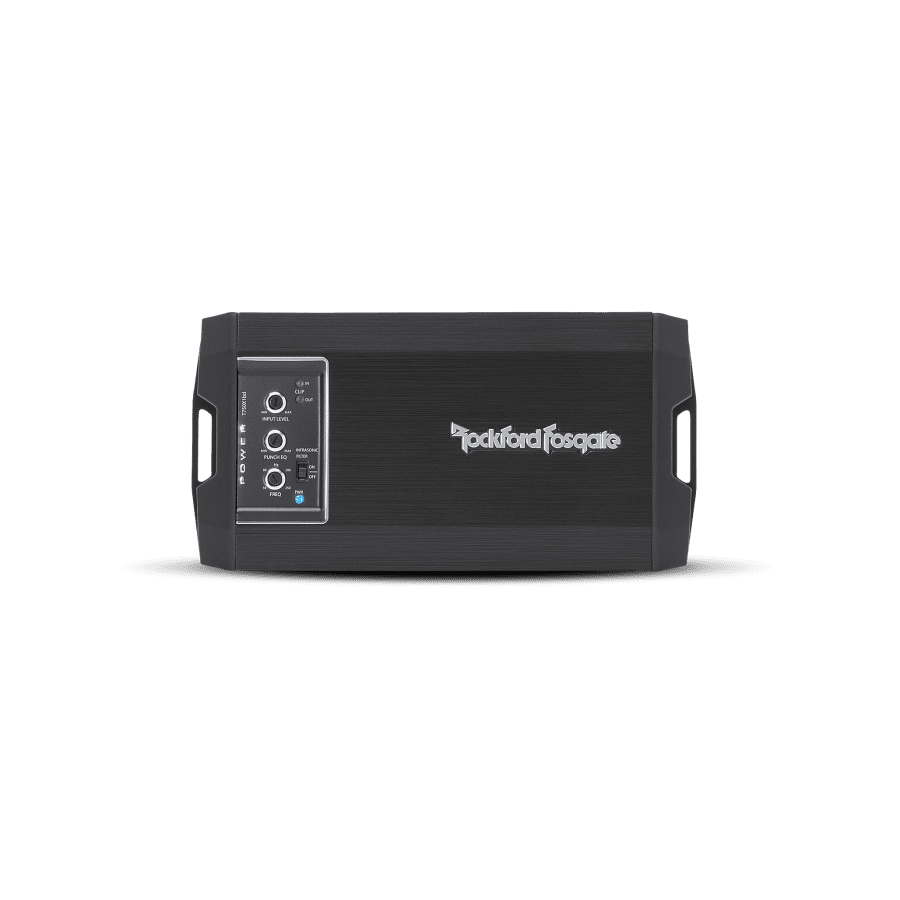

  • Accessible tuning: Top-mounted controls provide convenient adjustment of the low-pass crossover, patented Punch EQ, and C.L.E.A.N. input/output clip detection circuits.
  • Efficient Class B/D design: Delivers greater than 85 percent average efficiency while maintaining fidelity and reducing demand on the vehicle charging system.
  • Remote level control ready: Compatible with the Punch PLC2 remote level controller.
  • Ultra-compact construction: Fits installations where space is limited, including small cars, trucks, motorcycles, side-by-side UTVs, hybrid vehicles, and electric vehicles.
  • Flexible signal integration: A configurable Molex-style input harness accepts RCA or speaker-level signals, while high-level auto turn-on and Remote-Out simplify system installation.
  • Active thermal management: Dual fan-forced induction, dual extruded heat sinks, real-time thermal sensing, and Rollback technology help manage operating temperatures.
  • Consistent output: Patented Constant Power technology boosts power by up to 25 percent across varying impedance loads.

The T750X1bd brings authoritative mono power to compact audio systems without sacrificing musical definition. Rockford Fosgate’s Class B/D platform combines efficient output with the fidelity needed to keep low-frequency playback clean, focused, and responsive.

Differential inputs help prevent signal noise from entering the amplifier, while C.L.E.A.N. input and output clip detection makes it easier to establish a clear signal path. With the low-pass crossover, Punch EQ, and optional PLC2 level controller compatibility, you have practical control over how the amplifier supports your music.

Amplifier Specifications
Amp Channels Monoblock
Amp Power 750 Watts
Amp Class Class B/D
Amp Stability 1 Ohm Stable
Bridgeable No
Crossover Controls Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
Infrasonic: 28Hz @ 12dB/Octave Butterworth
Tone Controls Bass: 0 to +18 dB @ 45 Hz
Amp Remote Control Optional
Rated Power (RMS Continuous Power) 500 Watts x 1 @ 4-Ohm
750 Watts x 1 @ 2-Ohm
750 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube) 538 Watts x 1 @ 4-Ohm
909 Watts x 1 @ 2-Ohm
990 Watts x 1 @ 1-Ohm
Frequency Response 20Hz – 230Hz +/-1dB
Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0% above 35 Hz
Input Sensitivity 150 mV to 12 V
Efficiency (average) >85%
Electrical & Connections

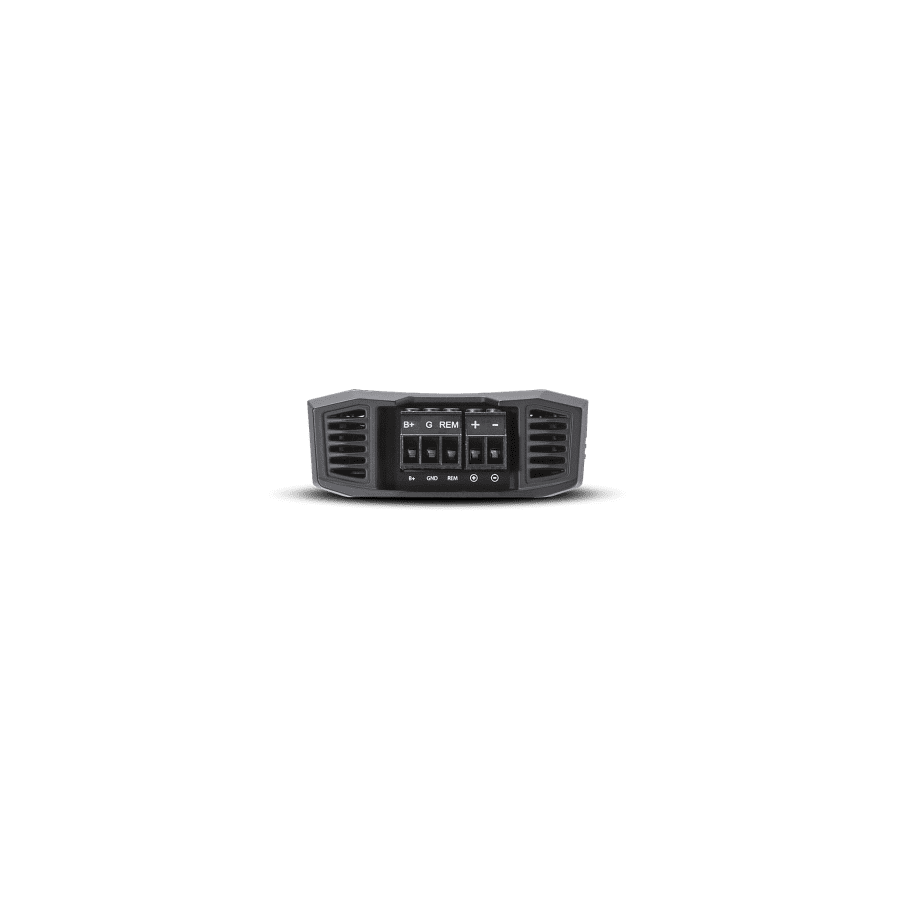

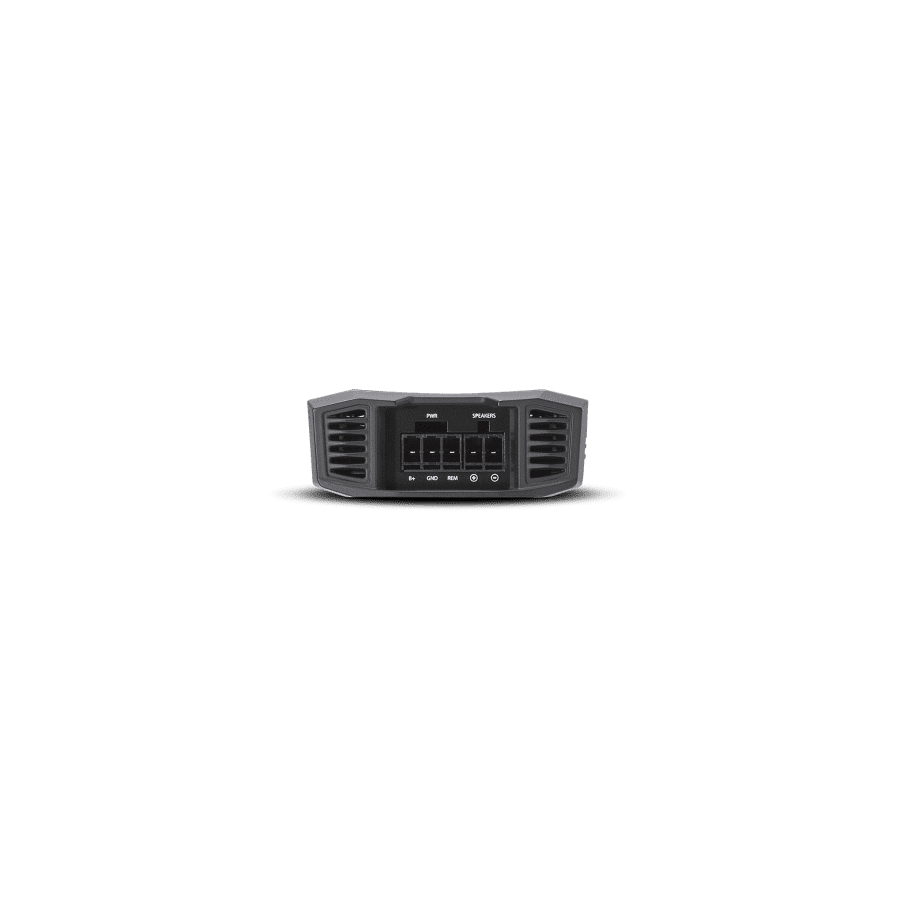

Power Input Connector Detachable Compression Terminal
Replacement 1040-57997
Power Wire Gauge 8 AWG
Speaker Output Connector Detachable Compression Terminal
Speaker Wire Gauge 10 AWG

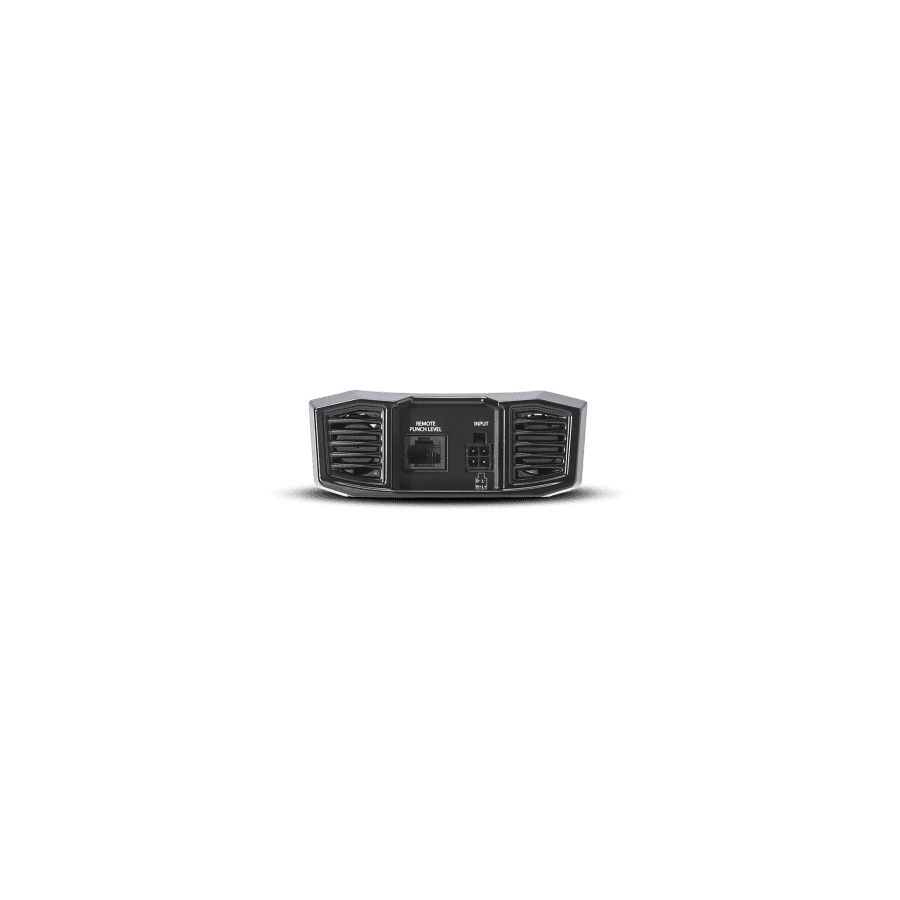

Signal Input High/Low Level Input: 4-Pin harness
Operating Voltage 9 – 16 VDC
Max. Current Draw (13.8V Sinewave) 86 A
Recommended Fuse (not included) 100 A
Physical Specifications
Cooling Dual Fan Cooled
Heatsink Extruded Aluminum
Dimensions (H x W x D) 1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight 3.44 Lbs. (1.56 Kg.)

Additional information

Weight 4 lbs
Dimensions 8.3 × 4.3 × 1.6 in
Amp Channels

Monoblock

Amp Features

Auto Turn-On, Bass Boost, Clip Indicator, High-Level Inputs, Subsonic Filter

Amp Stability

1 Ohm Stable

Amp Remote Control

Optional

Amp Class

Class B/D

Amp Power

Bridgeable

No

Series

Power
