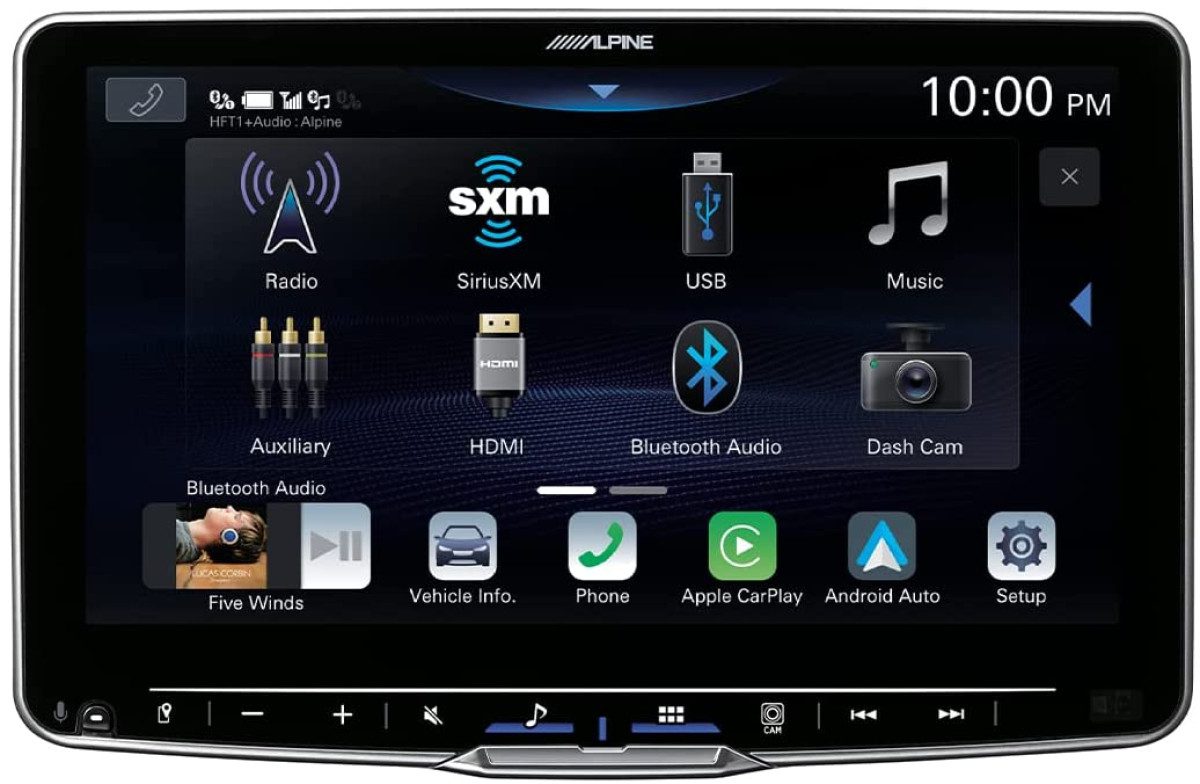

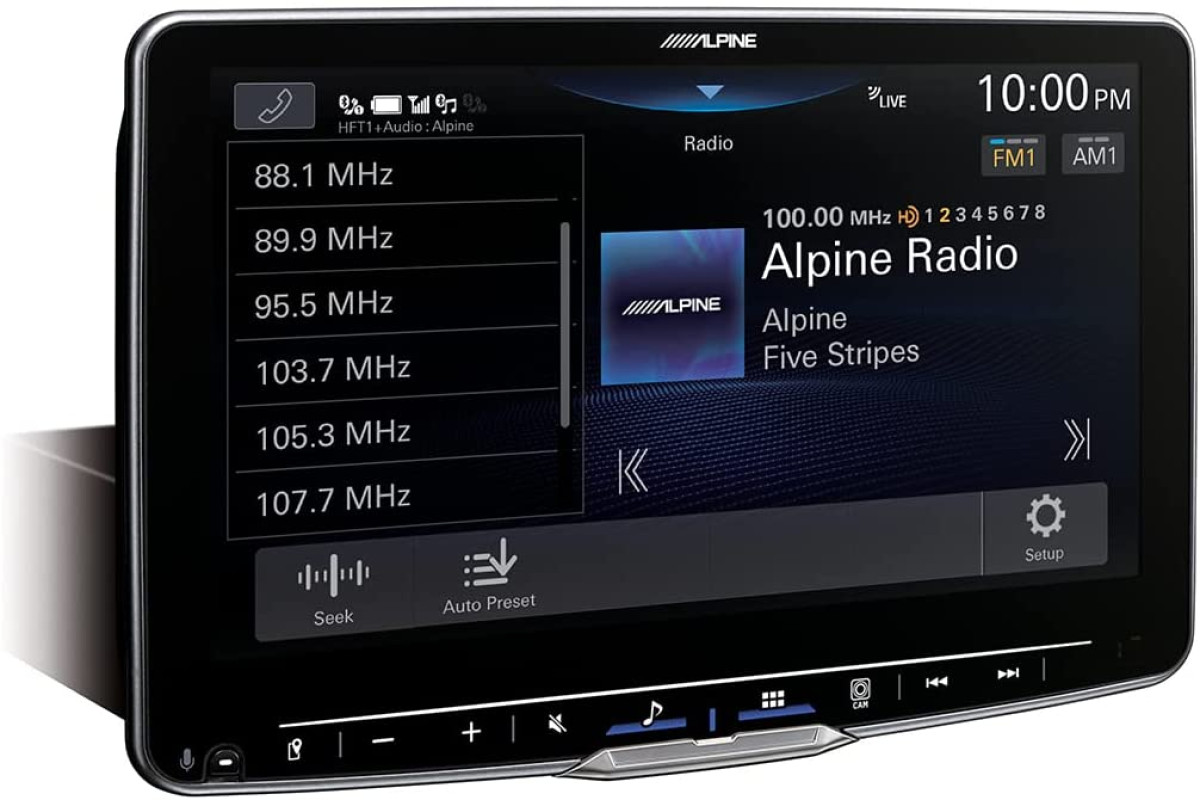

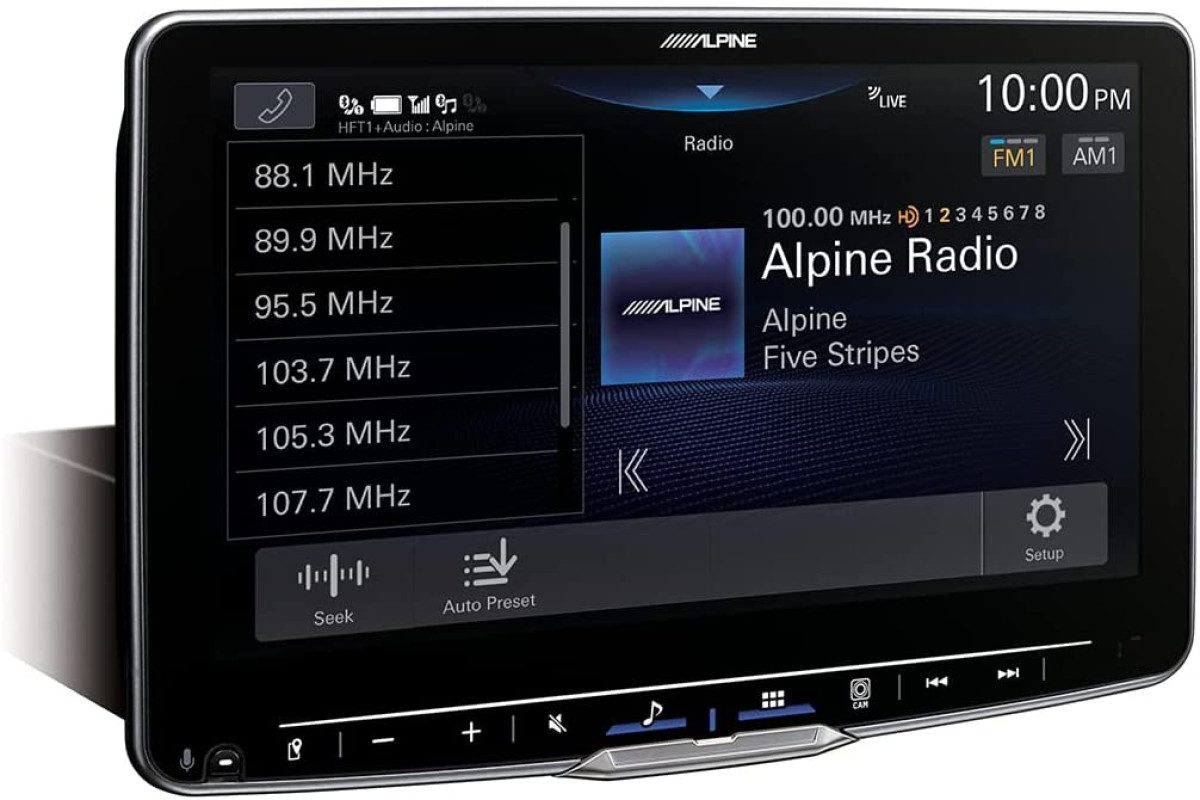

The Alpine iLX-F511 Halo11 is a digital multimedia receiver built around an 11-inch WXGA 1280 x 720px (720p HD) display. It provides two USB connections—one data port and one charge-only port—plus AUX, HDMI input, and HDMI output for connecting supported media sources and external equipment.
For an expanded audio system, this Alpine head unit includes three 4V pre-outs and an 18 watts RMS x 4 built-in amplifier. Its audio controls include 13-band parametric EQ adjustment per channel, 6-channel time correction, high-pass and low-pass crossover controls, and a 24-bit DAC.
Two direct camera inputs are provided: one dedicated rear-camera input and one configurable input for a front, side, or other camera. There is also a dash cam input identified for the Alpine DVR-C320R. Supported digital playback formats include AAC, APE, FLAC, MP3, WMA, WAV, AVC, FLV, H.263, H.264, MP4, MPEG-1, MPEG-2, MPEG-4, MKV, and MOV.
| Specifications | |
|---|---|
| Model | iLX-F511 |
| Receiver Type | Digital multimedia receiver |
| Display Size | 11” |
| Display Resolution | WXGA 1280 x 720px (720p HD) |
| AUX Input | 1 |
| HDMI Connections | 1 HDMI input 1 HDMI output |
| Camera Inputs | 2 direct inputs 1 rear input 1 configurable input for front, side, or other camera |
| Dash Cam Input | 1 (Alpine DVR-C320R) |
| USB Inputs | 2 1 data port 1 charge-only port |
| Preamp Outputs | 3 x 4V |
| RMS Power | 18 Watts RMS x 4 |
| Equalizer | 13-band parametric (per channel) |
| Time Correction | 6-channel |
| DAC | 24 Bit |
| Crossover | High Pass / Low Pass |
| Audio Playback | AAC APE FLAC MP3 WMA WAV |
| Video Playback | AVC FLV H.263 H.264 MP4 MPEG-1 MPEG-2 MPEG-4 MKV MOV |
| Weight | 10 lbs |
|---|---|
| Stereo Chassis | |
| Stereo Connectivity | Bluetooth, HDMI, iDatalink Maestro, USB, Wired/Wireless Apple Car Play, XM Ready, Wire/Wireless Android Auto, Wired/Wireless Apple CarPlay |
| Stereo Features | 13 Band EQ, 3 Preouts, Backup Camera Ready, HD Display, Mechless, Media Player, Multi Camera Input, Navigation By Phone, Touch Screen, Navigation with Phone |
| Stereo Power | |
| Stereo Screen Size |
