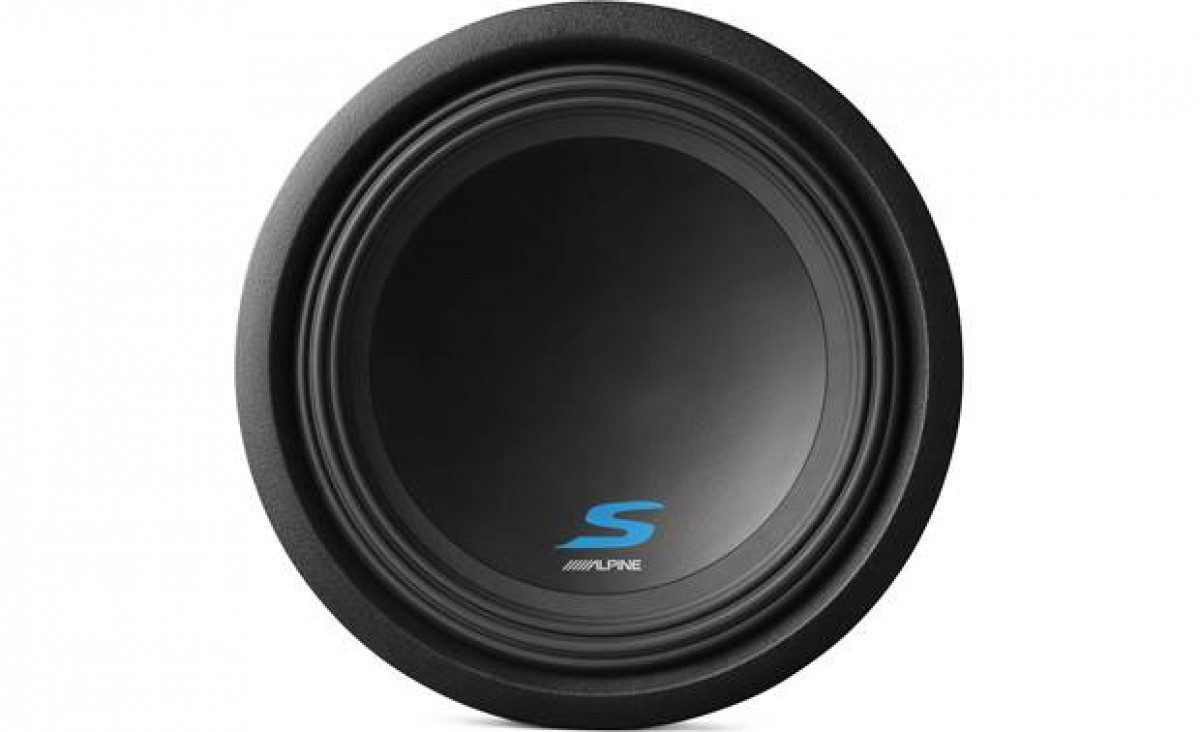

ALPINE S-W12D2 S SERIES 12 IN 600 WATT RMS 2 OHM
- Additional information
The S-Series subwoofers are designed with increased bass output and installation versatility!
CUSTOM-STAMPED STEEL FRAME
Each S-Series subwoofer uses a custom-stamped steel frame. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents as well as a vented back plate to help cool the subwoofer voice coil and motor parts, plus a shallow design to help fit in smaller spaces
PUSH-TYPE INSERT TERMINALS WITH DUAL VOICE COIL JUMPER SYSTEM
The push-type insert terminals help reduce the installation time of the S-Series subwoofers. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal.
600W POWER HANDLING
The 10” and 12” S-Series subwoofers are engineered with an improved voice coil allowing the woofer to benefit from an increased power rating of 600 watts. Match them with the powerful VPower MRV-M500 mono amplifier for a great subwoofer system.
Max RMS Power Capacity: 600W RMS
Peak Power Capacity: 1800W Peak Power
12 2OHM +2OHM Subwoofer
Power Handling: 600W 1800W
High Strength Custom Steel Frame
Great complement to V-Power Amplifiers
Frequency Response: 26Hz-200Hz
Mounting Depth 5-1/16
Recommended Sealed Box: 0.85 cubic foot (gross volume)
Recommended Vented Box: 1.71 cubic foot (gross volume), 12.5 x 1 vent area, 16 vent length
