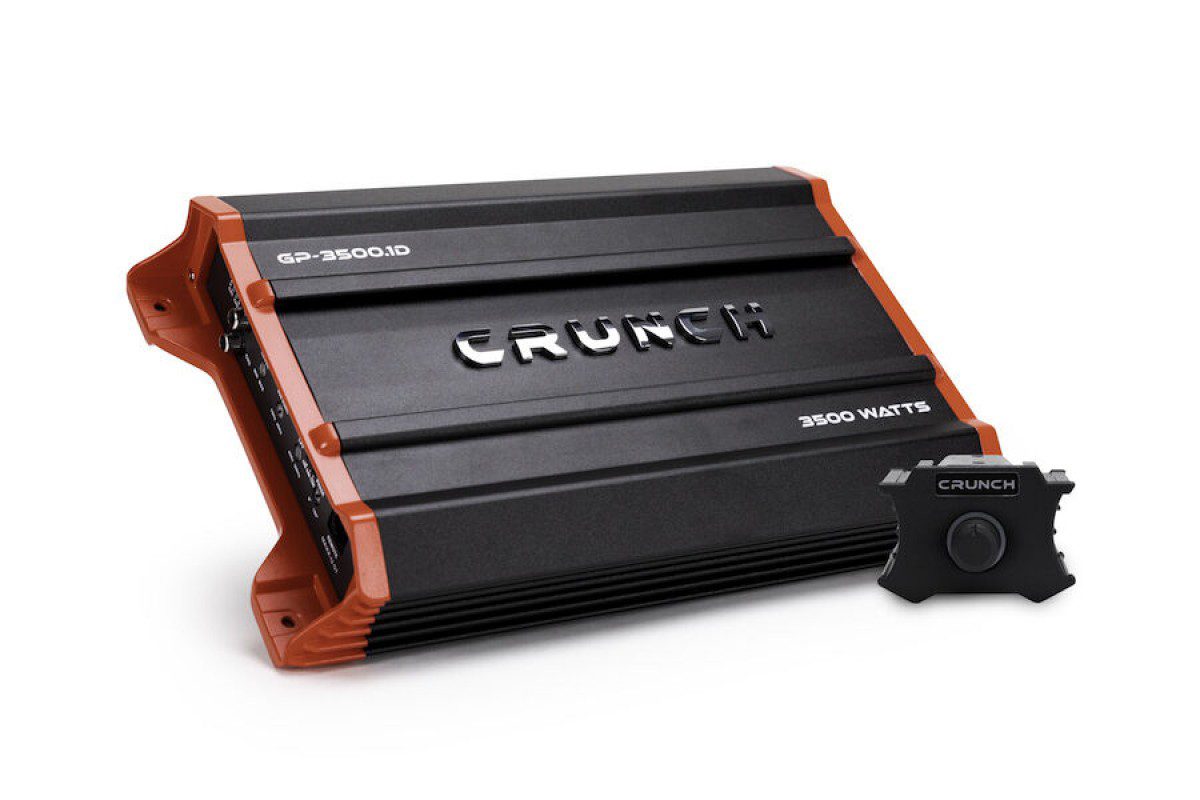

CRUNCH GP-3500.1D GROUND POUNDER 3500 WATTS MONOBLOCK AMPLIFIER
- Additional information
Crunch Ground Pounder with QTD Technology delivers 3500 watts at 1 ohm stability to subwoofers and features include built-in electronic crossovers and includes bass remote.
Category: Ground Pounder
Part #: GP-3500.1D
POWER @ 1 OHM (CH X WATTS)
1 x 3500
POWER @ 2 OHMS (CH X WATTS)
1 x 1750
POWER @ 4 OHMS (CH X WATTS)
1 x 875
MONO BRIDGED @ 4 OHMS (CH X WATTS)
Variable Electronic 12dB Per Octave
TONE CONTROL/PARAMETRIC EQ
Built-in bass control
Switchable: 0 / +6 / +12dB
.2 to 9V
SPEAKER LEVEL AUDIO INPUTS
POWER TERMINAL 12V/GND
SPEAKER TERMINAL WIRE GAUGE
2 x 30A
Features & Benefits
LOW NOISE PREAMPLIFIER CIRCUIT
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
HIGH LEVEL INPUTS
Easily tie into OEM audio systems that do not offer RCA output to maximize aftermarket amplifier power.
HIGH LEVEL INPUTS
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
Variable Electronic 12dB Per Octave.
Fully Adjustable 12dB Crossovers.
Class D: Very efficient D-Class to drive additional power to subwoofer frequencies while remaining a small footprint.
OUTPUT DEVICE TECHNOLOGY
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.
Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.
BASS REMOTE INCLUDED
Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
