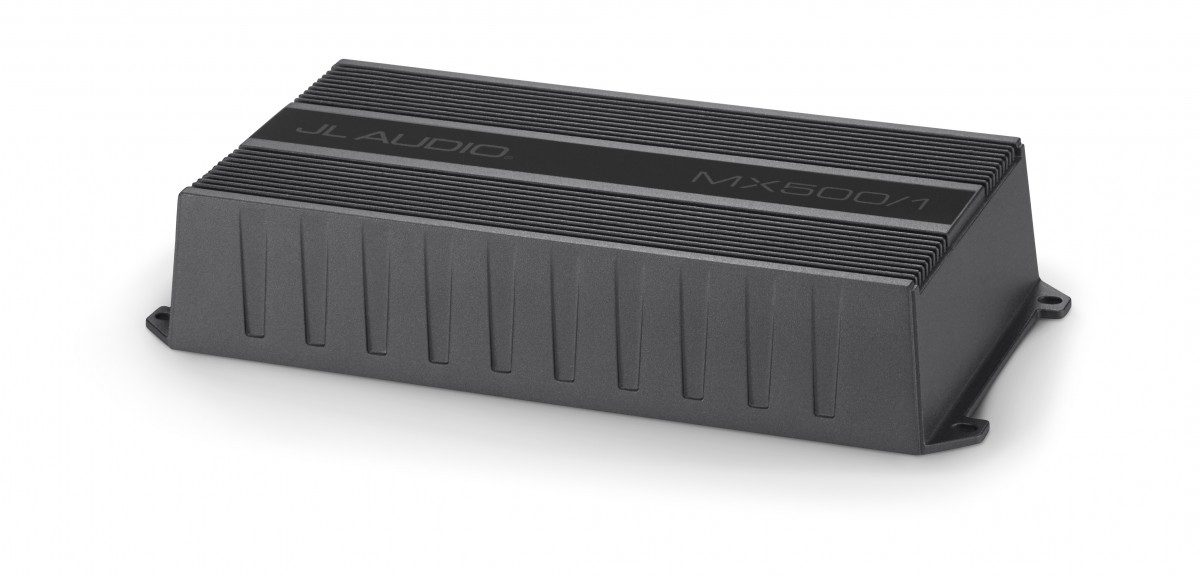

JL AUDIO MX500/1
JL AUDIO MX500/1 MX SERIES 500 WATT MONOBLOCK MARINE
- Additional information
Monoblock Class D Wide-Range Amplifier, 500 W x 1 @ 2 ? / 300 W x 1 @ 4 ? – 14.4V
Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVs or other utility vehicles.
With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the drivers seat.
This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Frequency Response 20 Hz – 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >70.5 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >92 / 50 Hz
Damping Factor @ 2 Ω >43 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 250 mV – 4 V RMS (Low) to 750 mV – 15 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
