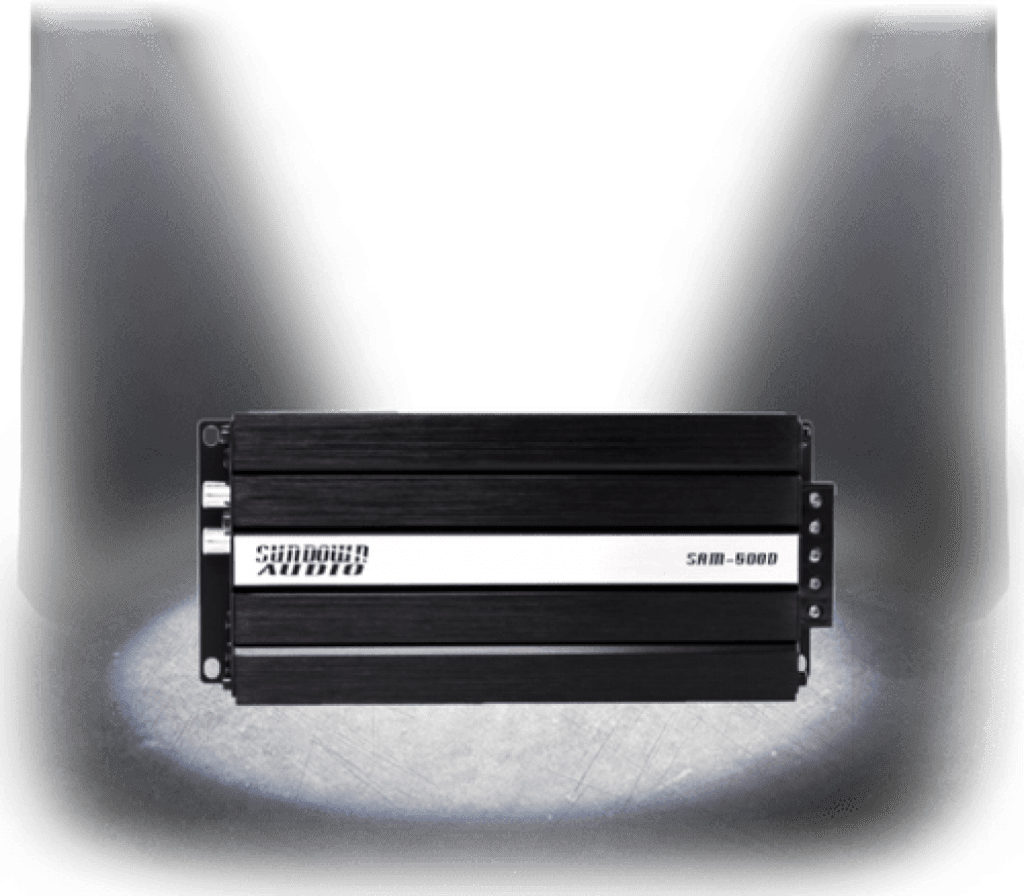

SUNDOWN AUDIO SAM-500D

SPECIFICATIONS
RMS Power @ 1 ohm 500w
RMS Power @ 2 ohms 350w
RMS Power @ 4 ohms 200w
Low Pass X-over Frequency 35Hz – 160Hz
Bass Boost 0-9dB
Input Sensitivity 15-0.5V
Signal Noise Ratio >100dB
T.H.D. <0.5%
Efficiency @ 4 ohms 86%
Recommended Fuse Rating 30A x 2 (Int)
Dimensions 6.7″ x 3.5″ x 1.4″
FEATURES
Digital Class D Linkable Mono Block Amplifier
MOS-FET PWM Power Supply
1 Ohm Stable Load
12 dB/Octave – Variable Low Pass Filter
9dB/Octave – Variable Bass Boost
4 Way Protection Circuit (Thermal, Voltage, Speaker Short, and DC Offset)
Wired Remote Control
