JL AUDIO XD-PCS4-2B
Premium 4 AWG 12V Power Connection System for Two Amplifiers
Everything* you need to make secure, high-integrity power connections to two amplifiers with combined fuse ratings up to 100A. This kit features our high-capacity ANL Master Fuse Block, a Maxi®-fused distribution block and our bolt-on master ground lug, for maximum performance.

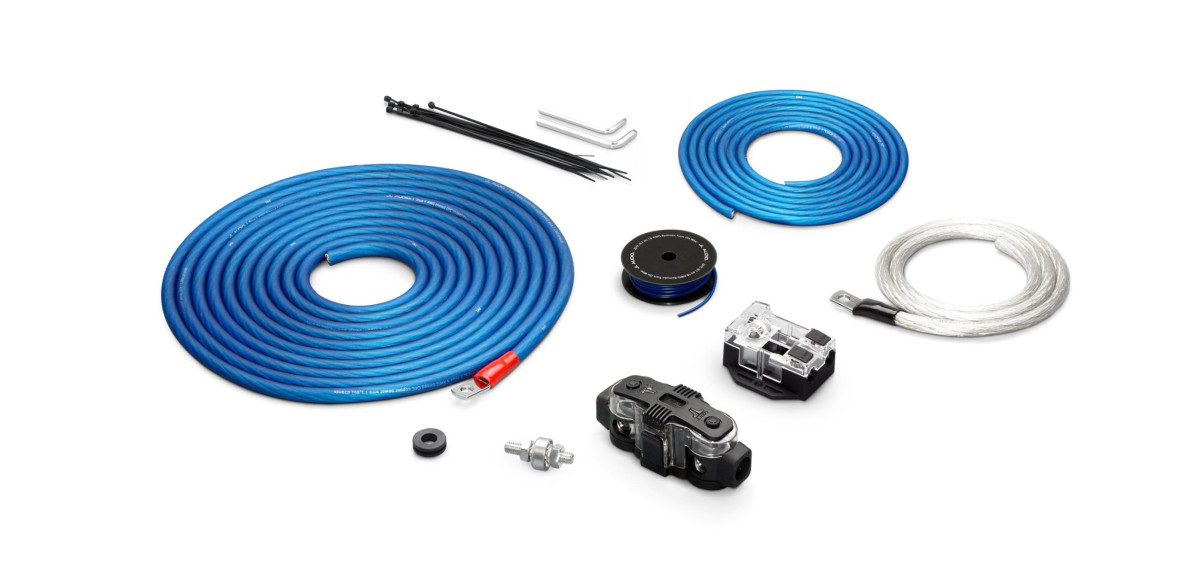

What’s in the kit?
XD-MFBU-ANL Fuse Holder with 100A ANL Blade Fuse
XD-FDBU-2 Fused Distribution Block*
20 ft. (6.1 m) Blue 4 AWG Premium Power Wire, terminated with ring
8 ft. (2.4 m) Blue 8 AWG Premium Power Wire
8 ft. (2.4 m) Clear 8 AWG Premium Ground Wire, terminated with a ring on each end
20 ft. (6.1. m) Blue Remote Turn-On Lead Wire
Bolt-On Master Ground Lug
Rubber Firewall Grommet
Nylon Wire Ties
Bonus: Additional 1-year warranty on JL Audio amplifier when installed by authorized dealer with this Power Connection System!
The supplied 100A ANL blade fuse installs into the Master Fuse Block near the battery. It is appropriate to protect the main power wire in the event of a short circuit.
*You will also need to purchase the appropriate Maxi® fuses for installation into the Fused Distribution Block. These need to be selected based on the specific fuse rating of the amplifiers you are installing and, for that reason, are not included with this kit.
