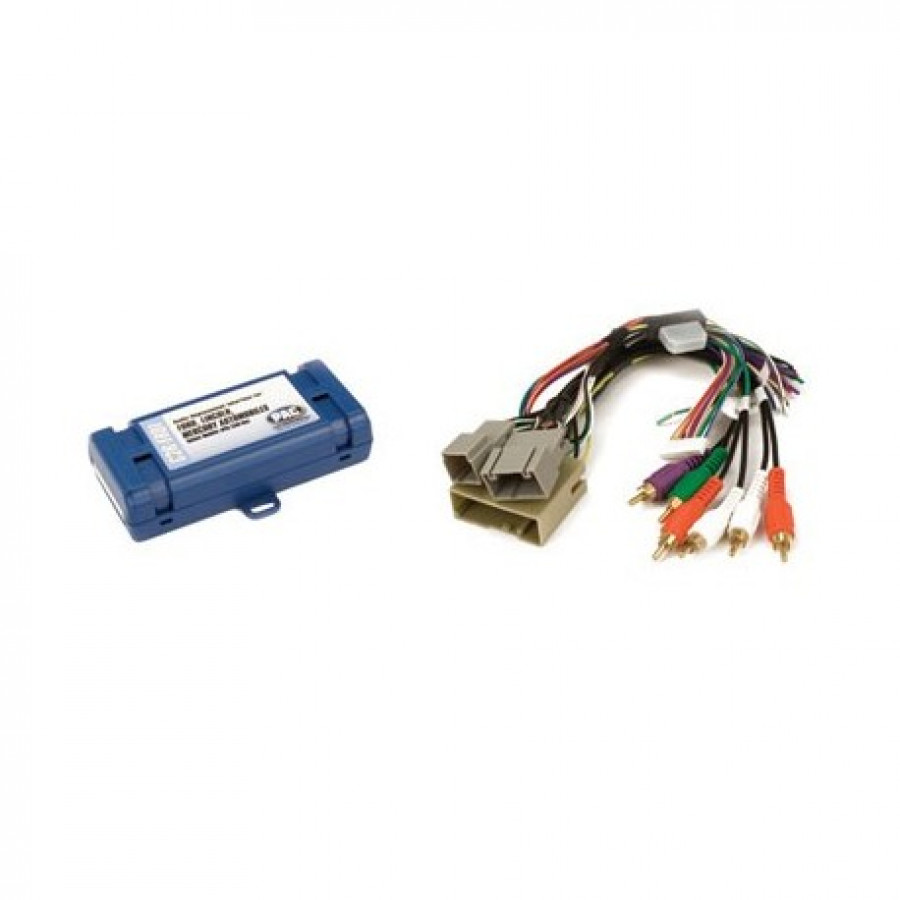

PAC C2R-FRD1

Provides navigation trigger wires and timed accessory output for replacing the factory radio. Retains the factory-installed amplified audio system and rear-seat entertainment (if equipped). Use a steering wheel interface module to retain the function of all factory controls.

Data controlled:

RAP accessory output wire
Reverse trigger wire
Illumination output wire
Parking brake wire
Vehicle speed sense wire
Retains

Factory 3.5mm jack if equipped
Rear seat entertainment and dual-zone audio
Factory-installed amplified audio system
Single wire output for steering wheel control module
Compatibility:

Does not retain SYNC. SYNC retention requires the MS-FRD1
Does not retain steering wheel controls in 2011+ F-series trucks. These vehicles must use the RP4-FD11 for steering wheel control retention.
Vehicle Specific Notes:

2008 F-250/350/450: Not compatible with model trim XL (fleet vehicles). These vehicles do not have the necessary CAN bus signals
2006-2007 Ford Freestyle: Does not retain RSE

Year(s) Make Model Trim Level Additional Info
2007-2010 FORD EDGE ALL TRIM LEVELS —
2008-2012 FORD ESCAPE ALL TRIM LEVELS —
2007-2014 FORD EXPEDITION ALL TRIM LEVELS —
2006-2010 FORD EXPLORER ALL TRIM LEVELS —
2007-2010 FORD EXPLORER SPORT TRAC ALL TRIM LEVELS —
2009-2012 FORD F-150 ALL TRIM LEVELS —
2008-2012 FORD F-250 ALL TRIM LEVELS —
2008-2012 FORD F-350 ALL TRIM LEVELS —
2008-2012 FORD F-450 ALL TRIM LEVELS —
2005-2007 FORD FIVE HUNDRED ALL TRIM LEVELS —
2009-2012 FORD FLEX ALL TRIM LEVELS —
2008-2011 FORD FOCUS ALL TRIM LEVELS —
2006-2007 FORD FREESTYLE ALL TRIM LEVELS —
2006-2012 FORD FUSION ALL TRIM LEVELS —
2005-2013 FORD MUSTANG ALL TRIM LEVELS —
2008-2012 FORD TAURUS ALL TRIM LEVELS —
2008-2009 FORD TAURUS X ALL TRIM LEVELS —
2009-2012 LINCOLN MKS ALL TRIM LEVELS —
2010-2012 LINCOLN MKT ALL TRIM LEVELS —
2007-2010 LINCOLN MKX ALL TRIM LEVELS —
2007-2012 LINCOLN MKZ ALL TRIM LEVELS —
2007-2014 LINCOLN NAVIGATOR ALL TRIM LEVELS —
2006 LINCOLN ZEPHYR ALL TRIM LEVELS —
2008-2011 MAZDA TRIBUTE ALL TRIM LEVELS —
2008-2011 MERCURY MARINER ALL TRIM LEVELS —
2006-2011 MERCURY MILAN ALL TRIM LEVELS —
2005-2007 MERCURY MONTEGO ALL TRIM LEVELS —
2006-2010 MERCURY MOUNTAINEER ALL TRIM LEVELS —
2008-2009 MERCURY SABLE ALL TRIM LEVELS —
