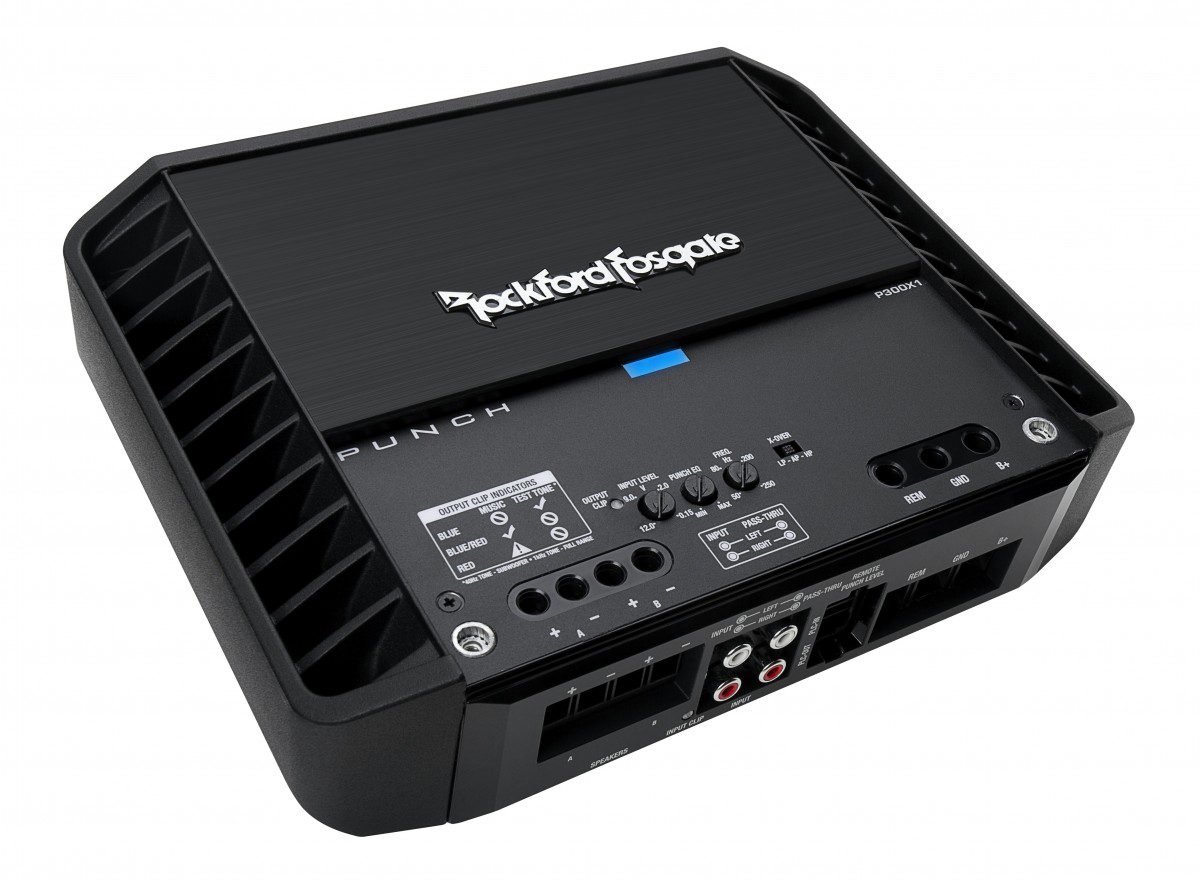

ROCKFORD FOSGATE P300X1
The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.
High level input capable with Auto Turn-On circuit
RCA pass-thru outputs
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz
Muted turn on

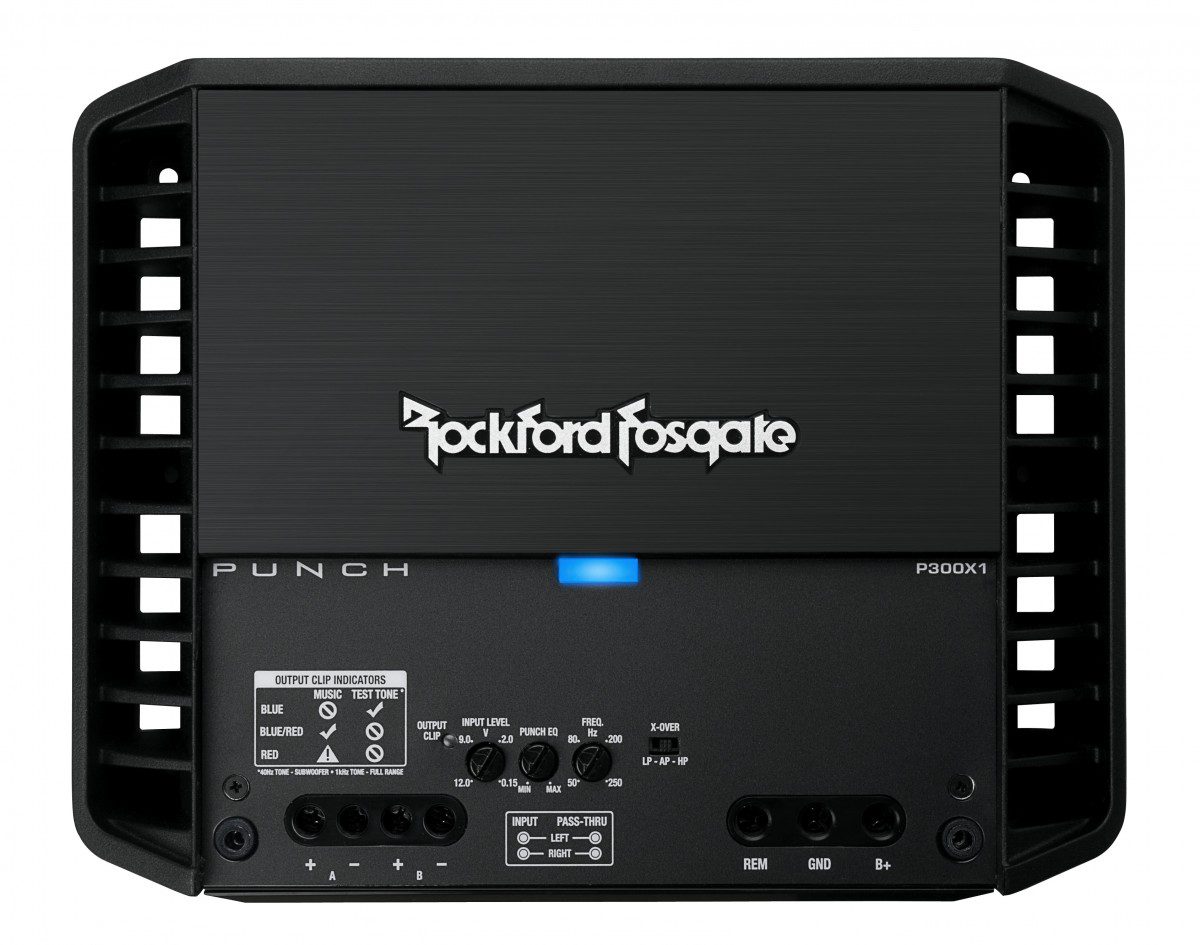

Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
1 Year Warranty
CEA-2006 Compliant CEA-2006 Guidelines CEA-2006
Power Rating: 200W x 1 @ 4? ?1.0% THD+N
Number of Channels: 1
Total Power (Sum of Rated Power): 300 Watts
Rated Power (RMS Continuous Power): 200 Watts x 1 @ 4-Ohm, 300 Watts x 1 @ 2-Ohm
Dynamic Power: (PVC/PowerCube)260 Watts x 1 @ 4-Ohms 0 Res 444 Watts x 1 @ 2-Ohms 0 Res
Bridgeable: No
Frequency Response: 20Hz to 20kHz +/- 1.0dB
Input Sensitivity: 150 mV - 12 V
Circuit Topology Class: Class A/B
Efficiency (average)74% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input: Hi/Low level: 1 RCA pair
Signal Output: Low Level: 1 RCA Pair
Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover Controls: High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
All-Pass: Yes
Remote Controls: Optional Punch Level Control (PLC2) Ready
Visual Indicators: Power/Protect/Thermal LED
Input Clip LED 3
Output Clip LED 1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge: 8 AWG to 4 AWG
Power Input Connector: Captive C-Clamp
Speaker Wire Gauge: 8 AWG to 18 AWG
Speaker Output Connector: Captive C-Clamp
Cooling: Convection
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 50 A
Average Current Draw (13.8V Music): 23 A
Max. Current Draw (13.8V Sinewave); 45 A
Suggested Alternator: 75 A
Dimensions: (H x W x D) 2.38 x 7.76 x 9.86 (in)/6.05 x 19.71 x 25.04 (cm)
Additional information
Weight | 9.5 lbs |
---|
