Rockford Fosgate Punch P300X2 2 Channel 300/2 Watts Amplifier

The Rockford Fosgate Punch P300X2 is a 2-channel Class A/B car amplifier that delivers 150 Watts x 2 at 2 Ohm or 300 Watts x 1 at 4 Ohm bridged for a pair of speakers or a single subwoofer.

$279.99

1 in stock

Description

The Amp At A Glance:

  • Flexible power: Delivers 100 Watts x 2 at 4 Ohm, 150 Watts x 2 at 2 Ohm, or 300 Watts x 1 at 4 Ohm bridged.
  • Versatile system options: Drives coaxial or component speakers in stereo and can be bridged to power a single smaller subwoofer.

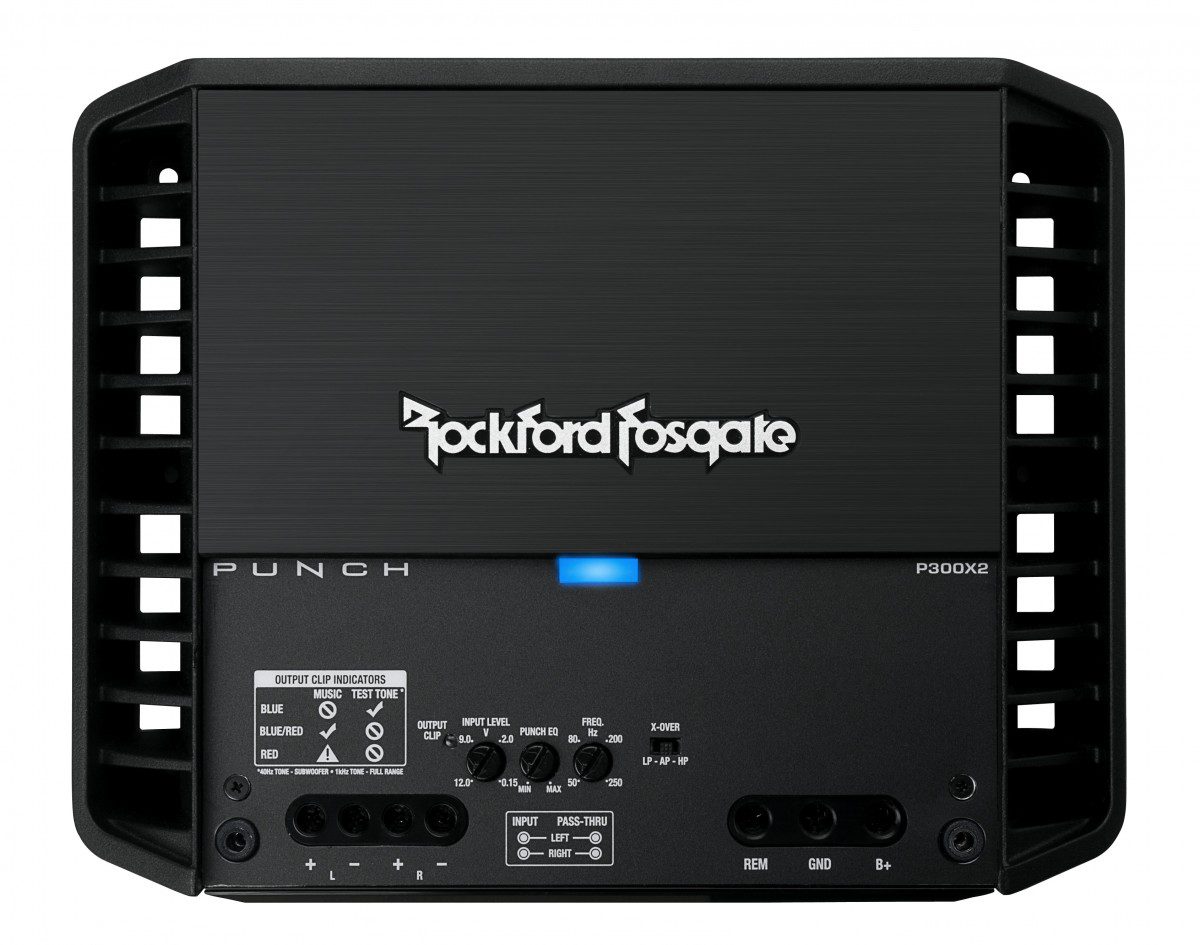

  • Precise setup: C.L.E.A.N. Set-up helps configure the amplifier, while the stealth top-mounted control panel keeps adjustments neatly covered.
  • Sound-shaping control: An onboard Punch EQ provides up to +18 dB of boost at 45 Hz, supported by a 12 dB per octave Butterworth crossover.
  • Broad source compatibility: High-level inputs with an Auto Turn-On circuit and an input sensitivity range of 150 mV to 12 V support a variety of installations.
  • Expandable level control: The amplifier is ready for the optional Punch Level Control PLC2 with an input clip indicator.
  • Protected operation: A cast-aluminum heatsink, muted turn-on, over-current protection, and short-circuit protection support dependable performance.

The Punch P300X2 gives a moderately sized system the power and control needed to bring music forward with clean, confident output. Its Class A/B design can add authority to a pair of full-range or component speakers, or direct bridged power to a single smaller subwoofer.

Built-in crossover and Punch EQ controls let you shape the output for the speakers and listening experience you want. C.L.E.A.N. Set-up further helps establish proper settings, making it easier to enjoy strong output with clarity and control.

Amplifier Specifications
Amp Channels 2 Channel
Amp Power 300/2 Watts
Amp Class Class A/B
Amp Stability 2 Ohm Stable
Bridgeable Yes
Crossover Controls High-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz – 250Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Tone Controls 0dB to +14dB @ 12.5kHz
0dB to +18dB @ 45Hz
Amp Remote Control Optional
Rated Power (RMS Continuous Power) 100 Watts x 2 @ 4Ohm
150 Watts x 2 @ 2Ohm
300 Watts x 1 @ 4Ohm Bridged
Dynamic Power (PVC/PowerCube) 122 Watts x 2 @ 4Ohm 0° Res
215 Watts x 2 @ 2Ohm 0° Res
435 Watts x 1 @ 4Ohm Bridged 0° Res
Frequency Response (Hz) 20Hz-20kHz
Total Harmonic Distortion (THD+Noise) 4Ohm: <1.0%
2Ohm: <1.0%
Input Sensitivity 150 mV – 12 V
Efficiency (average) 69% @ 4Ohm

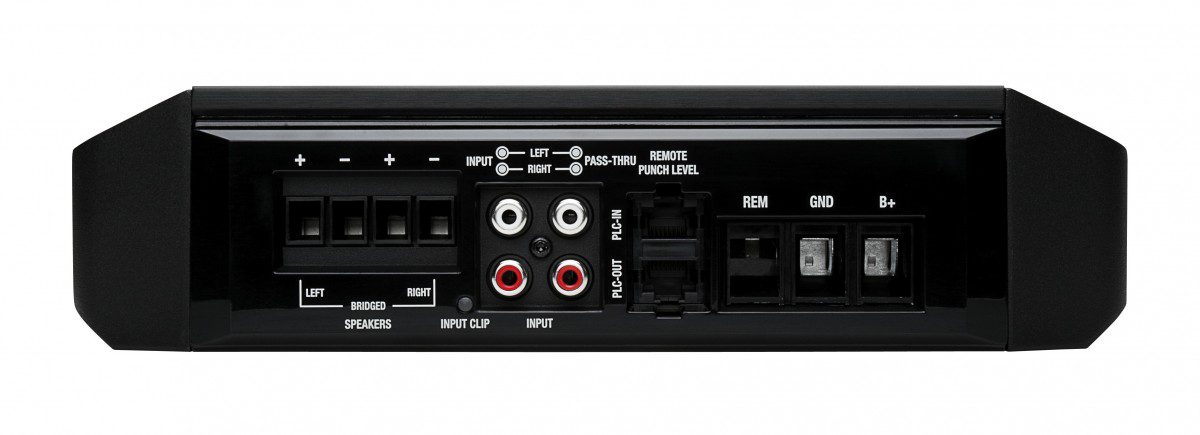

Electrical & Connections
Power Input Connector Captive C-Clamp
Power Wire Gauge 8 AWG to 4 AWG
Speaker Output Connector Captive C-Clamp
Speaker Wire Gauge 8 AWG to 18 AWG
Signal Input Hi/Low Level: 1 RCA Pair
Signal Output Low Level: 1 RCA Pair
Operating Voltage 9 – 16 VDC
Max. Current Draw (13.8V Sinewave) 45 A
Average Current Draw (13.8V Music) 23 A
Recommended Fuse (not included) 50 A
Suggested Alternator 75 A
Physical Specifications
Cooling Convection
Dimensions (H x W x D) 2.38 x 7.76 x 9.86 (in)
6.05 x 19.71 x 25.04 (cm)
Shipping Weight 9.5 Lbs. (4.3 Kg.)

Additional information

Weight 10 lbs
Dimensions 9.86 × 7.76 × 2.38 in
Amp Channels

2 Channel

Amp Class

Class A/B

Amp Features

Auto Turn-On, Bass Boost, Clip Indicator, High-Level Inputs

Amp Remote Control

Optional

Amp Stability

2 Ohm Stable

Bridgeable

Yes

Series

Punch

Amp Power
