JL AUDIO HD900/5
JL AUDIO HD900/5 HD SERIES 900 WATT 5 CHANNEL
- Additional information
JL AUDIO HD900/5 HD SERIES
5-Channel Class D System Amplifier, 100 W x 4 + 500 W x 1
Frequency Response (Main Channels) 12 Hz – 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz – 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >400 / 50 Hz
Damping Factor @ 2 Ω >200 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 4 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system… with a very serious 900 watts of power!
Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

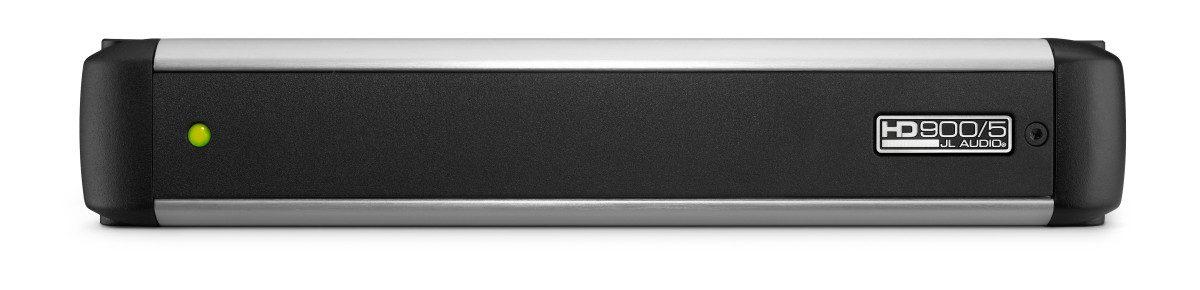

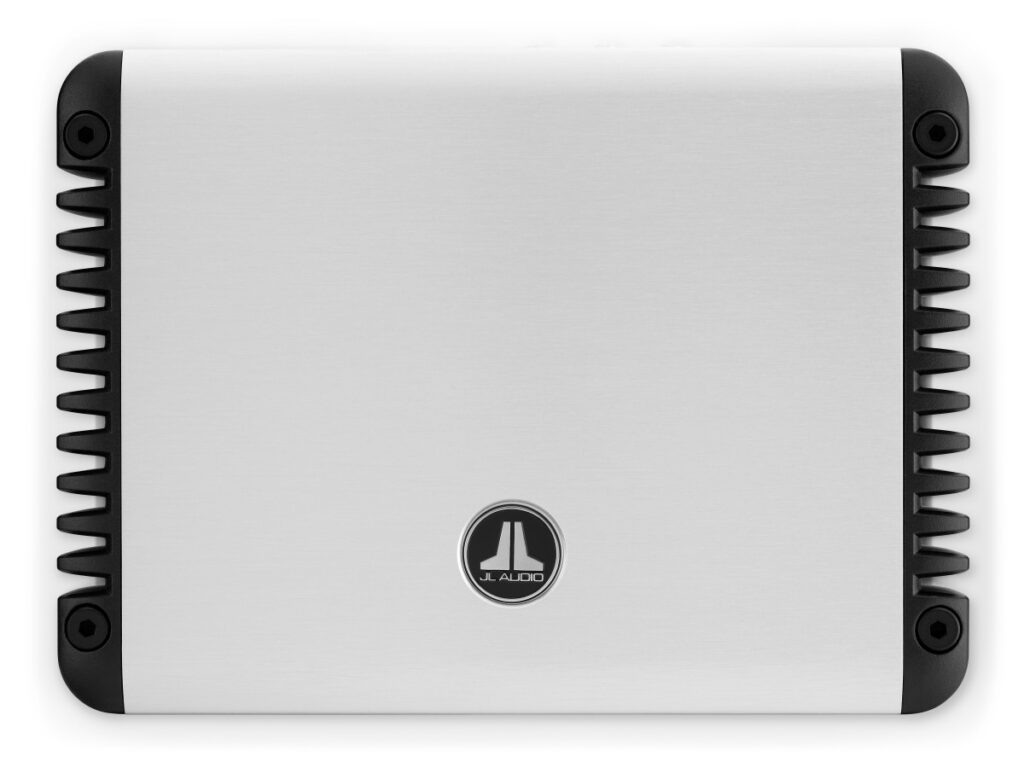

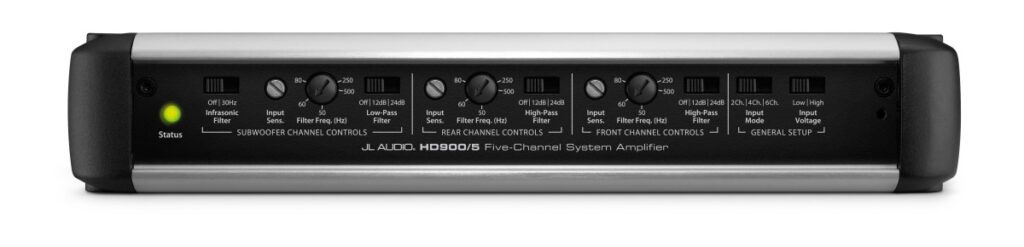

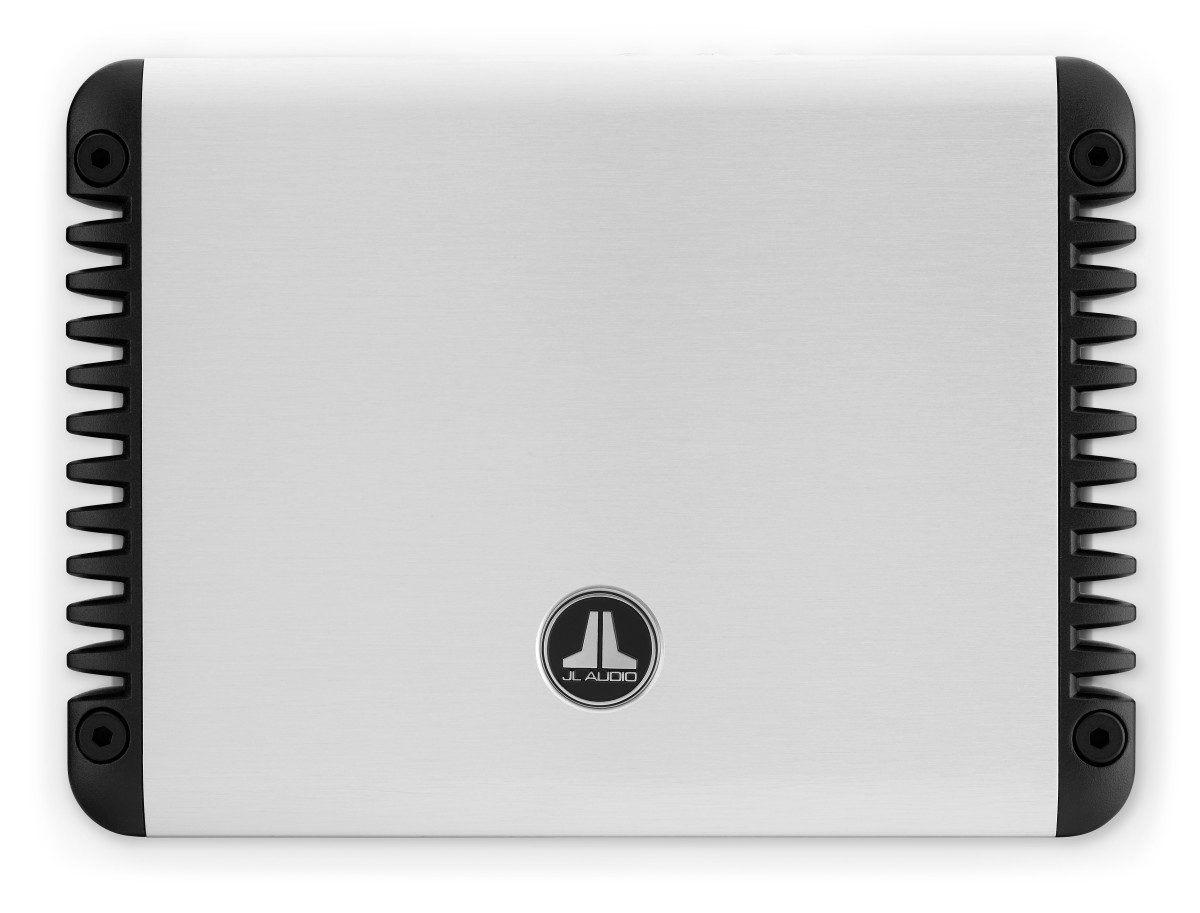

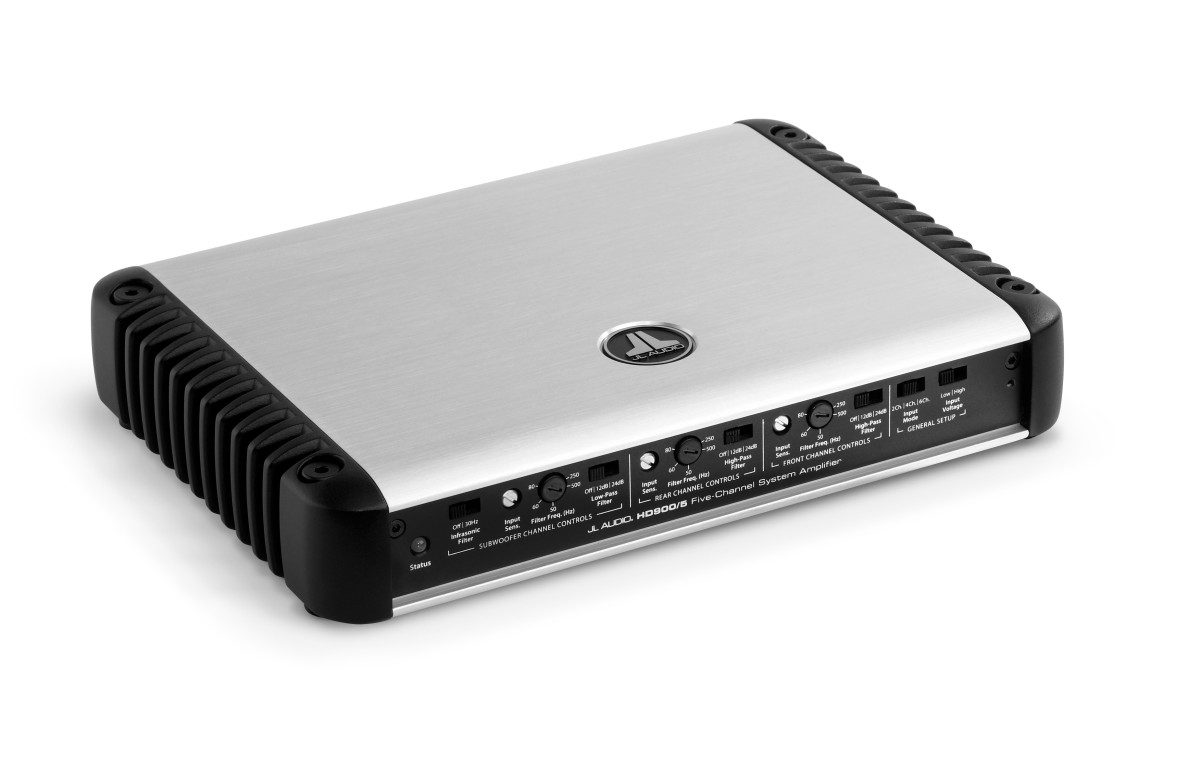

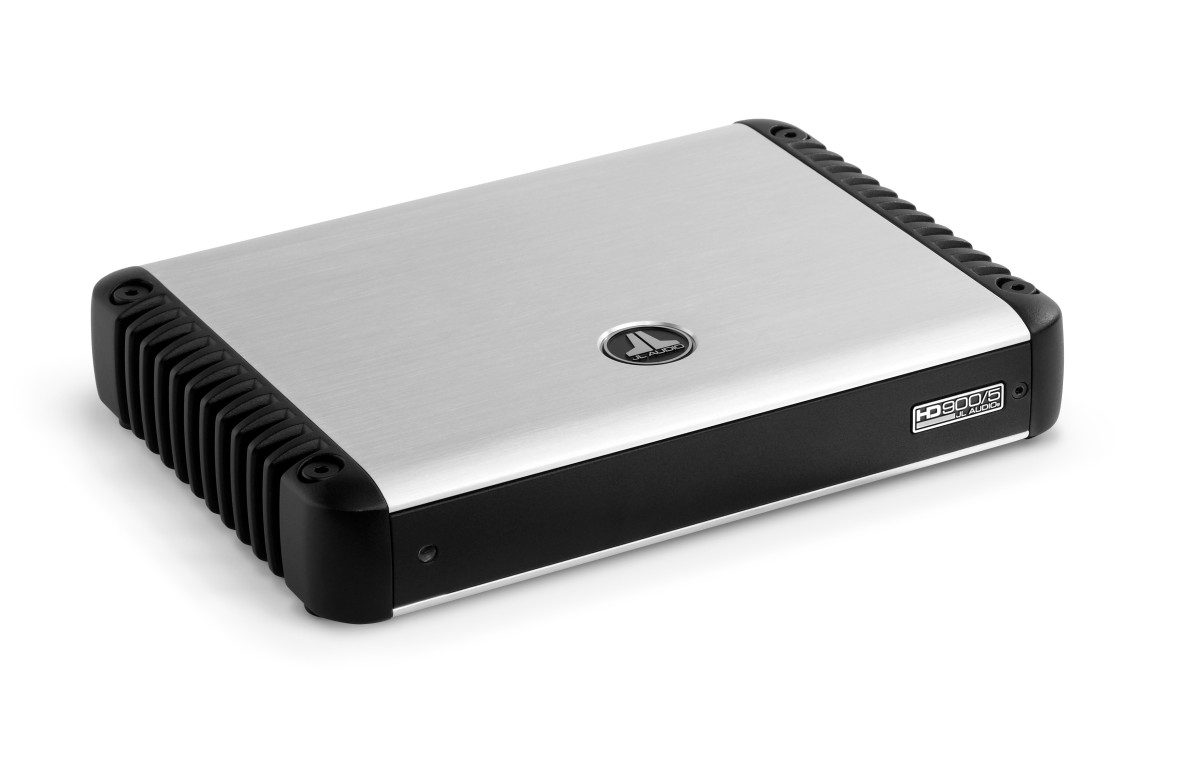

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
|Dimensions||10.74 × 8.29 × 1.93 in|
