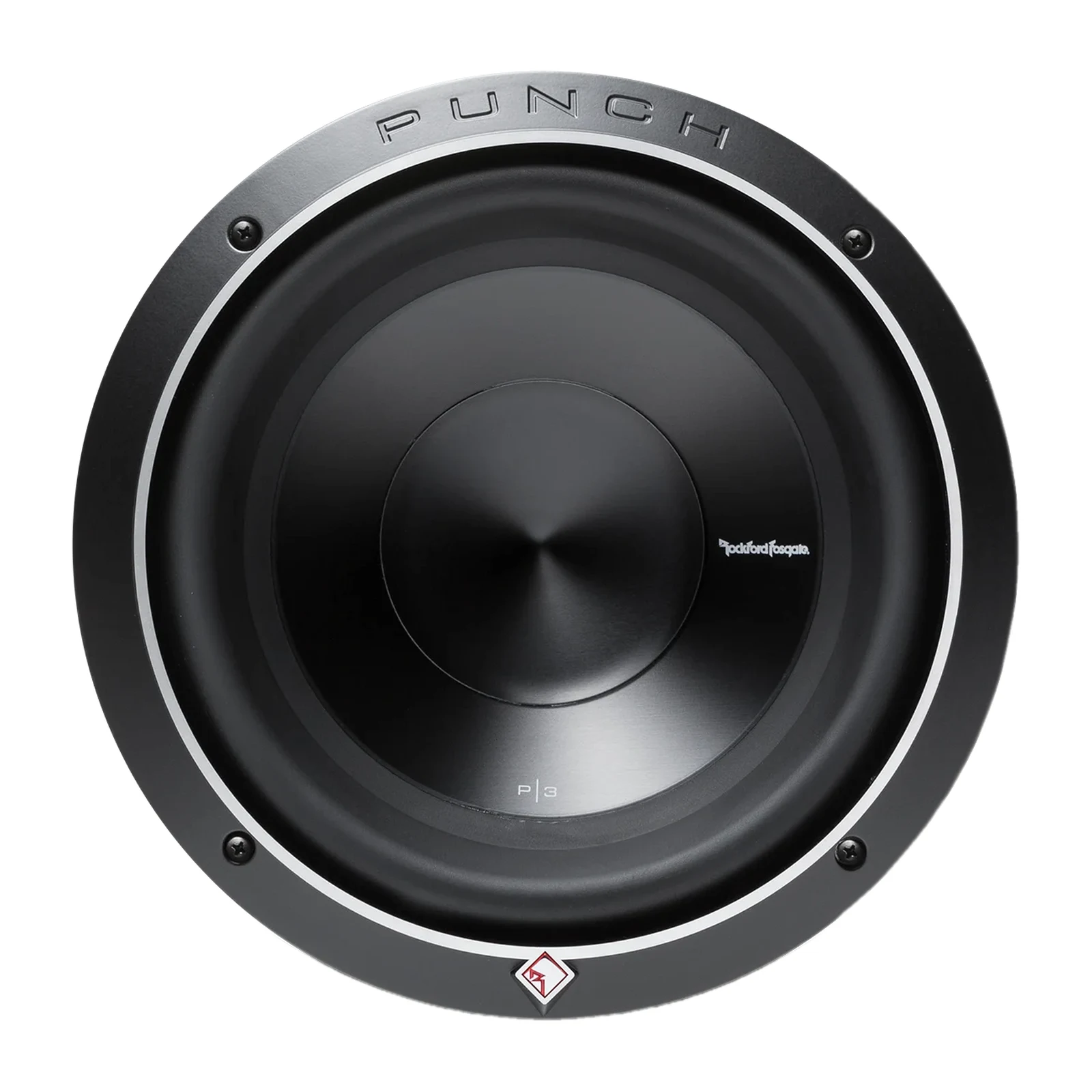

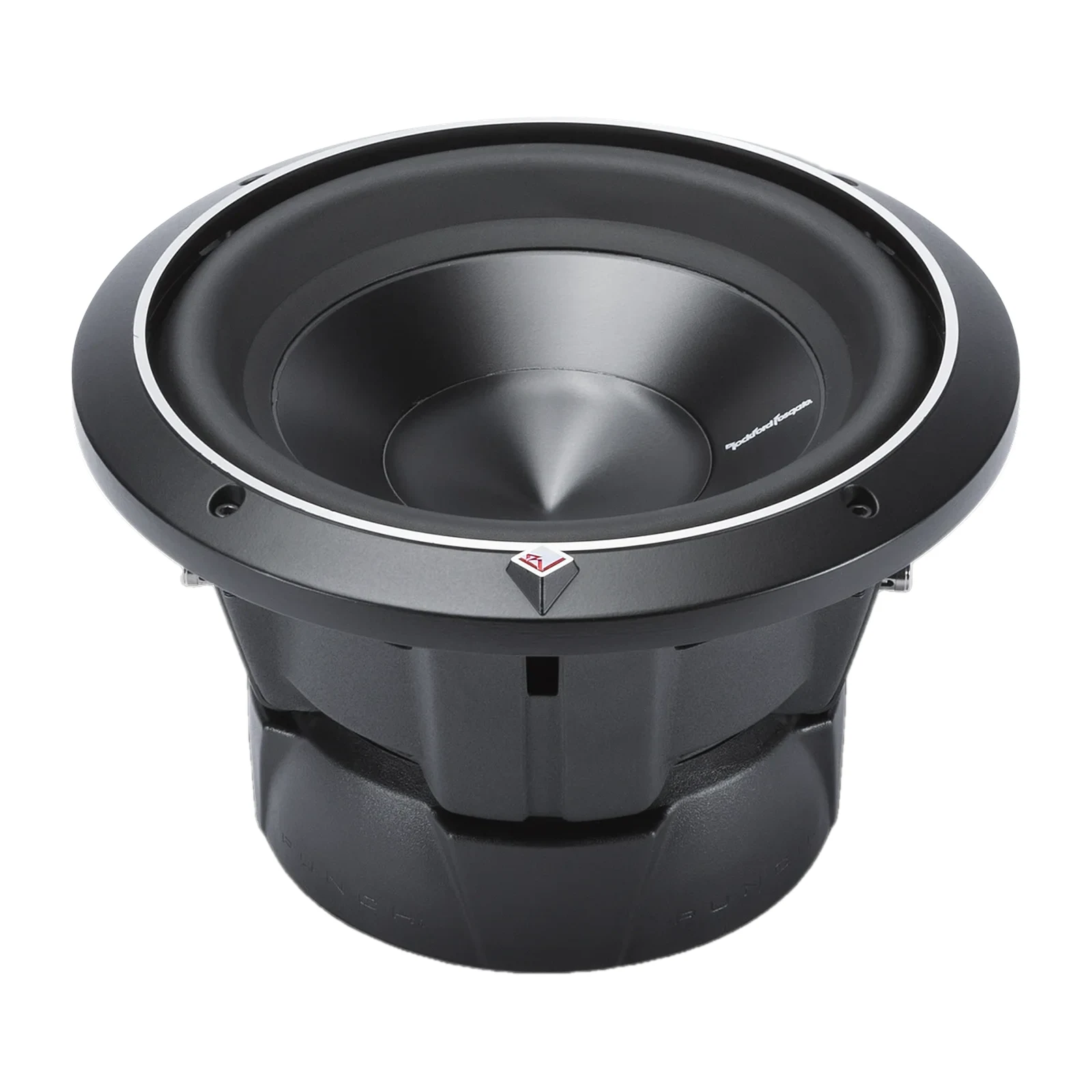

Rockford Fosgate Punch P3D2-10 10in Dual 2 Ohm 500 Watts Subwoofer

Rockford Fosgate P3D2-10 10-inch Punch subwoofer with dual 2-ohm voice coils, 500 watts RMS power handling, an anodized aluminum cone, VAST technology, and a durable StampCast basket.

$239.99

2 in stock

Description

The Sub At A Glance:

  • Power handling: Handles 500 watts RMS and up to 1,000 watts maximum.
  • Dual voice coils: Dual 2-ohm voice coils provide flexible system wiring options.
  • Rigid cone construction: An anodized aluminum cone and dustcap deliver the strength needed for forceful bass reproduction.
  • More effective cone area: VAST technology increases cone surface area by up to 25%.
  • Durable, low-resonance frame: The hybrid StampCast basket combines strength with reduced weight and resonance.

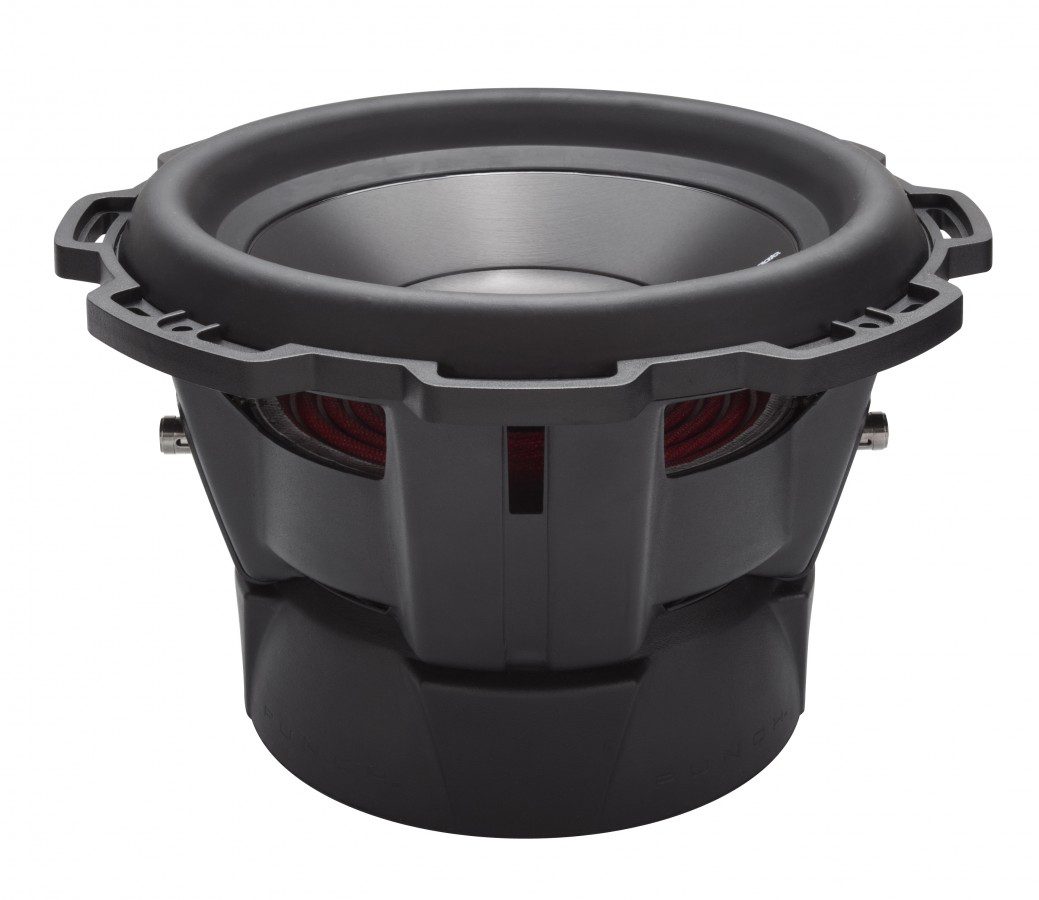

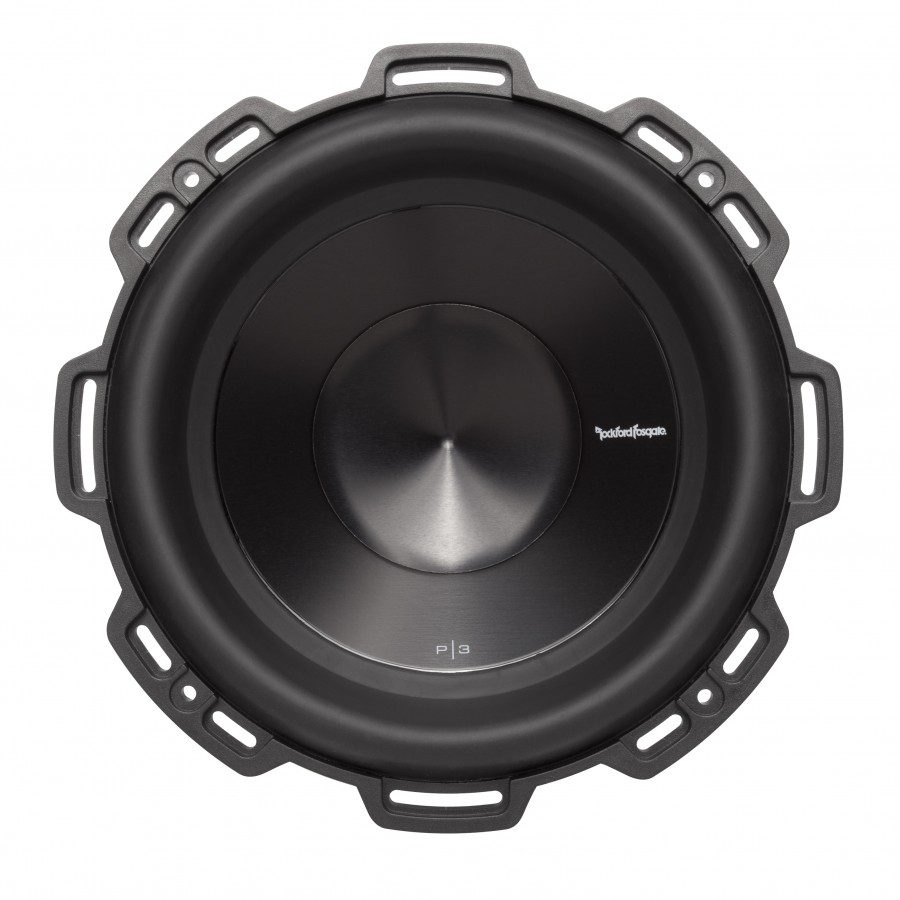

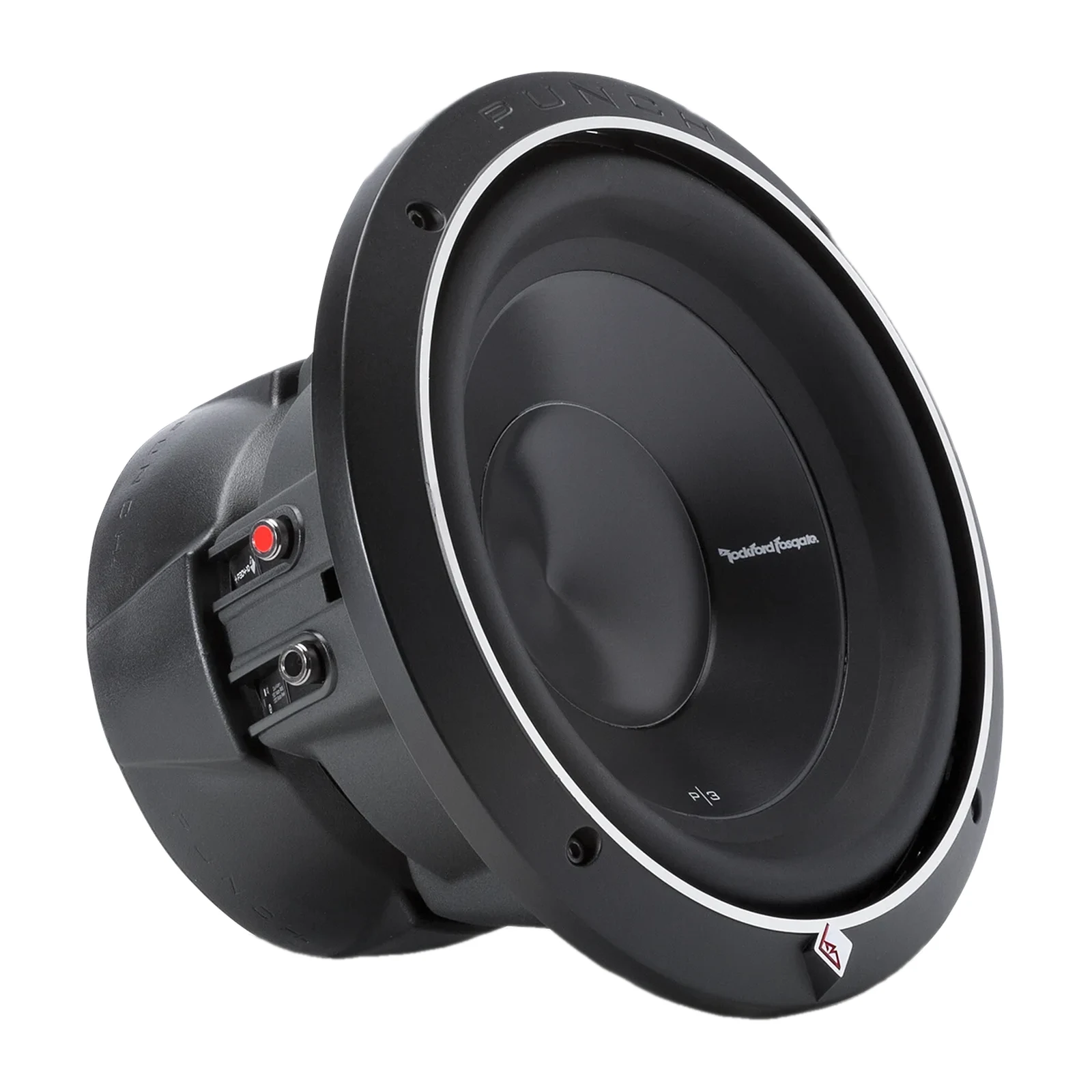

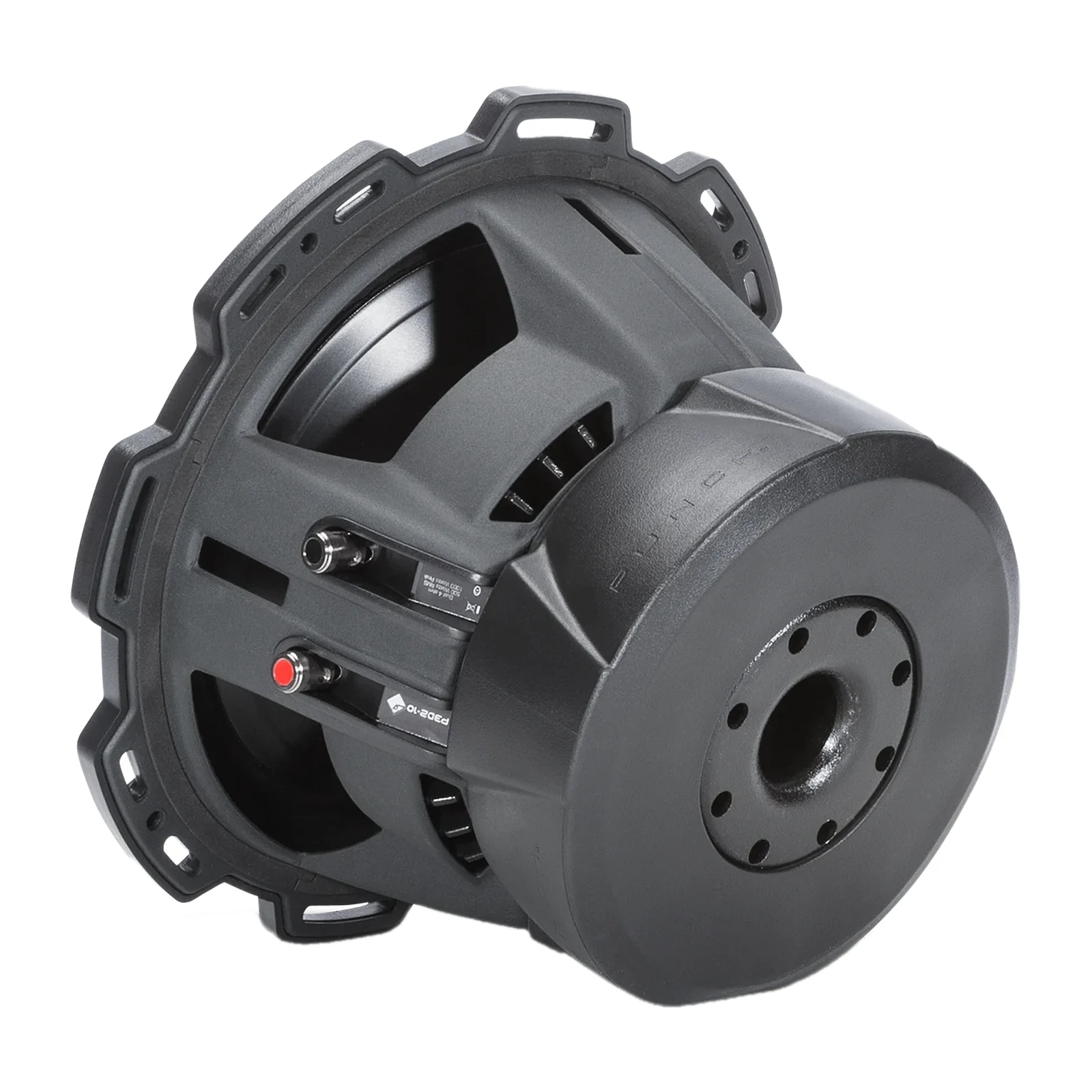

  • Installation versatility: The FlexFit basket supports demanding installations, while custom 10-AWG nickel-plated push terminals provide secure connections.

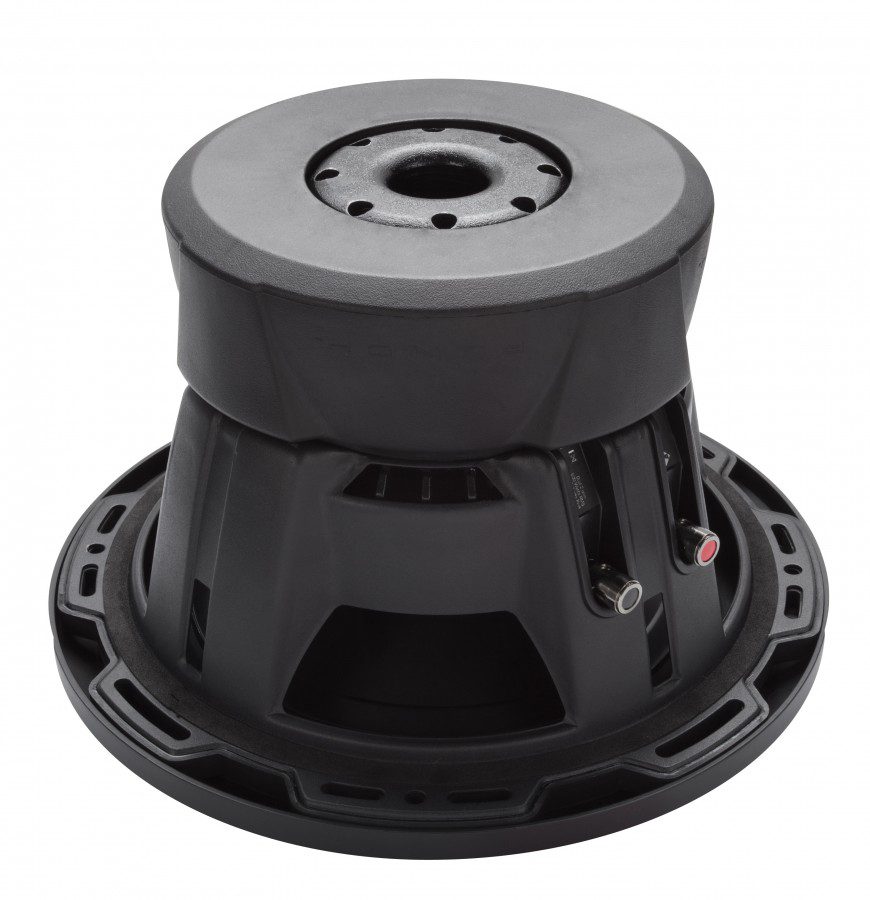

  • Improved cooling: Integrated spider venting, an extended pole piece, and a bumped vented backplate help keep the motor cooler.

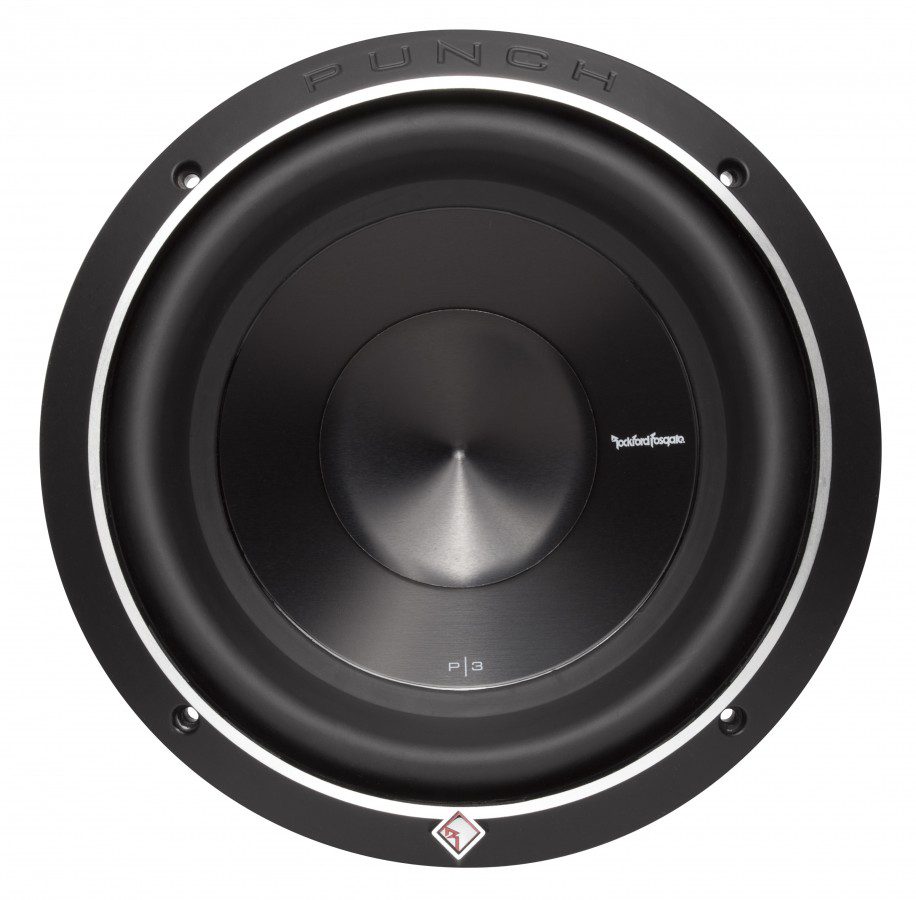

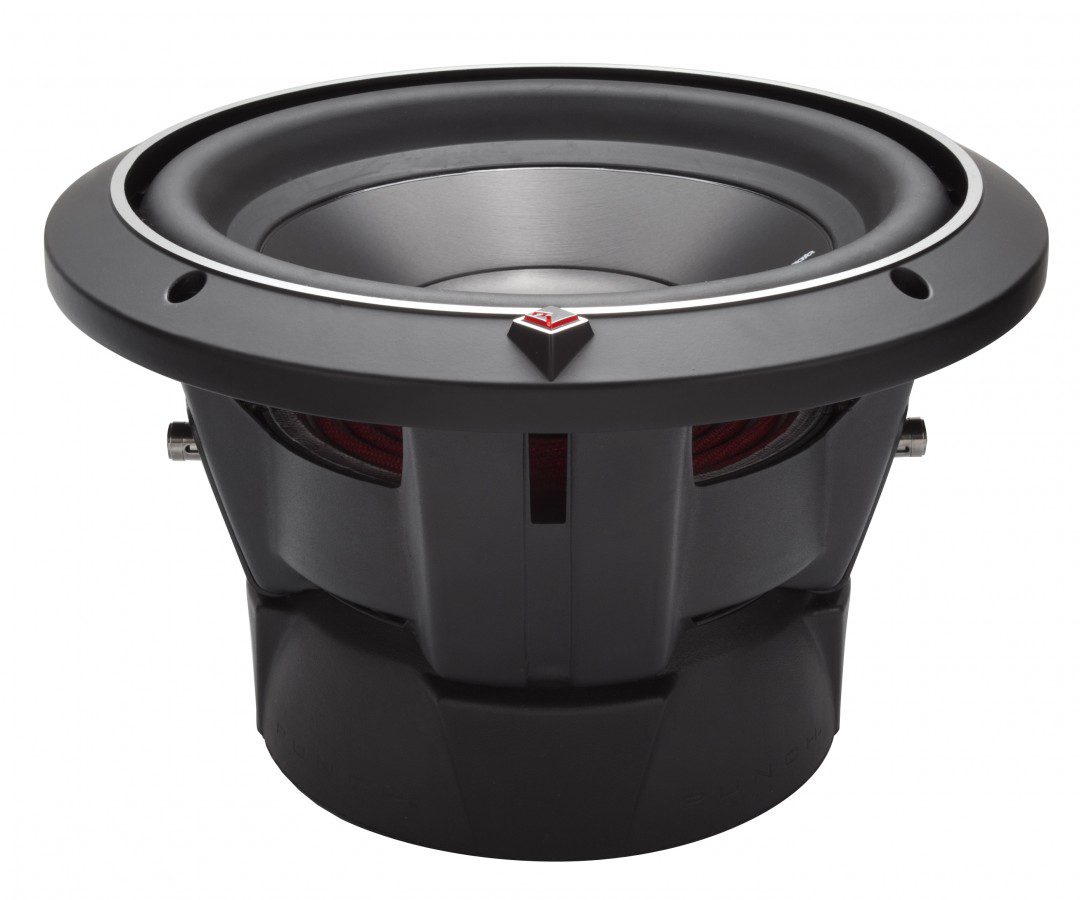

  • Protective finishing: A PVC-textured magnet cover, rubberized over-mold, and cast aluminum trim ring add durability and accommodate an optional grille.

The P3D2-10 brings the low-end weight that makes bass feel physical inside the vehicle. Its 10-inch anodized aluminum cone moves with authority, producing deep rumble and solid impact that gives kick drums, bass lines, and low-frequency effects a stronger presence. Built as Rockford Fosgate’s best-performing Punch series subwoofer, it combines powerful output with the rugged construction needed for demanding car-audio systems.

Subwoofer Specifications
Sub Size 10in
Sub Type Standard
Sub Power RMS 500 Watts
Sub Max Power 1000 Watts
Sub Impedance Dual 2 Ohm
Voice Coils Dual
Voice Coil Diameter 2.5in (65.5 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 15.2mm
Sound Pressure Level (SPL) @ 1W/1m 82dB
Resonant Frequency (Fs) 26.6Hz
DC Resistance (Re) 3.20Ohm
Voice Coil Inductance (Le) 4.5mH
Total Q (Qts) 0.49
Electrical Q (Qes) 0.54
Mechanical Q (Qms) 6.00
Equivalent Compliance Volume (Vas) 27.0Liters
Effective Cone Area (Sd) 360cm²
Fitment & Dimensions
Woofer Displacement 0.070 cu. ft. (2.0 Liters)
Mounting Depth 6.18 in. (156.8 mm)
Cutout Diameter 9.13 in. (232 mm)
Magnet Weight (oz) 81 oz. (2.30 kg.)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 17.3 Lbs. (7.8 kg)

Additional information

Weight 18 lbs
Sub Size

Sub Impedance

Sub Max Power

1000 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Dual

Series

Punch
