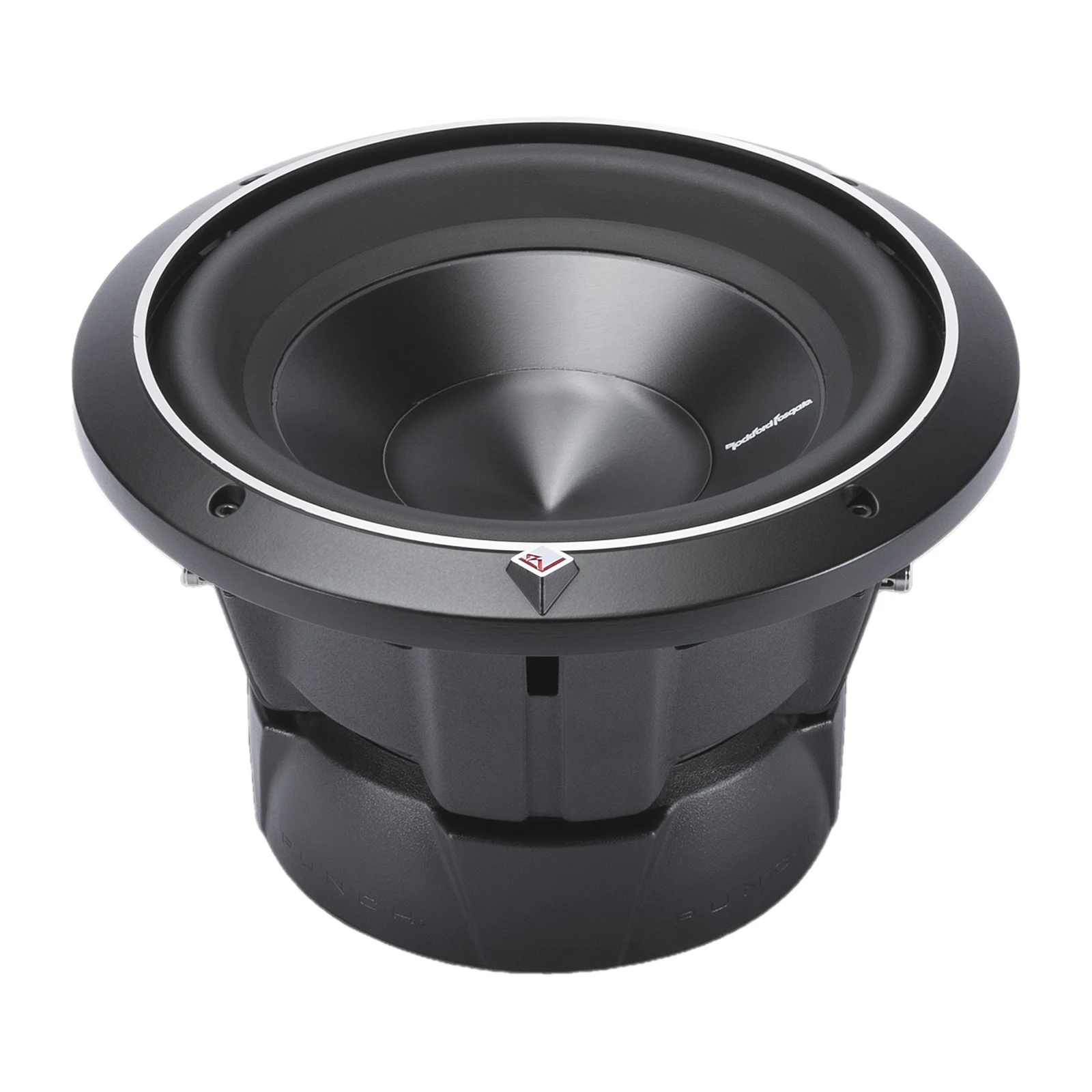

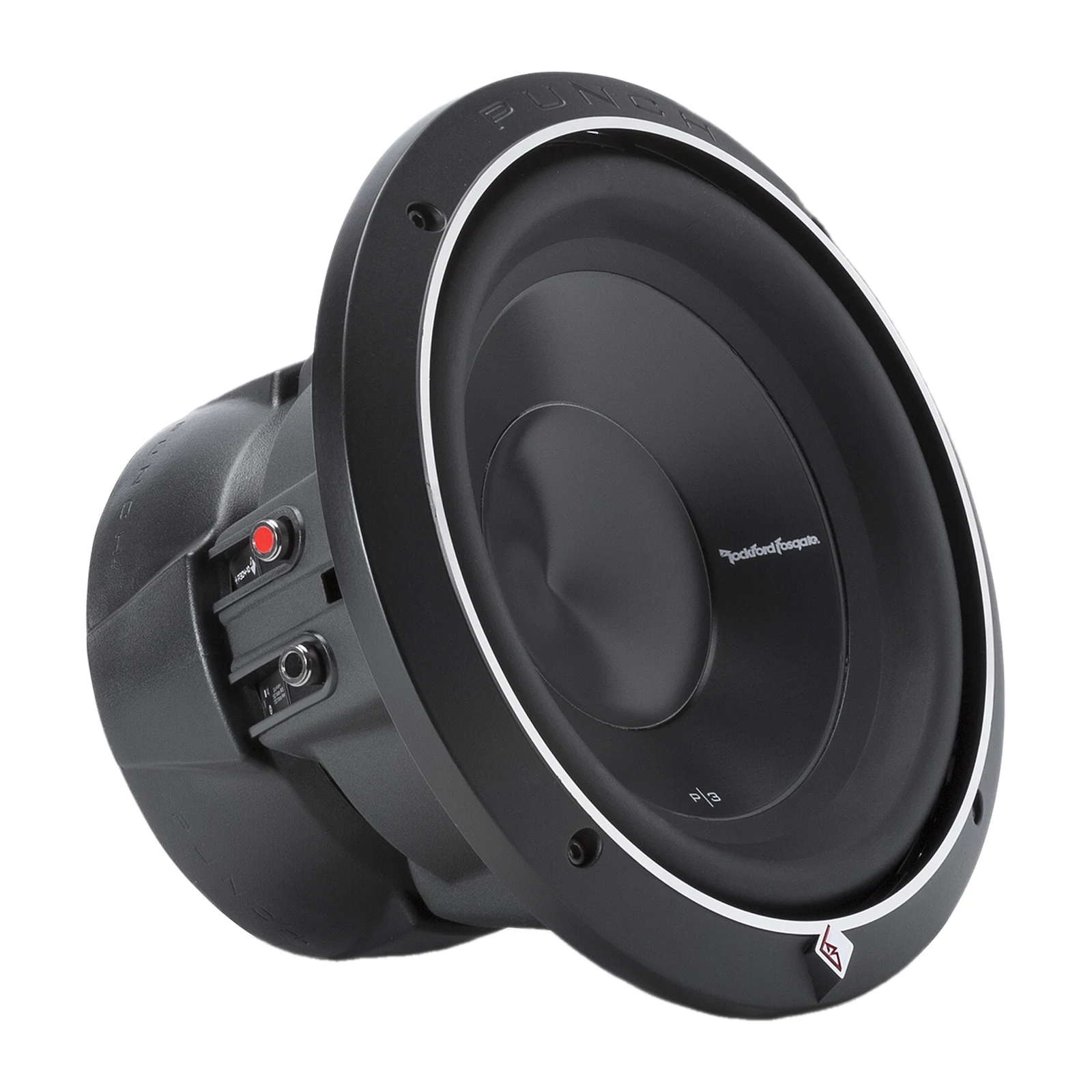

Rockford Fosgate Punch P3D4-10 10in Dual 4 Ohm 500 Watts Subwoofer

Rockford Fosgate P3D4-10 10-inch Punch subwoofer with dual 4-ohm voice coils, 500 watts RMS power handling, an anodized aluminum cone and VAST technology.

$239.99

10 in stock

Description

The Sub At A Glance:

  • 500 watts RMS power handling: Built to handle serious bass, with 1,000 watts maximum power handling.
  • Dual 4-ohm voice coils: Provides versatile wiring options for your car audio system.
  • Anodized aluminum construction: A durable aluminum cone and dustcap provide a strong foundation for impactful bass.
  • VAST technology: Increases usable cone surface area by up to 25%.

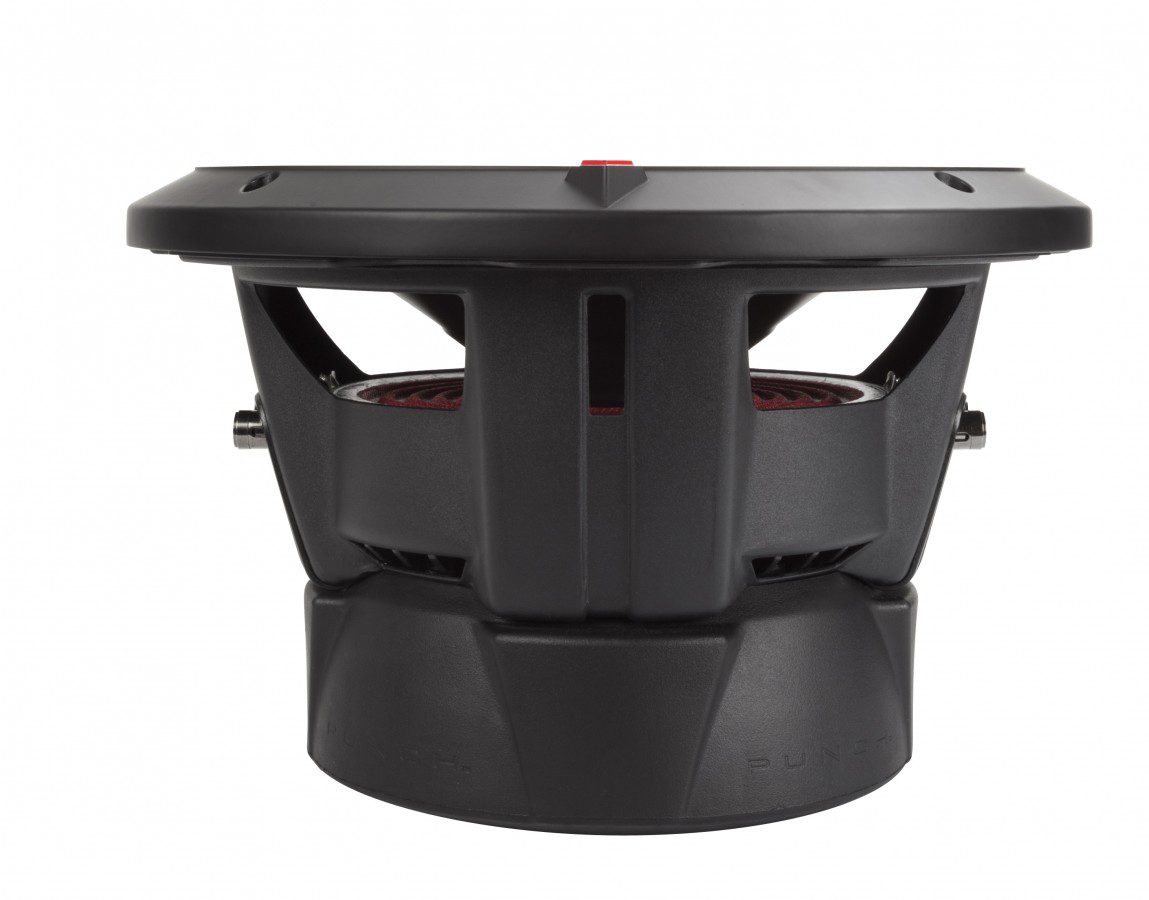

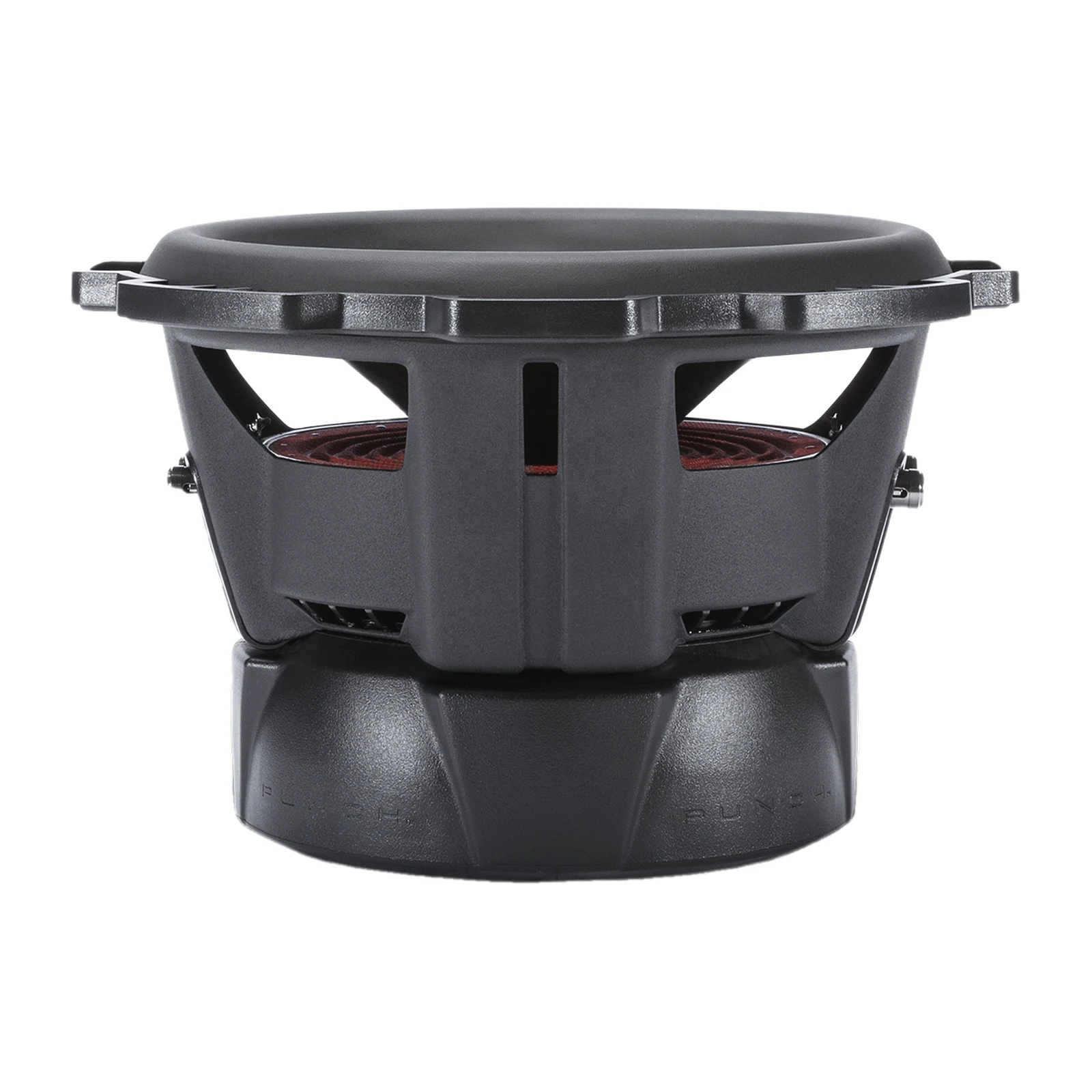

  • Durable StampCast basket: Combines strength with reduced weight and resonance, while integrated spider venting helps keep the motor cooler.
  • Reinforced suspension: A dual linear spider uses embedded 16-AWG tinsel leads, while a spun-laced Nomex reinforcement collar supports the high-temperature voice coil.

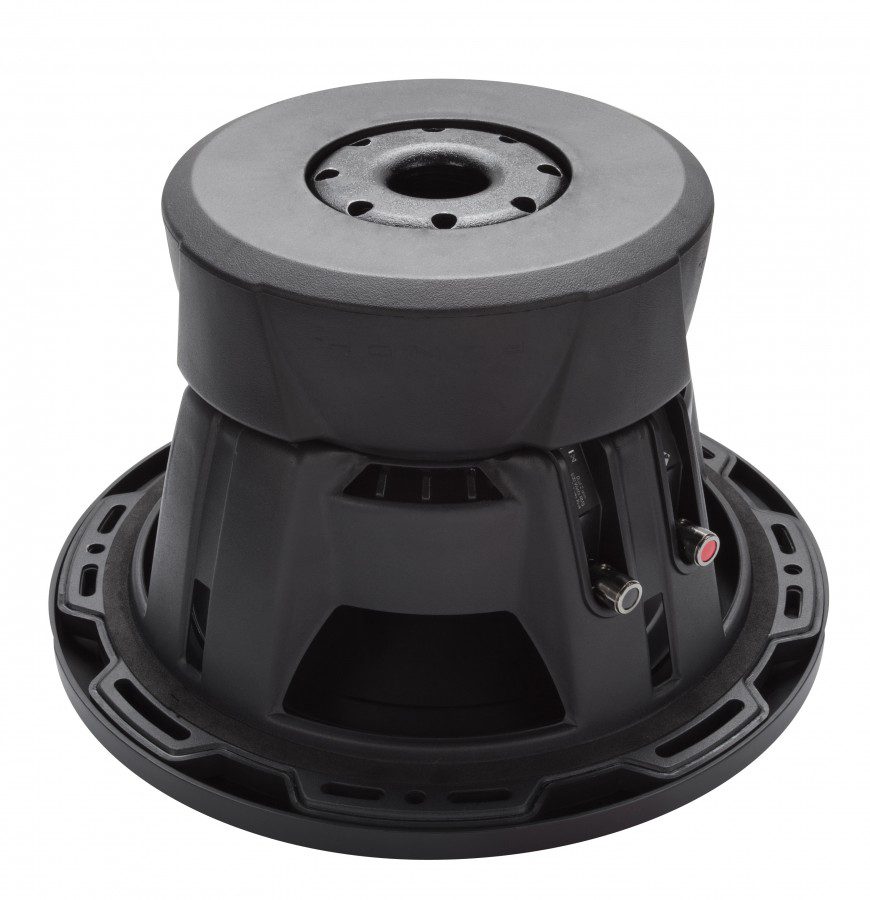

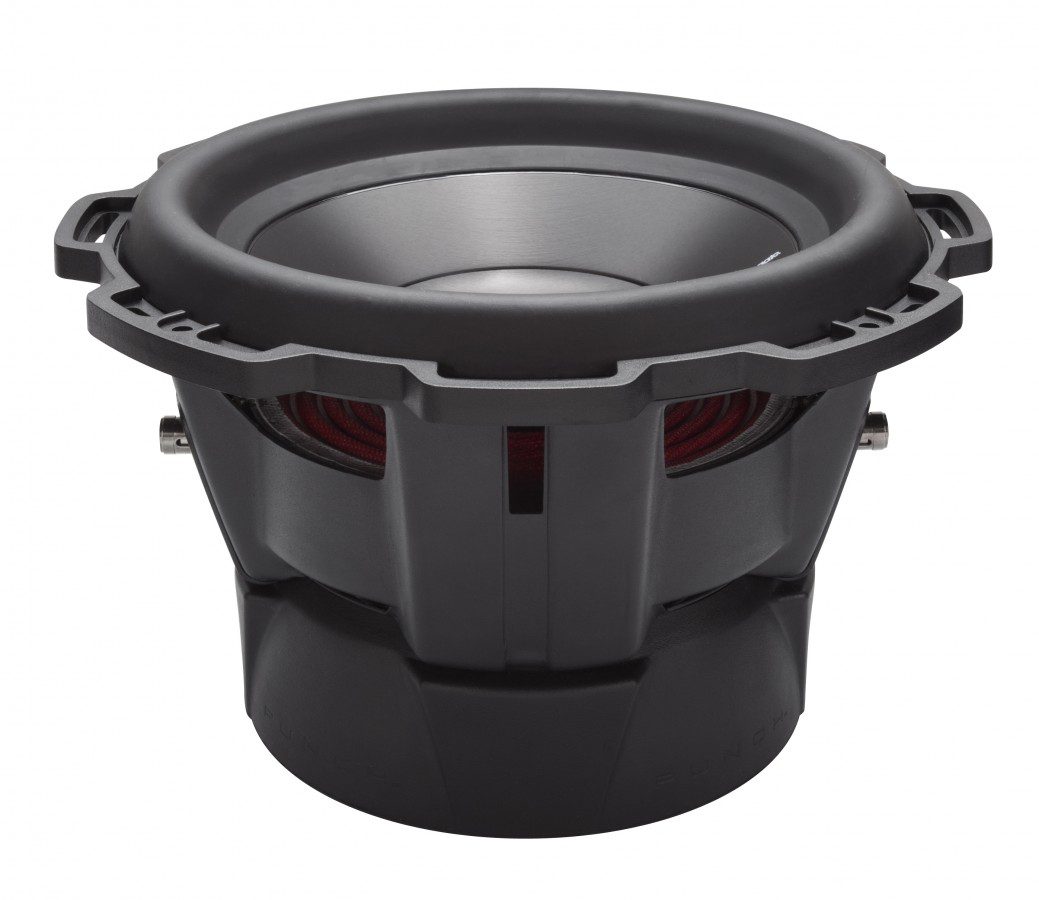

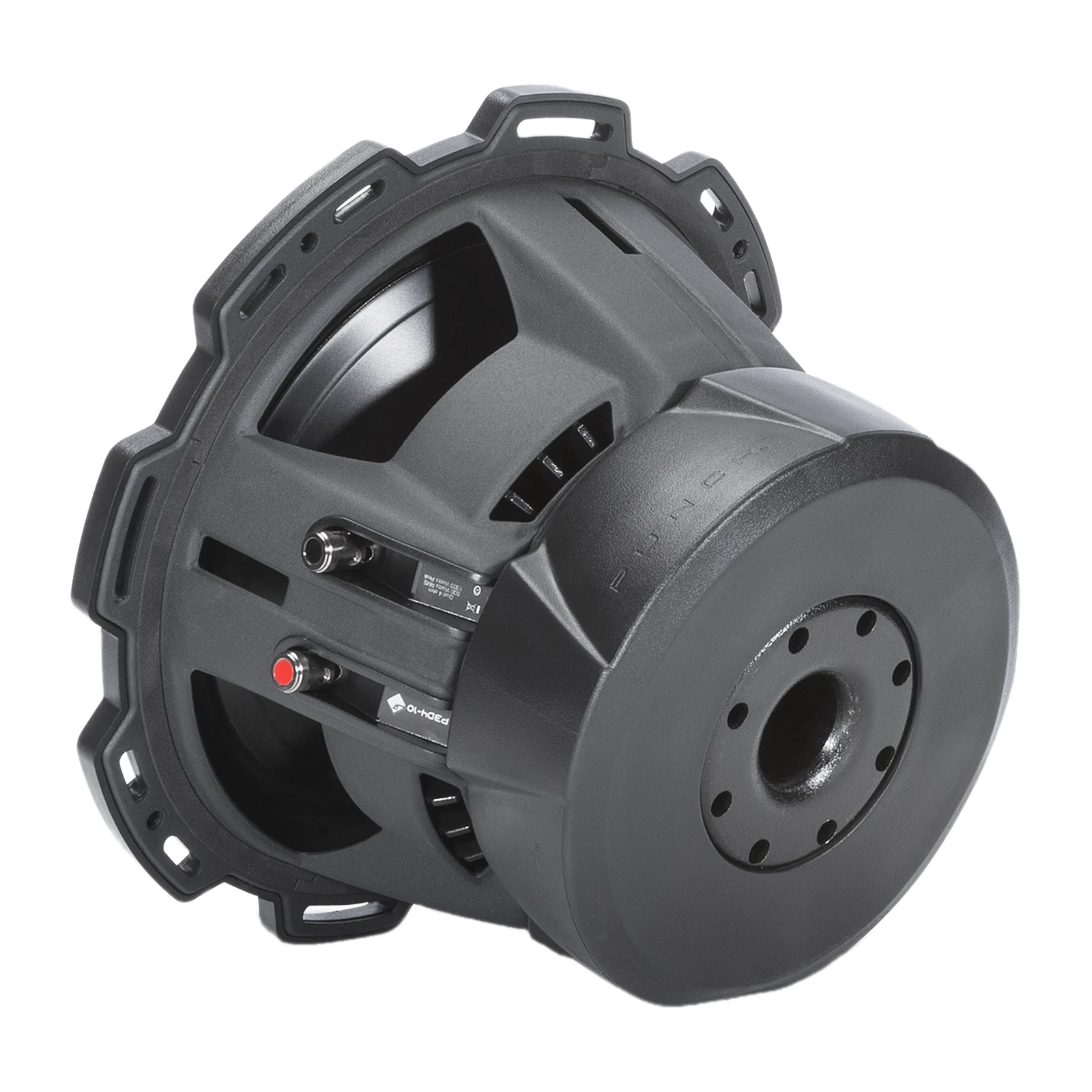

  • Flexible installation: The FlexFit basket supports extreme installations, and custom 10-AWG nickel-plated push terminals simplify secure connections.

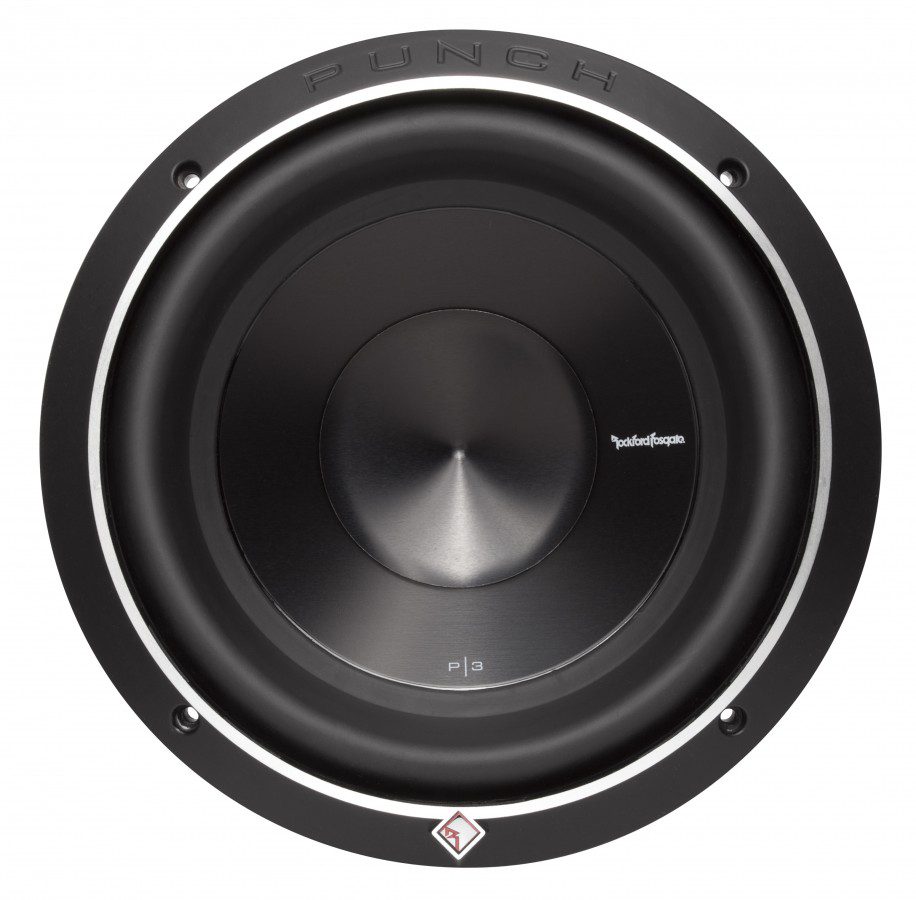

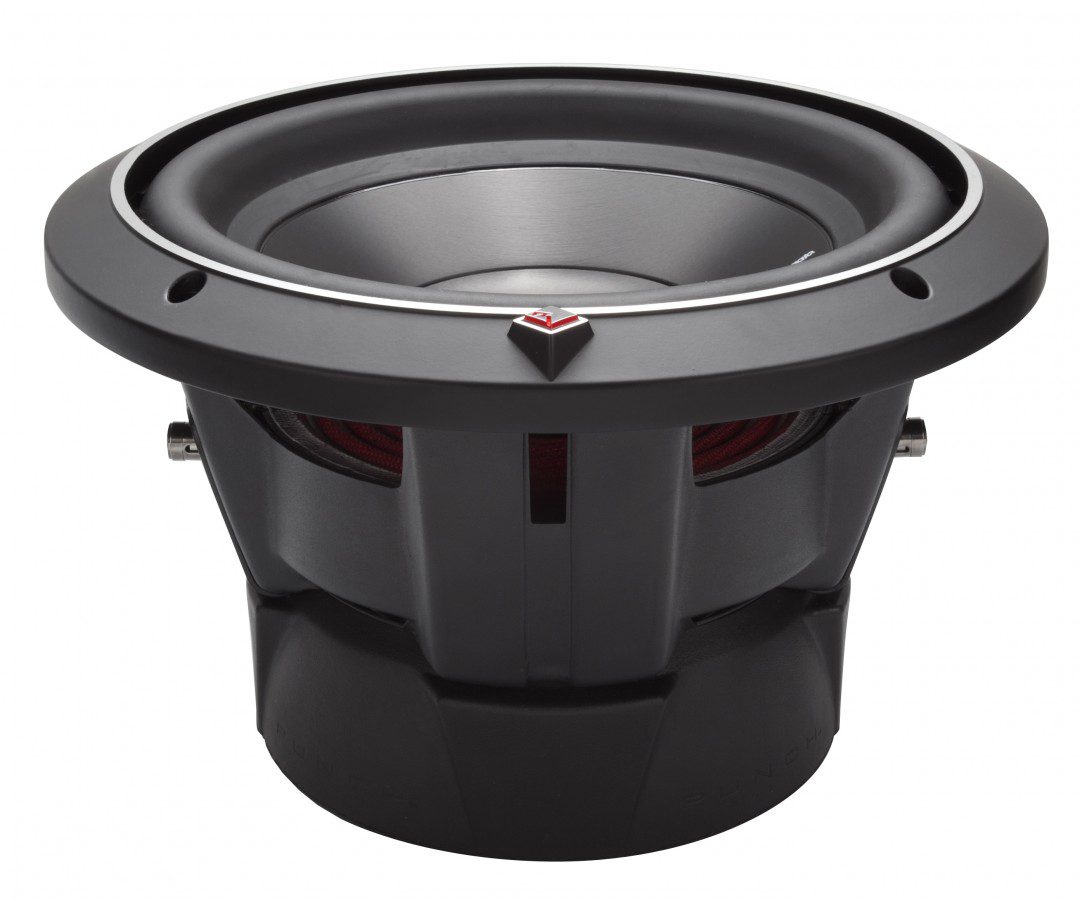

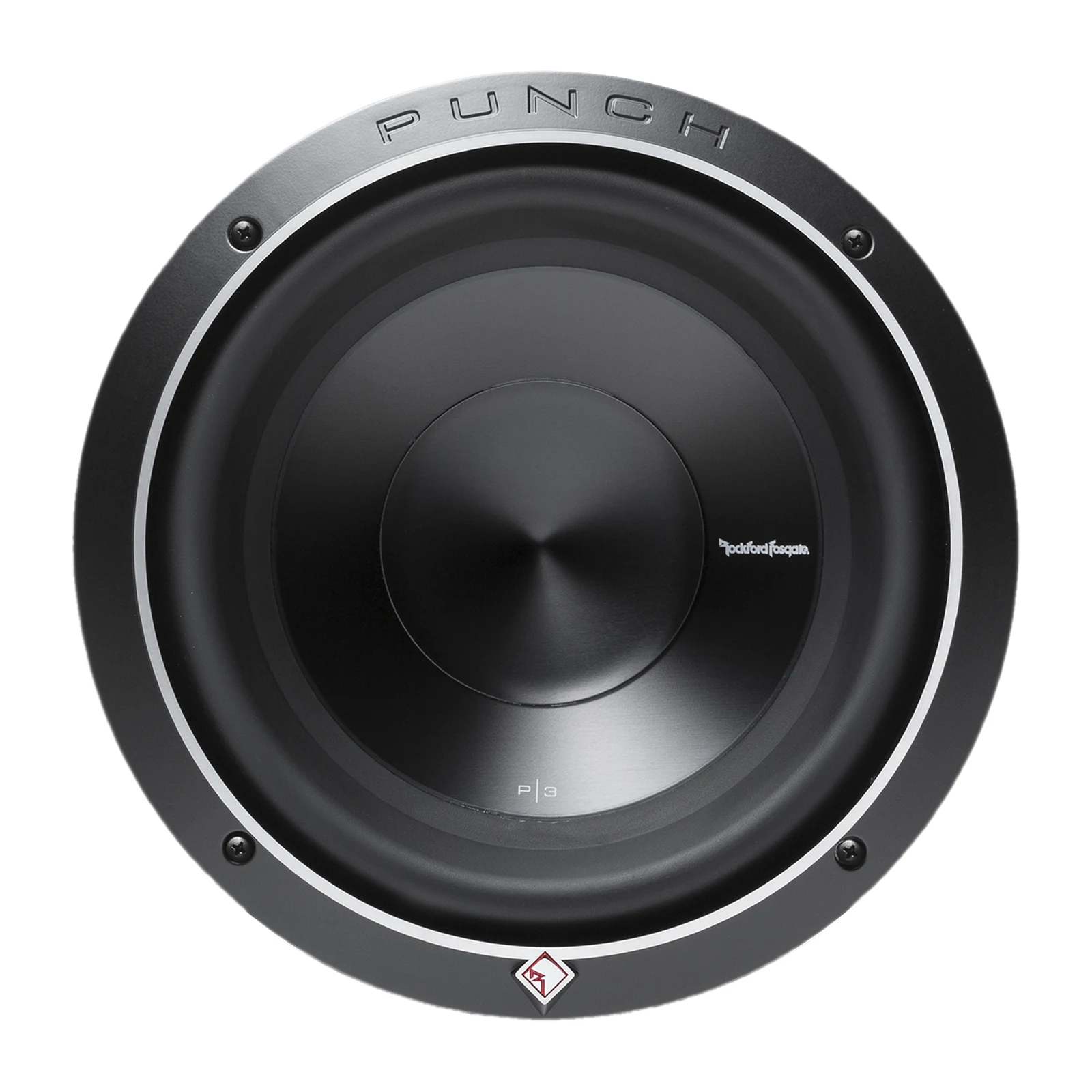

  • Grille-ready trim: The included diamond-cut cast aluminum trim ring accommodates an optional grille insert.

The P3D4-10 brings the depth and physical impact expected from Rockford Fosgate’s best-performing Punch series subwoofer. Its 10-inch aluminum cone moves the low notes with a solid, authoritative feel, adding the rumble and punch that make bass drums hit harder and deep passages roll through the vehicle. Strong basket construction, motor-cooling spider venting and flexible dual-voice-coil wiring make it ready for a serious car audio installation.

Subwoofer Specifications
Sub Size 10in
Sub Type Standard
Sub Power RMS 500 Watts
Sub Max Power 1000 Watts
Sub Impedance Dual 4 Ohm
Voice Coils Dual
Voice Coil Diameter 2.5in (65.5 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 15.9mm
Sensitivity (dB @ 1W/1m) 82dB
Resonant Frequency (Fs) 28Hz
DC Resistance (Re) 6.40Ohm
Voice Coil Inductance (Le) 7.0mH
Total Q (Qts) 0.56
Electrical Q (Qes) 0.63
Mechanical Q (Qms) 5.00
Equivalent Compliance Volume (Vas) 27.0Liters
Effective Cone Area (Sd) 360cm²
Fitment & Dimensions
Woofer Displacement 0.070 cu. ft. (2.0 Liters)
Mounting Depth 6.18 in. (156.8 mm)
Cutout Diameter 9.13 in. (232 mm)
Magnet Weight (oz) 81 oz. (2.30 kg.)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 17.3 Lbs. (7.8 kg)

Additional information

Weight 18 lbs
Sub Size

Sub Impedance

Sub Max Power

1000 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Dual

Series

Punch
