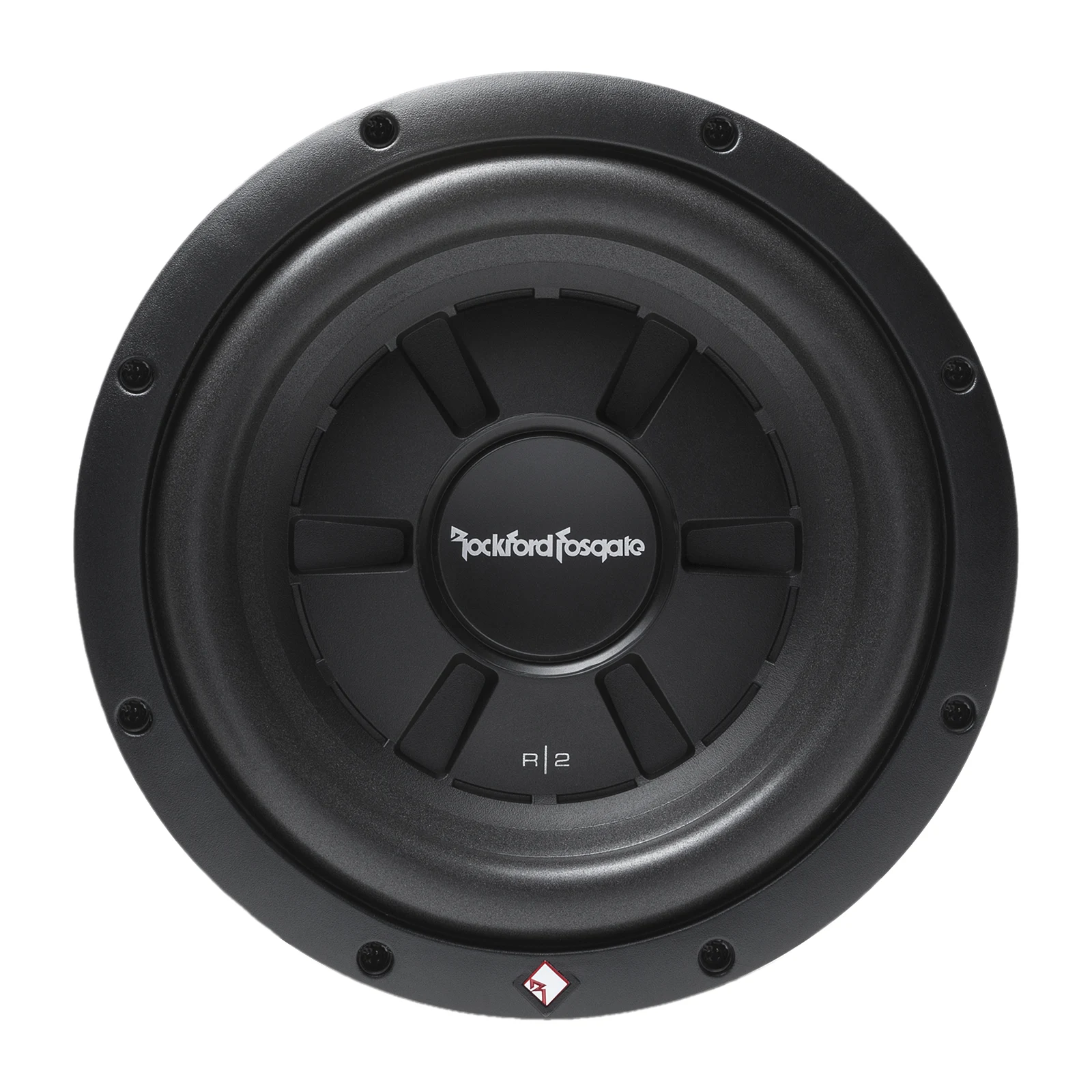

ROCKFORD FOSGATE R2SD4-10

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

12 AWG compression terminals
Anodized aluminum voice coil former
Optimized for sealed enclosures
Mica injected polypropylene cone
Linear spider with embedded 16 AWG tinsel leads

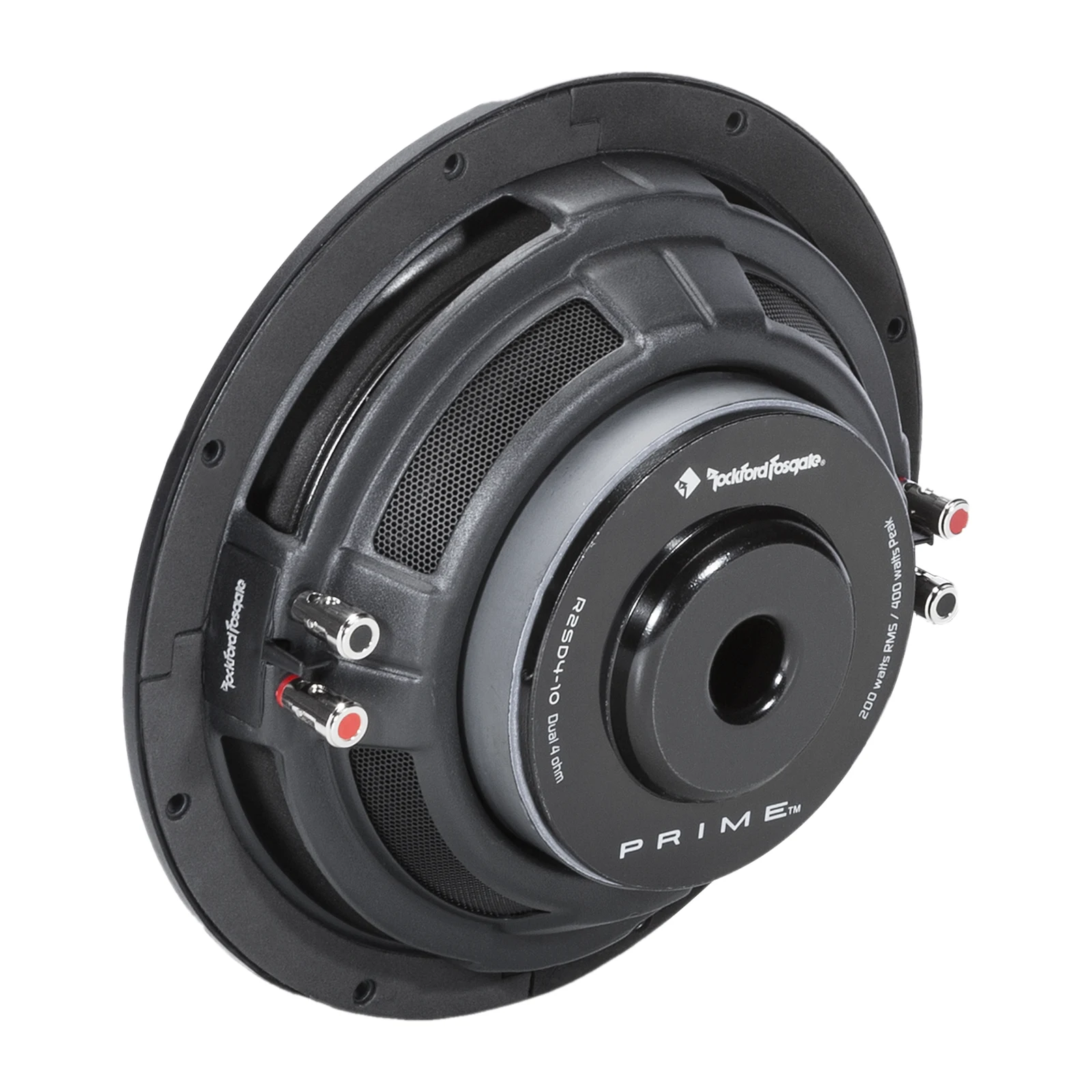

StampCast basket with integrated spider venting
Integrated PVC trim ring
Shallow Motor Assembly

Size: 10"
Nominal Impedance: Dual 4-Ohm
Magnet Weight (oz): 45 oz. 1.28 kg.
Mounting Depth: 3.417 in. (86 mm)
SPL: (dB @ 1w/1m)82.5
Fs: (Hz)39.3
Vas: (Liters)21.7
Xmax (mm): 8.0
Cutout Diameter: 9.125 in. (232 mm)
Re (Ohms): 6.60
Le (mH): 4.2
Sd (cm2): 333
Power Handling (Watts RMS): 200 Watts RMS 400 Watts Max
Voice Coil Diameter: 2" (50 mm)
Speaker Connector: Dual 12 AWG compression
Shipping Weight: 10.588 Lbs. (4.80 kg.)
Qts: 0.73
Qes: 0.81
Qms: 7.00
Woofer Displacement: 0.037 cu. ft. (1.05 Liters)
Subwoofer Type: Shallow
Voice Coil Type: Dual Voice Coil
Sealed Box Volume (Vb): 0.7 cu. ft. (19.8 Liters)
Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
