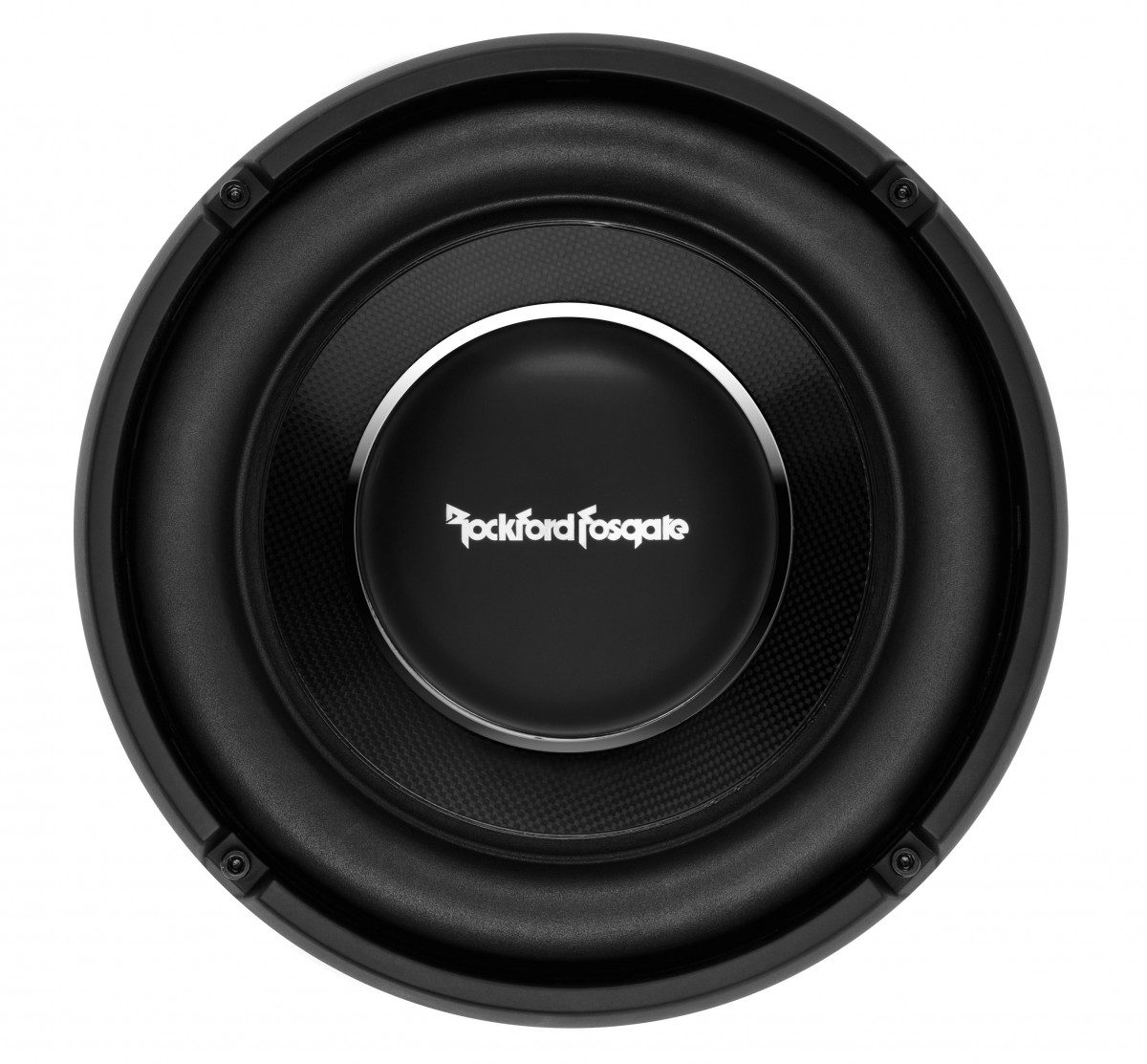

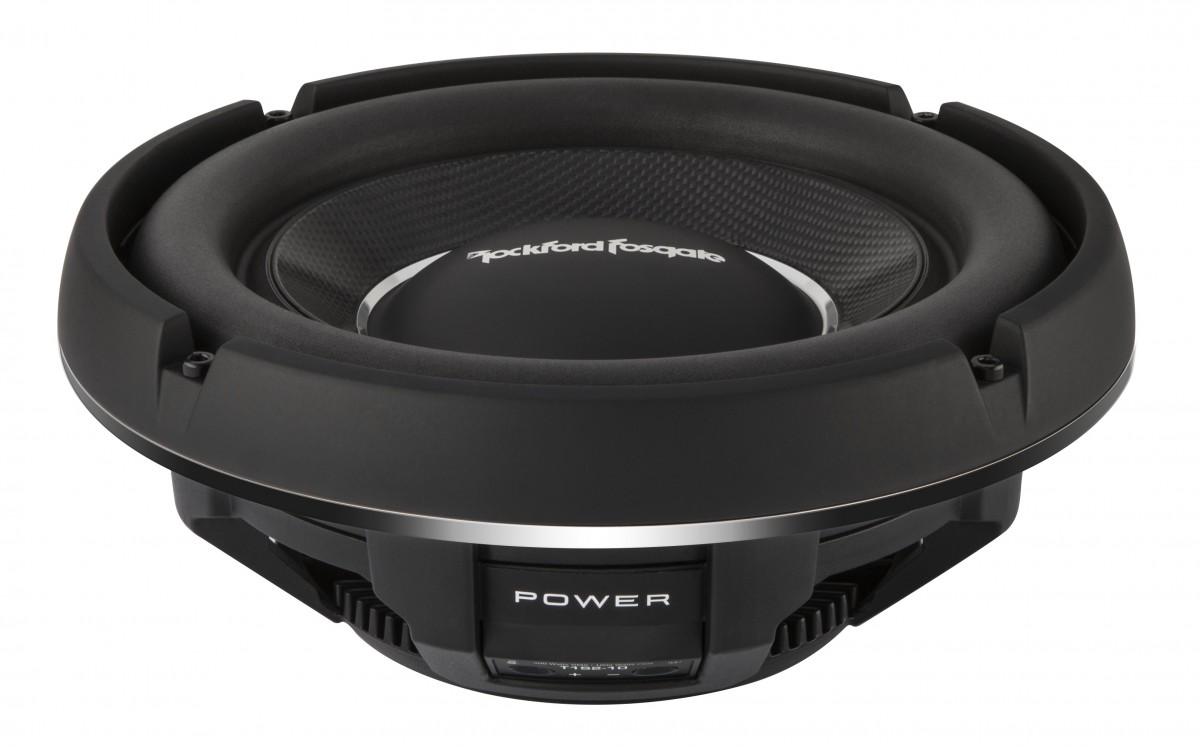

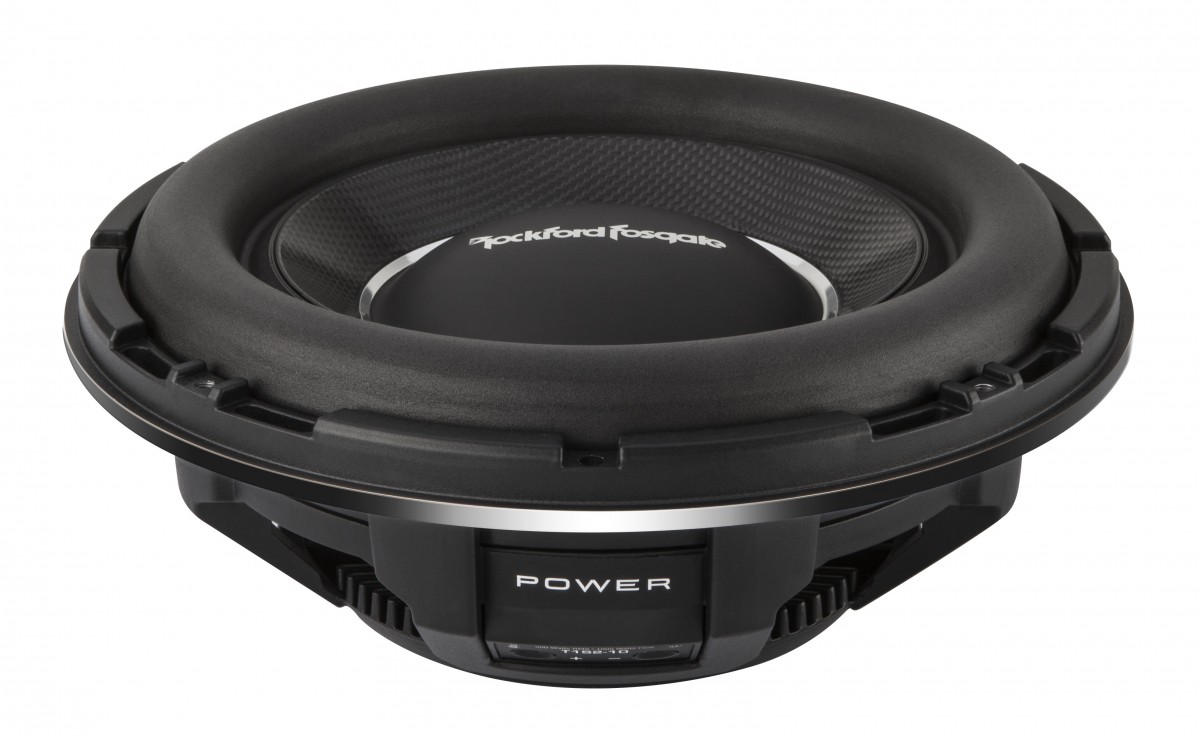

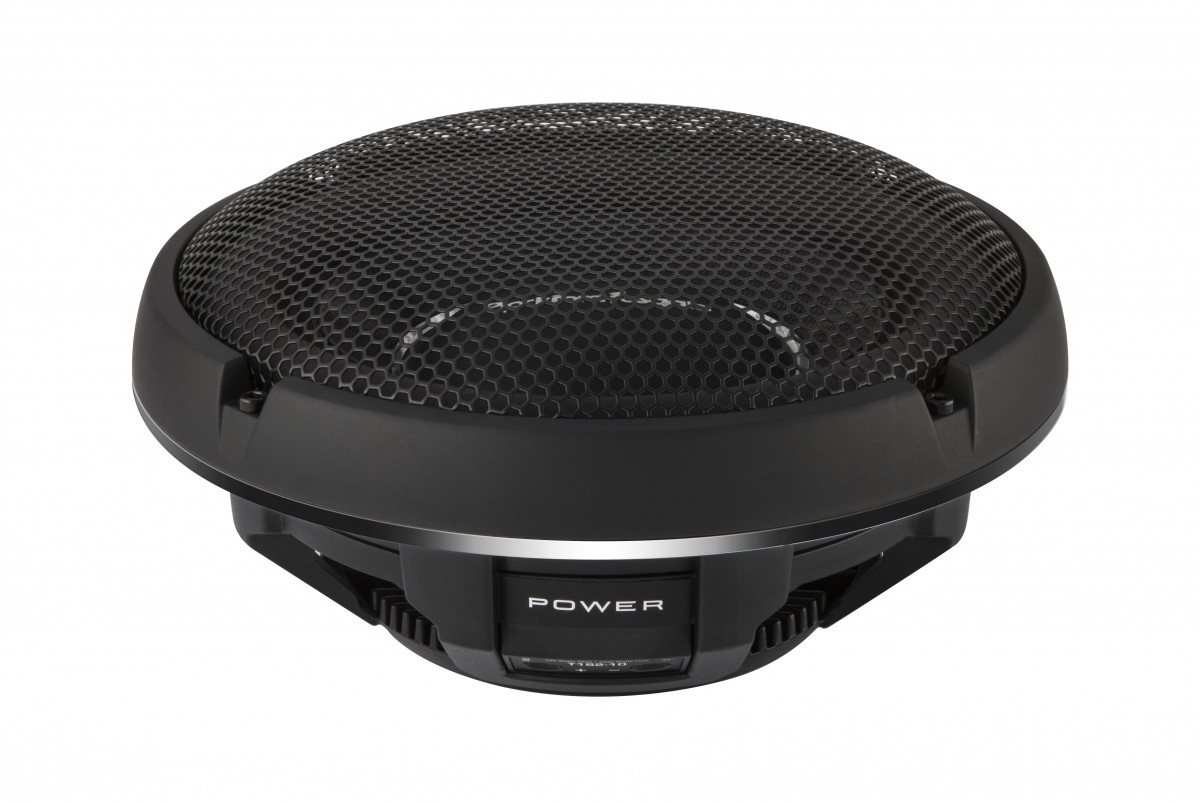

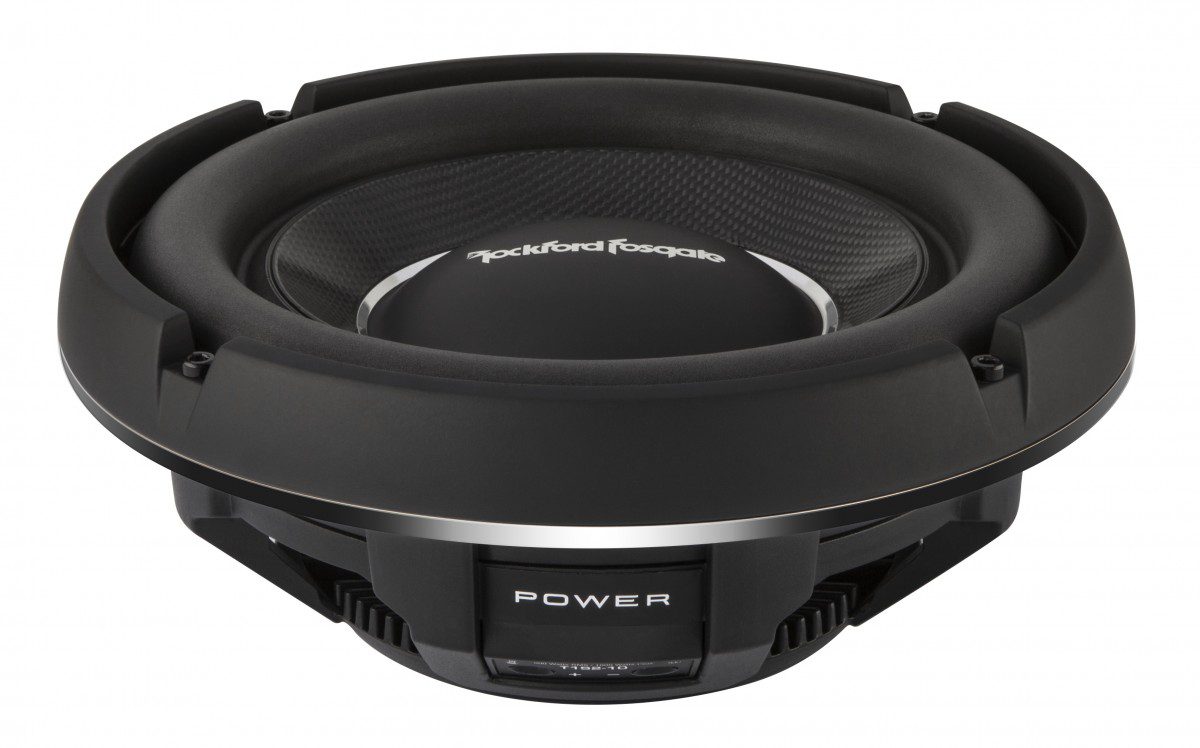

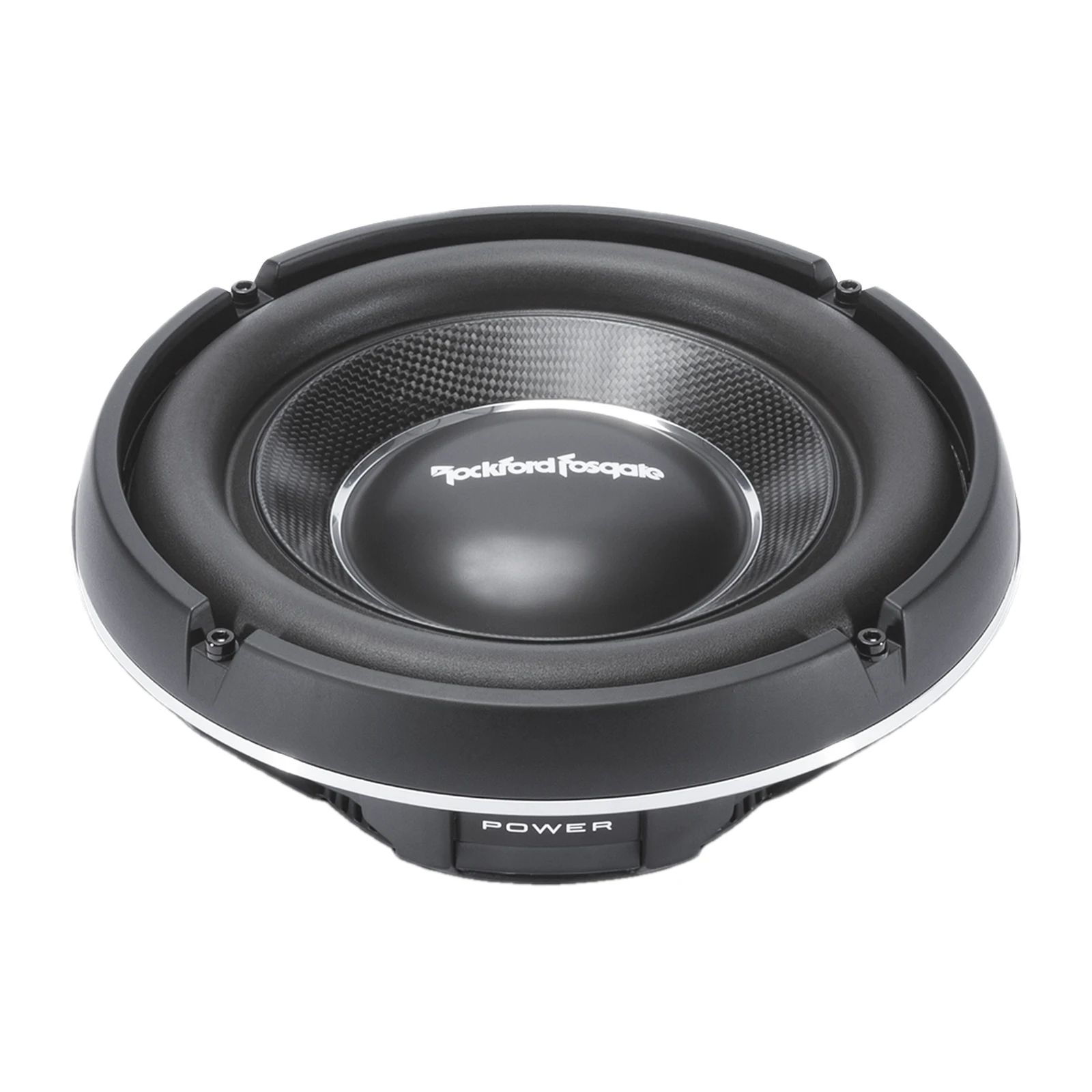

Rockford Fosgate Power T1S2-10 10in 2 Ohm 500 Watts Subwoofer

Rockford Fosgate Power T1S2-10 10-inch shallow-mount car subwoofer with 500 watts RMS power handling, a single 2-ohm voice coil, and a carbon fiber/PMI/glass fiber cone. Its slimline design delivers deep bass in space-restricted sealed-enclosure installations.

$540.00

3 in stock

Description

The Sub At A Glance:

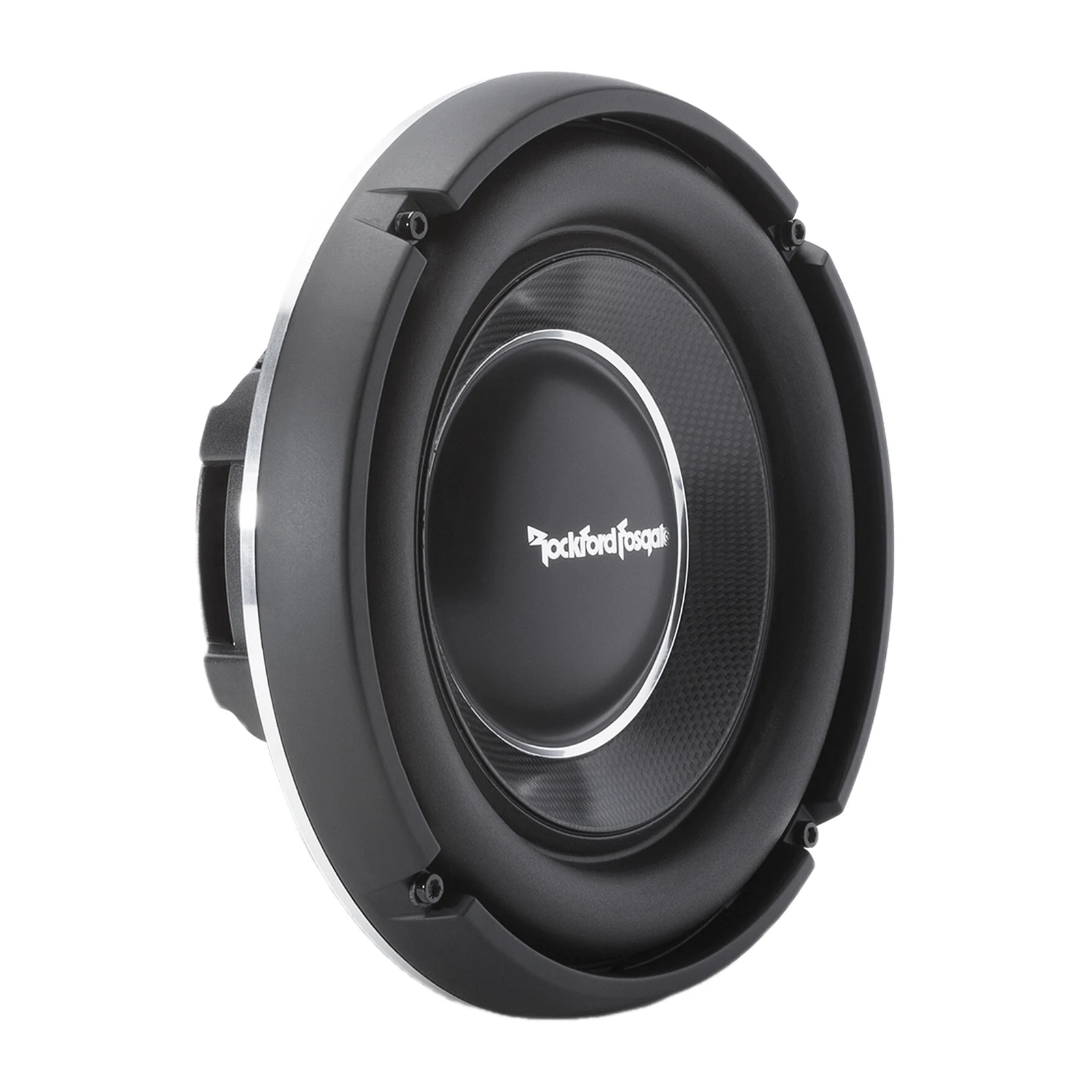

  • Shallow-mount design: Fits installations where a traditional-size 10-inch subwoofer requires too much depth.
  • Power handling: Handles 500 watts RMS and 1,000 watts maximum.
  • Single voice coil: A single 2-ohm configuration supports straightforward wiring.

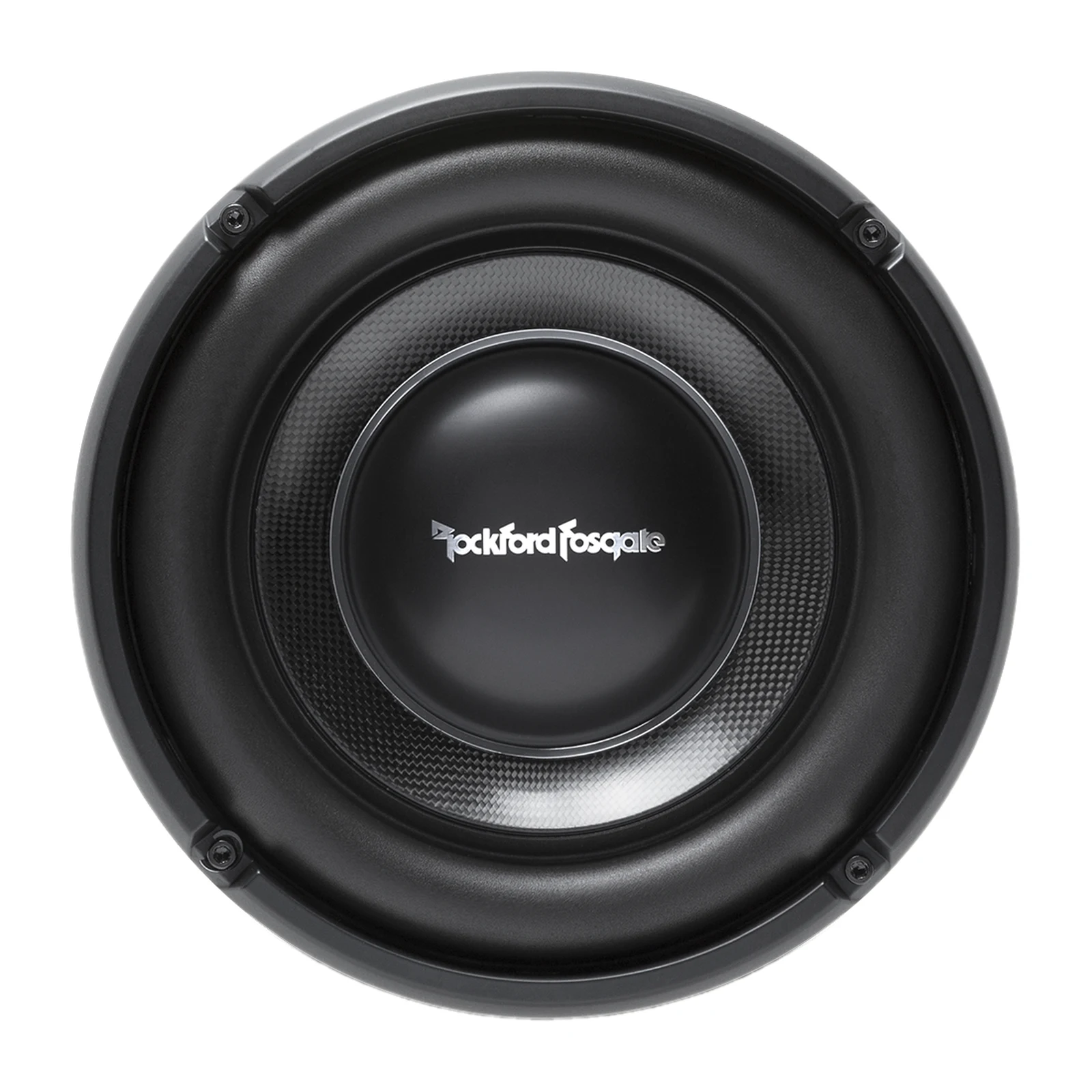

  • Rigid cone: Linear carbon fiber/PMI/glass fiber construction with an aluminum dust cap delivers controlled low-frequency output.
  • VAST surround: An injection-molded foam surround supports the cone through demanding excursion.
  • Dual-spider suspension: Dual Nomex progressive spiders with stitched tinsel leads help manage a wide range of low-end notes.

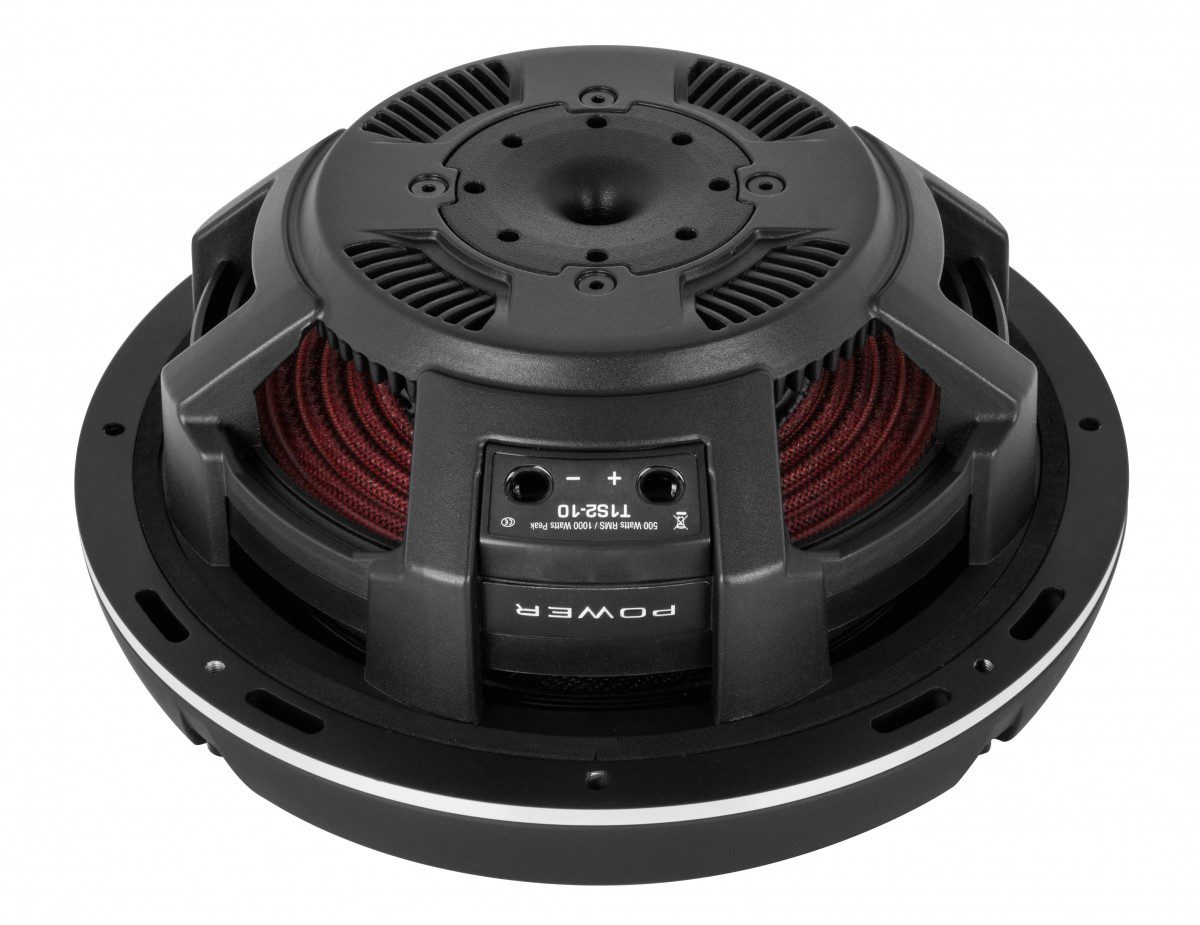

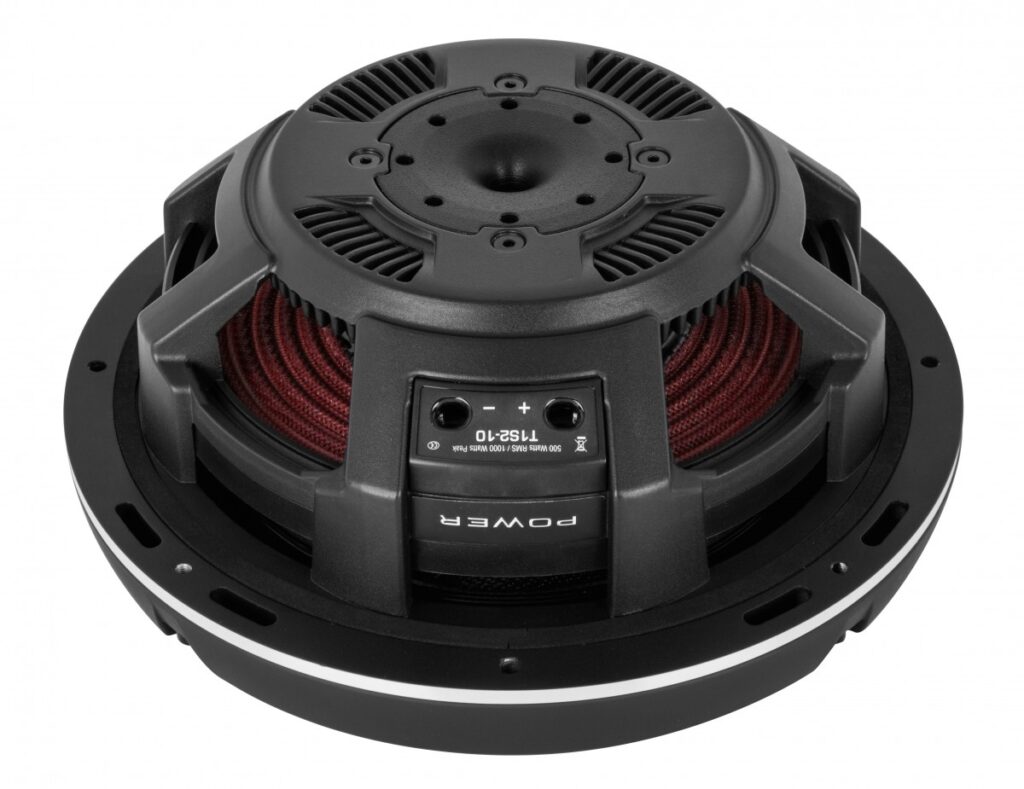

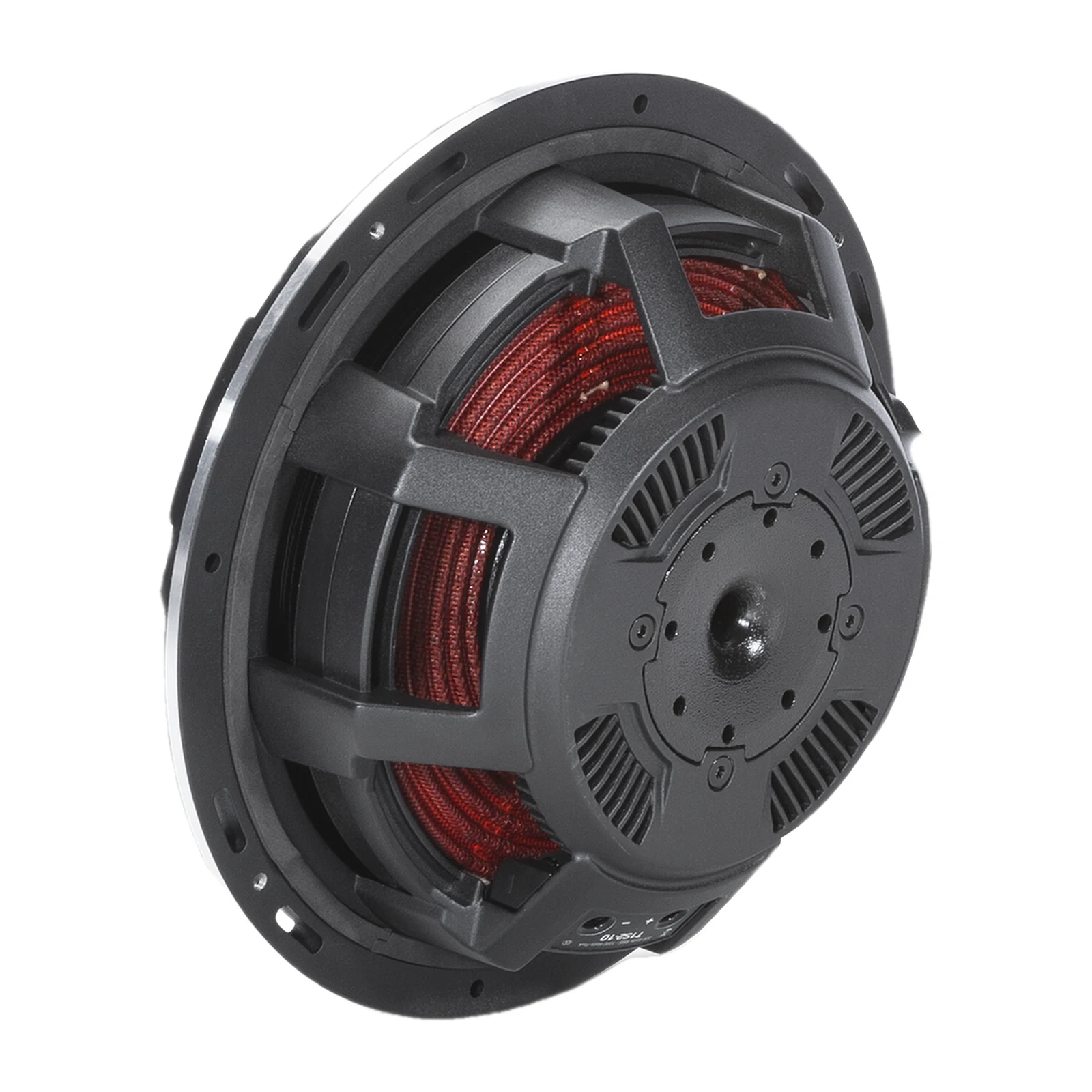

  • Durable frame: A die-cast aluminum frame with integrated heat-sink fins provides a rigid foundation and assists with heat management.
  • Sealed-enclosure optimized: Designed for sealed applications where installation space is limited.

The Power T1S2-10 brings the depth, rumble, and impact of a 10-inch subwoofer to vehicles where mounting clearance is tight. Its long-excursion slotted voice-coil assembly lets bass reach low and hit with authority, adding physical weight to kick drums and a satisfying low-end pulse you can feel throughout the cabin.

Subwoofer Specifications
Sub Size 10in
Sub Type Shallow
Sub Power RMS 500 Watts
Sub Max Power 1000 Watts
Sub Impedance 2 Ohm
Voice Coils Single
Voice Coil Diameter 2.28in (58 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 15mm
Sound Pressure Level (SPL) @ 1W/1m 83dB
Sound Pressure Level (SPL) @ 2.8V/1m 86dB
Resonant Frequency (Fs) 43.5Hz
DC Resistance (Re) 1.6Ohm
Voice Coil Inductance (Le) 0.42mH
Total Q (Qts) 1.04
Electrical Q (Qes) 1.17
Mechanical Q (Qms) 9.21
Equivalent Compliance Volume (Vas) 13.1Liters
Effective Cone Area (Sd) 356cm²
Fitment & Dimensions
Woofer Displacement 0.028 cu. ft. (0.82 Liters)

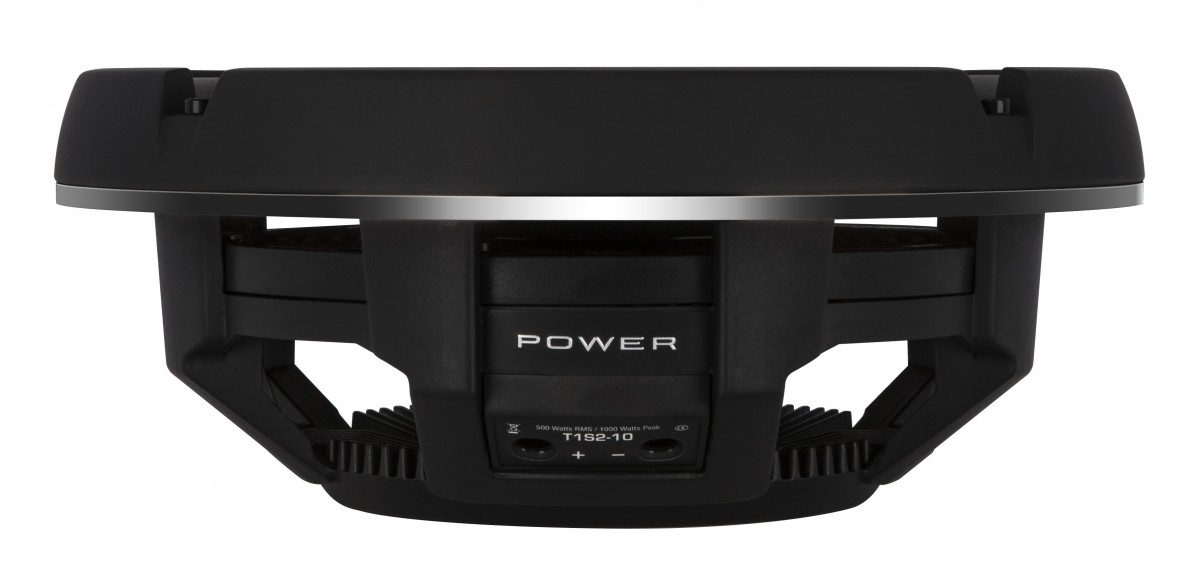

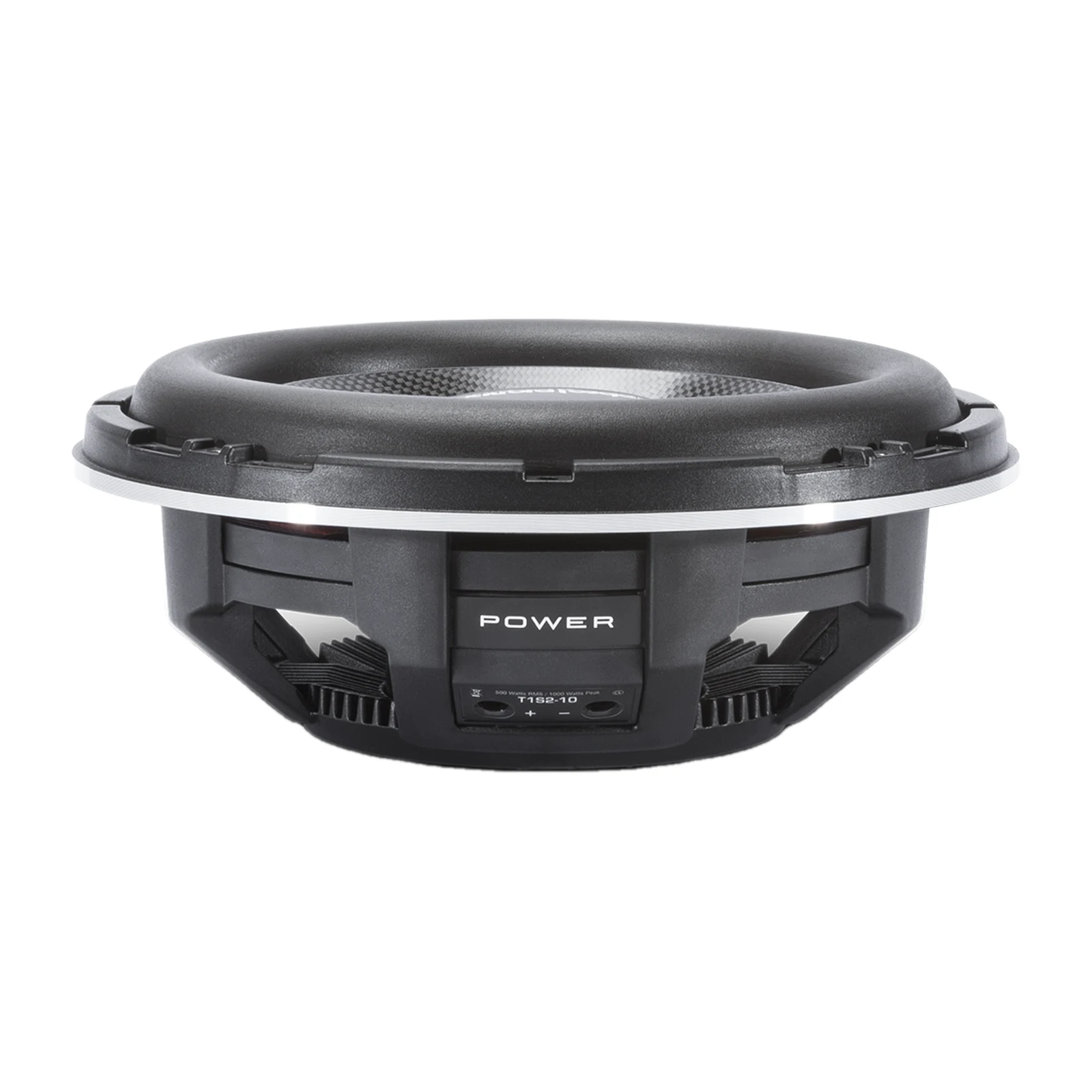

Mounting Depth 3.01 in. (76.5 mm)
Cutout Diameter 9.13 in. (232 mm)
Magnet Weight (oz) 15.1 oz. (0.43 Kg)
Sealed Box Volume (Vb) 0.8 cu. ft. (22.6 Liters)
Vented Box Volume (Vb) 1.5 cu. ft. (42.4 Liters)
Speaker Connector 10 AWG slot loaded
Shipping Weight 9.6 Lbs. (4.3 Kg.)

Additional information

Weight 10 lbs
Sub Size

Sub Impedance

Sub Max Power

1000 Watts Max

Sub Power RMS

Sub Type

Shallow

Voice Coils

Single

Series

Power
