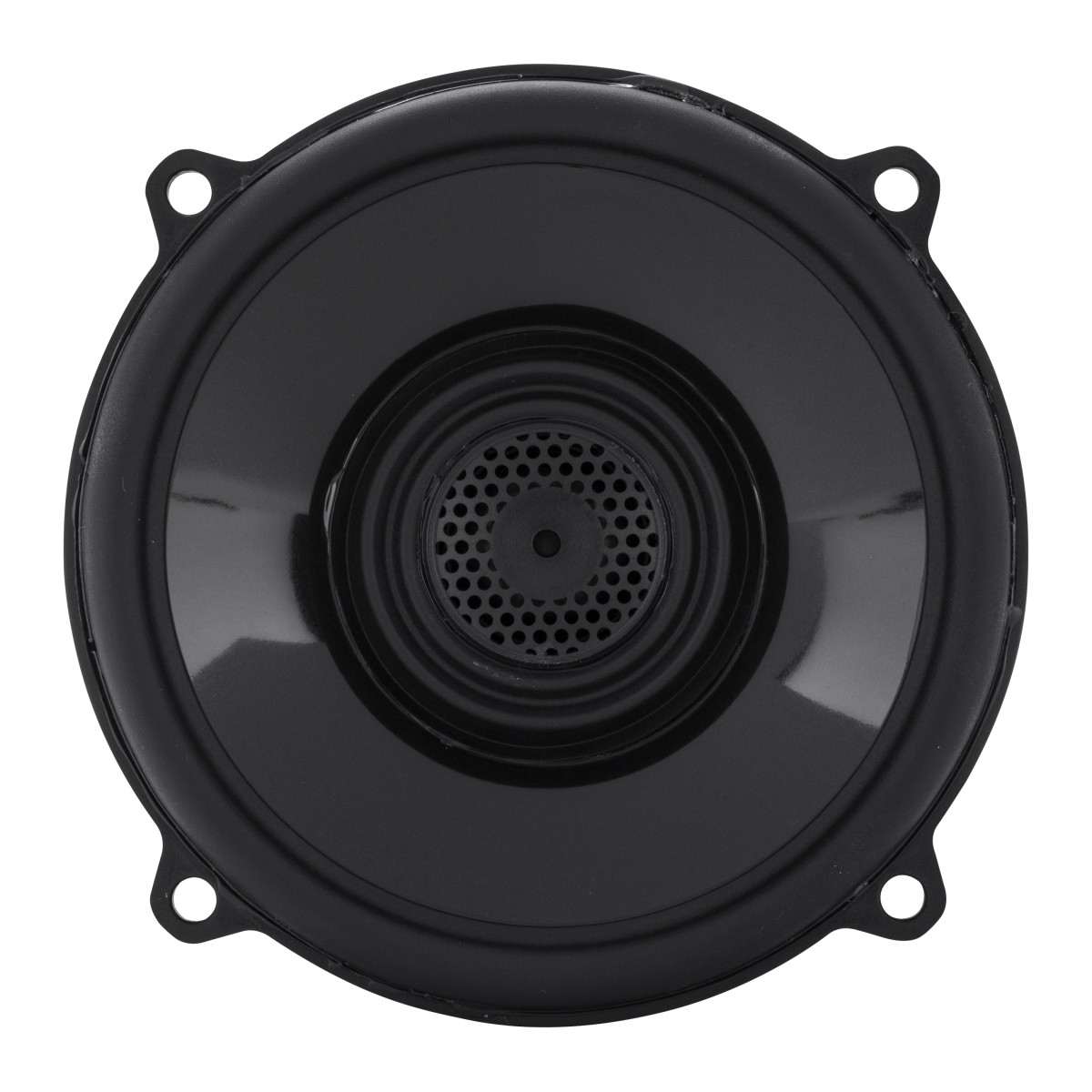

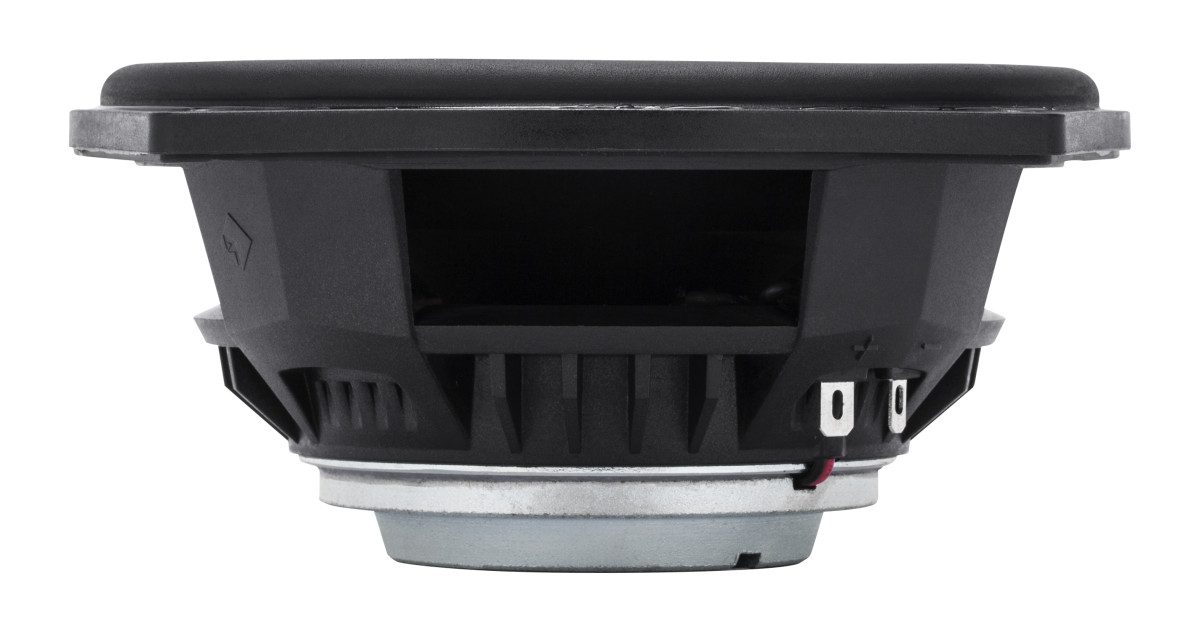

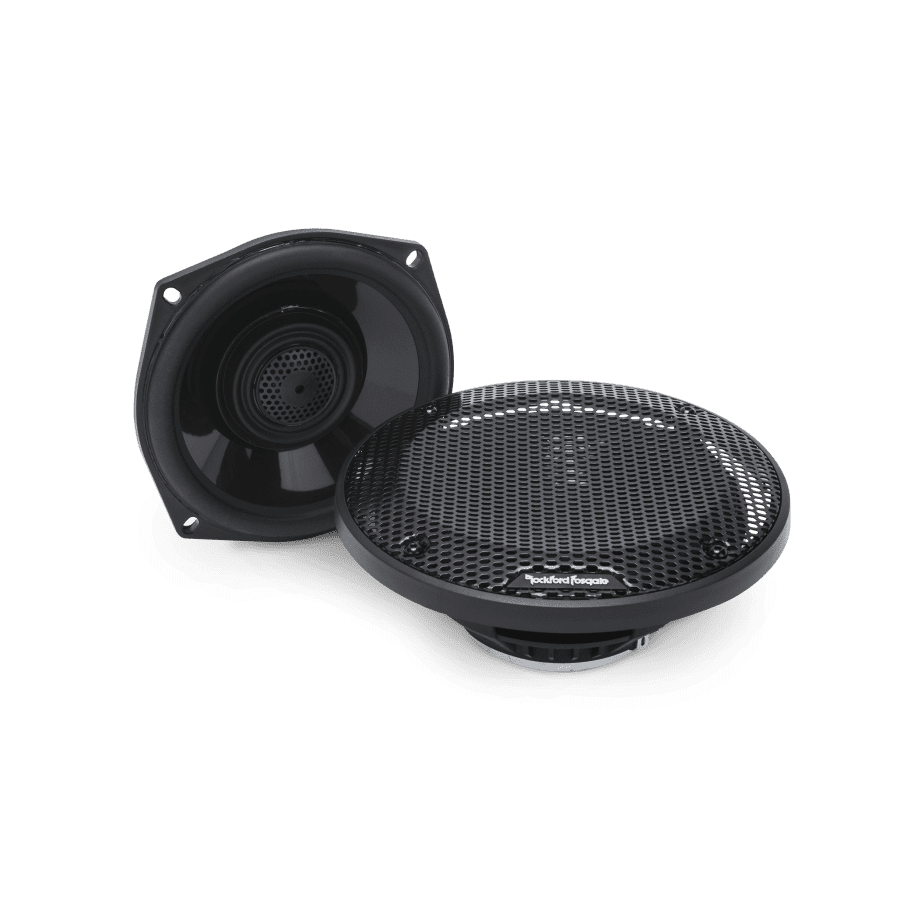

The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.
It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.
It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.
Harley-Davidson is a registered trademark of Harley-Davidson Motor Company
Element Ready design that is weather and water resistant
Neodymium Tweeter with Integrated Phase Plug and ASA Grill
Ultra-Efficient 25mm Proprietary Film Dome Tweeter
Carbon-Fiber Re-Inforced Polypropylene Cone
Santoprene VAST Surround
Co-Molded Cone and Surround
Santoprene Front Isolation Spider
Poly-Cotton Spider
High Power 35mm Voice-Coil
Ultra-Efficient Neodymium Ring Magnet Motor
Ultra-High Temperature Glass Re-Inforced Polymer Frame
Integrated Spade Terminals
Integrated 6dB Crossover with High Power Polyester Capacitor
Low Profile Coaxial Tweeter Design
Discreet (Hidden) Tweeter Wire
Designed for 98-2013 Harley-Davidson Rear Tour-Pak Locations
NOTE: Installation on CVO and Screaming Eagle models are not plug-n-play and will require modification
Power Handling (MAX): 130 Watts MAX
Voice Coil Diameter (in/mm): 1.40" (35.6 mm)
Sensitivity: (dB @ 2.83V/1M)94 dB
Included In The Box(2) Speakers

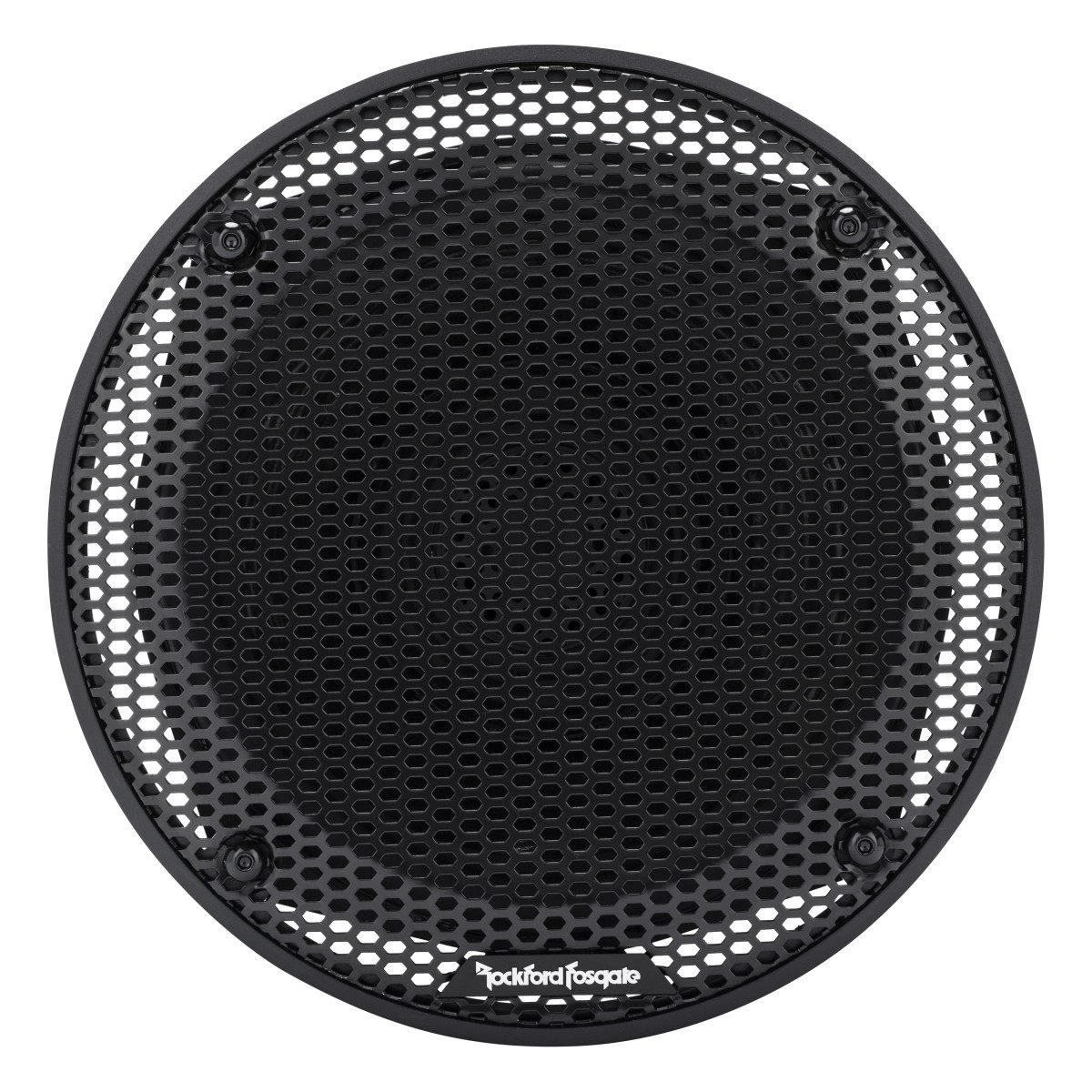

(2) Speaker Grilles
(1) Hardware Pack
Vehicle Compatibility: Harley-Davidson w/ Tour Pak 1998-2013
Speaker Type: 2-Way Coax
Midrange Mounting Depth: 2.05" (52.0mm)
Power Handling (RMS): 65 Watts RMS
Crossover: Built-in tweeter crossover
Midrange Size (Nominal Diameter): 5.25"
Nominal Impedance (Ohms): 4-Ohm
Frequency Response (Hz): 64 Hz - 20 kHz
Sensitivity: (dB @ 1W/1M)91 dB

Additional information

Weight 4 lbs
