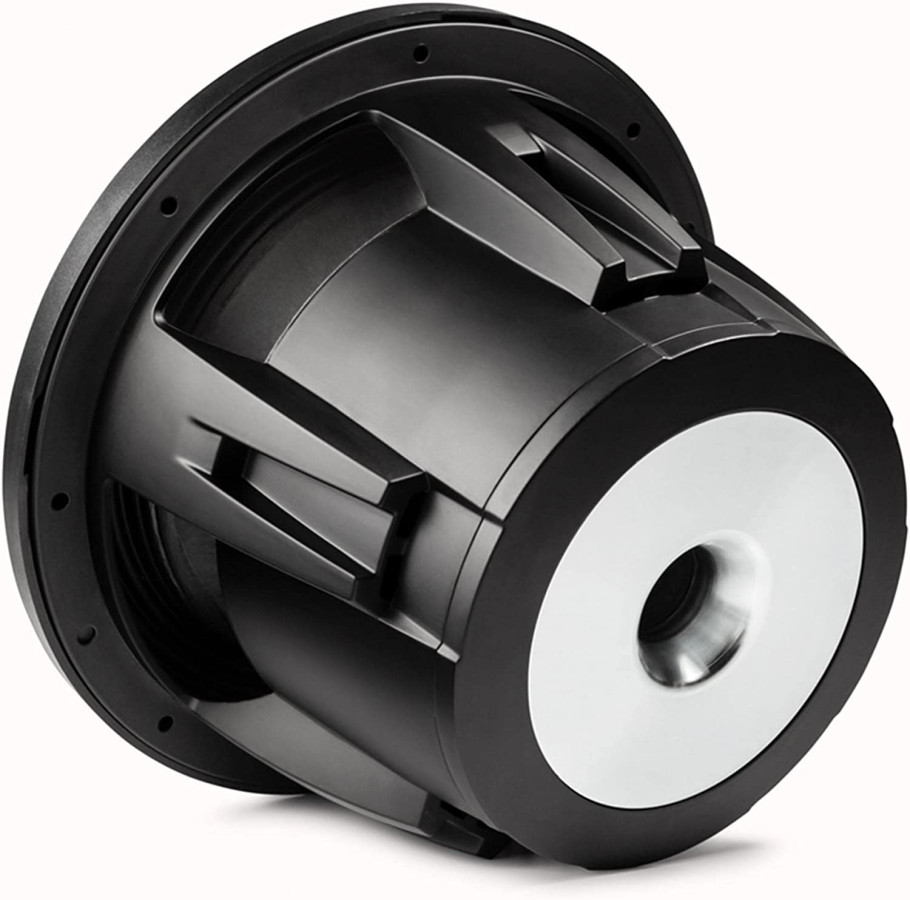

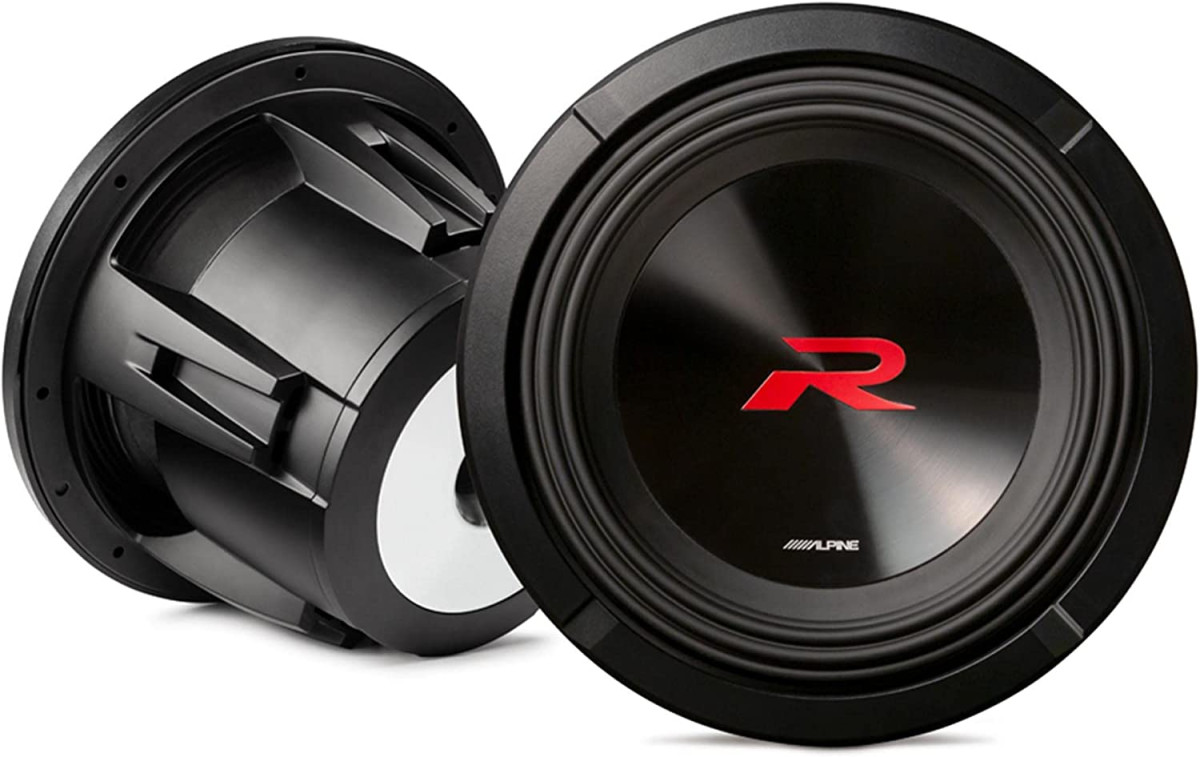

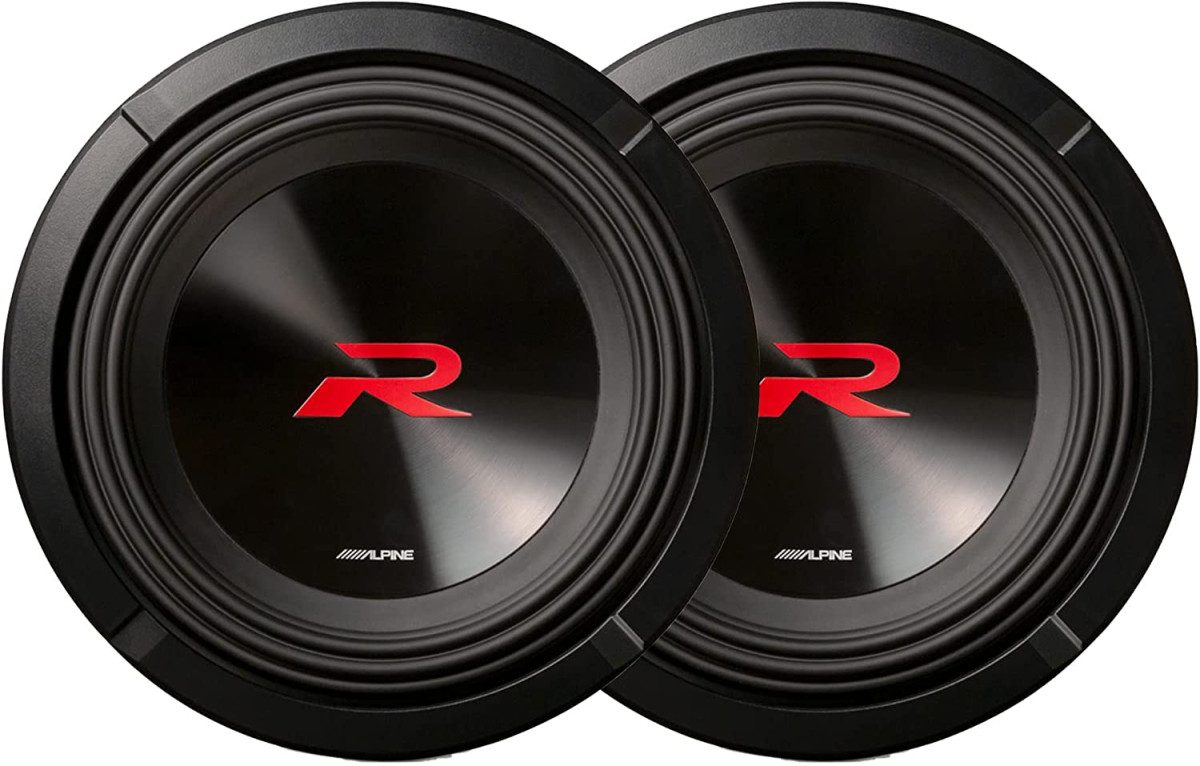

ALPINE R2-W10D4

ALPINE R2-W10D4
10" Dual 4 ohms Type-R Series Series Subwoofer
Power Handling:
Peak: 2250 watts
RMS: 750 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround

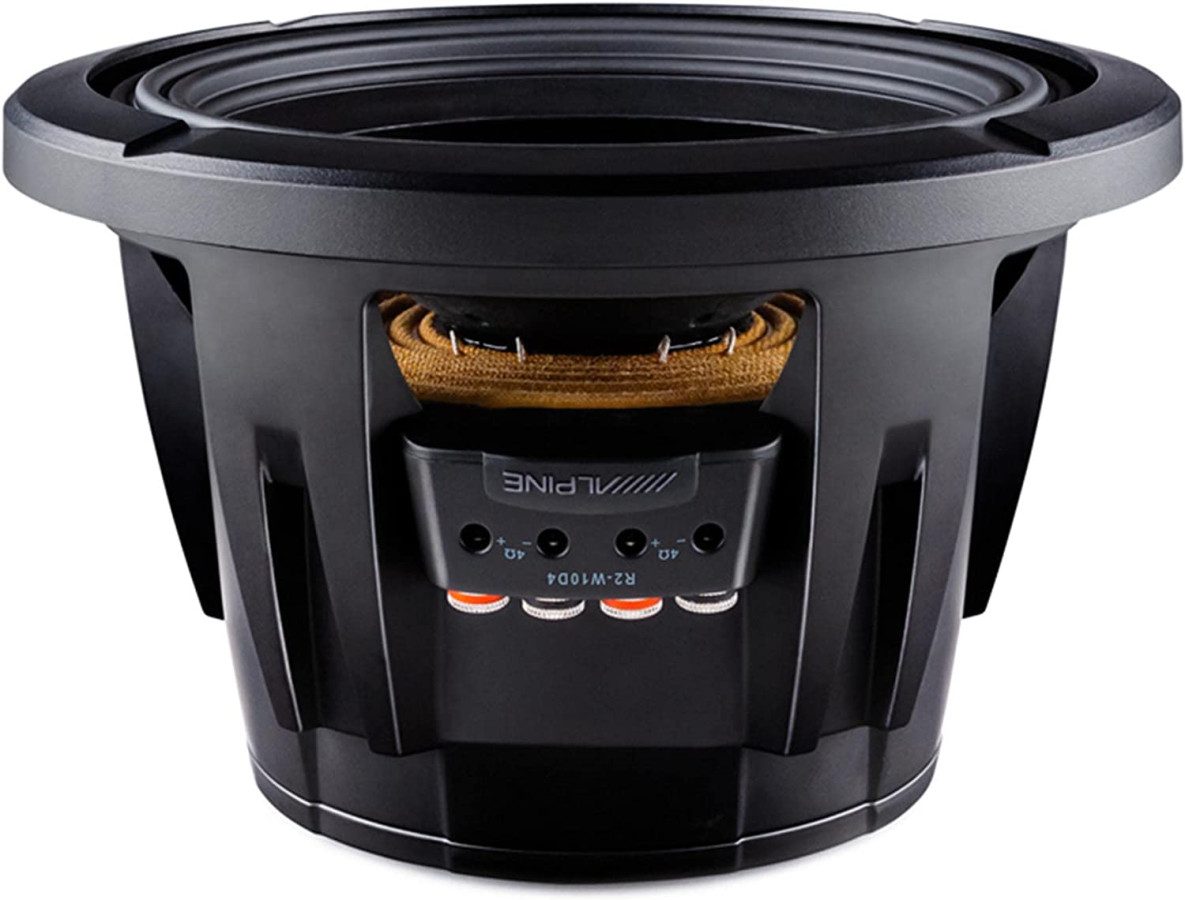

Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
2.6" High Temperature Voice coil
20 mm Xmax
123 oz. Double Stacked Ferrite magnet motor structure
Frequency Response: 26 - 200 Hz
Resonance Frequency (Fs): 32 Hz
Sensitivity: 82.8 dB
Sealed box volume: .4 cubic feet - .85 cubic feet
Ported box volume: .75 cubic feet - 1.3 cubic feet
Top-mount depth: 6"
Cutout diameter: 9.6"
CTA-2031 Compliant: Yes
