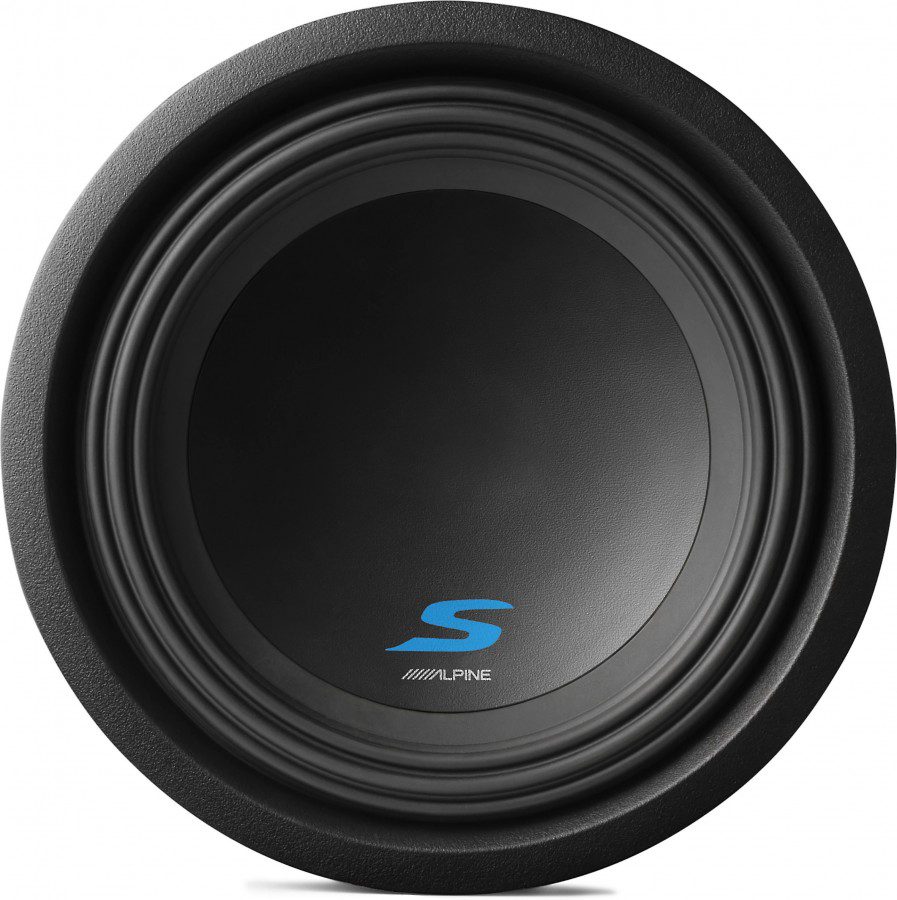

ALPINE S-W10D2

Description

The S-Series subwoofers are designed with increased bass output and installation versatility!

CUSTOM-STAMPED STEEL FRAME
Each S-Series subwoofer uses a custom-stamped steel frame. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents as well as a vented back plate to help cool the subwoofer voice coil and motor parts, plus a shallow design to help fit in smaller spaces

PUSH-TYPE INSERT TERMINALS WITH DUAL VOICE COIL JUMPER SYSTEM
The push-type insert terminals help reduce the installation time of the S-Series subwoofers. Just strip the speaker insulation at the wire end, then insert the bare wire into the hole of the spring-loaded push terminal.

600W POWER HANDLING
The 10” and 12” S-Series subwoofers are engineered with an improved voice coil allowing the woofer to benefit from an increased power rating of 600 watts. Match them with the powerful VPower MRV-M500 mono amplifier for a great subwoofer system.
TECH SPECS
Speaker Rating:
Max RMS Power Capacity: 600W RMS
Peak Power Capacity: 1800W Peak Power
10 2 OHM+ 2 OHM Subwoofer
Power Handling: 600W 1800W
High Strength Custom Steel Frame
Great complement to V-Power Amplifiers
Frequency Response: 28Hz-200Hz
Mounting Depth 4-11/16
Recommended Sealed Box: 0.58 cubic foot (gross volume)
Recommended Vented Box: 1.30 cubic foot (gross volume), 10 x 1 vent area, 17 vent length
