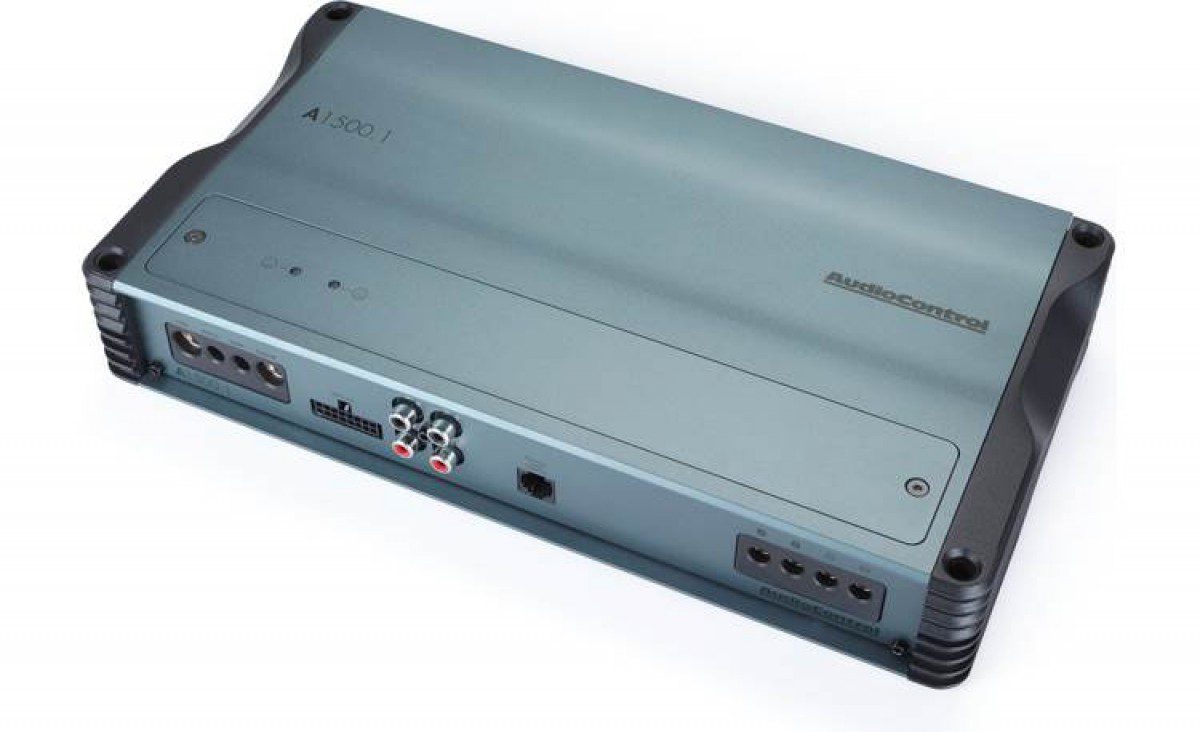

AUDIOCONTROL A1500.1 AUDIOCONTROL ALTITUDE SERIES CLASS D MONOBLOCK AMPLIFIER 1500 WATT @ 1.33 OHM

AUDIOCONTROL A1500.1
Elevate your audio experience with AudioControl's Altitude Amplifier Series, featuring a sleek, minimalist design with an anodized matte grey aluminum chassis for superior thermal management. These amplifiers deliver exceptional power and sound quality, excelling in performance. Equipped with Valet Mode to limit volume for system protection, they’re also compatible with start-stop systems and electric vehicles. Spike Mode unleashes more power by allowing three 4Ω subwoofers to connect at 1.33Ω, while ParaBASS controls enable precise bass tuning. Pair with AudioControl’s PNW speakers and Space or Spike subwoofers for a truly immersive sound.

The power supply utilizes advanced pulse width modulator integrated circuits for enhanced performance and efficiency. It features HEXFET® Power MOSFETs from International Rectifier, engineered with advanced processing to deliver low on-resistance and fast, reliable switching. A premium toroidal transformer ensures optimal electrical efficiency with minimal signal distortion, while low ESR capacitors reduce power loss and internal heat. Precision metal potentiometers provide accurate tuning and durability. The inclusion of 500V Class X2 capacitors offers self-healing properties for high-frequency protection, safeguarding against AC surges and MOSFET failure. High-efficiency Ferrite Core Inductor filters minimize eddy current losses, while a class D driver IC with PWM modulation and HEXFET MOSFETs ensures powerful and efficient output.
Features:
Maximum Power : 1500 Watts
Number of Channels : 1
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
Channel Separation : Yes
Amplifier Class : D
High/Low Input Modes
GTO™ Signal Sense
Linkwitz-Riley Crossovers
Start-Stop Compliant
High Power Output in a Sleek Chassis
ParaBASS® Low Frequency Contouring
Valet Mode Option
Optional Remote Level Control (ACR-1)
EV Compliant up to 17V
Spike Mode Enabled
What's in the Box: A1500.1 Monoblock Amplifier, Owner's manual
Specifications:
Preamp Inputs: 2
Line-Level Inputs: 6V max
Speaker-Level Inputs: 20V max
Outputs Rated Continuous (RMS) Power at 14.4V:
600W x 1 @ 4Ω
1200W x 1 @ 2Ω
1500W x 1 @ 1.33Ω
Remote Level Control: ACR-1 (optional, but not included)
Performance:
S/N Ratio (ref: rated power): 103 dBA
THD+N: <0.11%
Valet Mode: Yes
Subsonic Filter: Variable
Crossover and Bass Processing:
Linkwitz-Riley X-Over (Low Pass):
Frequency Range: 60 Hz to 120 Hz
Bass Processing: ParaBASS®
