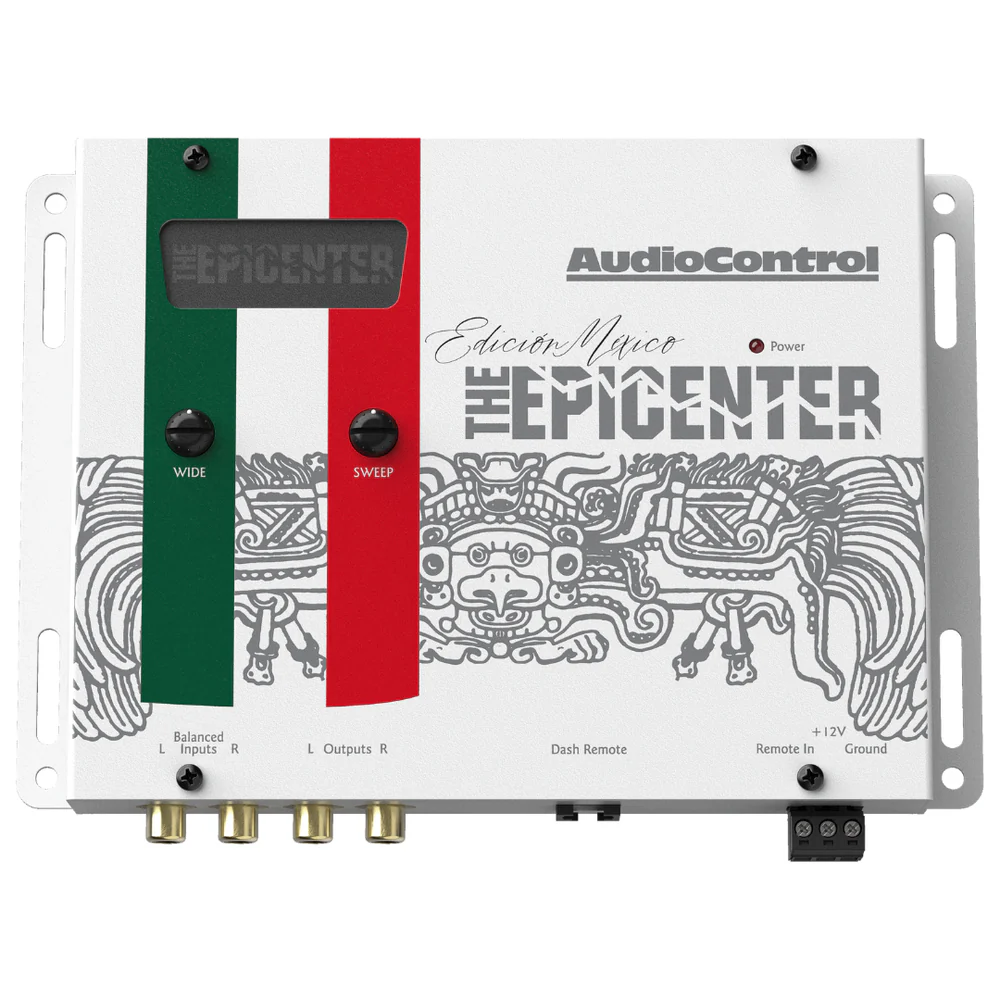

AUDIOCONTROL EPICENTER MX MEXICAN EDITION EPICENTER BASS RESTORATION PROCESSOR

AUDIOCONTROL EPICENTER MX
AudioControl’s Original Digital Bass Restoration Circuit
Balanced Differential Inputs
ParaBASS® Controls for Bass Shaping
Voltage Limiter for Gain Matching
Programmable PFM Subsonic Filter Subwoofer Protection
13.5 Vrms Maximum Output Level
Lighted Epicenter Logo Flashes with Music
ACR-1 Dash Remote Included for Bass Restoration Control
Screen Printed Mexican Flag and Native Glyphs
Tricolor The Epicenter Illuminated Logo
Certificate of Authenticity
specifications
inputs
Preamp Inputs: 2 (2 channels)
Maximum Input Level: 15 Vrms
Input Impedance: 10k?
outputs
Preamp Outputs: 2 (2 channels)
Maximum Output Level: 13.5 Vrms
Output Impedance: 150?
performance
Total Harmonic Distortion: 0.003%
Frequency Response: 10 Hz to 100 kHz
Signal to Noise: 130 dB
control
Remote In
general
Power Supply: High Headroom PWM Switching
Current Draw: 150mA
Recommended Fuse Rating: 1A
in the box: The Epicenter Edición México, ACR-1 Remote, Power Connector, Certificate of Authenticity, Quick Start Guide, Warranty
