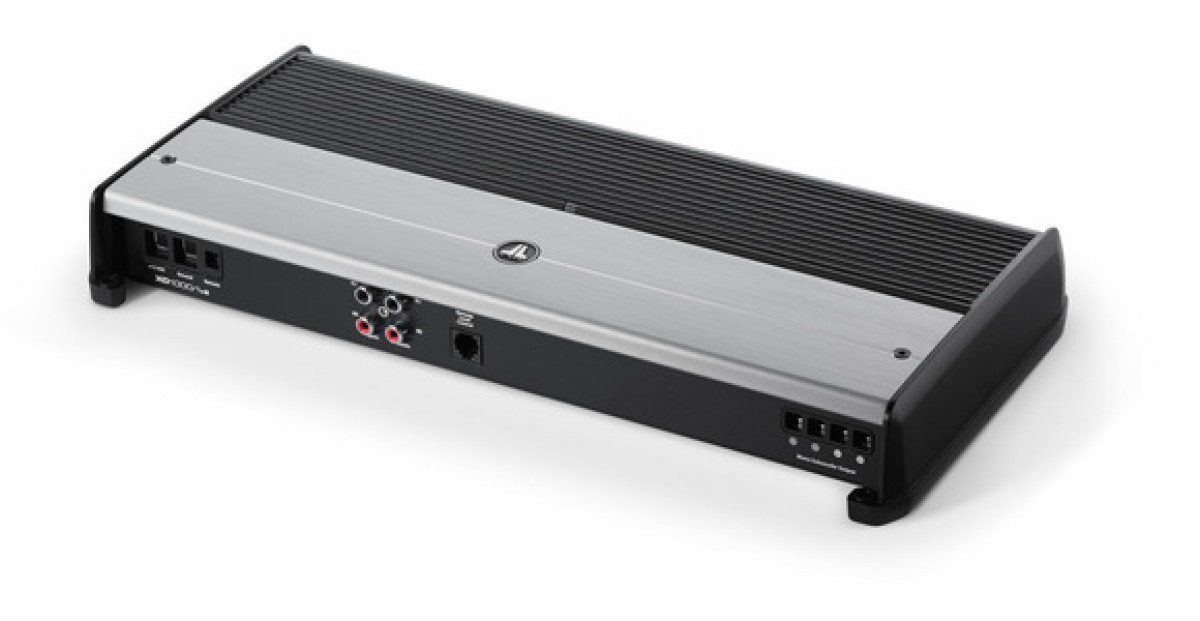

JL AUDIO XD1000/1v2 XD SERIES
Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 ? / 600 W x 1 @ 4 ? - 14.4V
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ? >1000 / 50 Hz
Damping Factor @ 2 ? >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 ? per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Additional information
Weight | 4.4 lbs |
---|---|
Dimensions | 14.73 × 7.09 × 2.05 in |
