OG AUDIO OGWX121000AD4 OG WX 12″ 1000 WATTS RMS 4Ω SILVER SERIES

OG AUDIO OGWX121000AD4
OG WX 12" 1000 WATTS RMS 4Ω SILVER

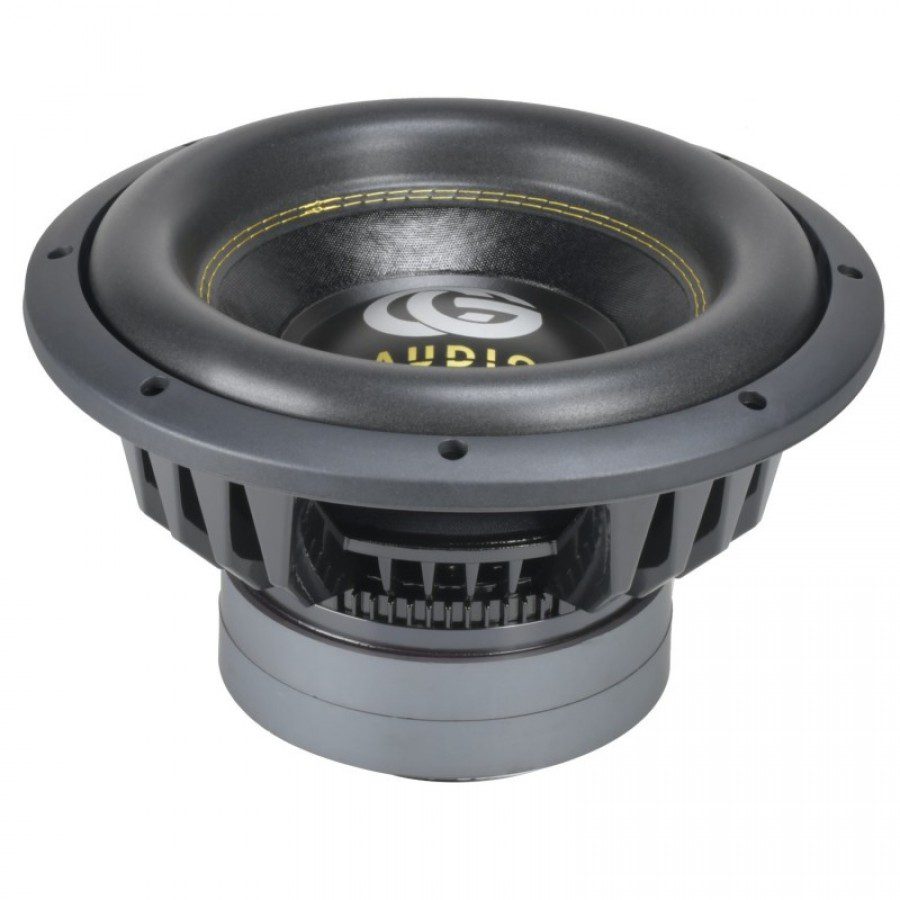

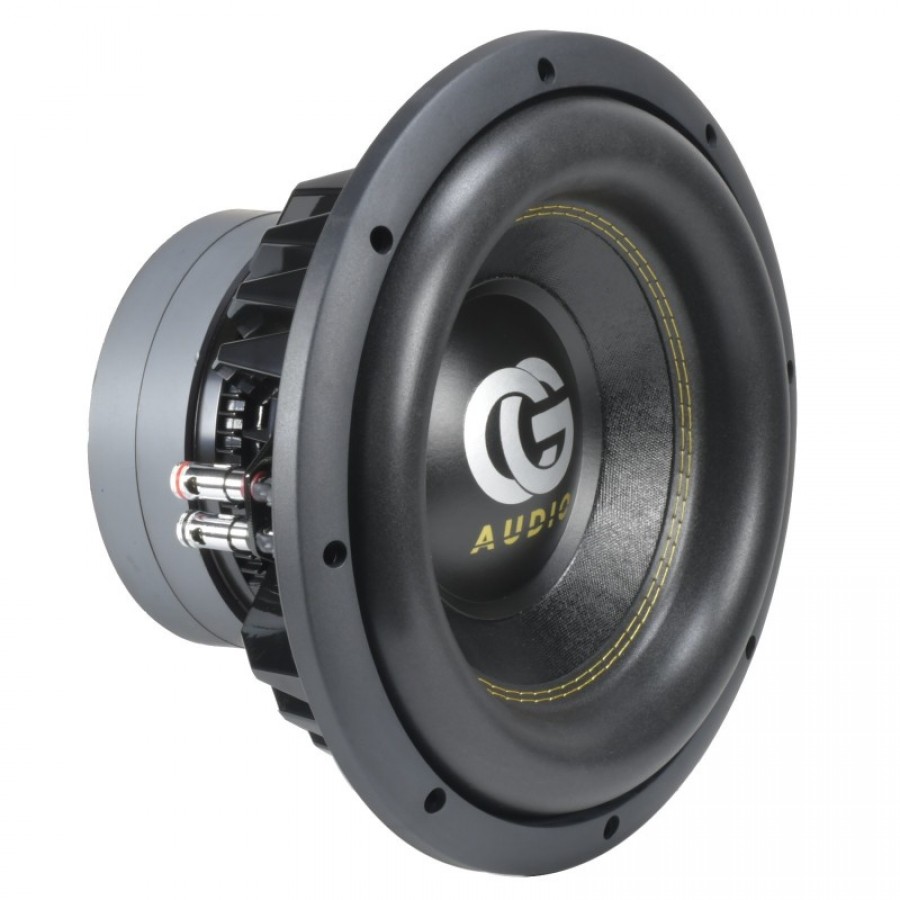

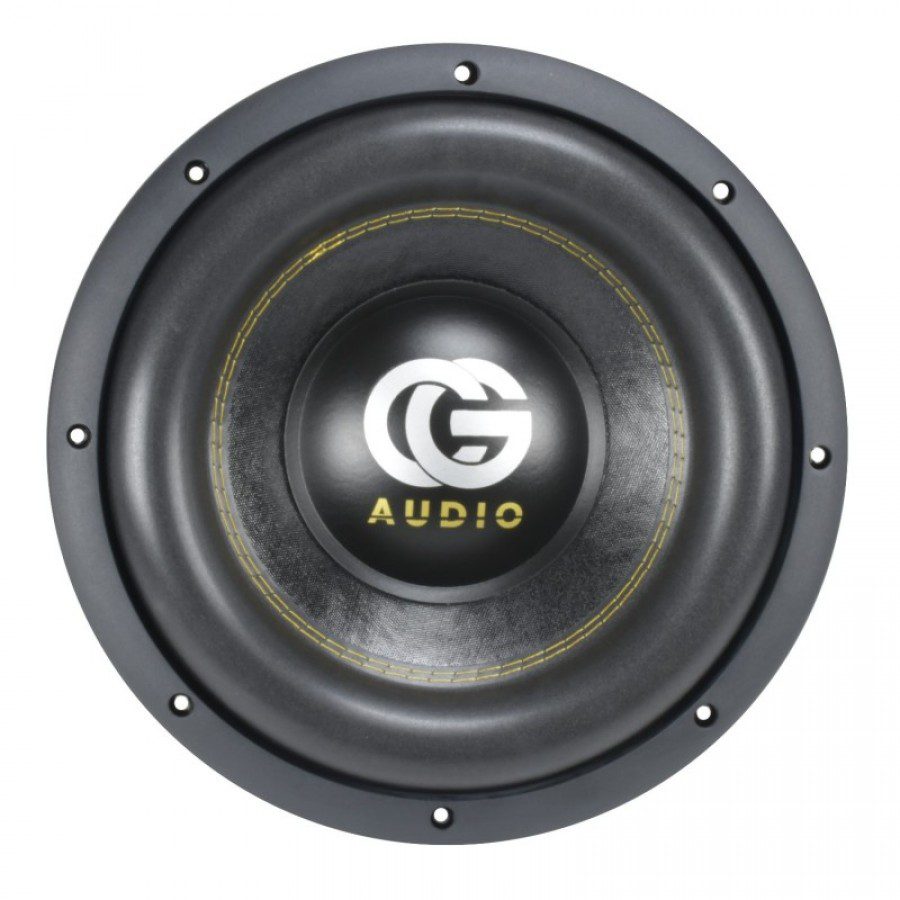

The OG WX121000AD4 12-inch dual 4 ohm/4 ohm car subwoofer delivers hard hitting bass in a compact, powerful package. The WX121000 was engineered and built with performance in mind. It starts with a unique 3.0"COIL , 4-layer high-temperature copper voice coil wire, allowing it to have a conservative peak power rating of 2,000 watts. The OG Audio stamped steel basket featured on the OG-12 utilizes an advanced air flow cooling system to help dissipate heat, enabling it to provide continuous reliable power.
The OG-12 is equipped with a magnet system ferrite motor, which delivers the driving force behind the ultra-responsive, breathtaking lows this subwoofer produces. The suspension design of the OG 12100AD4 series features the OG Audio signature green for every one, 4-layers which connects to the coil former with premium stitched lead Copper wires. Furthermore, the OG-12 comes with a high foam surround stitched to a competition grade pressed paper cone with overall dimensions 328*213 The advanced design features in the OG series help to deliver powerful bass with uncompromising accuracy, that place this subwoofer in an elevated class of its own.

General Data

OGWS12600AD2

OGWS12600AD4

Overall Dimensions

320*197mm

Nominal Power Handling

600 W

Transient Power 10ms

1200 W

Sensitivity

84.7 dB

Frequency Response

32-300Hz

32-300Hz

Cone Material

Kraft pulp fiber non-pressed cone

Net Weight

6.7 kg

Electrical Data

Nominal Impedance

Dual 2.0Ohm

Dual 4.0Ohm

DC Resistance

Dual 1.9Ohm

Dual 3.2Ohm

Voice Coil and Magnet Parameters

Voice Coil Diameter

61.1 mm

Voice Coil Height

35 mm

HE Magnetic Gap Height

8 mm

Max.Linear Excursion

13.5 mm

Voice Coil bobbin

Black Aluminum

Voice Coil Wire

Copper

Number Of Layers

4 layers

Magnet System Type

High Flux Ferrite

BL Product

16.67 N.A

10.45 N.A

T-S Parameters

Suspension Compliance

Cms

0.11

0.13

Mechanical Q Factor

Qms

6.76

4.21

Electrical Q Factor

Qes

0.58

0.57

Total Q Factor

Qts

0.53

0.5

Moving Mass

Mms

249.4

213.2

Eq.Cas Air Load( liters)

VAS

36.2 Liter

43.4 Liter

Resonant Frequency

Fs

31 Hz

32 Hz

Effective Piston Area

SD

471.4 cm²

NOTE:TS Measurement Connection:

Series

Parallel
