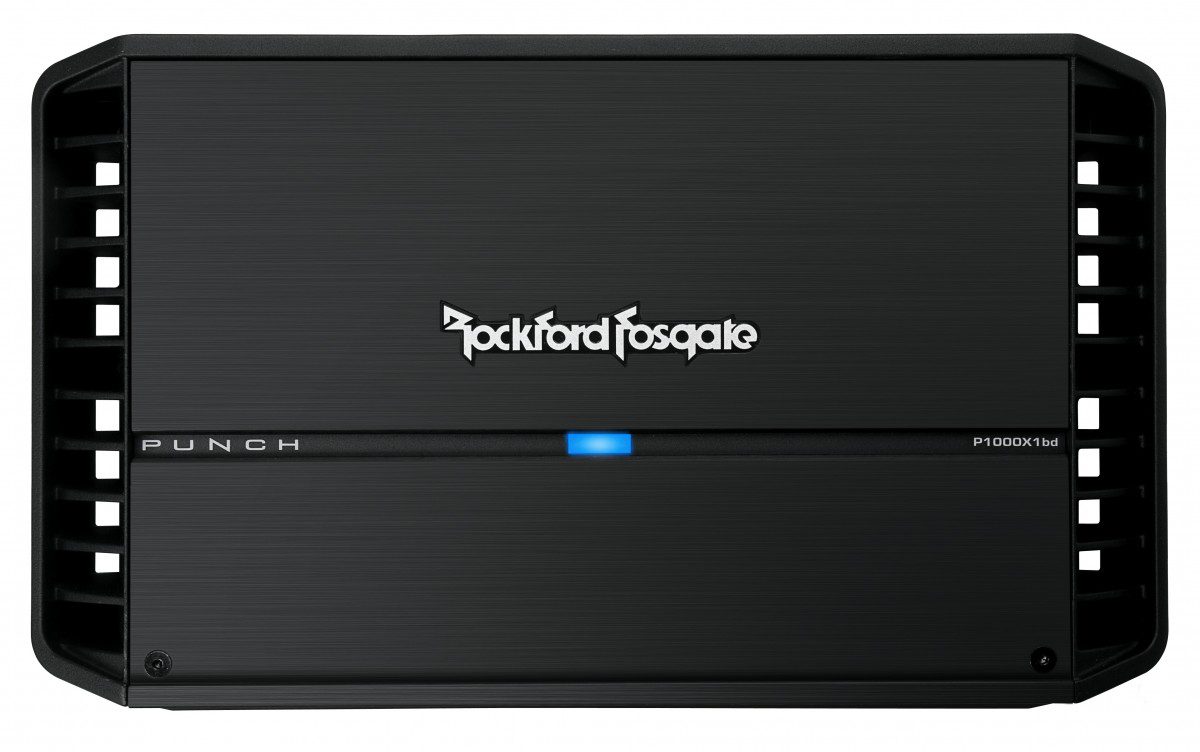

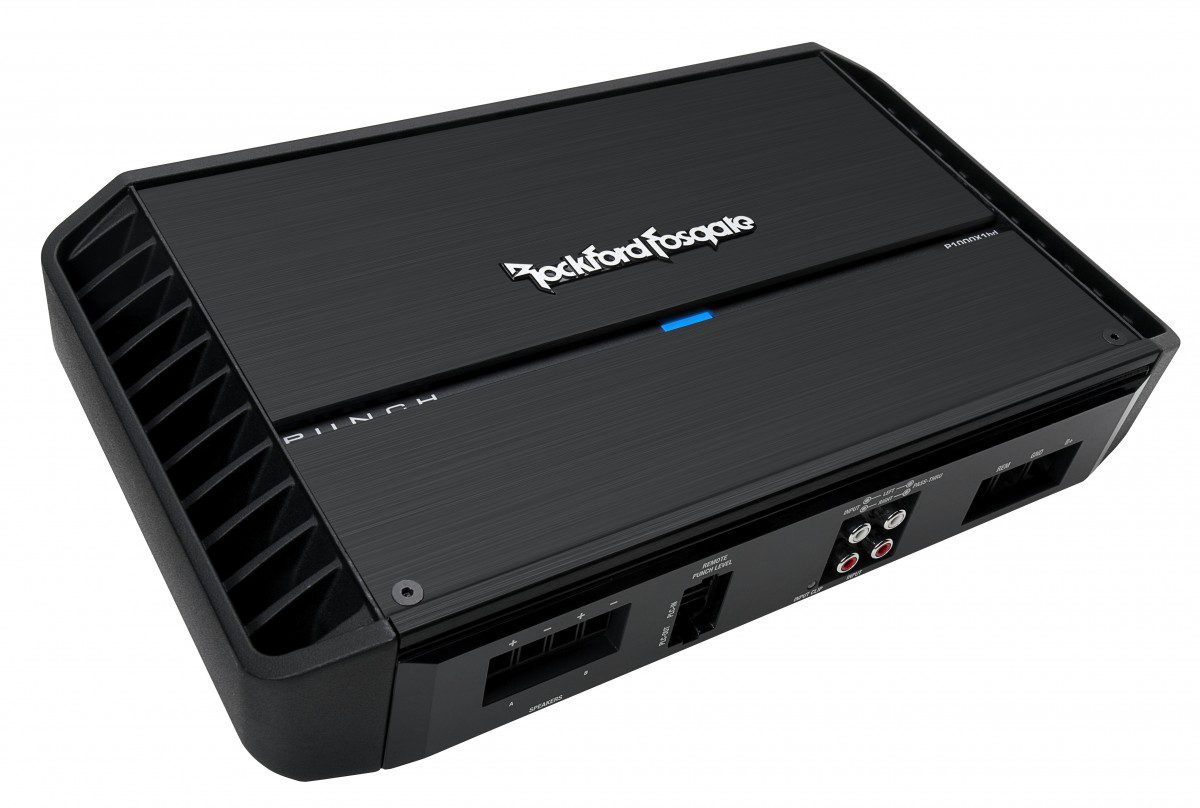

Rockford Fosgate Punch P1000X1BD Monoblock 1000 Watts Amplifier

The Rockford Fosgate Punch P1000X1bd is a 1 Ohm stable monoblock amplifier delivering up to 1,000 Watts RMS for mid-bass speakers or subwoofers, with efficient Class-BD technology and flexible bass controls.

$549.99

Out of stock

Description

The Amp At A Glance:

  • 1 Ohm stable: Delivers 300 Watts x 1 at 4 Ohm, 500 Watts x 1 at 2 Ohm, or 1,000 Watts x 1 at 1 Ohm.
  • Flexible low-frequency tuning: Includes a 50 to 250 Hz low-pass crossover and a 28 Hz infrasonic filter, both with 12 dB-per-octave Butterworth slopes.
  • Adjustable bass impact: On-board Punch EQ2 provides 0 dB to +18 dB of boost at 45 Hz.
  • Efficient bass power: Class-BD circuit topology is optimized for driving mid-bass speakers or subwoofers.
  • Optional level control: Ready for the optional Punch Level Control PLC2 with an input clip indicator.

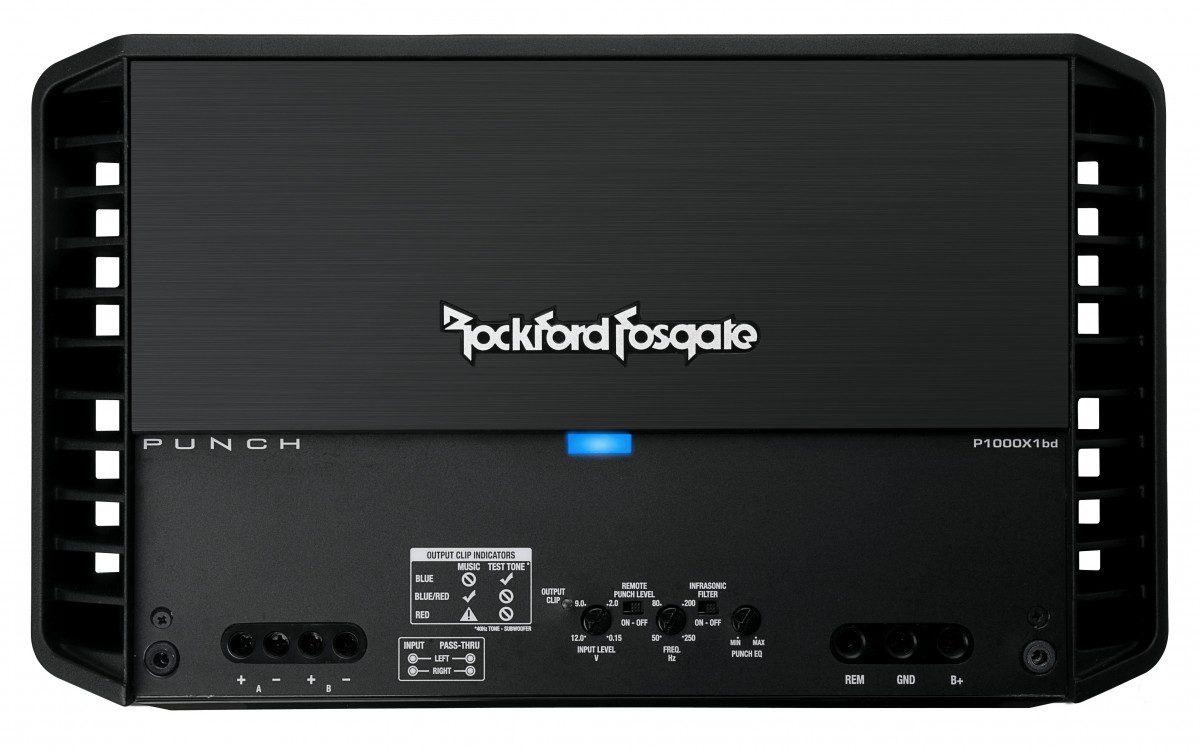

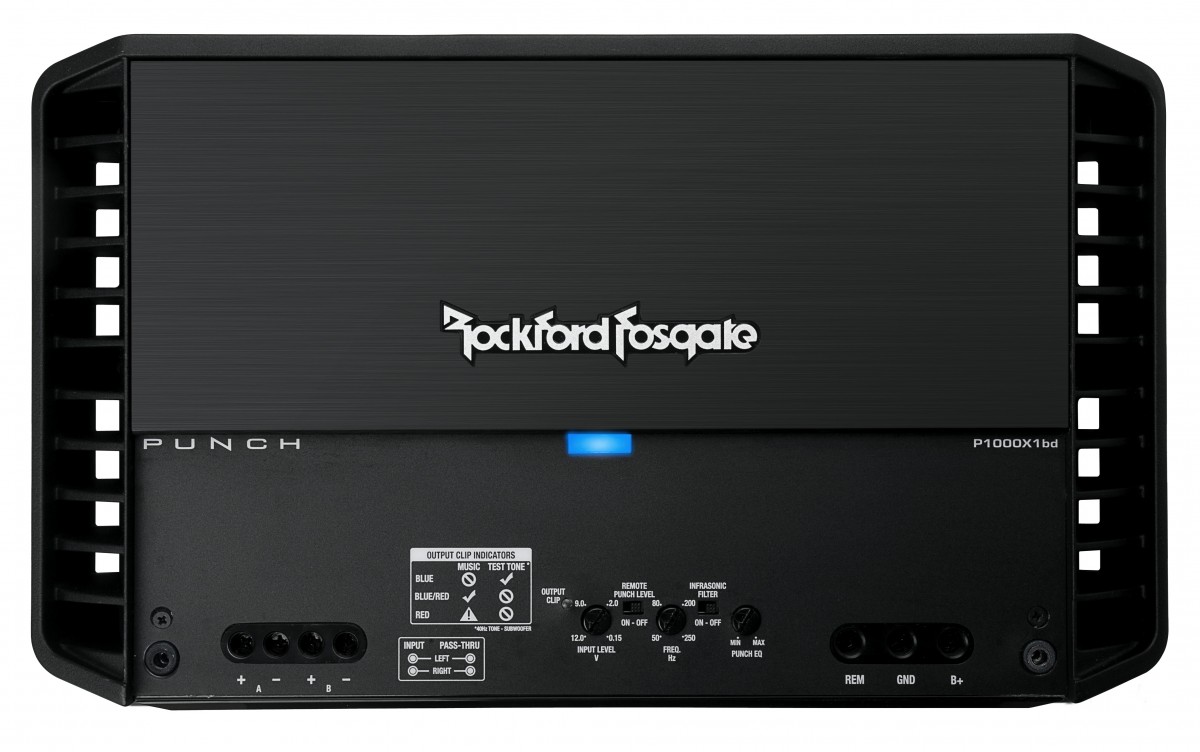

  • Simplified setup: C.L.E.A.N. setup technology and a stealth top-mounted control panel help dial in the system.
  • Versatile integration: High-level inputs with an Auto Turn-On circuit and RCA pass-through outputs support a range of system configurations.
  • Built-in protection: Short-circuit and over-current protection help safeguard the amplifier.

The P1000X1bd gives subwoofers the focused power needed for bass that sounds strong, controlled, and clearly defined. Its dedicated low-frequency response keeps the amplifier concentrated on the part of the music it is designed to reproduce.

Adjustable crossover, infrasonic filter, and Punch EQ2 controls let you shape the output around your subwoofer system and listening preferences. C.L.E.A.N. setup support makes it easier to establish proper signal levels, while the optional remote level control provides convenient command over bass output from the listening position.

Amplifier Specifications
Amp Channels Monoblock
Amp Power 1000 Watts
Amp Class Class B/D
Amp Stability 1 Ohm Stable
Bridgeable No
Crossover Controls Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth
All-Pass: No
Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz
Amp Remote Control Optional
Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4Ohm
500 Watts x 1 @ 2Ohm
1000 Watts x 1 @ 1Ohm
Dynamic Power (PVC/PowerCube) 491 Watts x 1 @ 4Ohm
874 Watts x 1 @ 2Ohm
1,430 Watts x 1 @ 1Ohm
Frequency Response (Hz) 20Hz to 250Hz +/- 1.0dB
Total Harmonic Distortion (THD+Noise) 4Ohm: <1.0%
2Ohm: <1.0%
1Ohm: <1.0%
Input Sensitivity 150 mV – 12 V
Efficiency (average) 86% @ 4Ohm

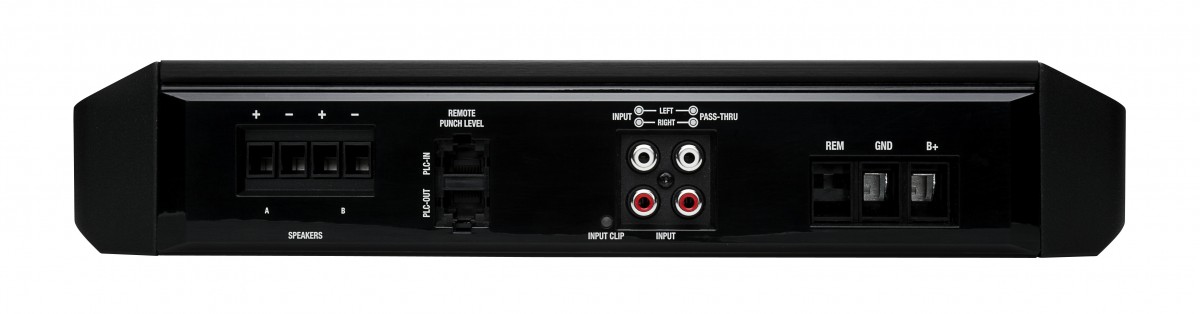

Electrical & Connections
Power Input Connector Captive C-Clamp
Power Wire Gauge 4 AWG
Speaker Output Connector Captive C-Clamp
Speaker Wire Gauge 8 AWG to 18 AWG
Signal Input Hi/Low level: 1 RCA pair
Signal Output Hi/Low level: 1 RCA pair
Operating Voltage 9 – 16 VDC
Max. Current Draw (13.8V Sinewave) 130 A
Average Current Draw (13.8V Music) 65 A
Recommended Fuse (not included) 140 A
Suggested Alternator 100 A
Physical Specifications
Cooling Convection
Dimensions (H x W x D) 2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight 12.9 Lbs. (5.85 Kg.)

Additional information

Weight 13 lbs
Amp Channels

Monoblock

Amp Features

Auto Turn-On, Bass Boost, Clip Indicator, High-Level Inputs, Subsonic Filter

Amp Stability

1 Ohm Stable

Amp Remote Control

Optional

Amp Class

Class B/D

Amp Power

Bridgeable

No

Series

Punch
