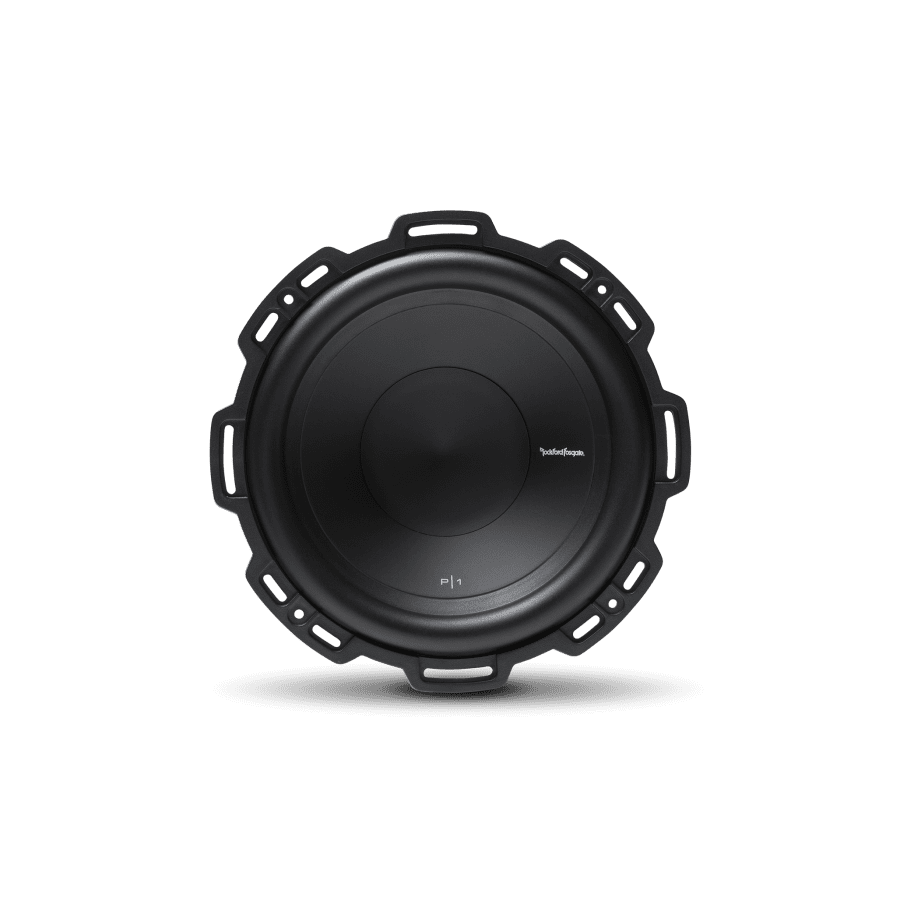

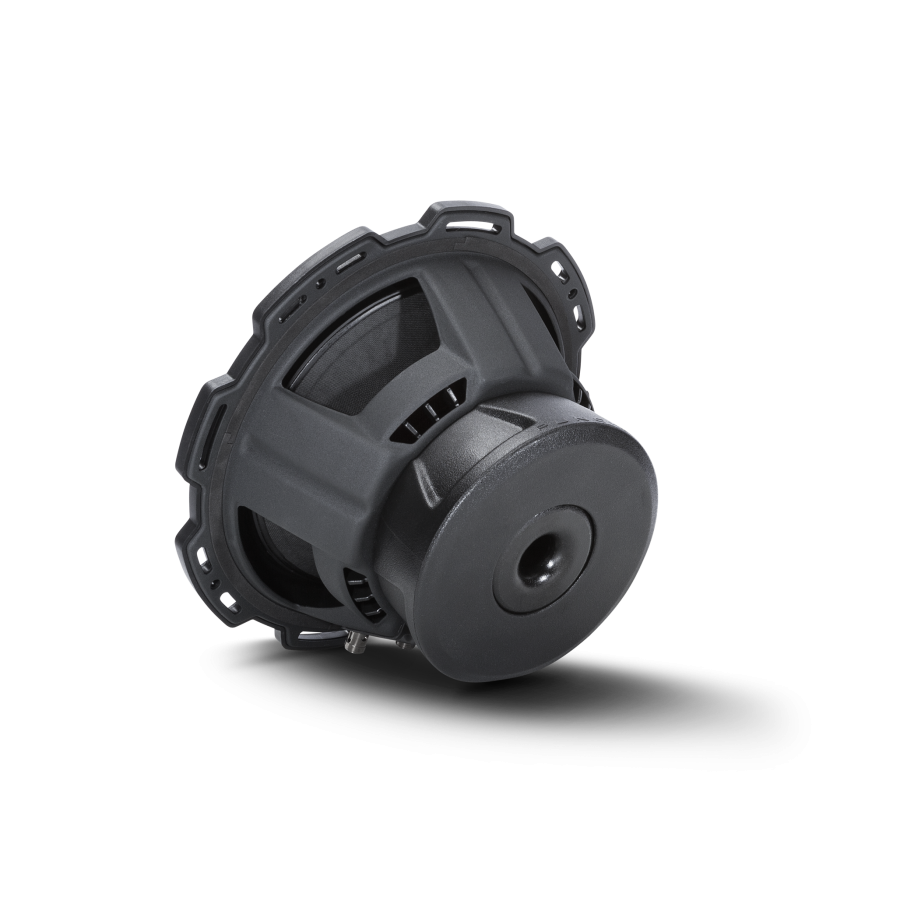

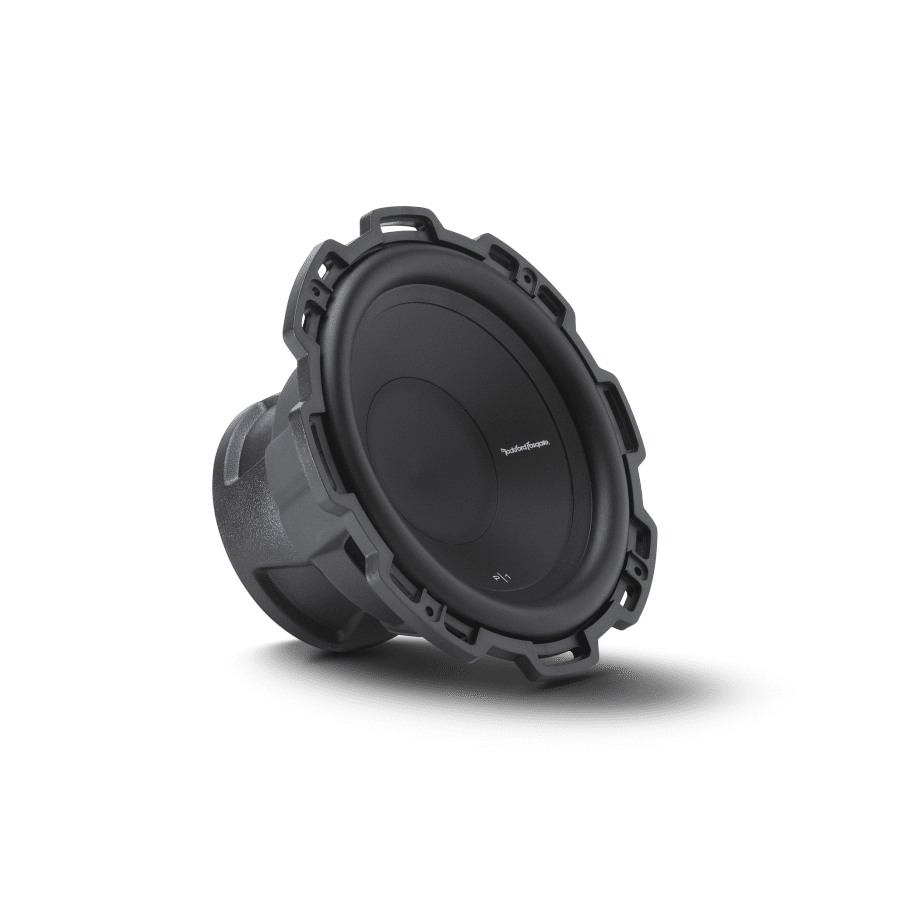

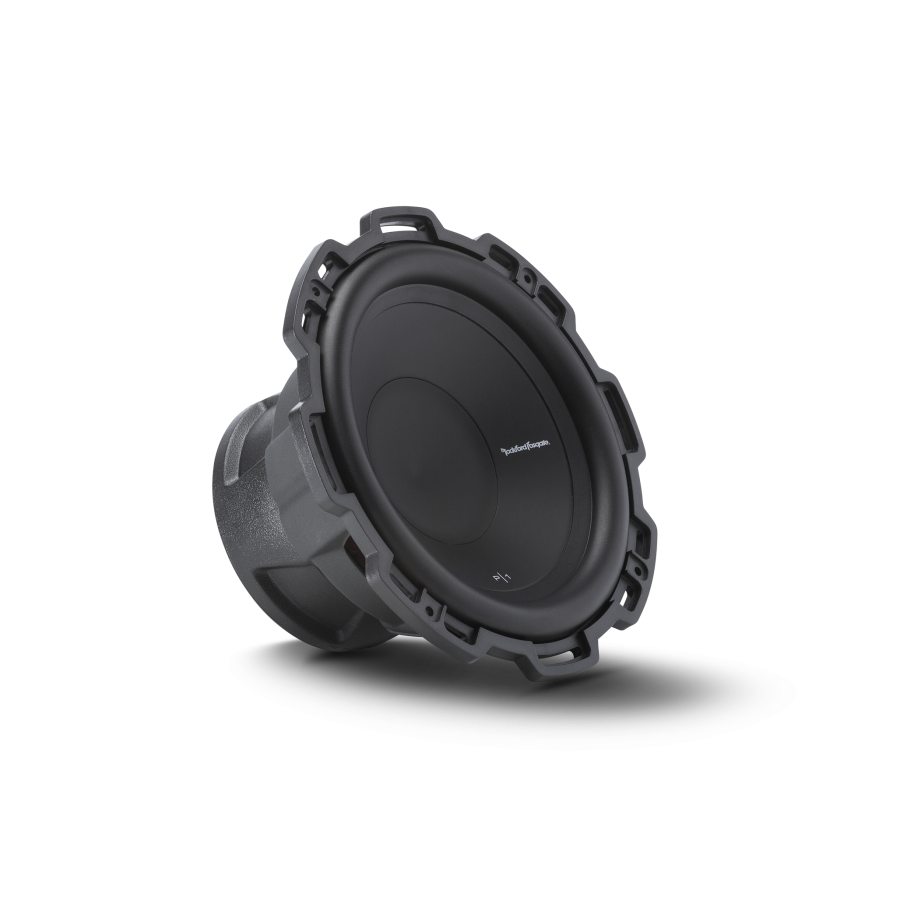

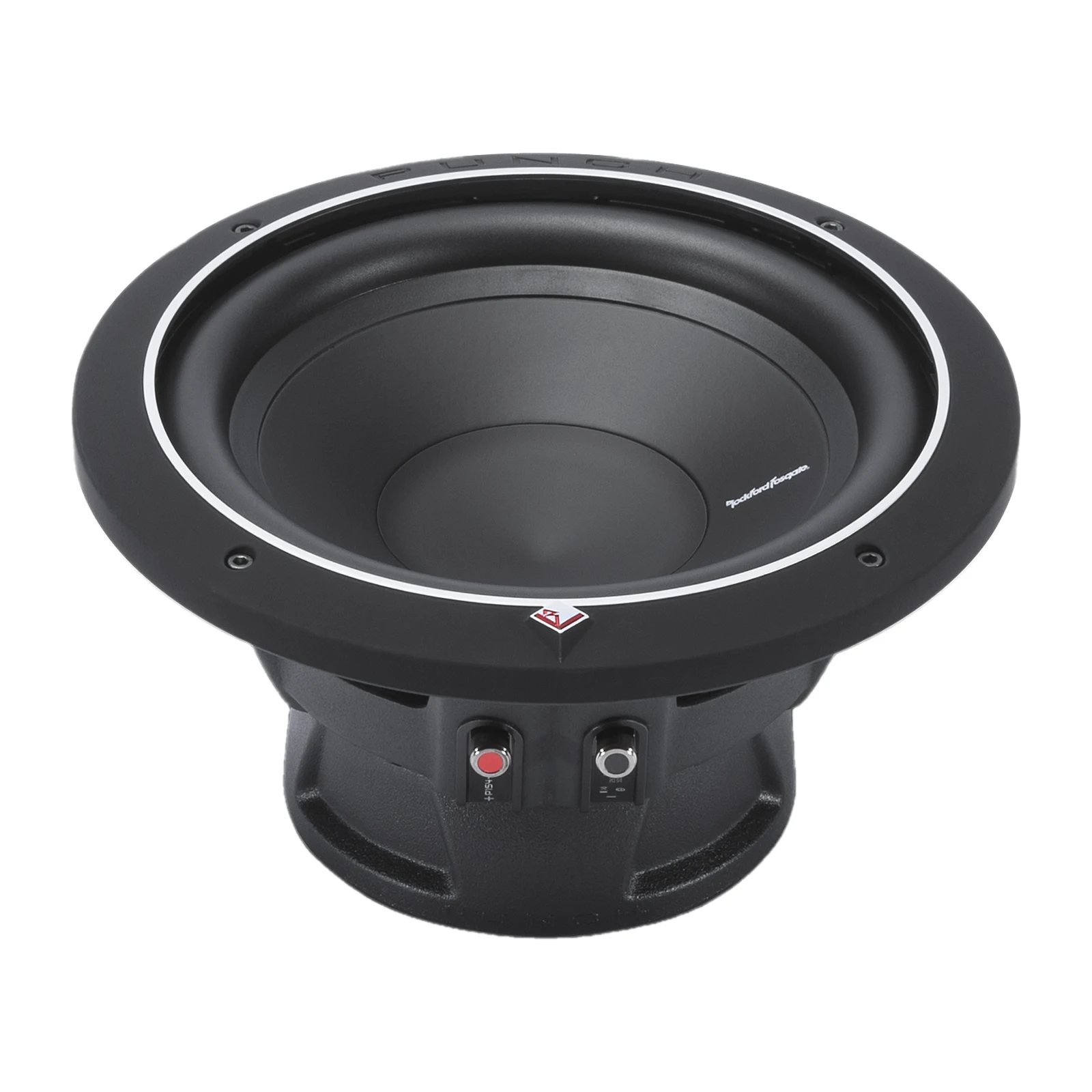

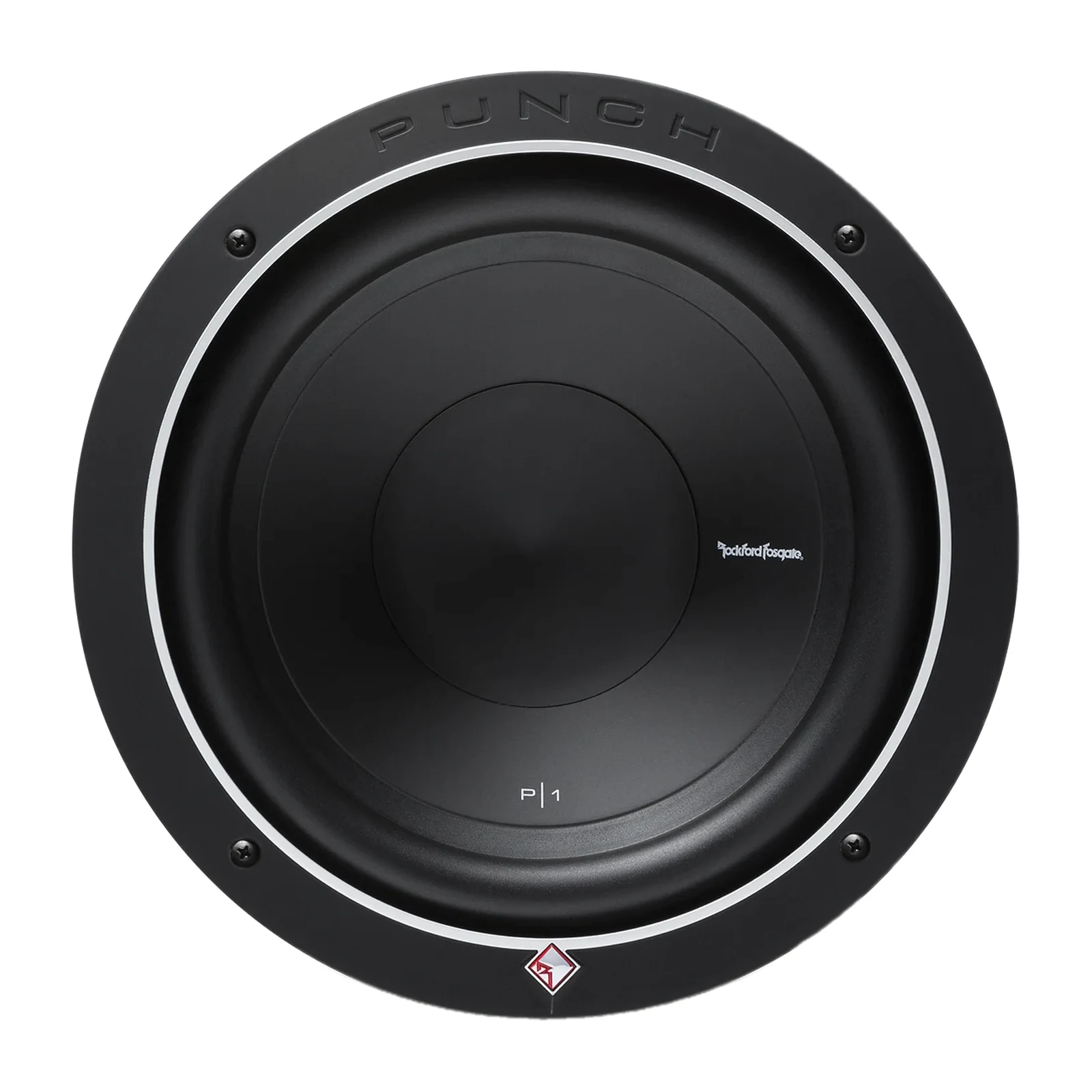

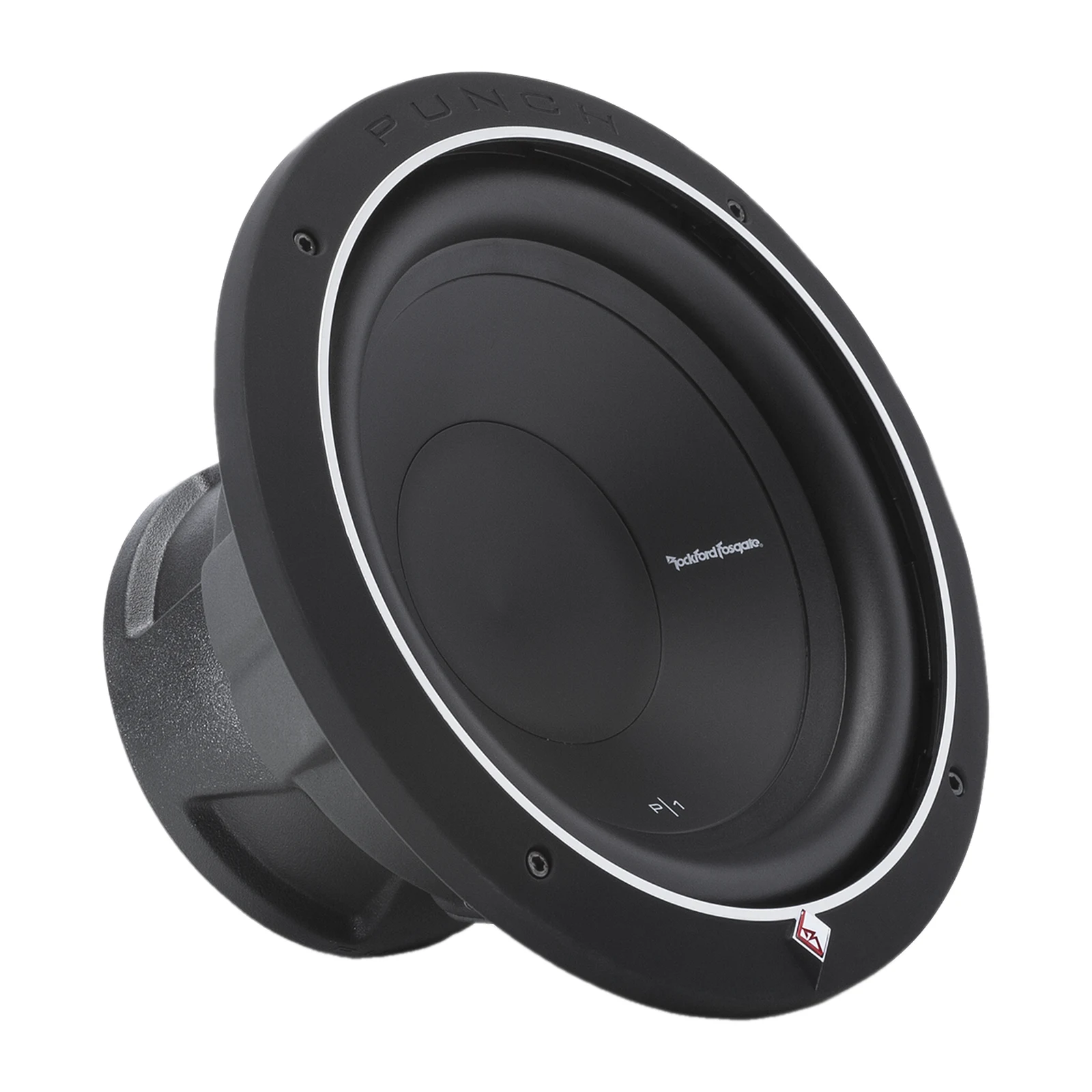

Rockford Fosgate Punch P1S4-10 10in 4 Ohm 250 Watts Subwoofer

Rockford Fosgate P1S4-10 Punch 10-inch car subwoofer with a single 4-ohm voice coil, 250 watts RMS power handling, a Kevlar fiber-reinforced paper cone, and compatibility with standard sealed or vented enclosures.

$119.99

2 in stock

Description

The Sub At A Glance:

  • Power Handling: Handles 250 watts RMS and 500 watts max.
  • Voice Coil: Single 4-ohm, 2-inch high-temperature voice coil with a spun-laced Nomex reinforcement collar.
  • Reinforced Cone: Kevlar fiber-reinforced paper cone delivers bass impact you can feel.
  • VAST Technology: Increases available cone surface area by up to 25%.

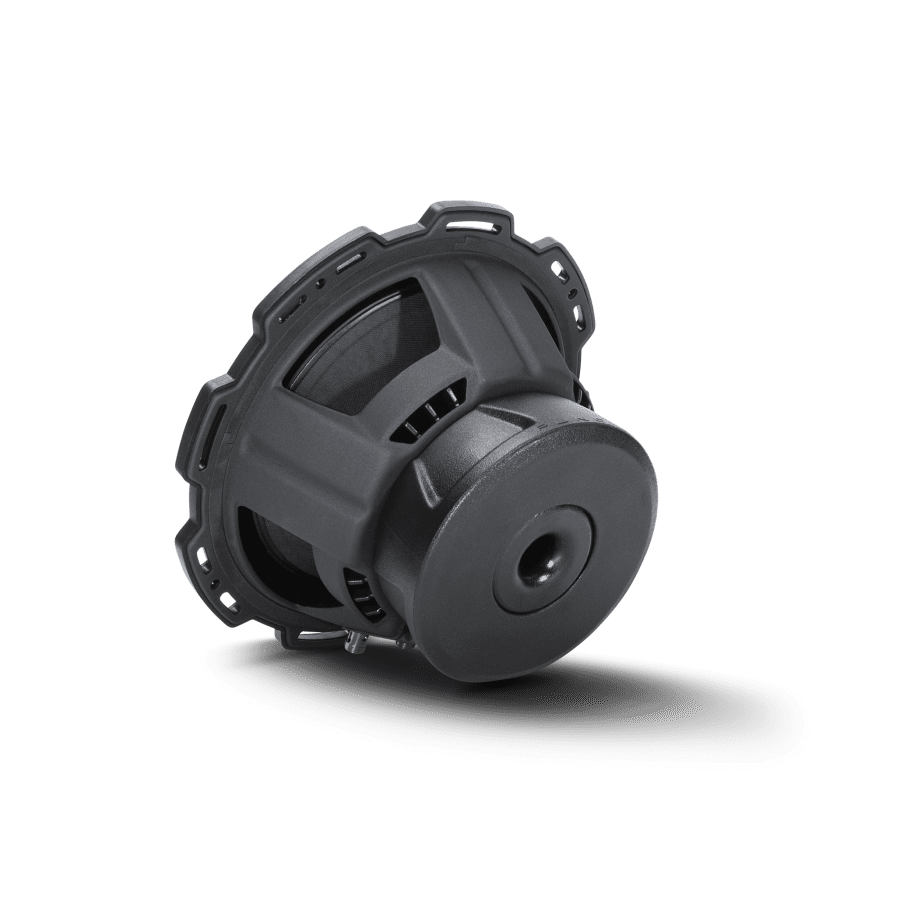

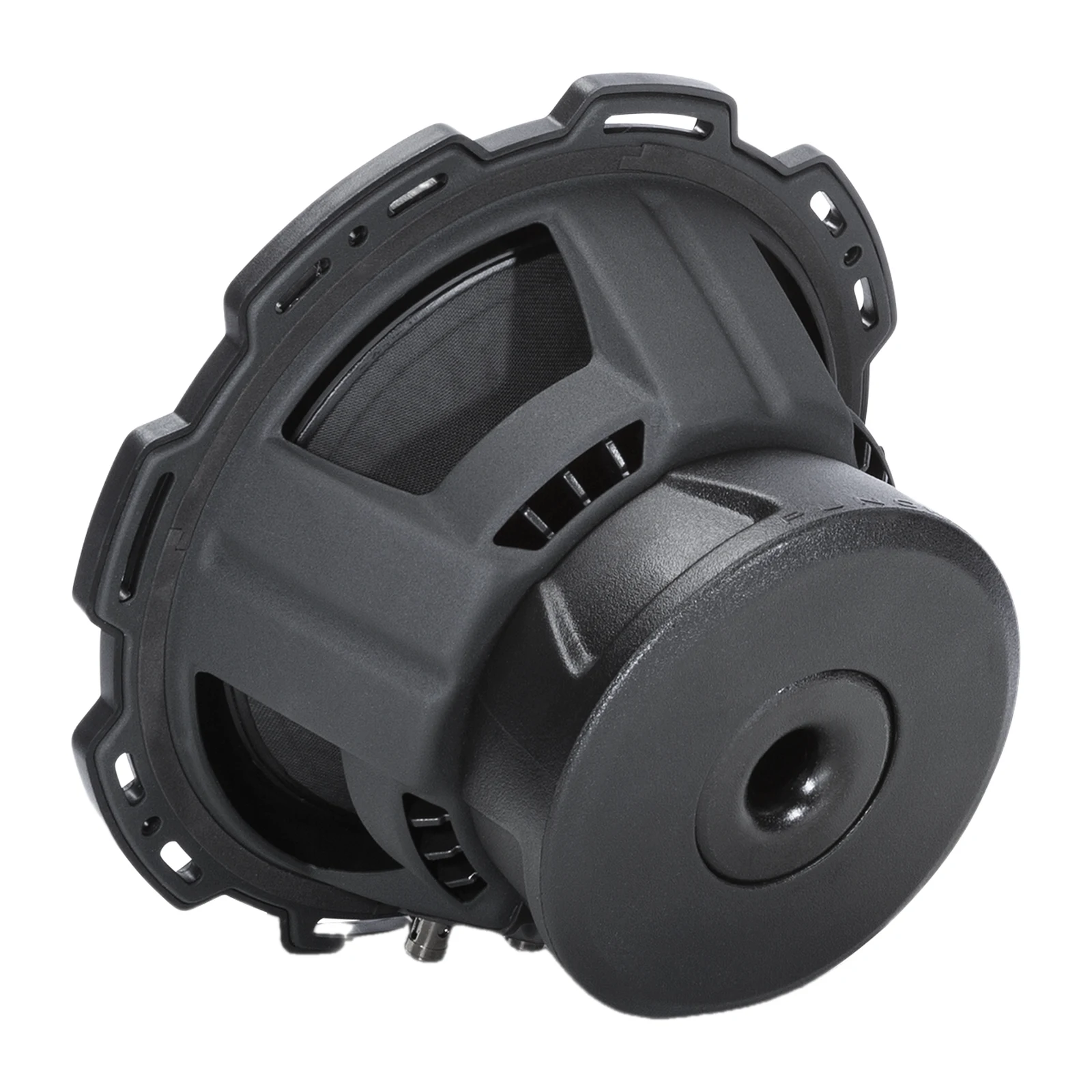

  • Durable Suspension and Frame: Linear spider with embedded 16-AWG tinsel leads and a StampCast basket with integrated spider venting.
  • Enclosure Flexibility: Designed for standard sealed and vented enclosures.

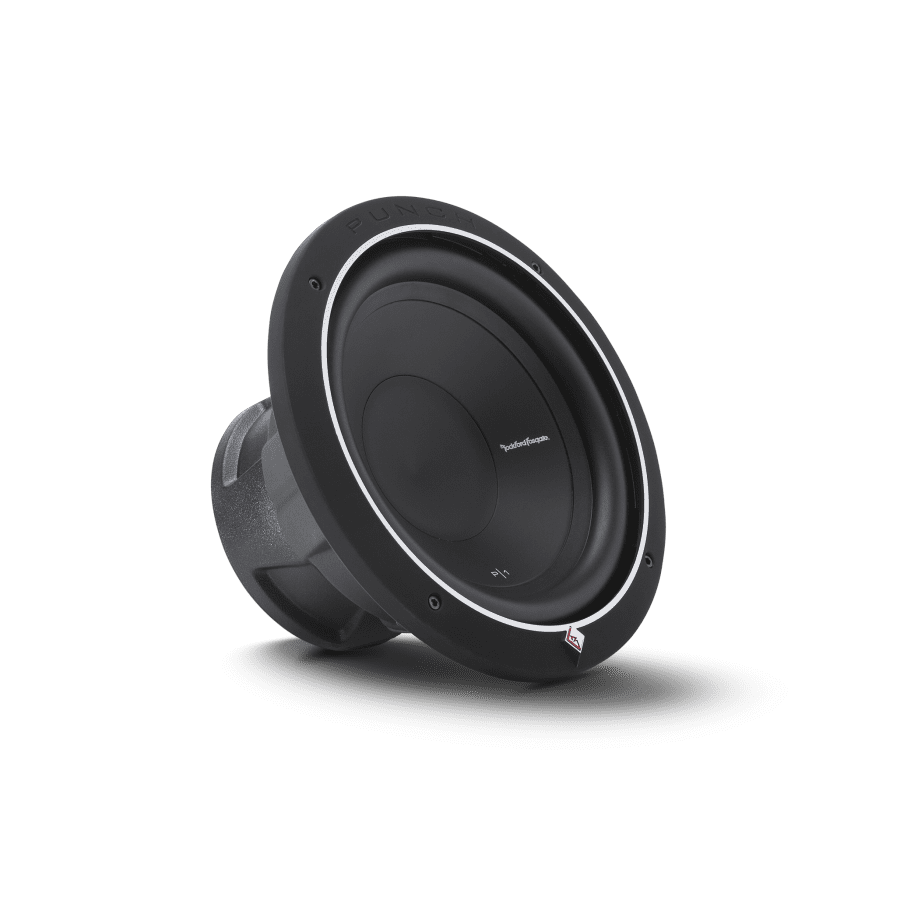

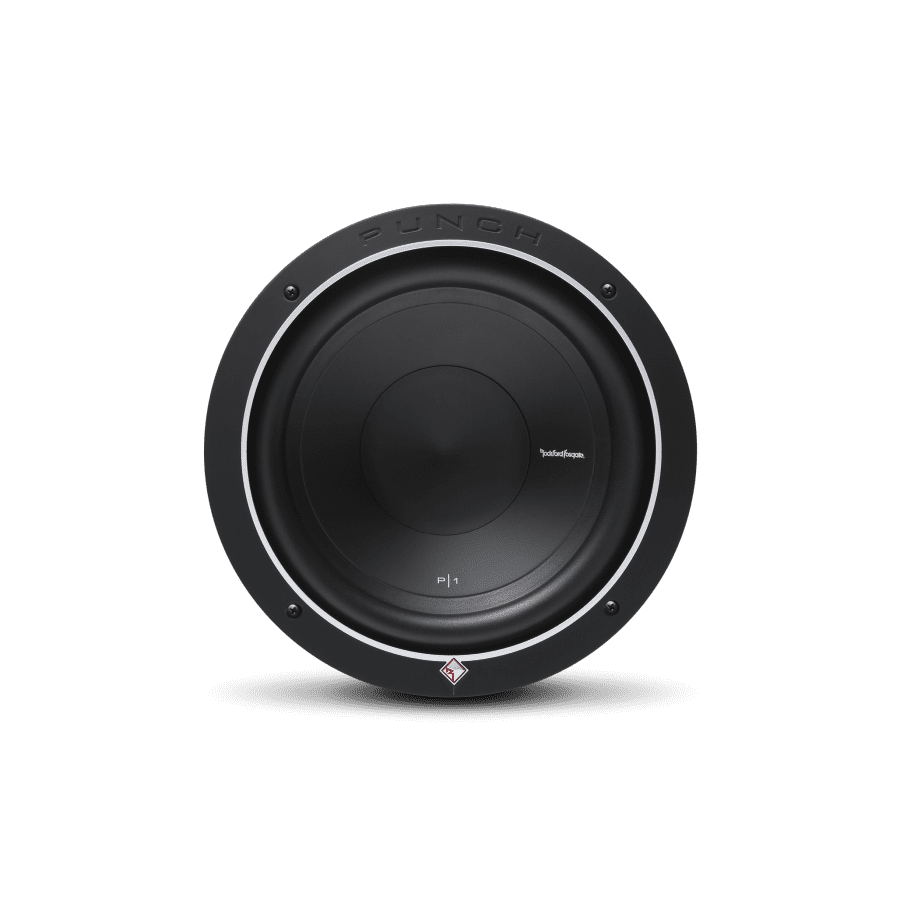

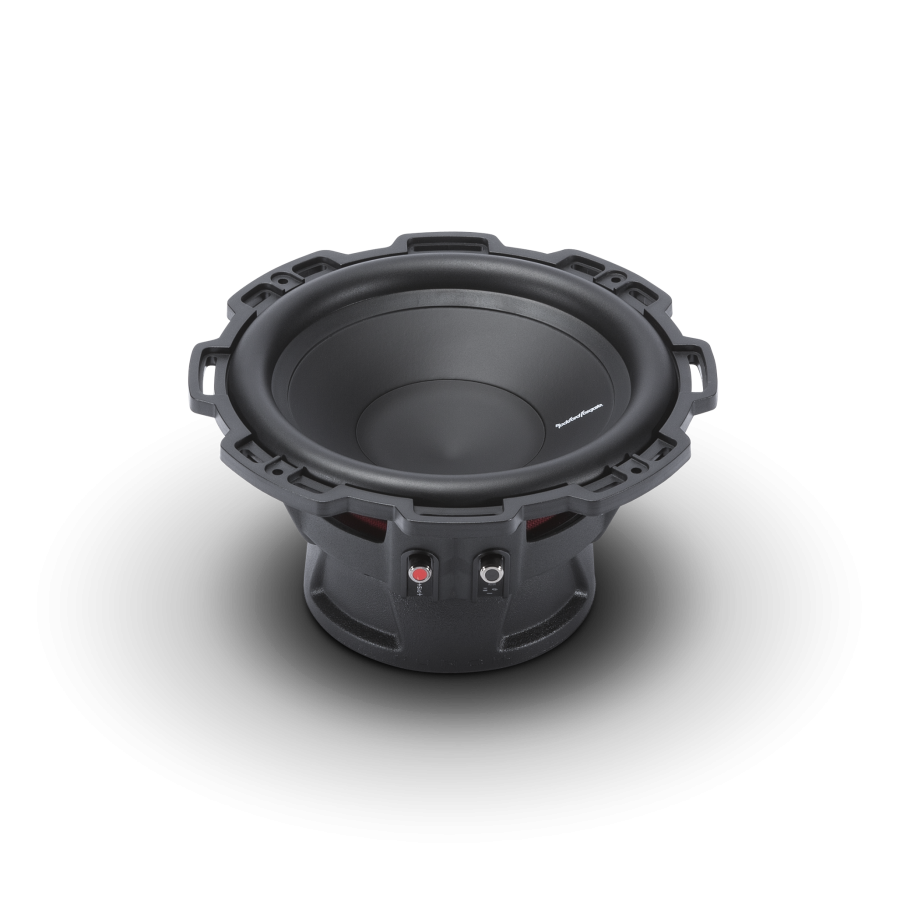

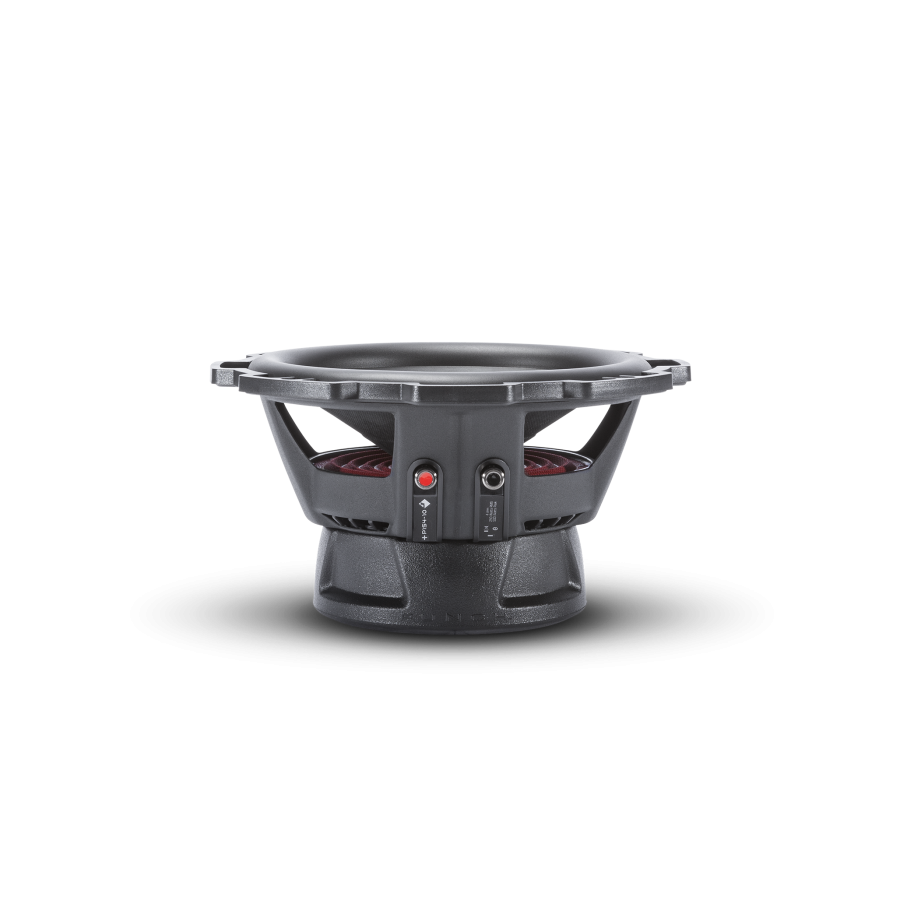

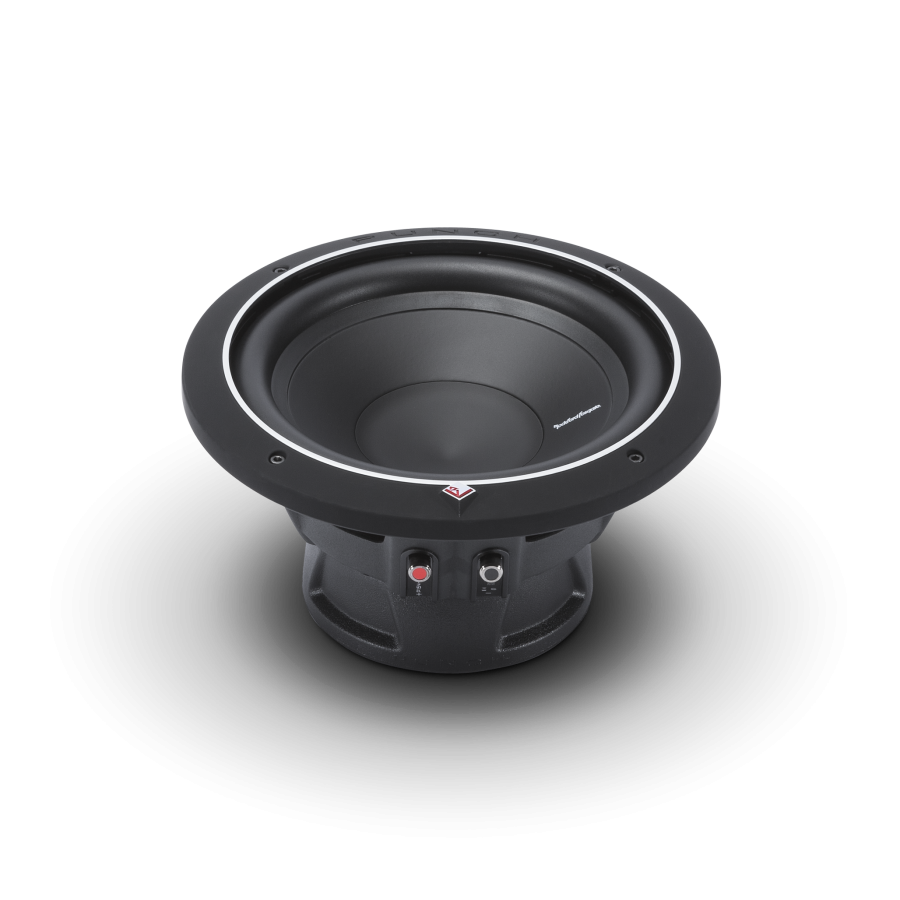

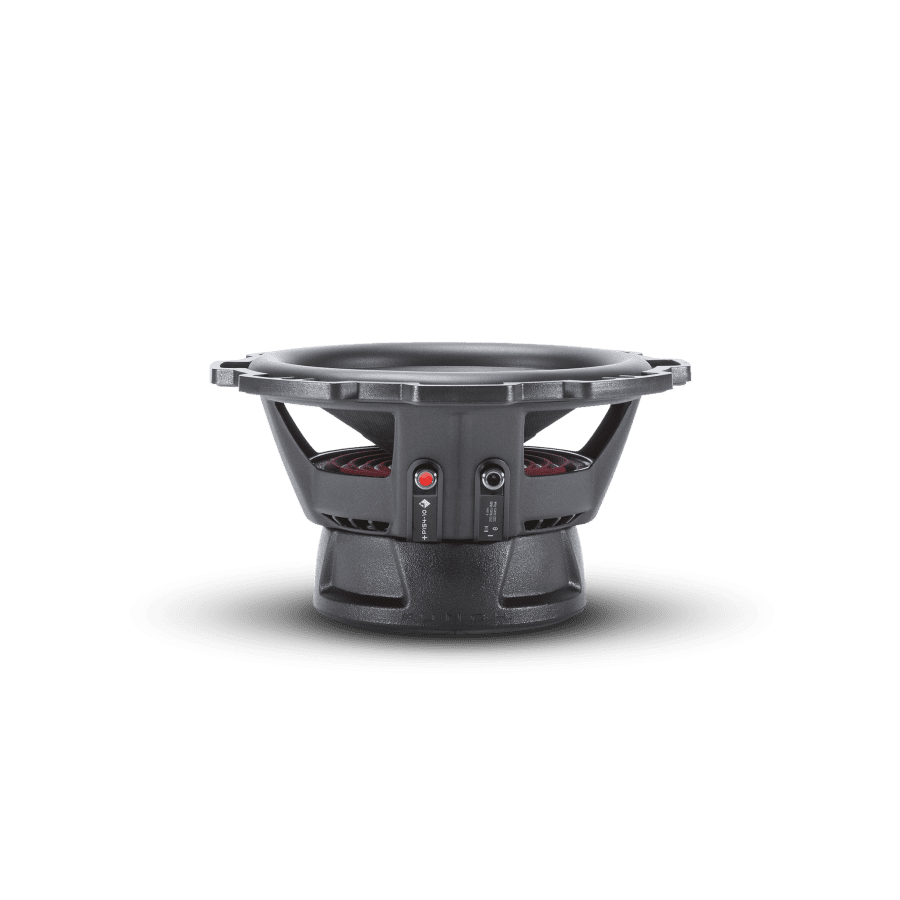

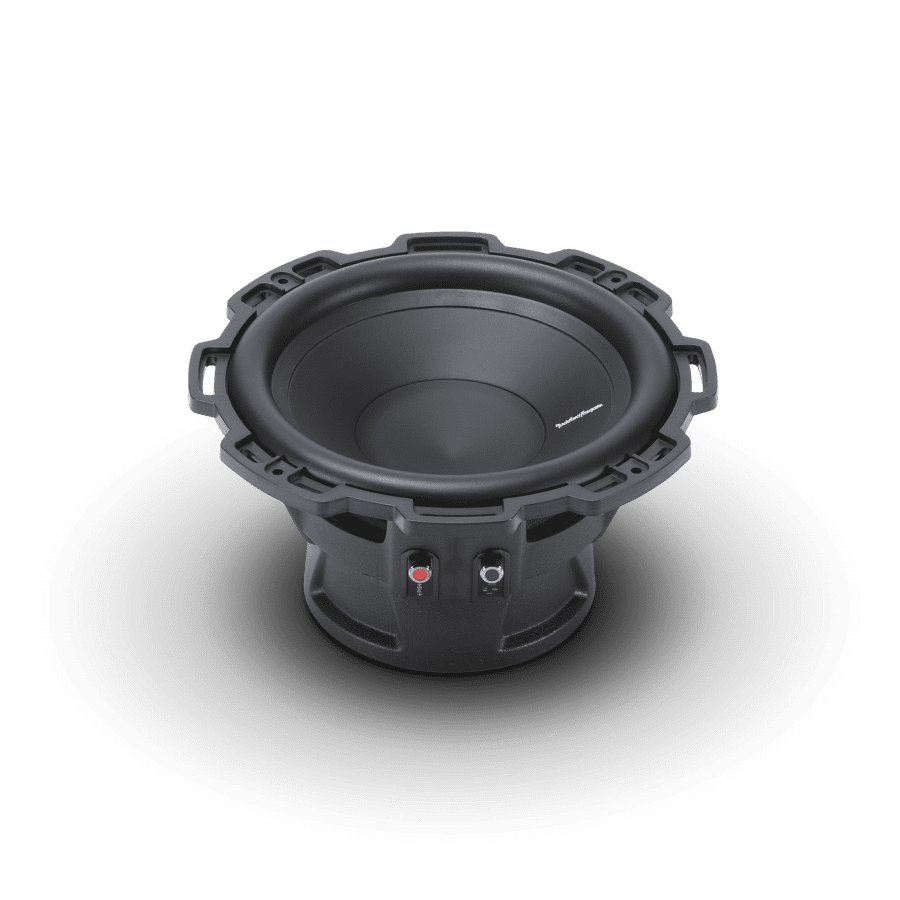

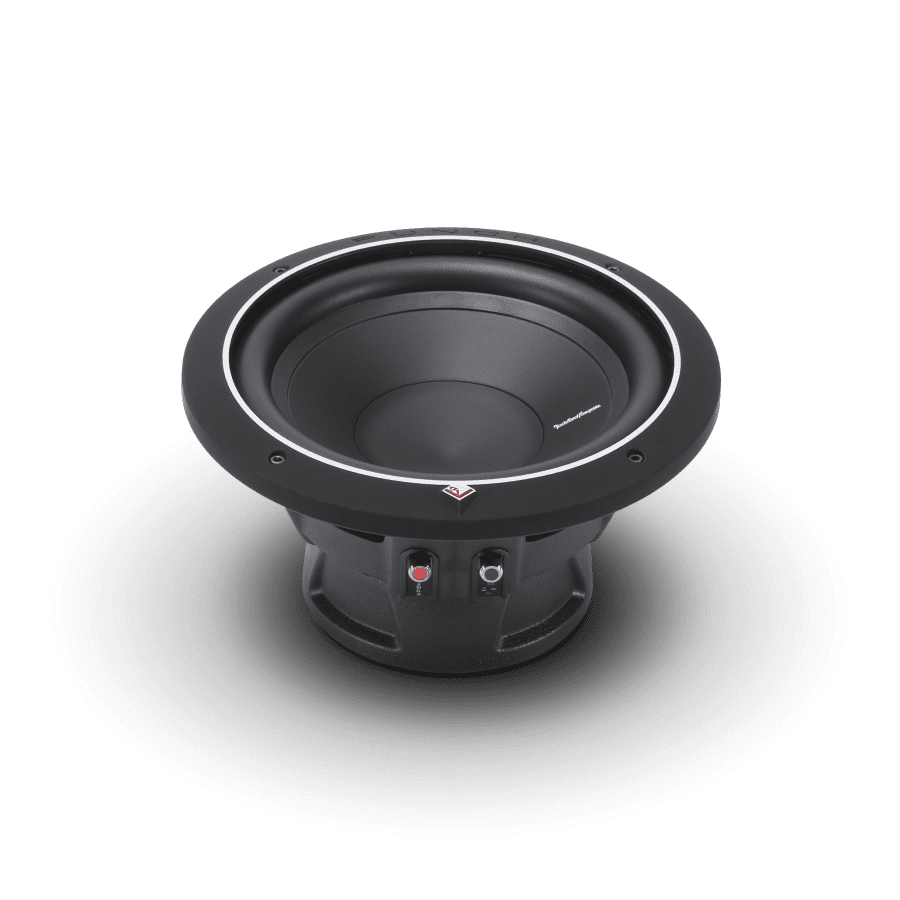

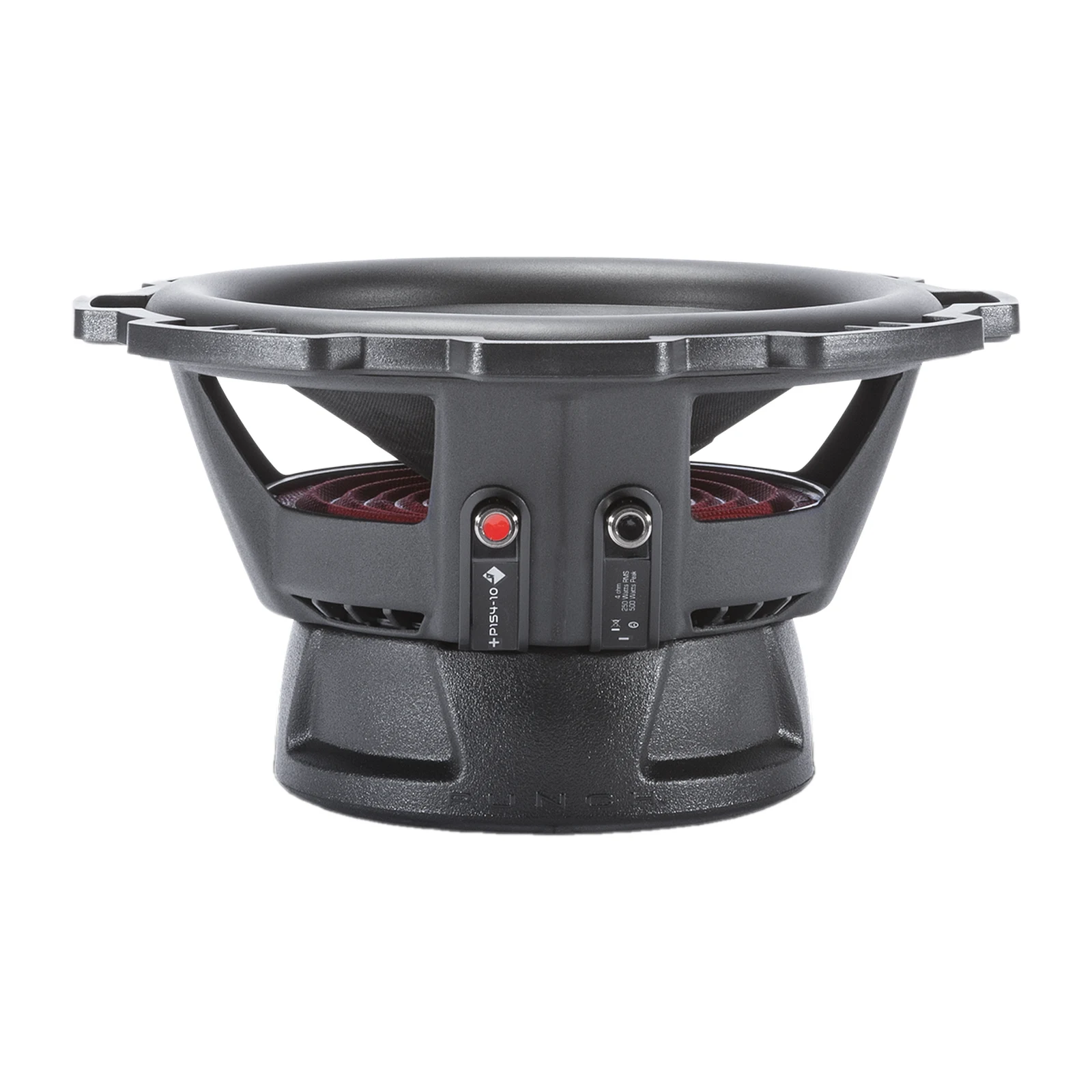

  • Installation Details: Custom 10-AWG nickel-plated push terminals, a protective PVC-textured magnet cover, and an included rubberized ABS trim ring that accommodates an optional grille.

The Rockford Fosgate P1S4-10 brings deep rumble and solid low-frequency impact into the vehicle, giving bass lines and kick drums a physical presence you can feel. Its reinforced paper cone and VAST technology help create the kind of satisfying bass response that made Punch subwoofers a car-audio favorite.

Whether installed in a standard sealed or vented enclosure, this 10-inch subwoofer combines flexible system design with durable construction for dependable, hard-hitting bass.

Subwoofer Specifications
Sub Size 10in
Sub Type Standard
Sub Power RMS 250 Watts
Sub Max Power 500 Watts
Sub Impedance 4 Ohm
Voice Coils Single
Voice Coil Diameter 2.0in (51.6 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 9.0mm
Sound Pressure Level (SPL) @ 1W/1m 85dB
Sound Pressure Level (SPL) @ 2.8V/1m 88dB
Resonant Frequency (Fs) 30Hz
DC Resistance (Re) 3.6Ohm
Voice Coil Inductance (Le) 2.81mH
Total Q (Qts) 0.52
Electrical Q (Qes) 0.61
Mechanical Q (Qms) 3.00
Equivalent Compliance Volume (Vas) 40Liters
Effective Cone Area (Sd) 370cm²
Fitment & Dimensions
Woofer Displacement 0.056 cu. ft. (1.6 Liters)
Mounting Depth 5.33 in. (135.4 mm)
Cutout Diameter 9.14 in. (232 mm)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 10.9 Lbs. (4.94 kg)
Additional Specifications
Magnet Weight (oz) 45 oz. (1.28 kg.)

Additional information

Weight 11 lbs
Sub Size

Sub Impedance

Sub Max Power

500 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Single

Series

Punch
