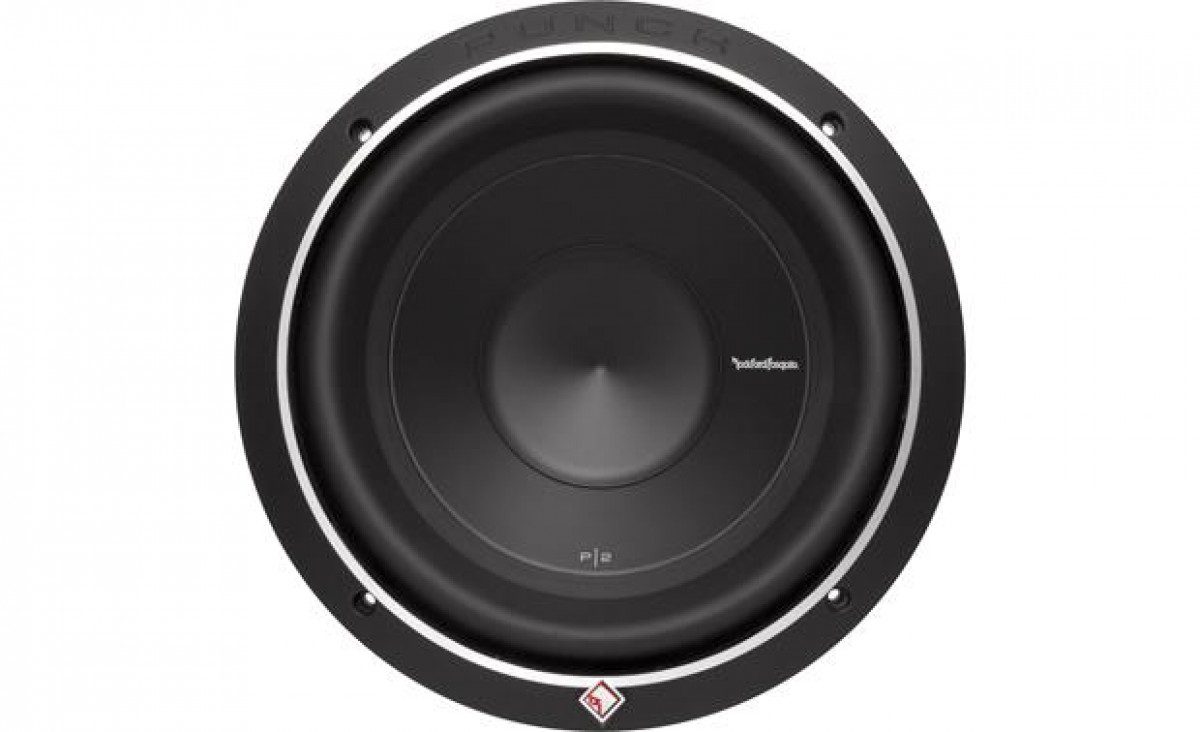

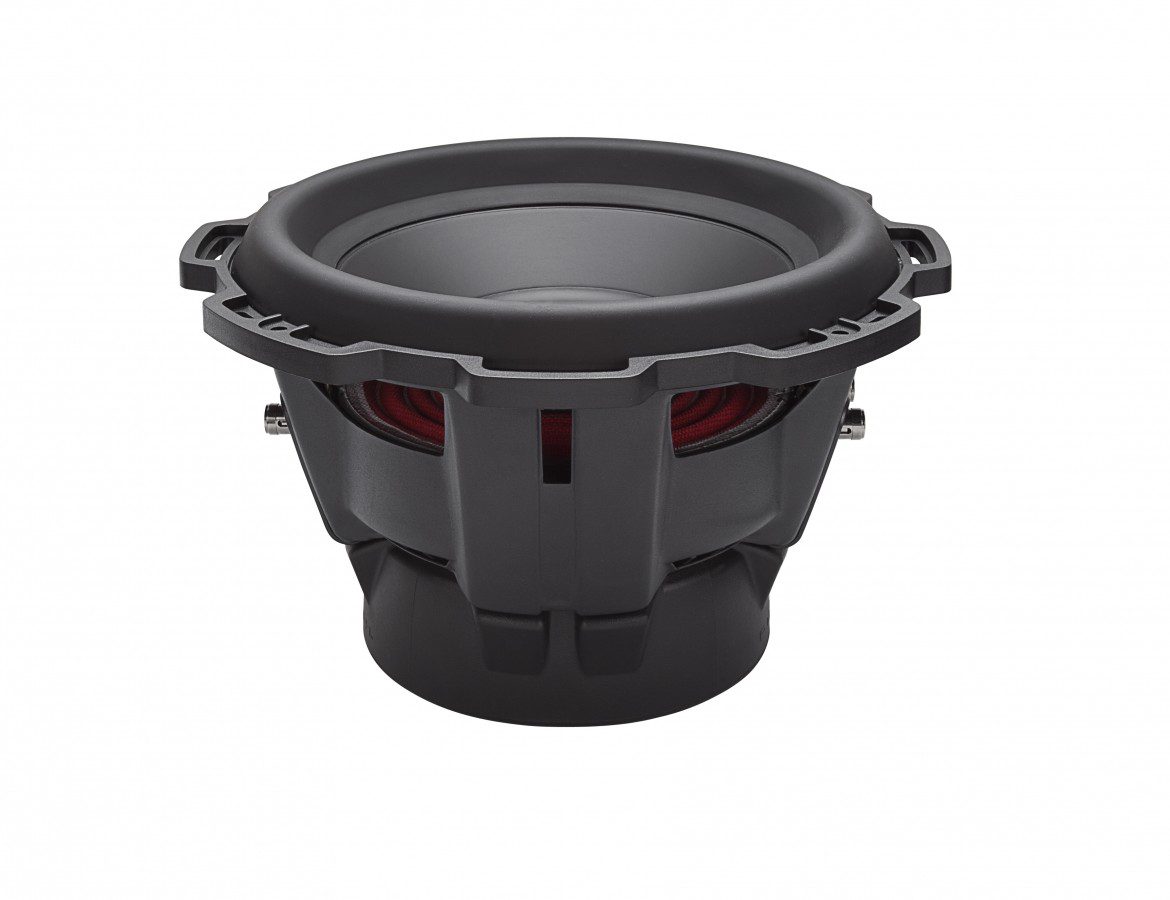

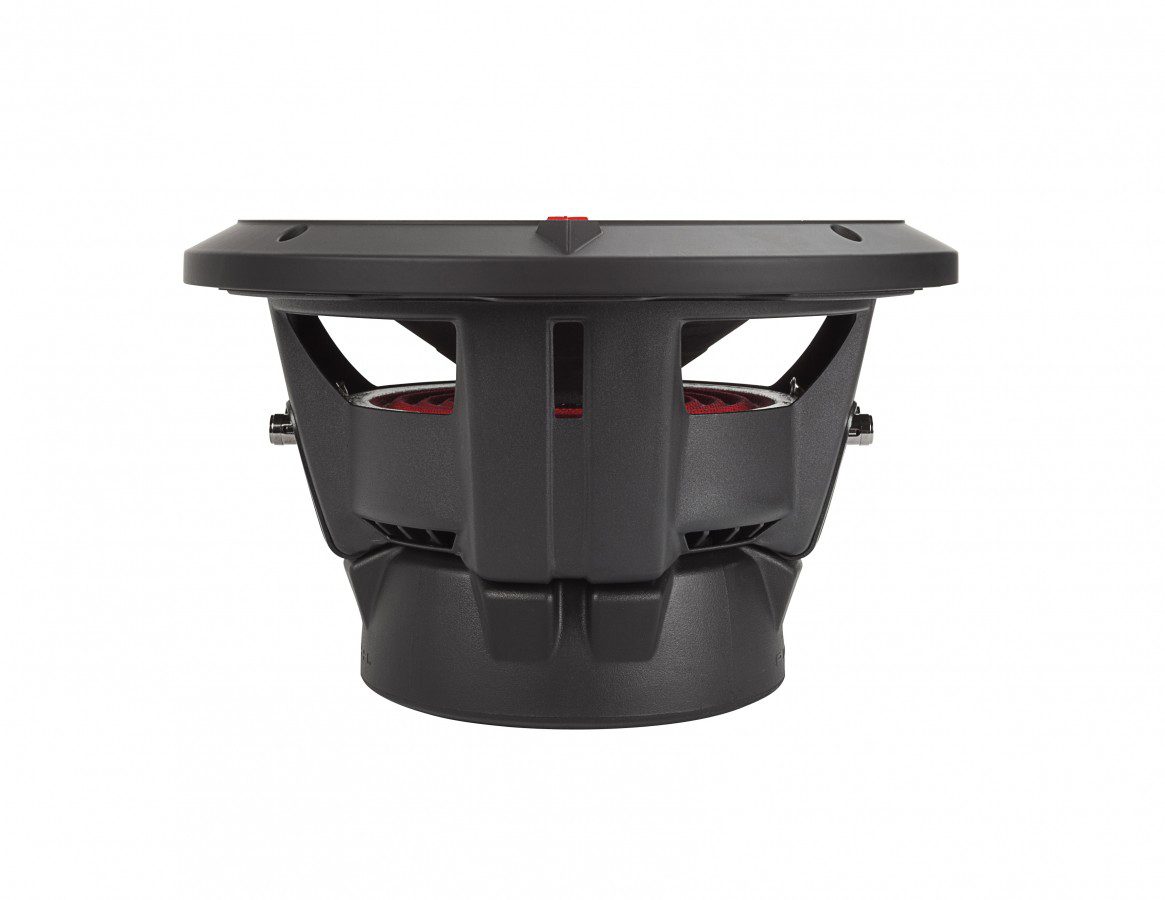

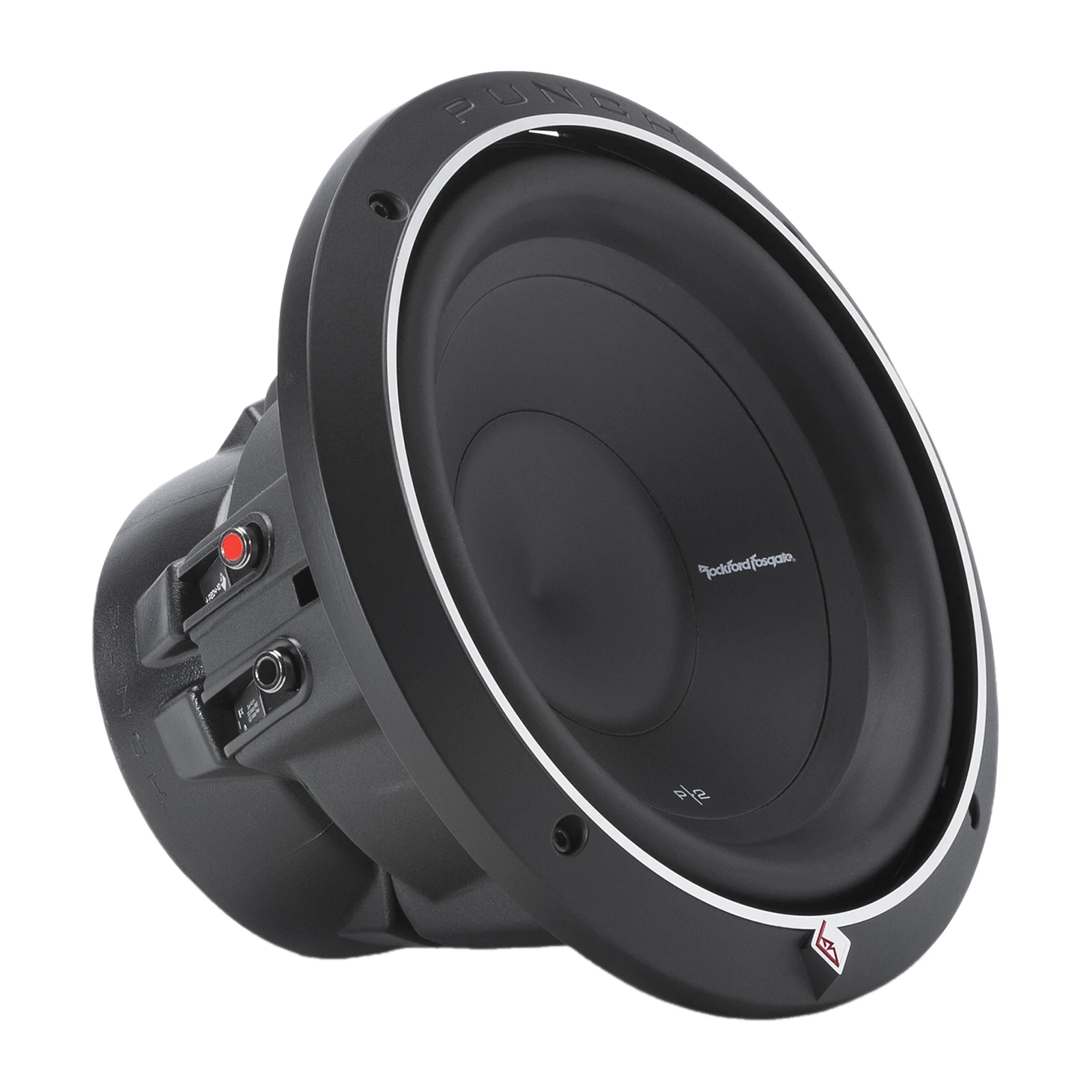

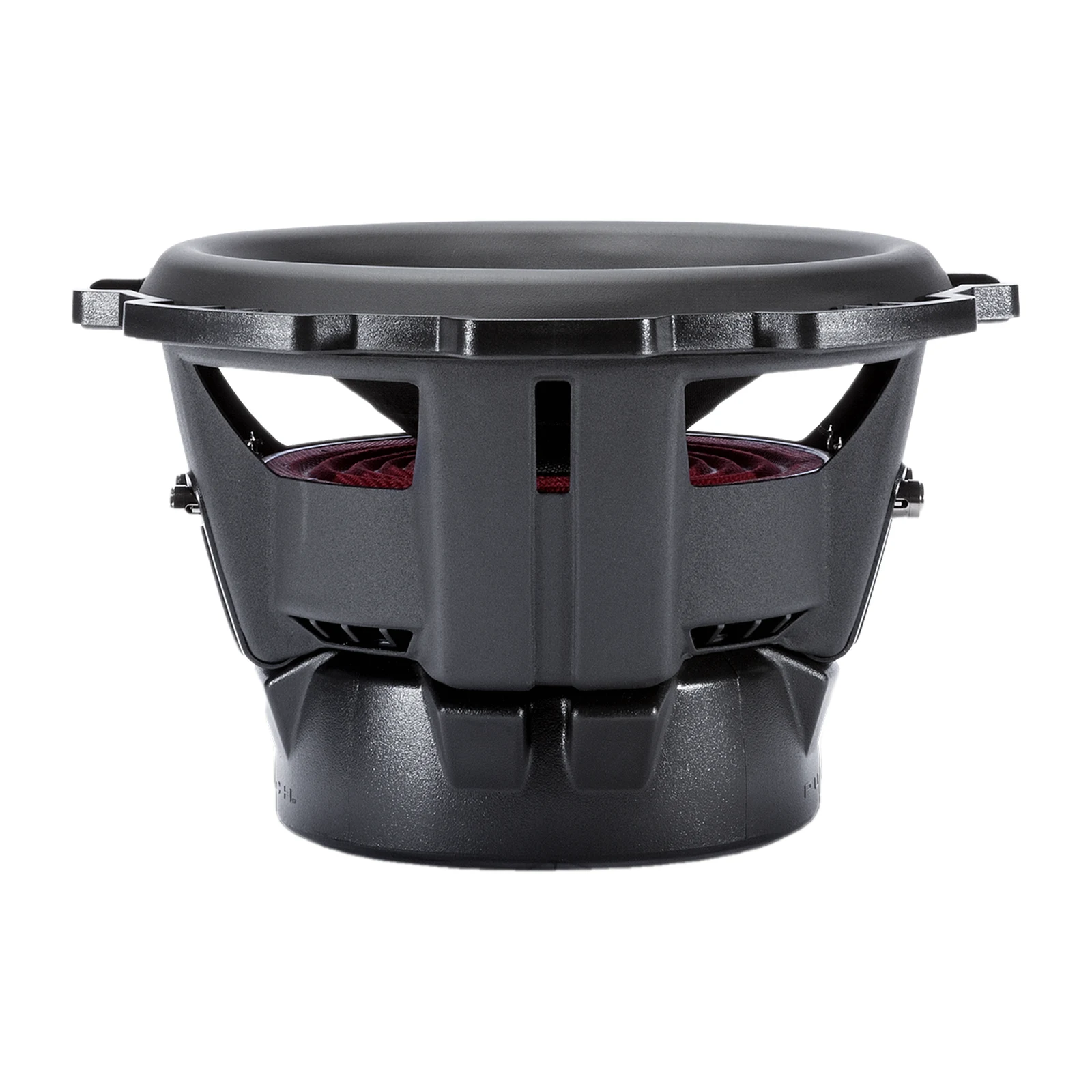

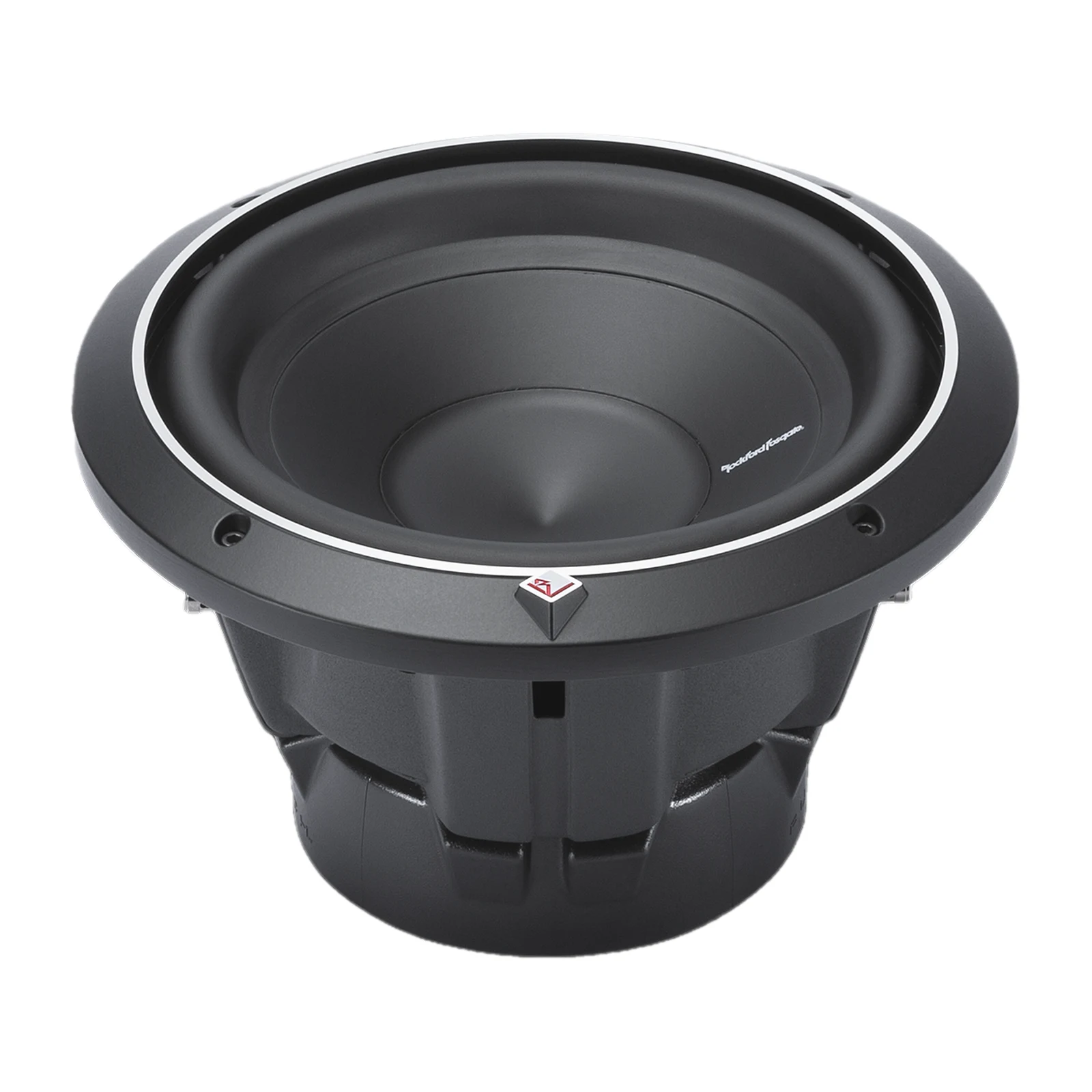

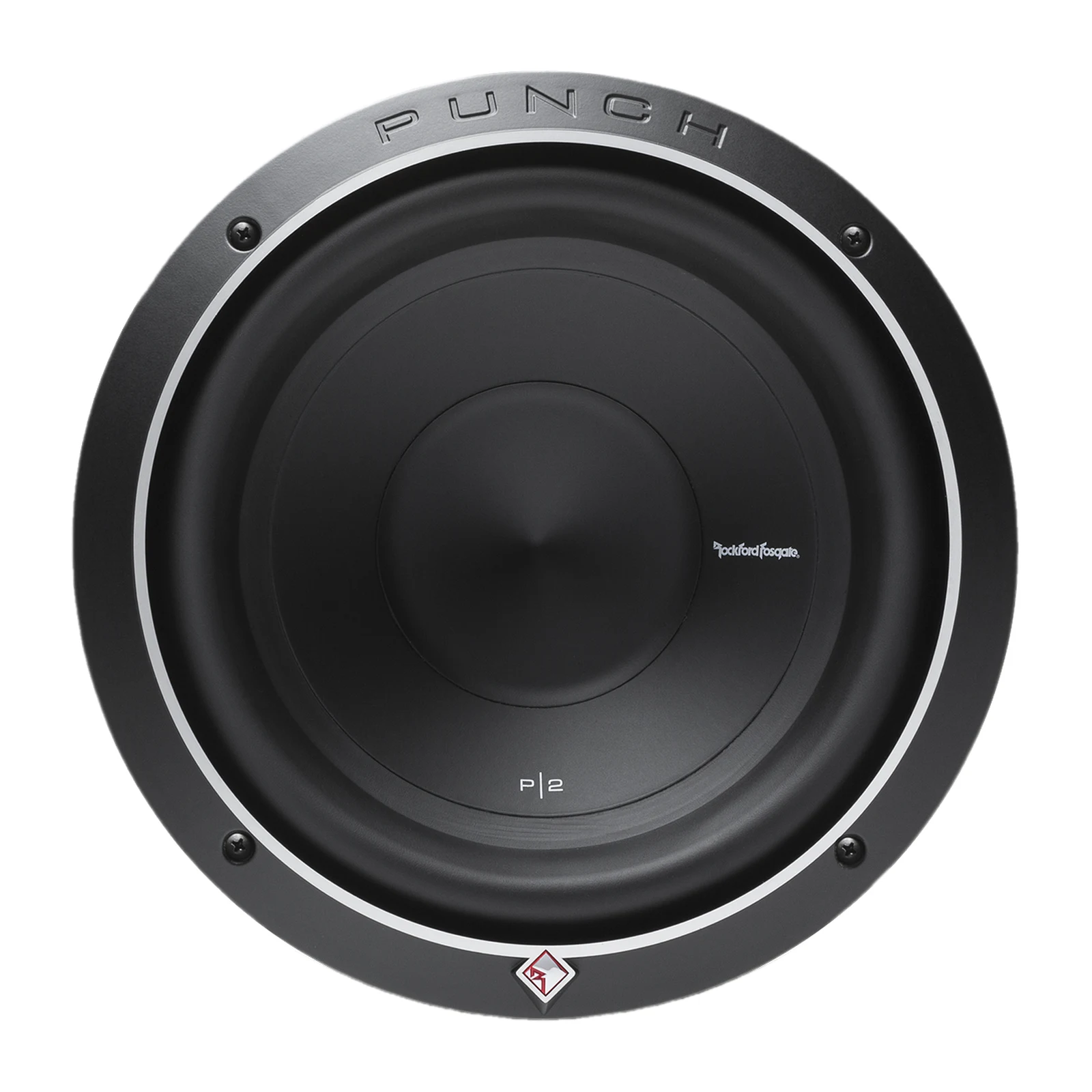

Rockford Fosgate Punch P2D2-10 10in Dual 2 Ohm 300 Watts Subwoofer

Rockford Fosgate P2D2-10 10-inch car subwoofer with dual 2-ohm voice coils, 300 watts RMS power handling, a Kevlar fiber-reinforced paper cone, and VAST technology.

$179.99

2 in stock

Description

The Sub At A Glance:

  • Power handling: Handles 300 watts RMS and 600 watts max.
  • Dual voice coils: Dual 2-ohm voice coils provide flexible system configuration options.
  • Reinforced cone: A Kevlar fiber-reinforced paper cone delivers bass impact you can feel.
  • VAST technology: Increases surface cone area by up to 25%.
  • Durable suspension: A dual linear spider features embedded 16-AWG tinsel leads.

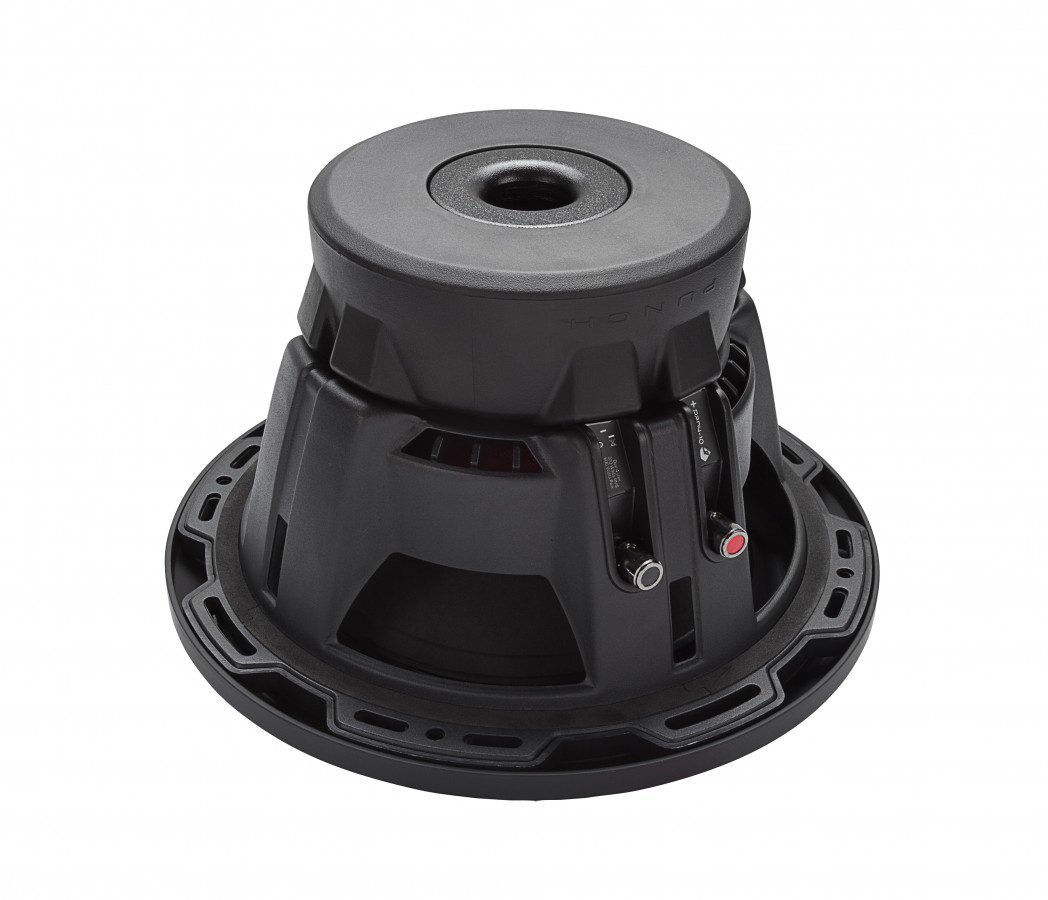

  • Rugged frame: The StampCast basket incorporates integrated spider venting, while the included diamond-cut cast-aluminum trim ring accommodates an optional grille insert.
  • High-temperature construction: The voice coil uses a spun-laced Nomex reinforcement collar, supported by an extended pole piece and bumped vented backplate.
  • Enclosure flexibility: Designed to perform best in standard sealed and vented enclosures.

The Rockford Fosgate P2D2-10 carries on the Punch tradition with low-frequency impact that adds depth, weight, and rumble inside your car or truck. Its 10-inch reinforced cone moves bass with a physical presence you can feel, giving kick drums a firm hit and low notes a more substantial foundation.

Subwoofer Specifications
Sub Size 10in
Sub Type Standard
Sub Power RMS 300 Watts
Sub Max Power 600 Watts
Sub Impedance Dual 2 Ohm
Voice Coils Dual
Voice Coil Diameter 2.25in (57.15 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 11mm
Sound Pressure Level (SPL) @ 1W/1m 84dB
Resonant Frequency (Fs) 29Hz
DC Resistance (Re) 3.20Ohm
Voice Coil Inductance (Le) 3.32mH
Total Q (Qts) 0.50
Electrical Q (Qes) 0.54
Mechanical Q (Qms) 7.00
Equivalent Compliance Volume (Vas) 35.4Liters
Effective Cone Area (Sd) 360cm²
Fitment & Dimensions
Woofer Displacement 0.060 cu. ft. (1.7 Liters)
Mounting Depth 5.92 in. (150.4 mm)
Cutout Diameter 9.13 in. (232 mm)
Magnet Weight (oz) 66.4 oz. (1.88 kg.)
Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)

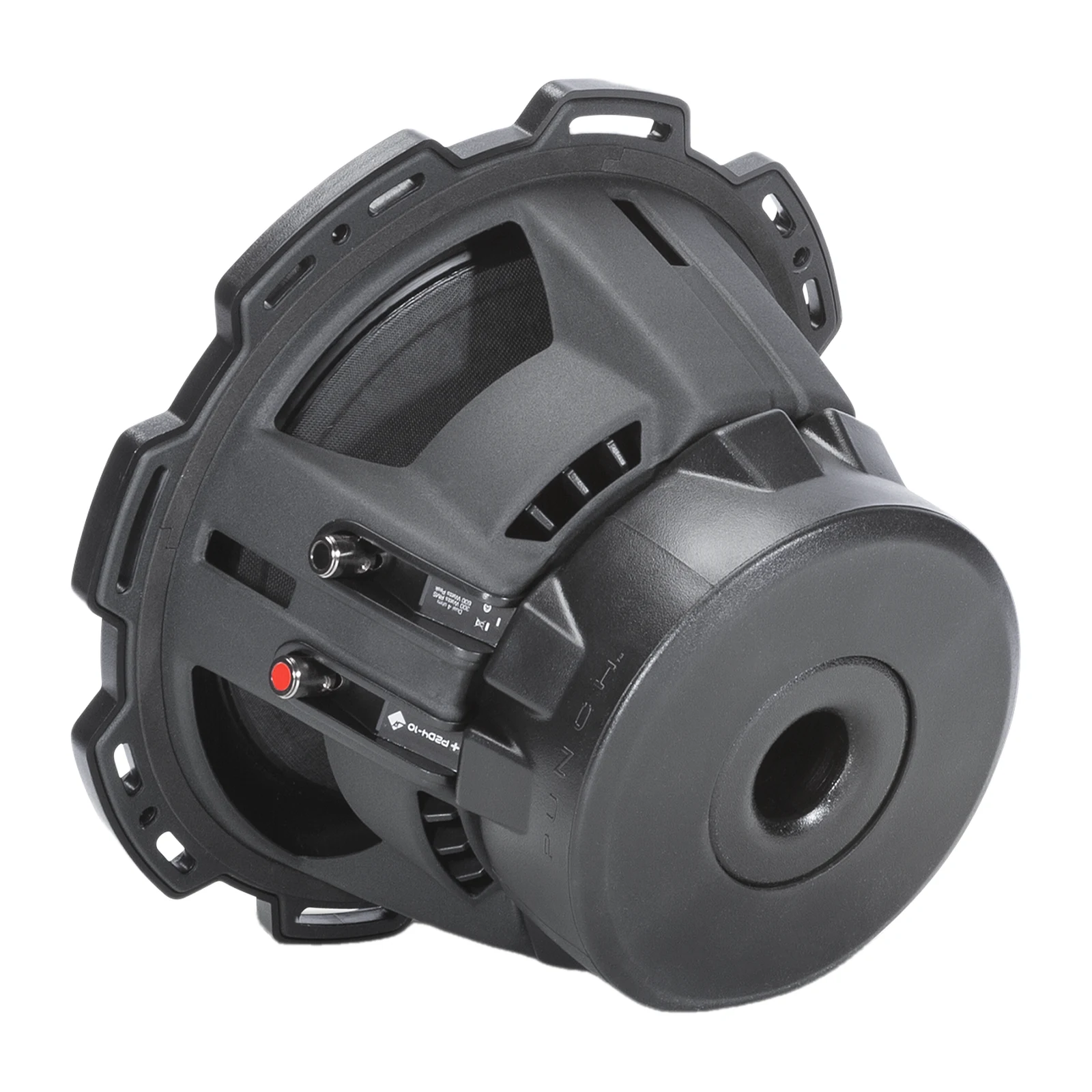

Speaker Connector Dual 10 AWG compression
Shipping Weight 13.6 Lbs. (6.16 kg)

Additional information

Weight 14 lbs
Sub Size

Sub Impedance

Sub Max Power

600 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Dual

Series

Punch
