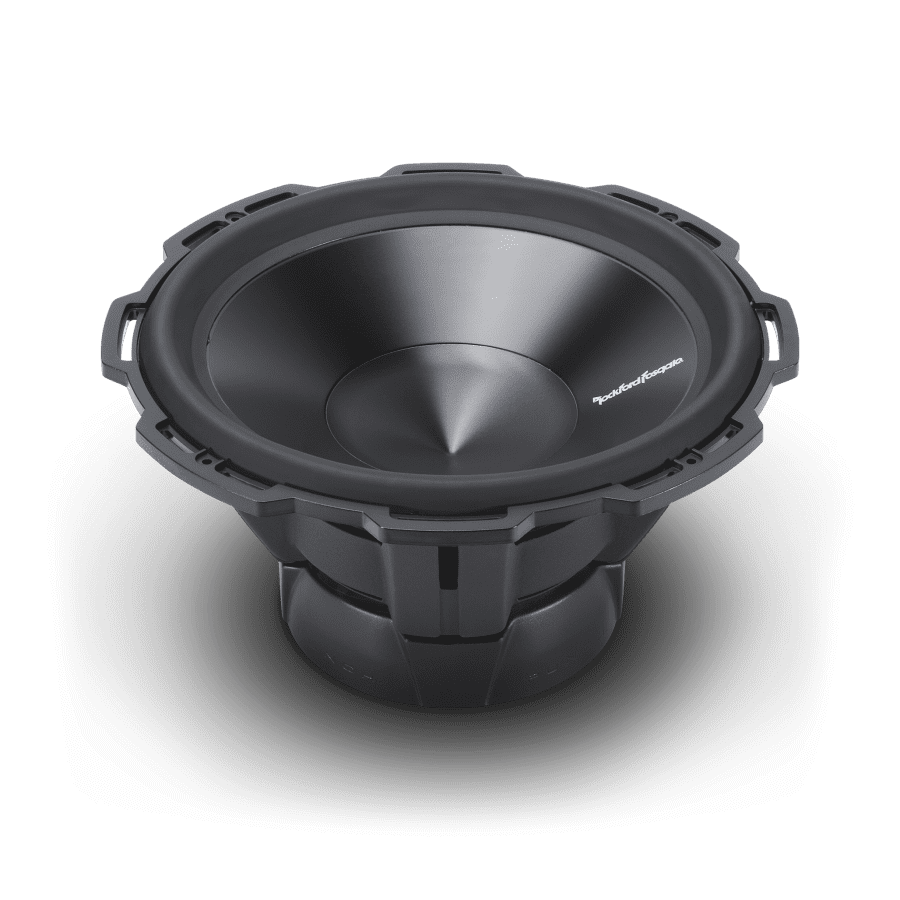

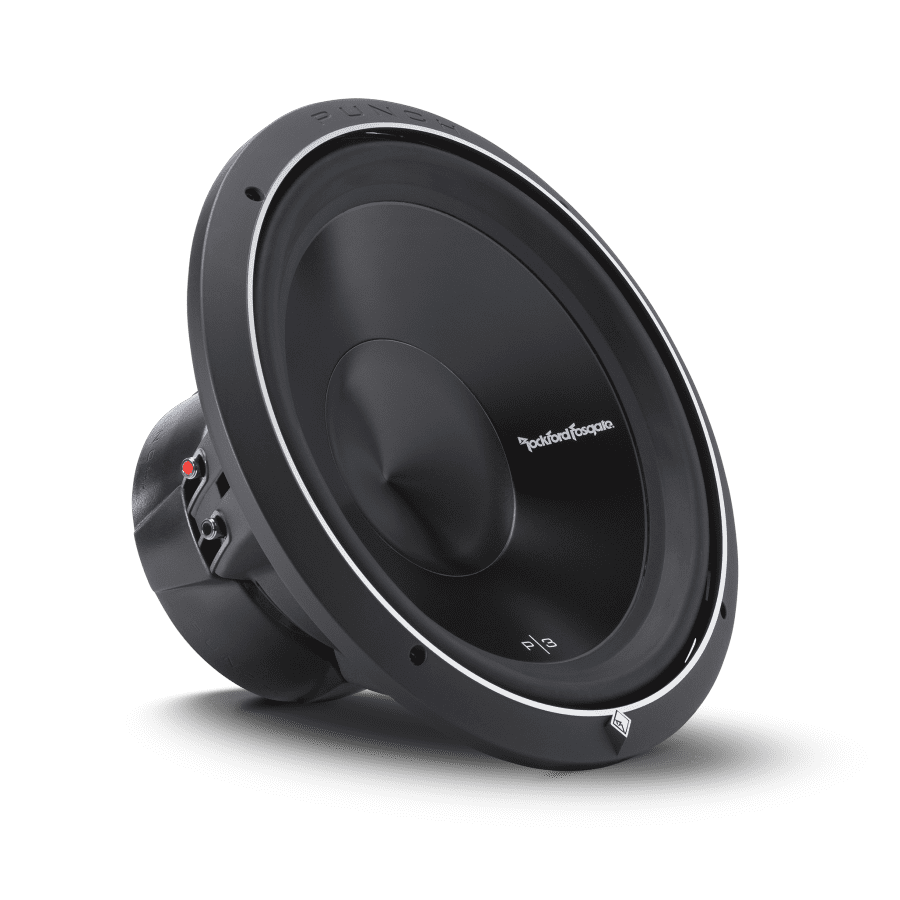

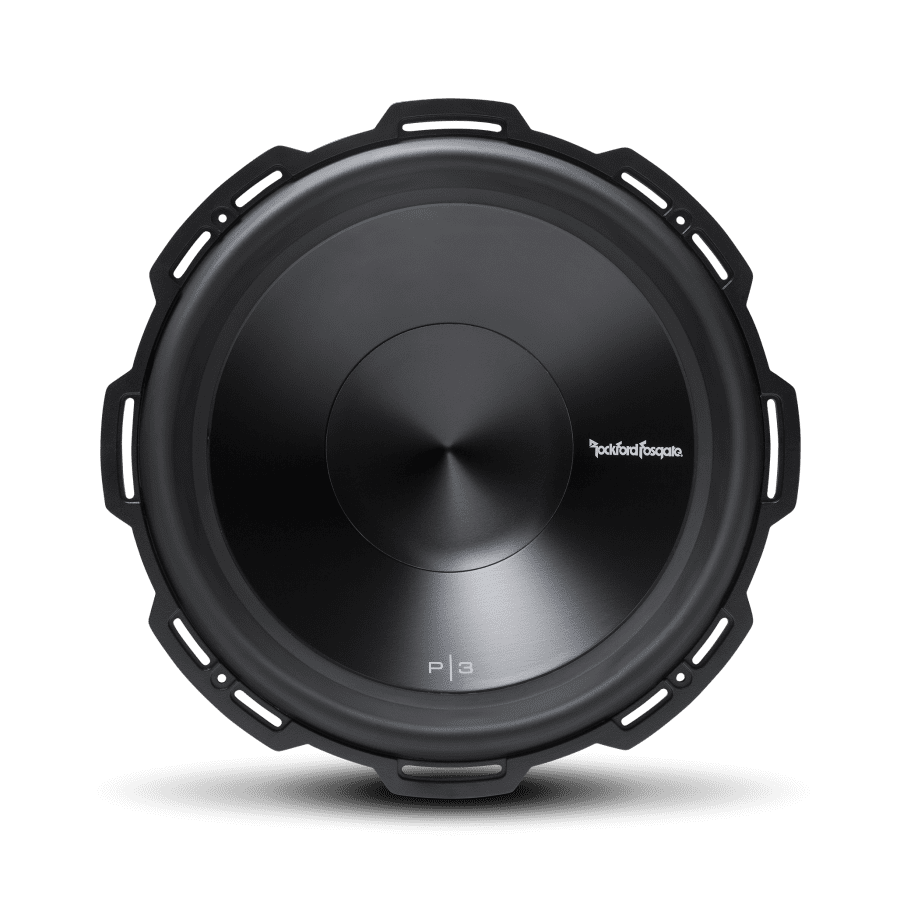

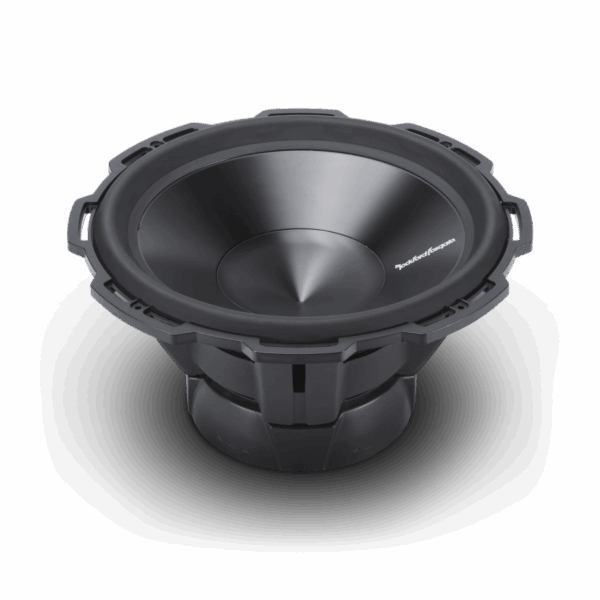

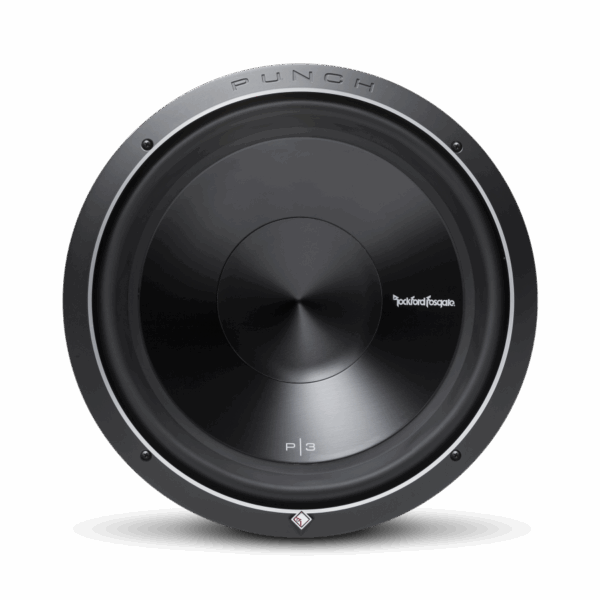

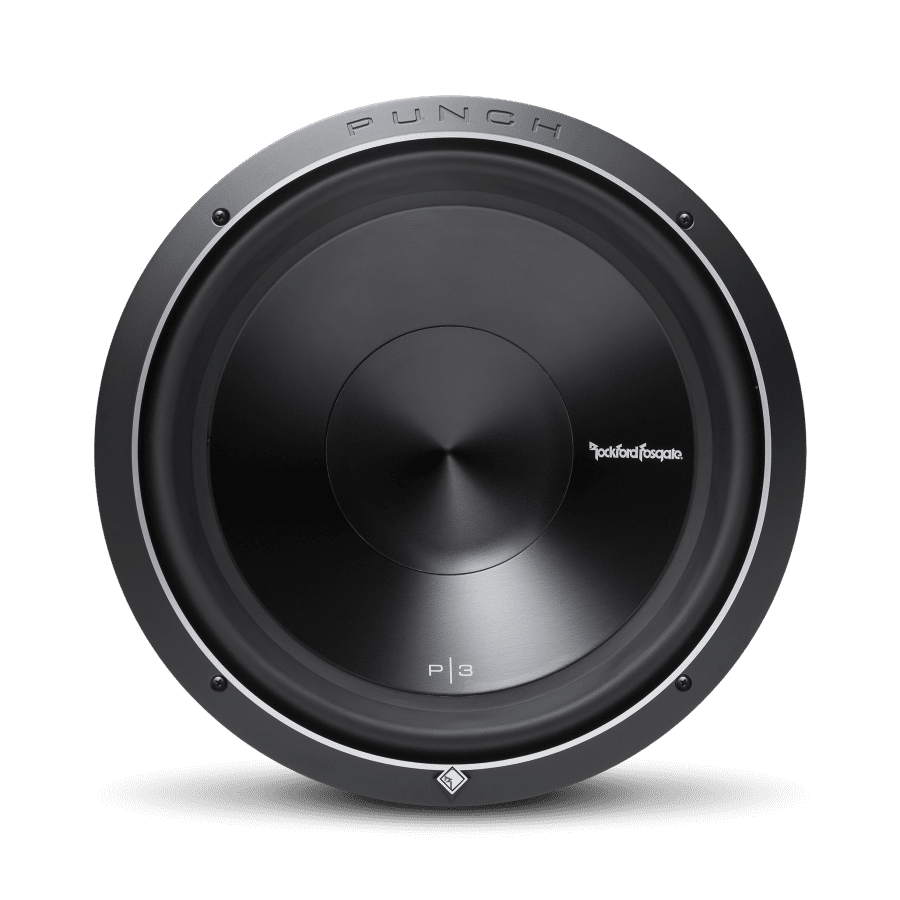

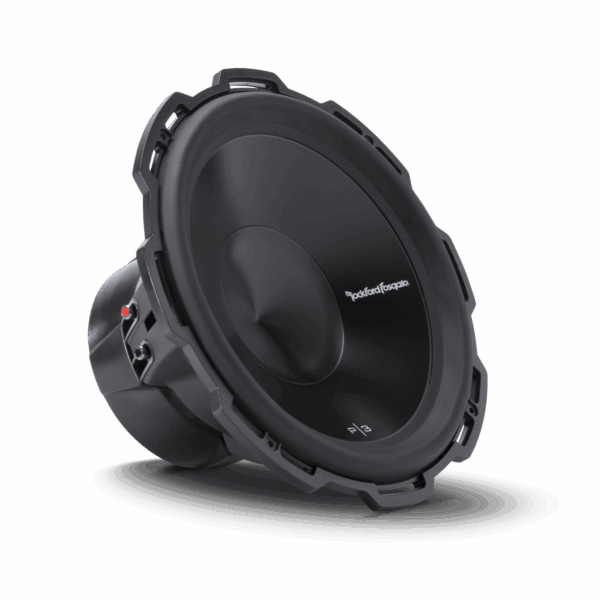

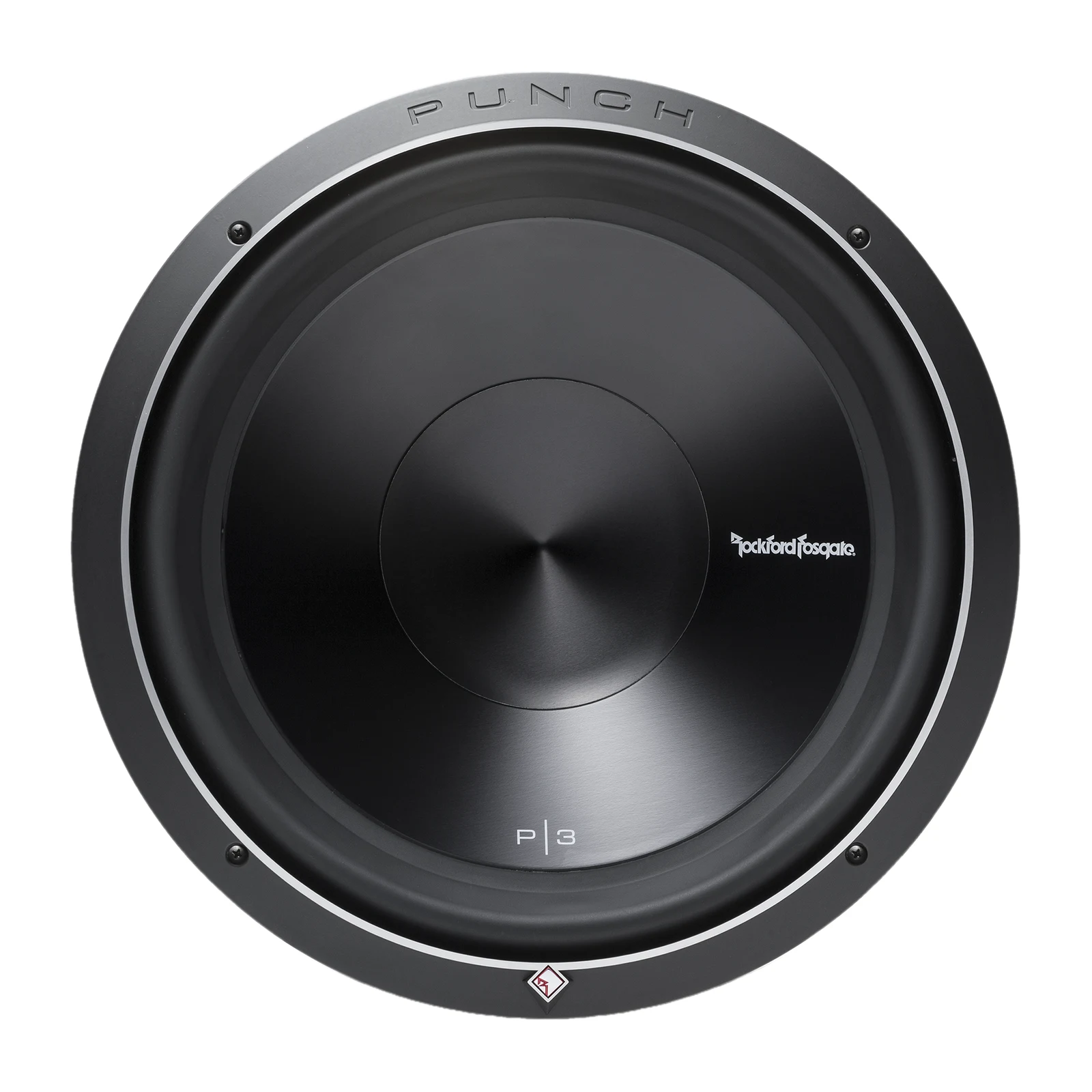

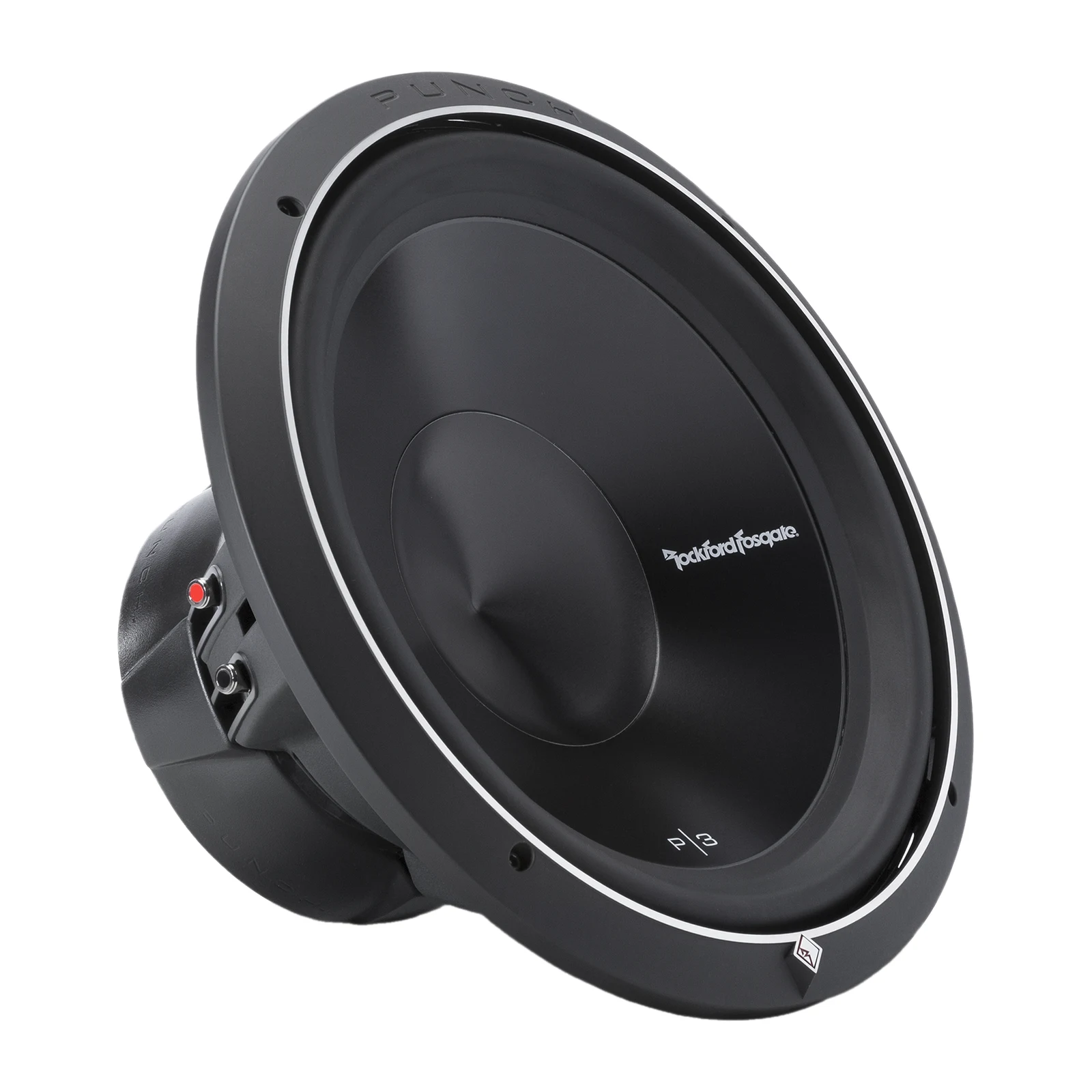

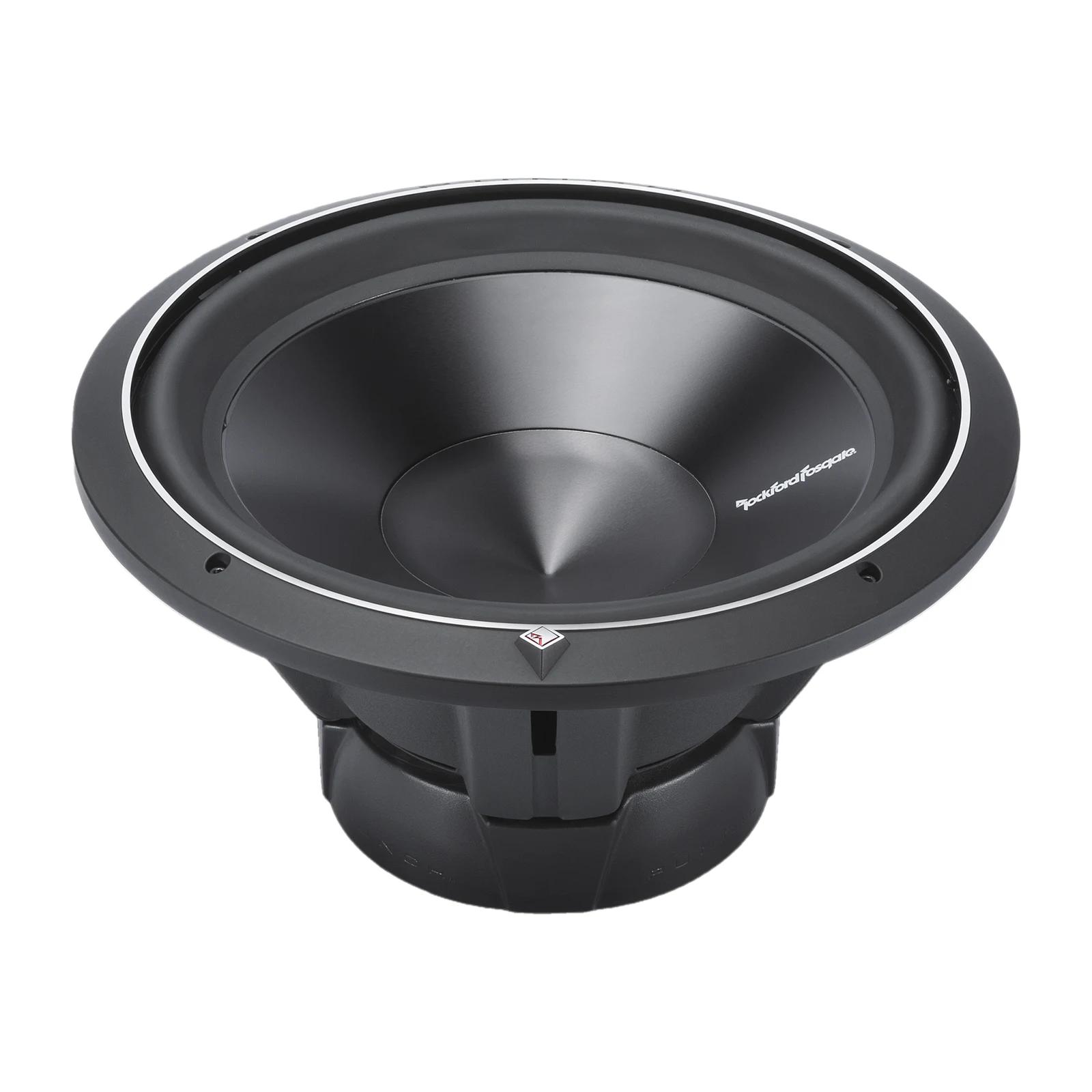

Rockford Fosgate Punch P3D2-15 15in Dual 2 Ohm 600 Watts RMS Subwoofer

The Rockford Fosgate P3D2-15 is a 15-inch Punch Series subwoofer with 600 Watts RMS power handling, Dual 2 Ohm voice coils, and a durable anodized aluminum cone for forceful bass impact.

$339.99

4 in stock

Description

The Sub At A Glance:

  • Power Handling: Handles 600 Watts RMS and 1200 Watts Max.
  • Voice Coil Configuration: Dual 2 Ohm voice coils provide versatile wiring options.
  • Rigid Cone Construction: An anodized aluminum cone and dustcap deliver durable performance.
  • VAST Technology: Increases available cone surface area by up to 25 percent.
  • Durable Suspension: A dual linear spider uses embedded 16 AWG tinsel leads, while integrated spider venting helps keep the motor cooler than previous versions.

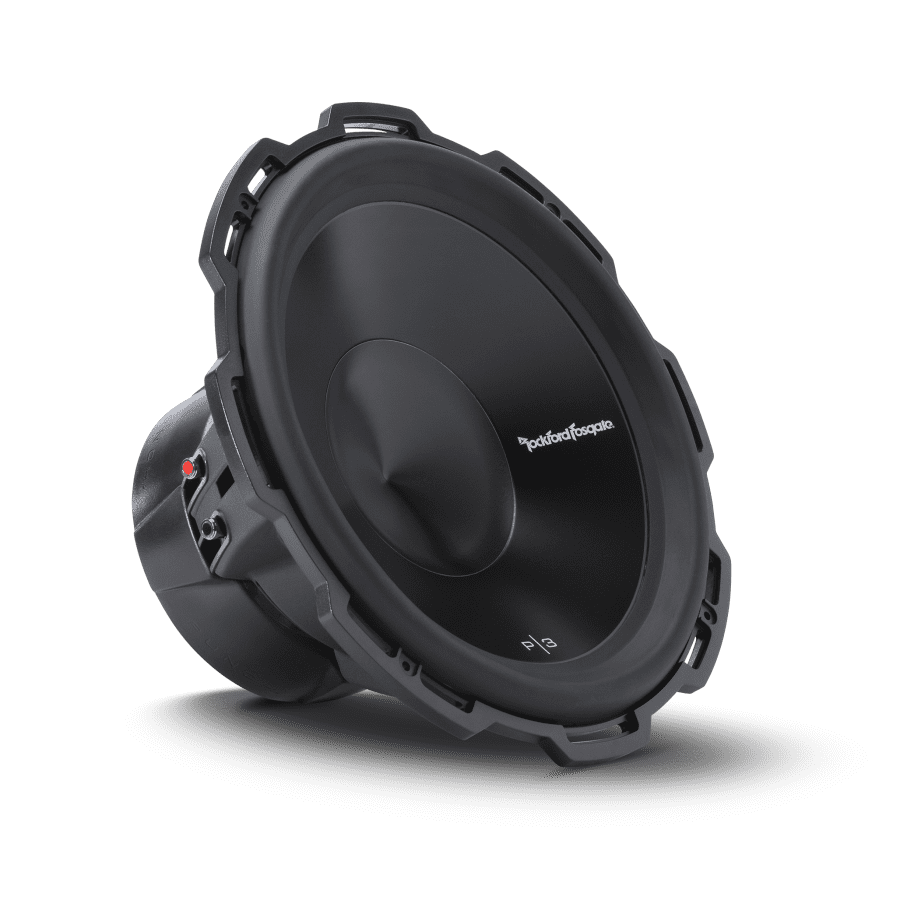

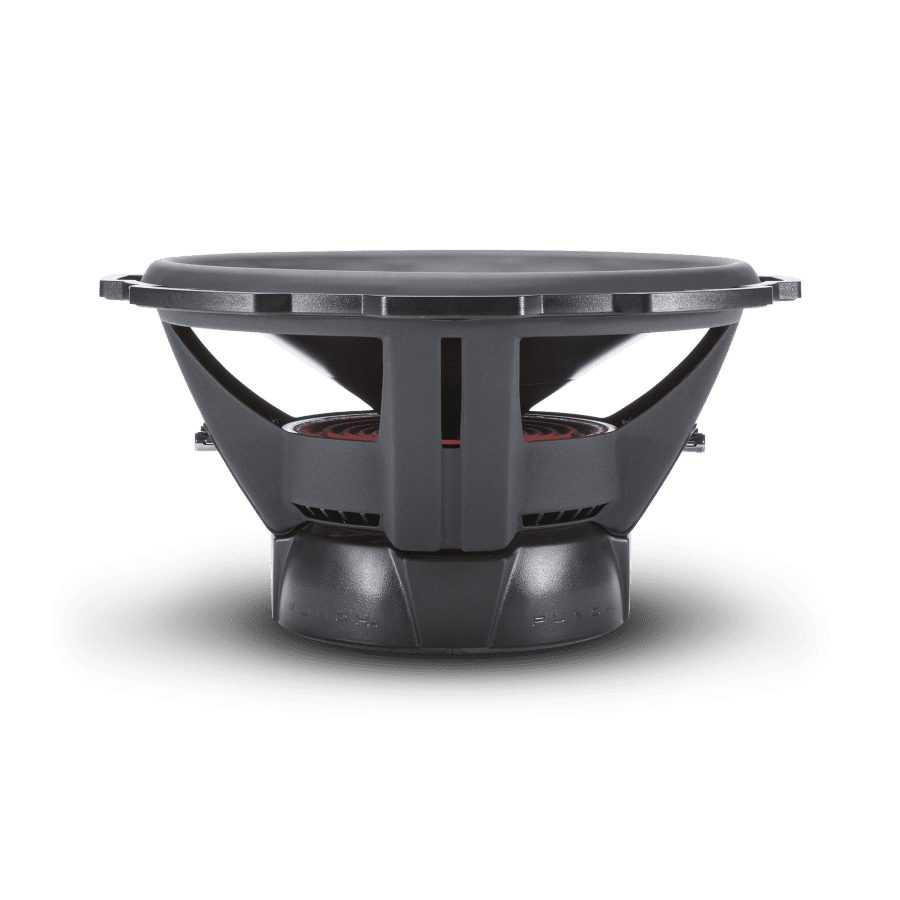

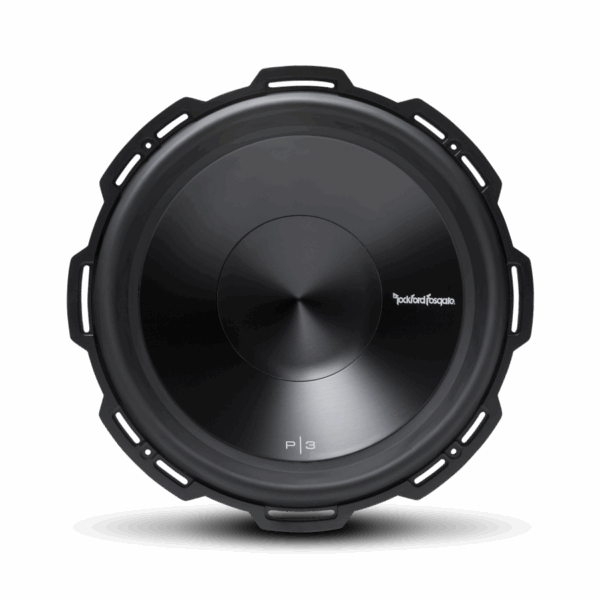

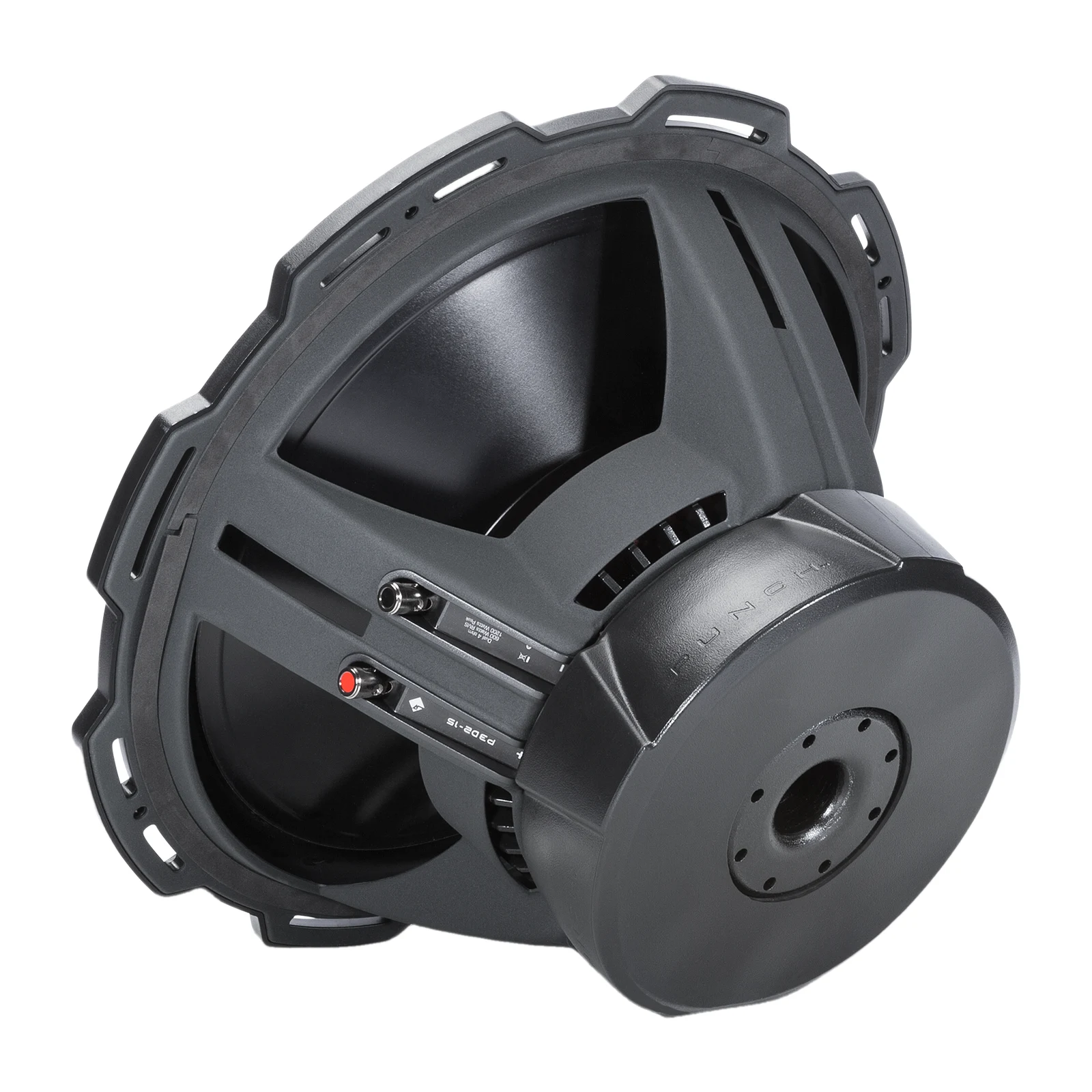

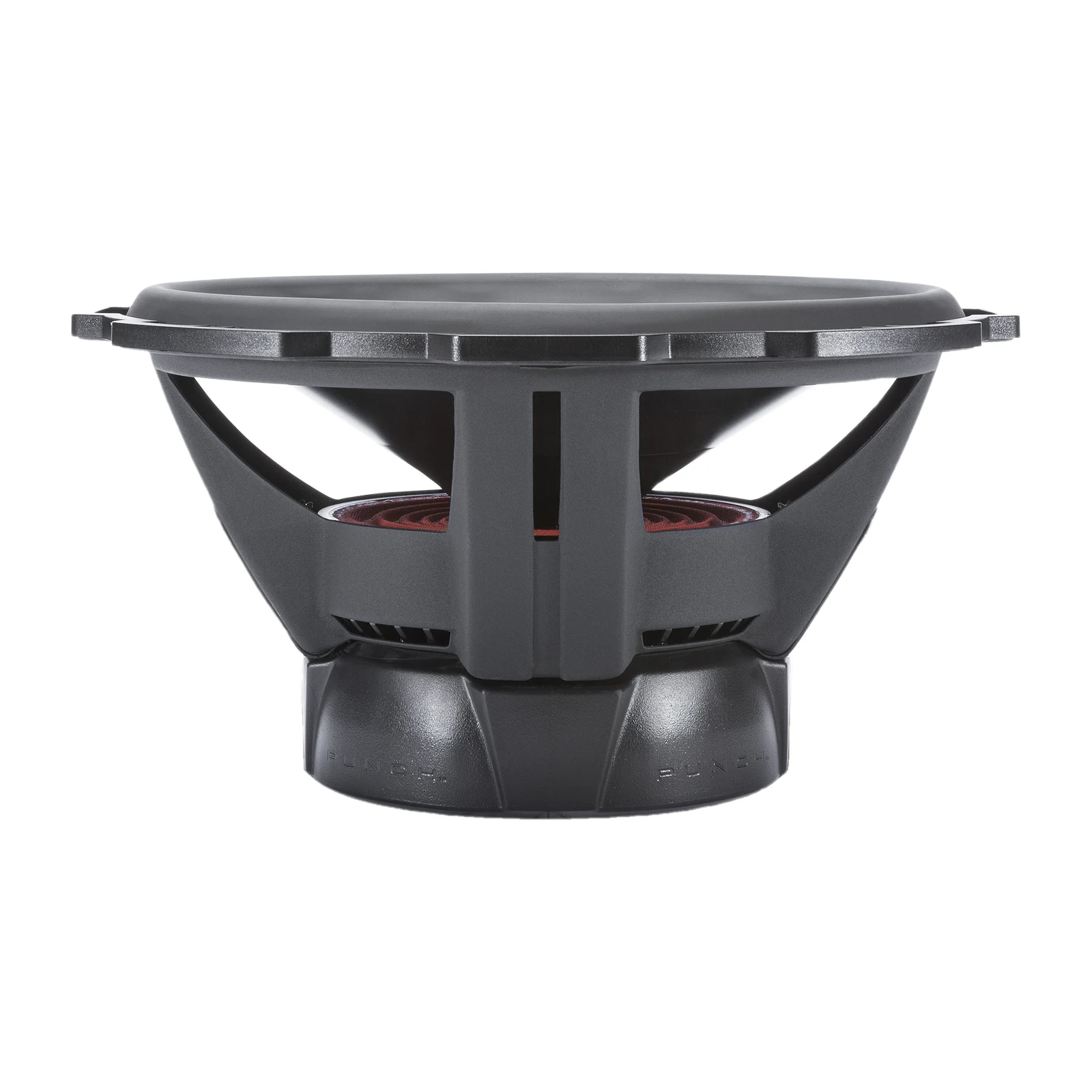

  • Strong, Lightweight Frame: The hybrid StampCast basket provides strength while minimizing weight and resonance, and its FlexFit design supports extreme installations.

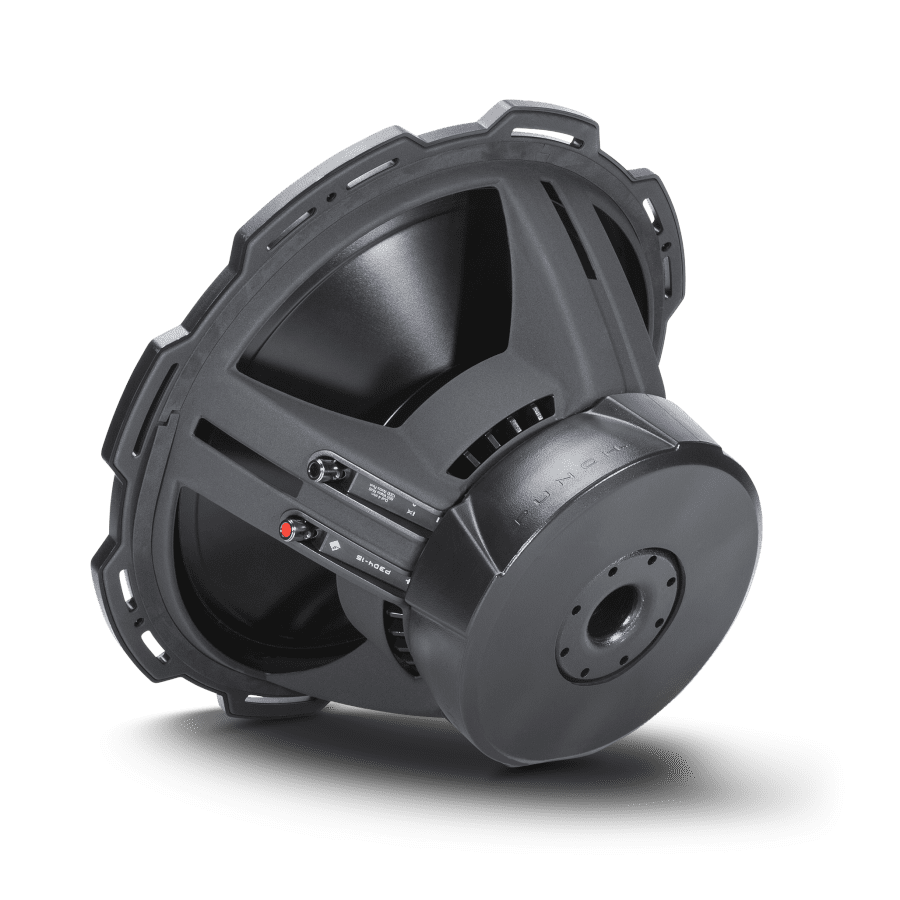

  • Installation-Ready Connections: Custom 10 AWG nickel-plated push terminals accept secure speaker-wire connections.

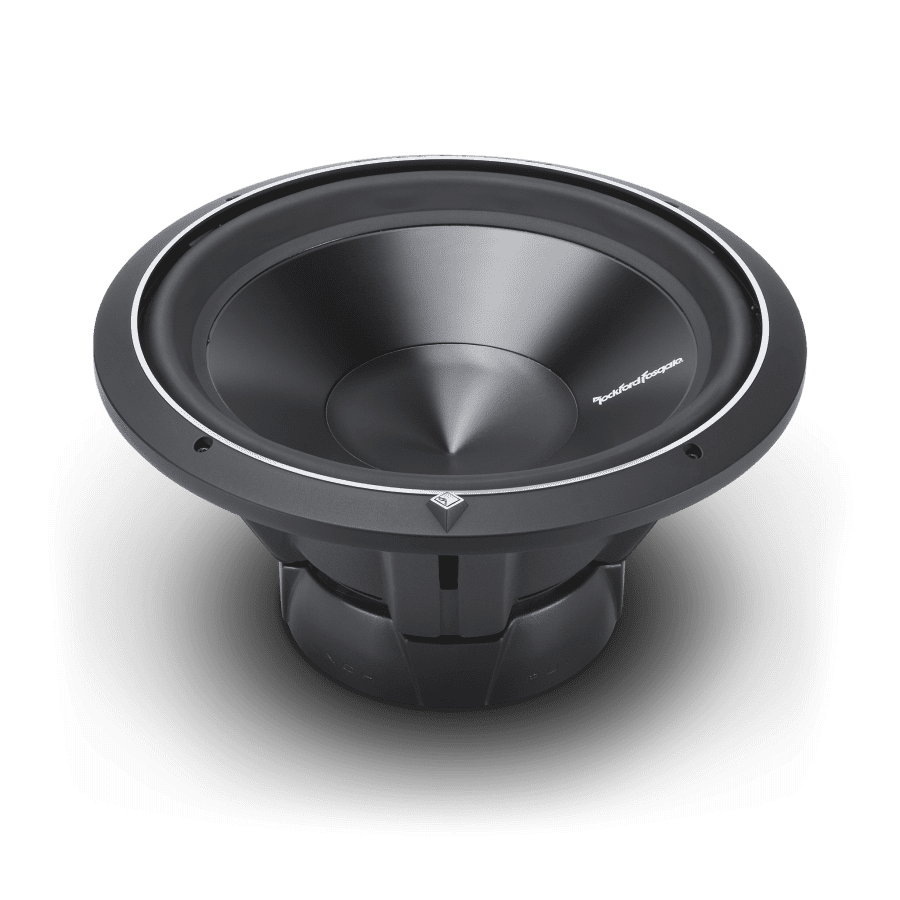

  • Protective Finishing: A textured PVC magnet cover and diamond-cut cast aluminum trim ring add protection and accommodate an optional grille.

The P3D2-15 brings the kind of low-end presence that fills the vehicle with deep rumble and hard-hitting impact. Its large 15-inch cone moves serious air, giving bass notes a weight you can feel through the seat while the vented, reinforced construction is built to stay composed when the music digs low.

Subwoofer Specifications
Sub Size 15in
Sub Type Standard
Sub Power RMS 600 Watts RMS
Sub Max Power 1200 Watts Max
Sub Impedance Dual 2 Ohm
Voice Coils Dual
Voice Coil Diameter 2.5in (65.5 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 15.2mm
Sound Pressure Level (SPL) @ 1W/1m 86dB
Resonant Frequency (Fs) 21.7Hz
DC Resistance (Re) 3.20Ohm
Voice Coil Inductance (Le) 4.06mH
Total Q (Qts) 0.54
Electrical Q (Qes) 0.58
Mechanical Q (Qms) 7.20
Equivalent Compliance Volume (Vas) 155.8Liters
Effective Cone Area (Sd) 894cm²
Fitment & Dimensions
Woofer Displacement 0.148 cu. ft. (4.2 Liters)
Mounting Depth 7.58 in. (192.5 mm)
Cutout Diameter 13.94 in. (353 mm)
Magnet Weight (oz) 96 oz. (2.73 kg.)
Sealed Box Volume (Vb) 1.58 cu. ft. (44.7 Liters)
Vented Box Volume (Vb) 2.66 cu. ft. (75.3 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 23.3 Lbs. (10.56 kg)

Additional information

Weight 24 lbs
Sub Size

Sub Impedance

Sub Max Power

1200 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Dual

Series

Punch
