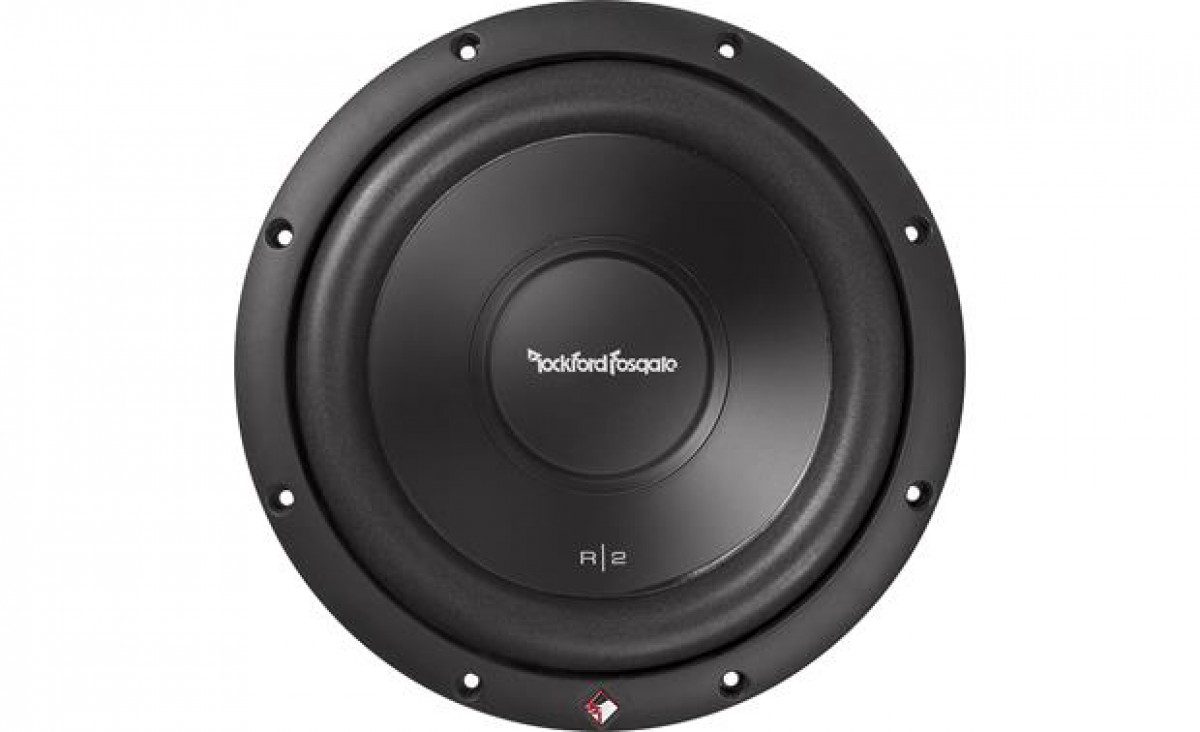

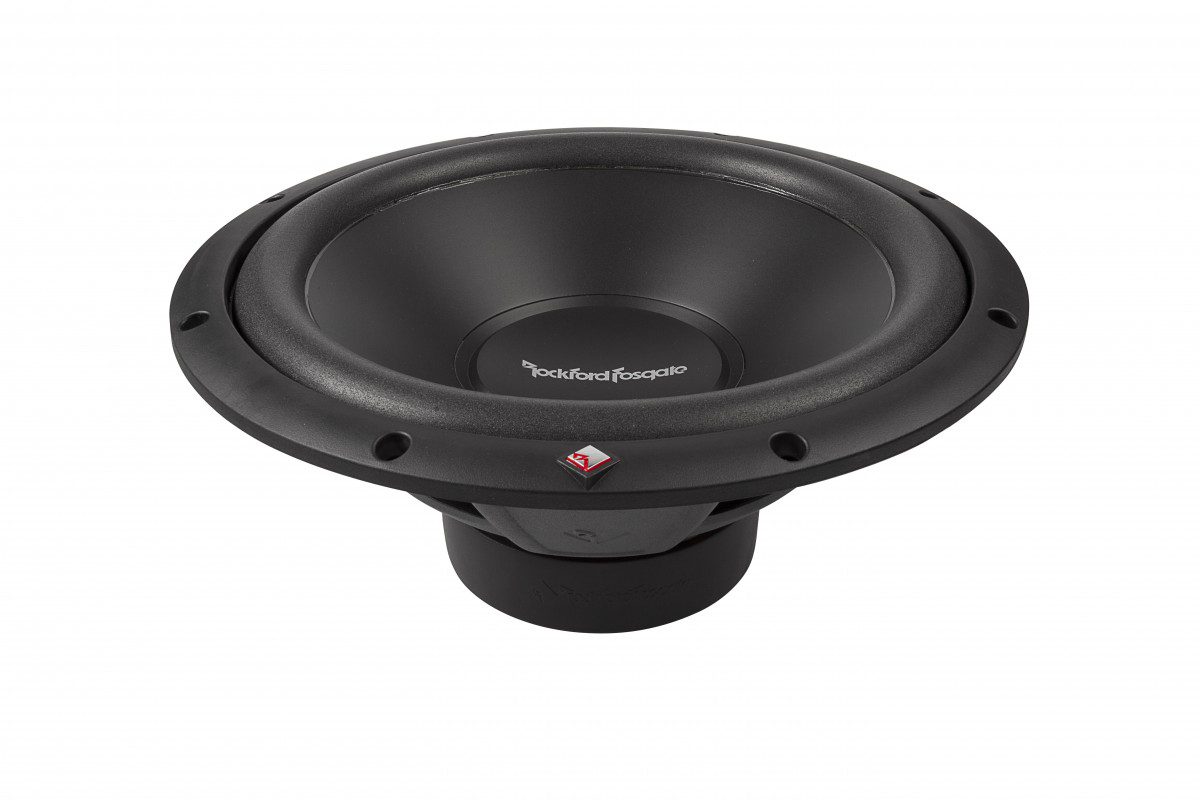

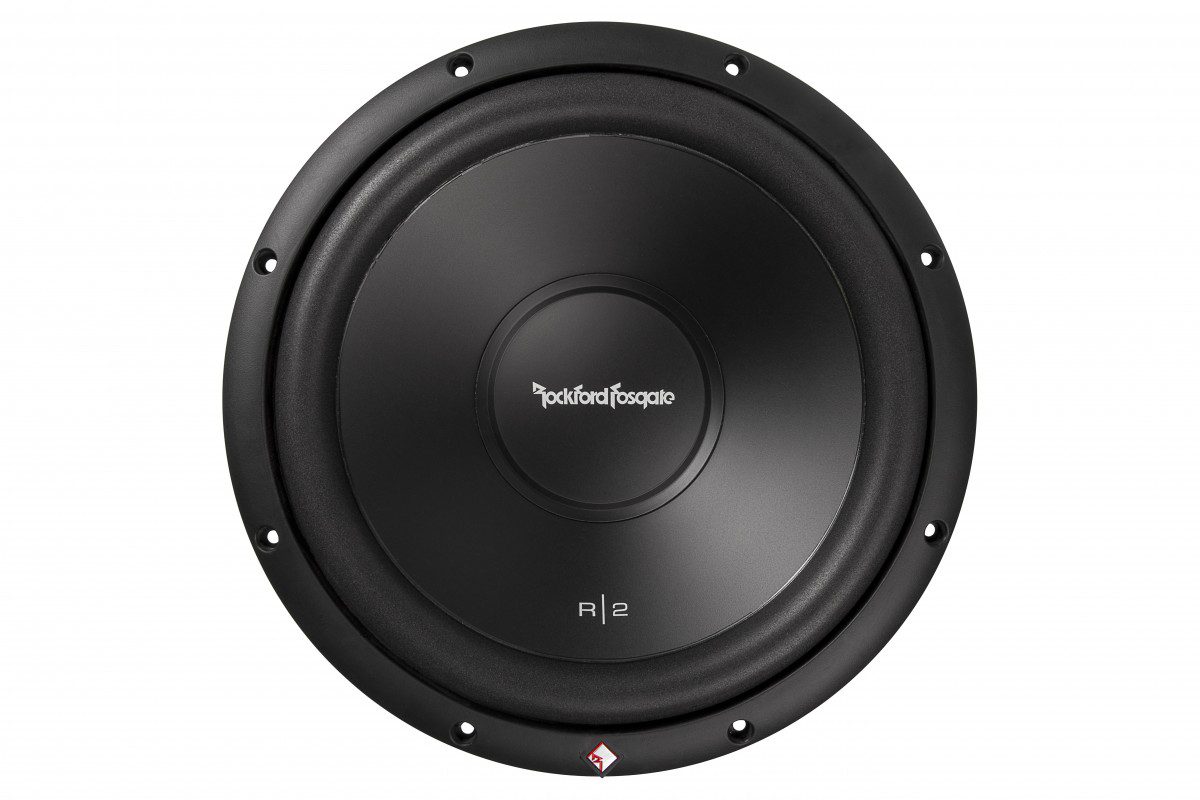

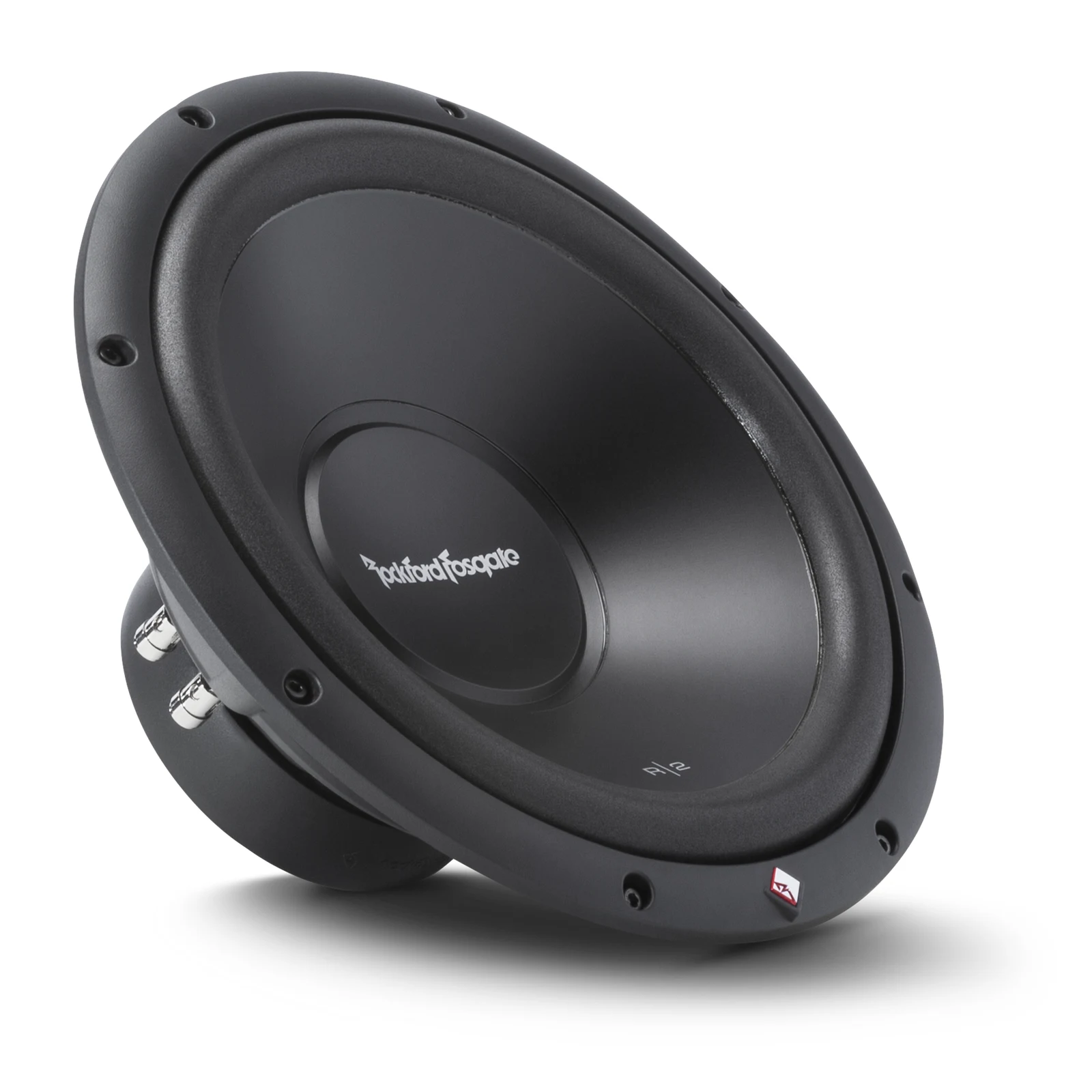

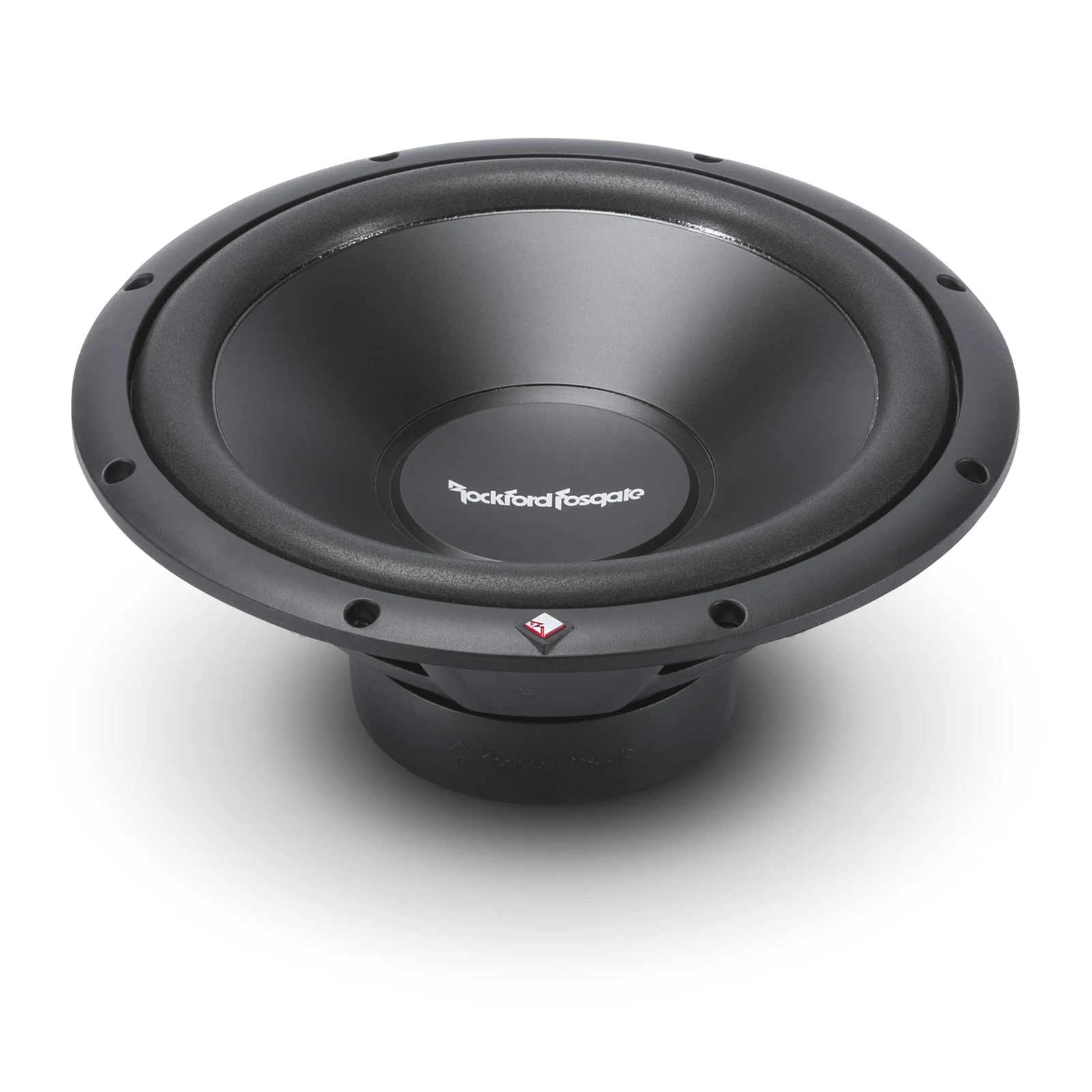

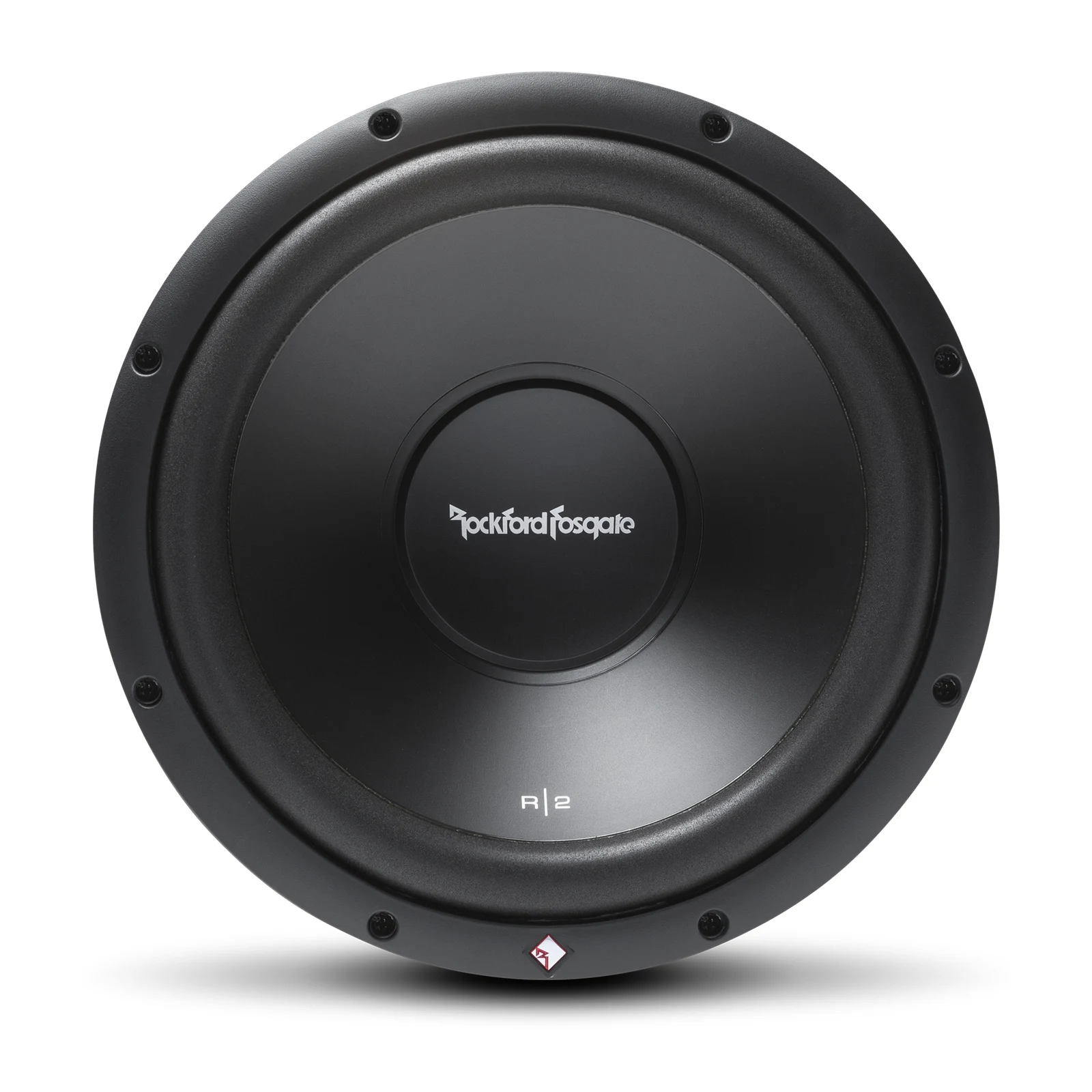

The Rockford Fosgate Prime R2D2-12 is a 12-inch dual 2-ohm voice coil subwoofer that handles 250 watts RMS. Its mica-reinforced polypropylene cone and flexible wiring options make it a solid choice for adding dependable bass to a sealed or vented enclosure.
$119.99
Out of stock
The Rockford Fosgate Prime R2D2-12 brings solid Rockford Fosgate bass to your system with a 12-inch design that handles 250 watts RMS. Its dual 2-ohm voice coils provide useful wiring flexibility, making it easier to configure the subwoofer for a compatible amplifier setup.

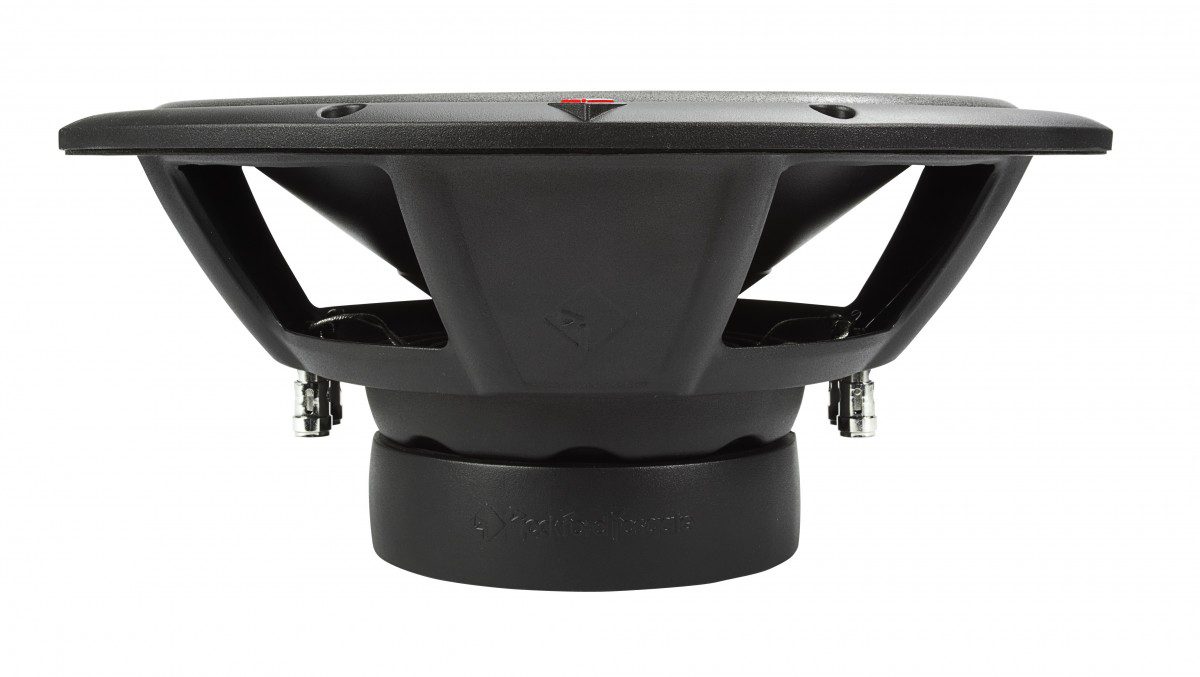

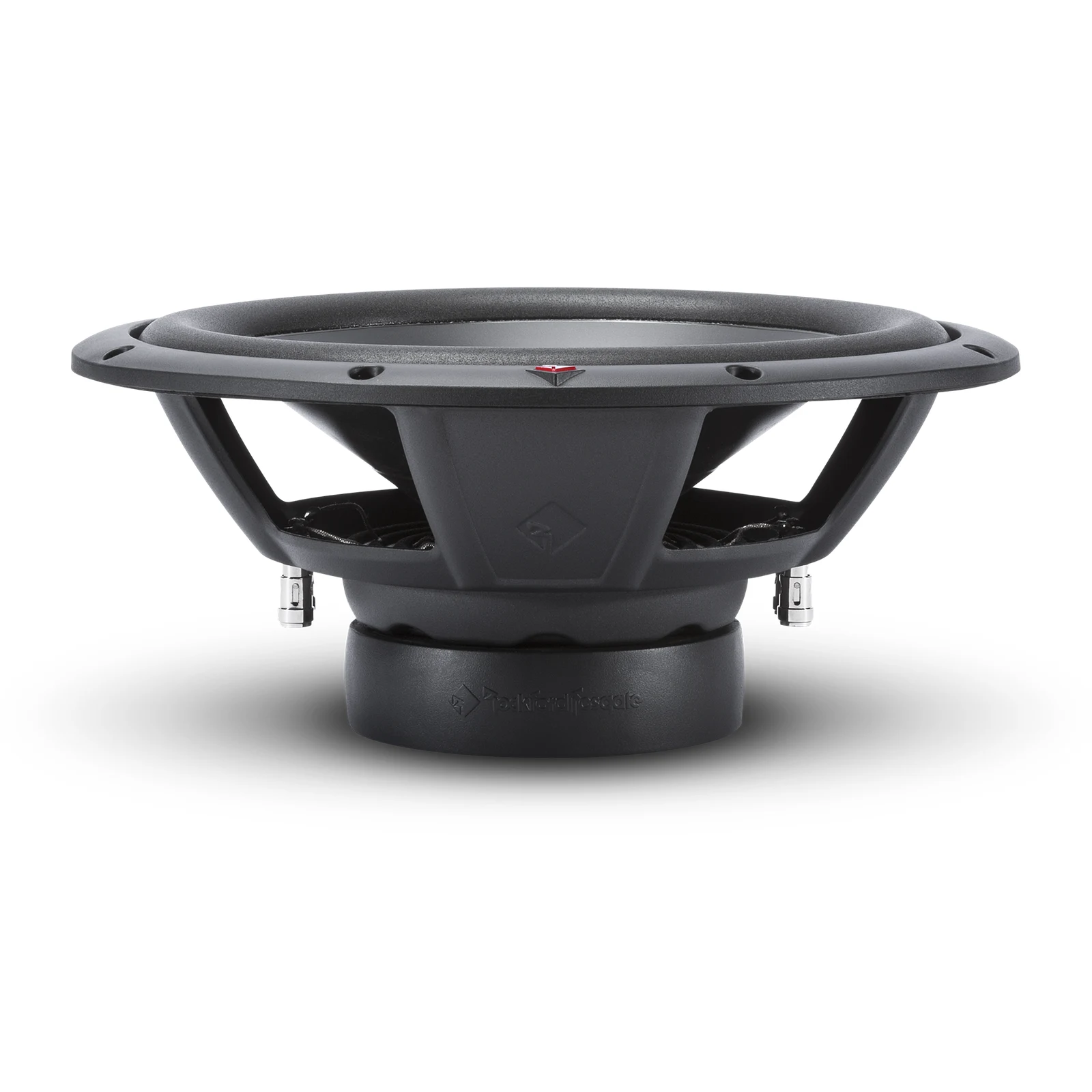

A mica-reinforced polypropylene cone delivers the rigidity needed for dependable low-frequency performance. The StampCast basket features integrated spider venting to help keep the motor cool, while the linear spider, embedded 16 AWG tinsel leads, and anodized aluminum voice coil former support reliable operation.

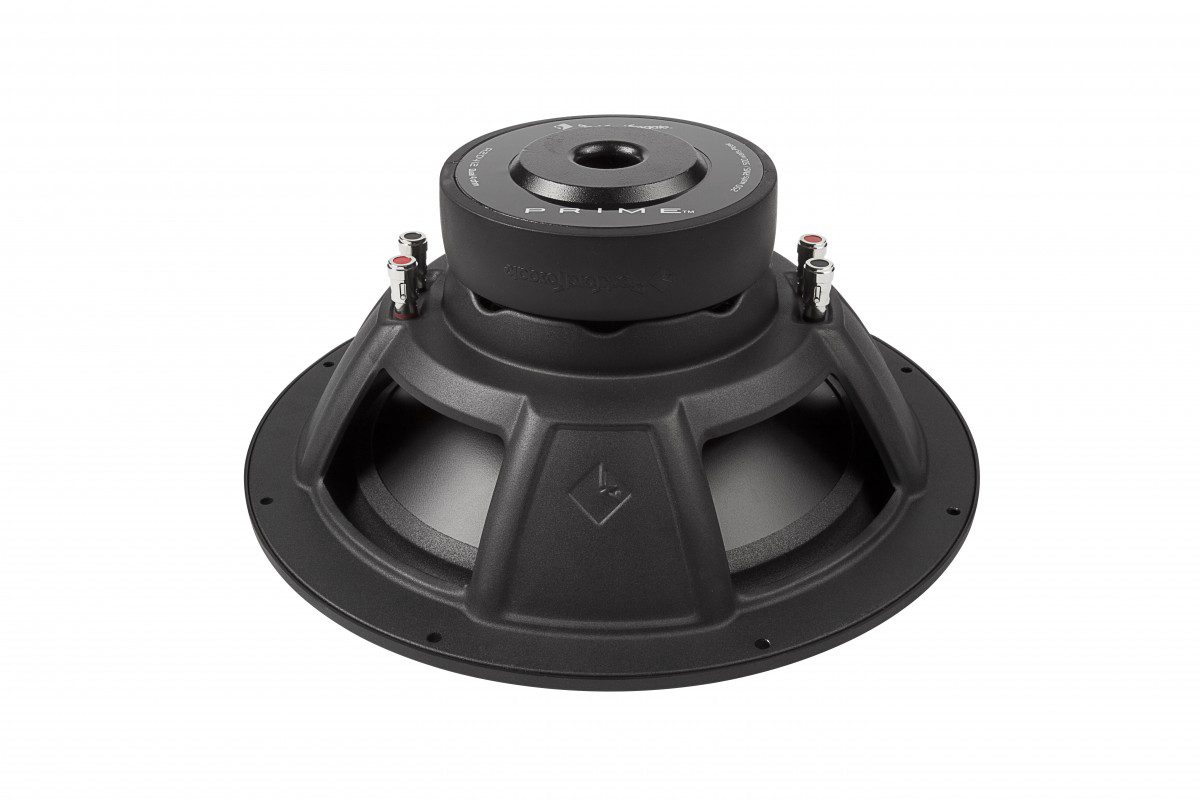

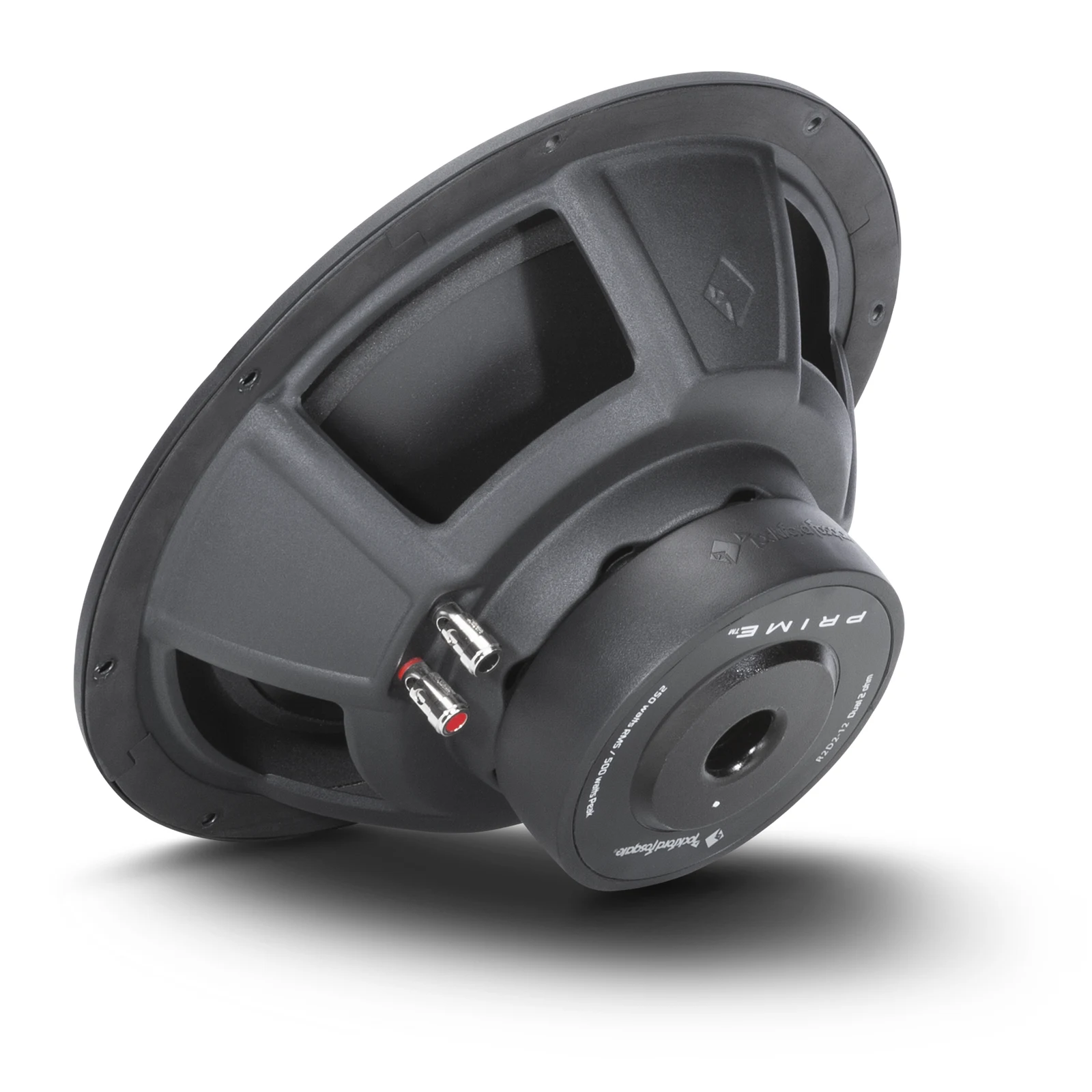

Designed for both sealed and vented enclosures, the R2D2-12 gives you options when planning your bass system. Dual 12 AWG compression terminals simplify secure speaker-wire connections, and the integrated PVC trim ring provides a clean finishing touch.
| Specifications | |
|---|---|
| Sub Size | 12in |
| Sub Power RMS | 250 Watts |
| Sub Max Power | 500 Watts |
| Sub Impedance | Dual 2 Ohm |
| Sub Features | Dual Voice Coil |
| Subwoofer Type | Standard |
| Resonant Frequency (Fs) | 34.6Hz |
| Sound Pressure Level (SPL) @ 1W/1m | 88.7dB |
| Voice Coil Diameter | 2in (51mm) |
| Magnet Weight (oz) | 47.7 oz. (1.35 kg) |
| Maximum Linear Excursion (Xmax) | 6.5mm |
| DC Resistance (Re) | 3.80Ohm |
| Voice Coil Inductance (Le) | 3.9mH |
| Total Q (Qts) | 0.58 |
| Electrical Q (Qes) | 0.62 |
| Mechanical Q (Qms) | 8.29 |
| Equivalent Compliance Volume (Vas) | 66.4Liters |
| Effective Cone Area (Sd) | 539.1cm² |
| Woofer Displacement | 0.046 cu. ft. (1.3 Liters) |
| Mounting Depth | 5.067 in. (128 mm) |
| Cutout Diameter | 11.25 in. (285 mm) |
| Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
| Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
| Speaker Connector | Dual 12 AWG compression |
| Shipping Weight | 9.9 Lbs. (4.49 kg) |
| Weight | 10 lbs |
|---|---|
| Sub Size | |
| Sub Impedance | |
| Sub Max Power | 500 Watts Max |
| Sub Power RMS | |
| Voice Coils | Dual |
| Sub Type | Standard |
| Series | Prime |
