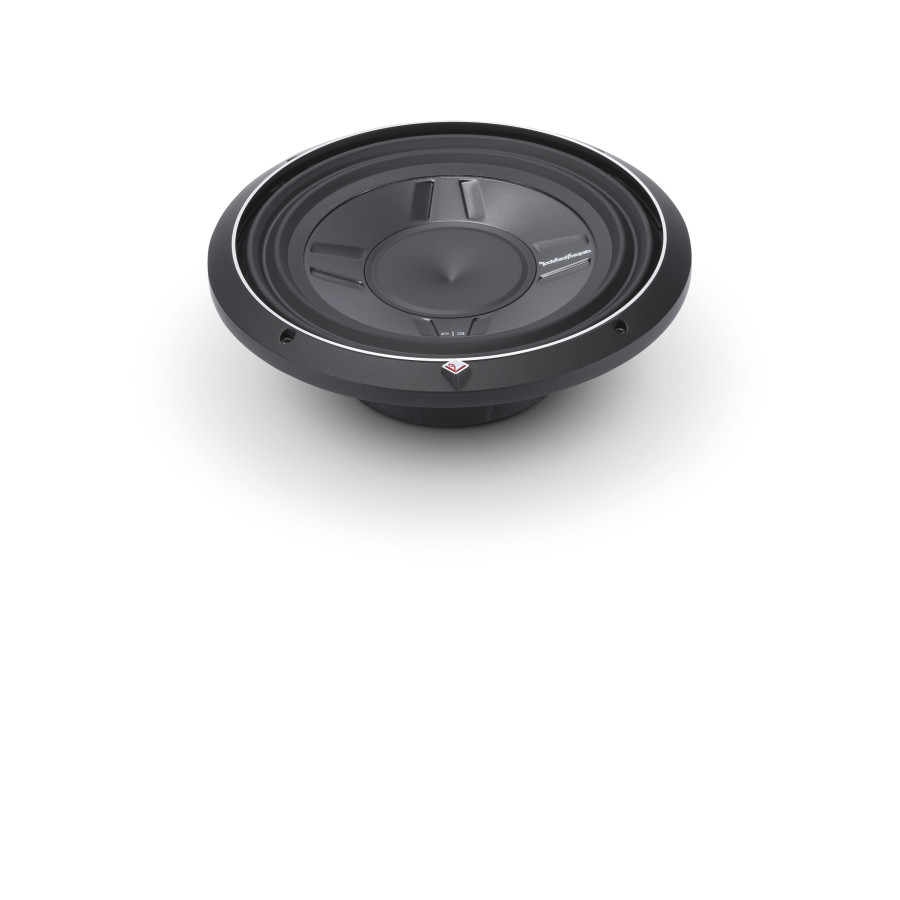

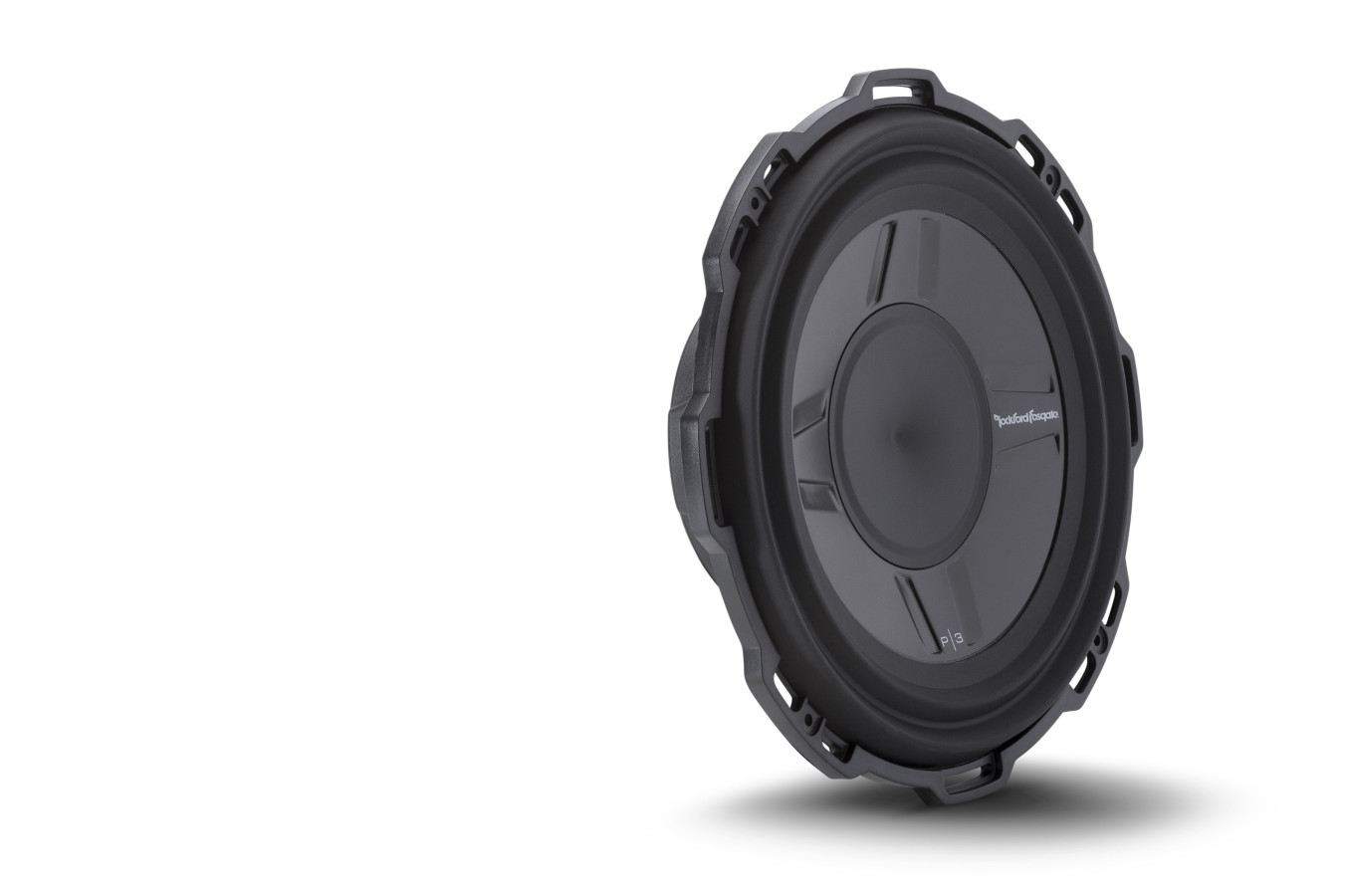

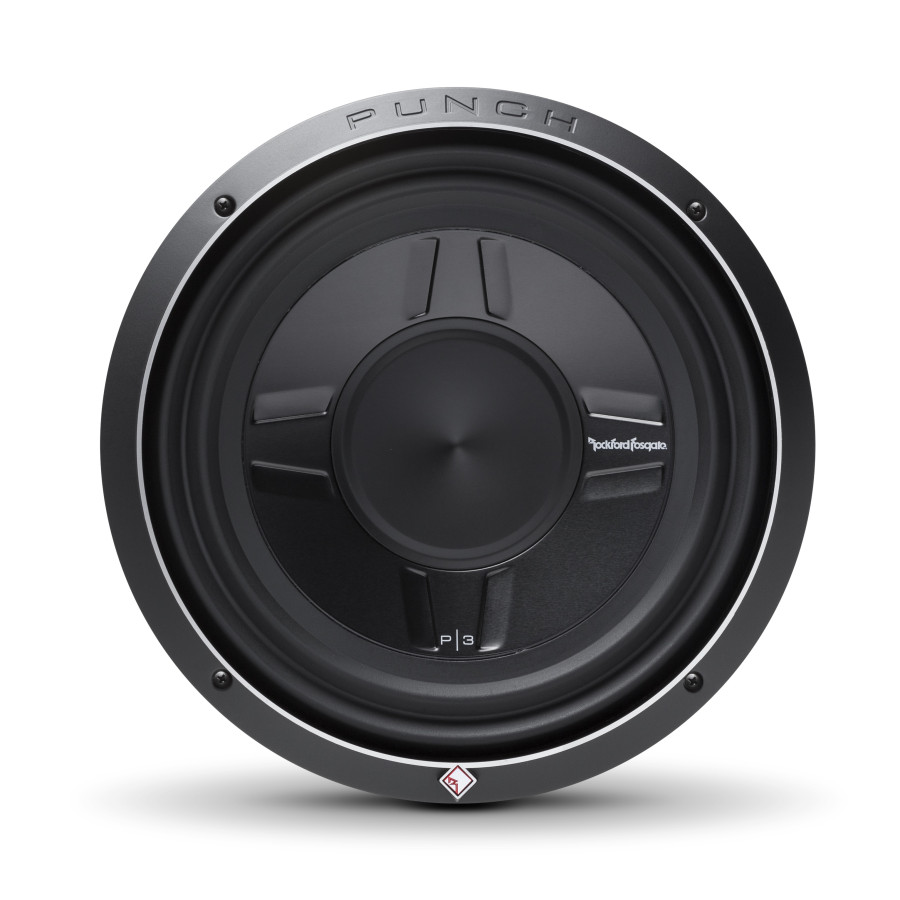

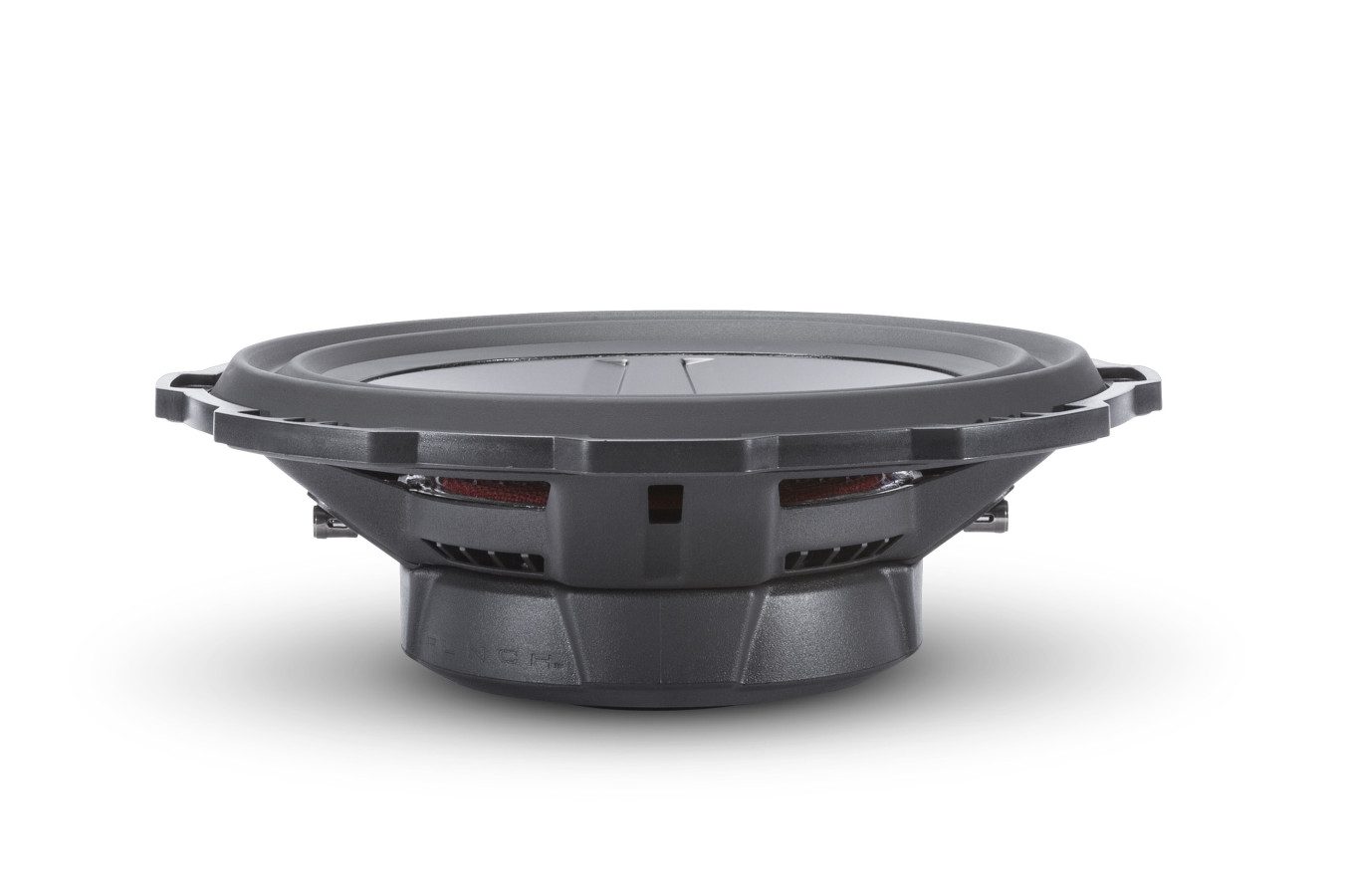

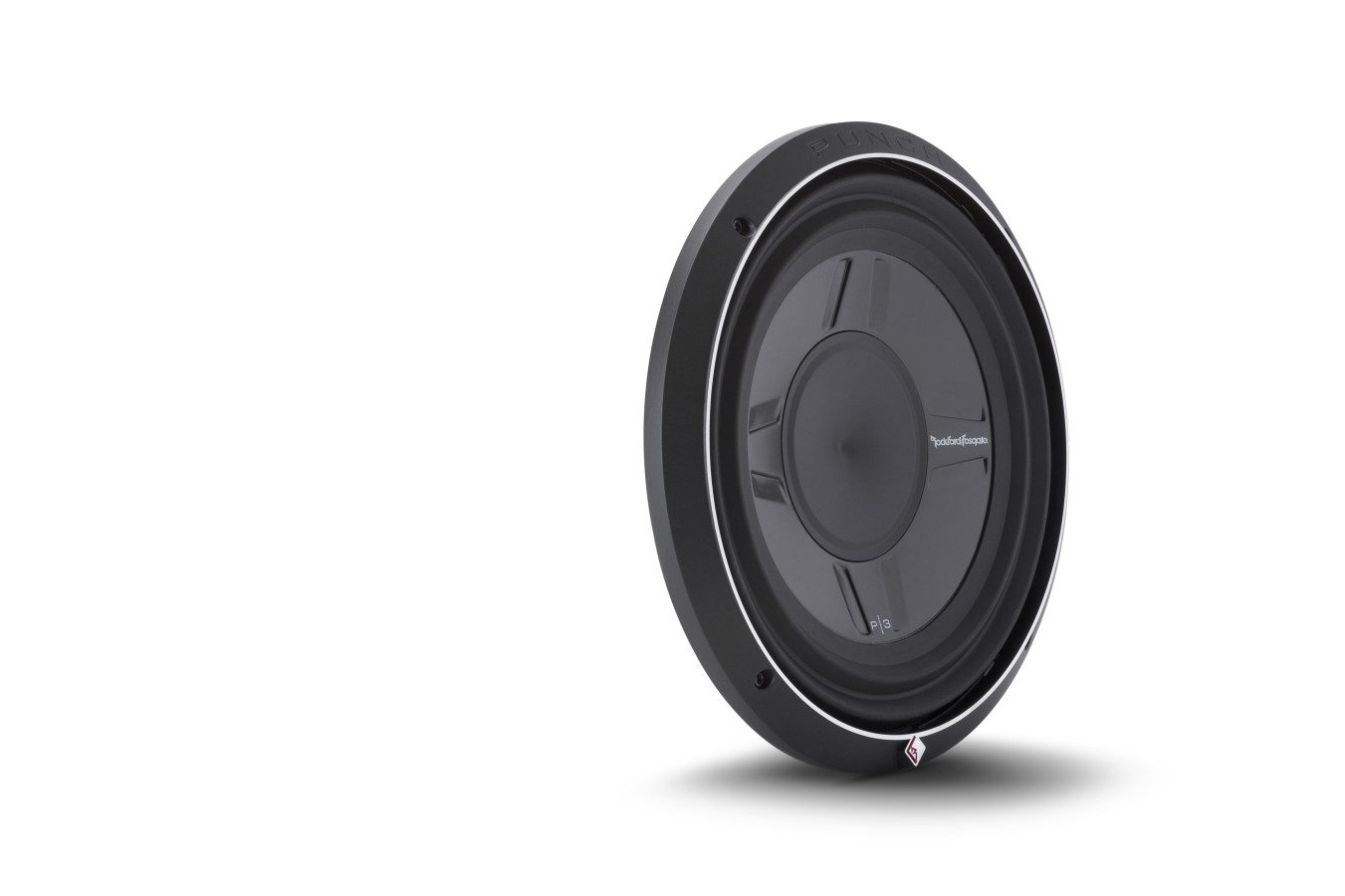

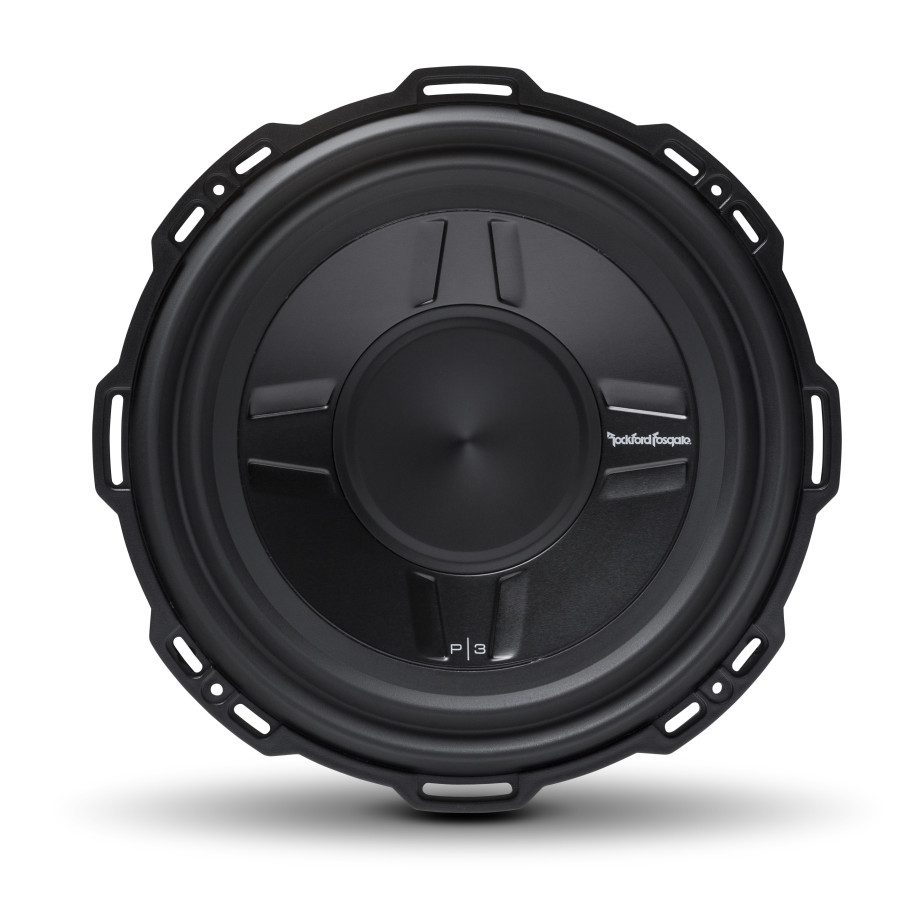

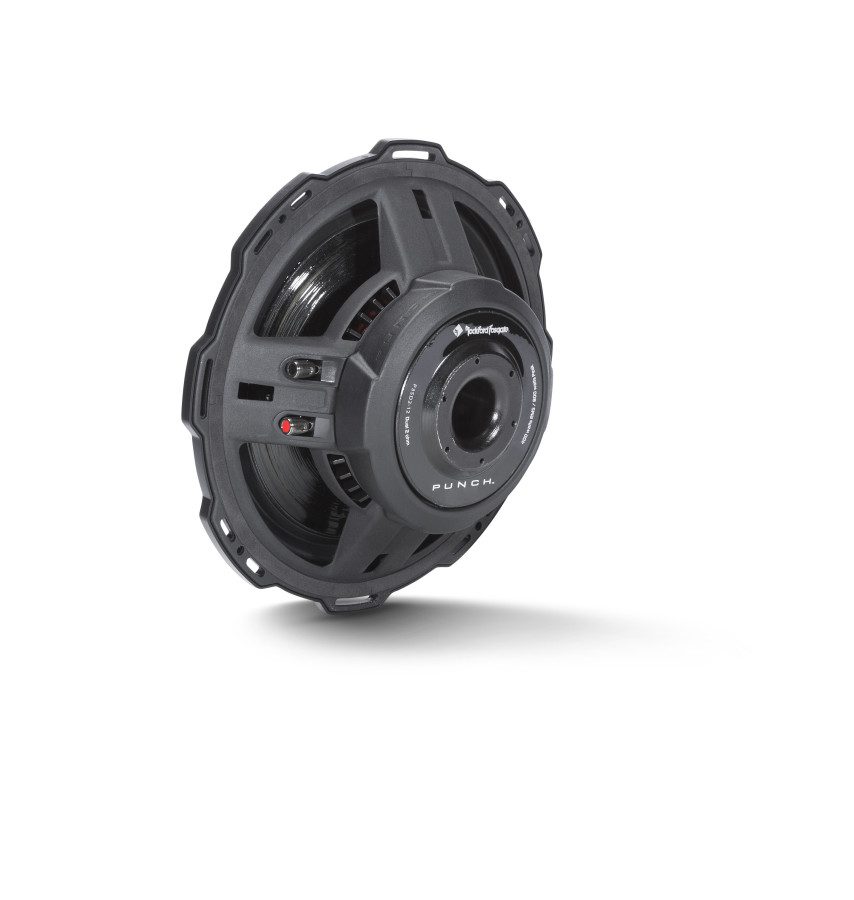

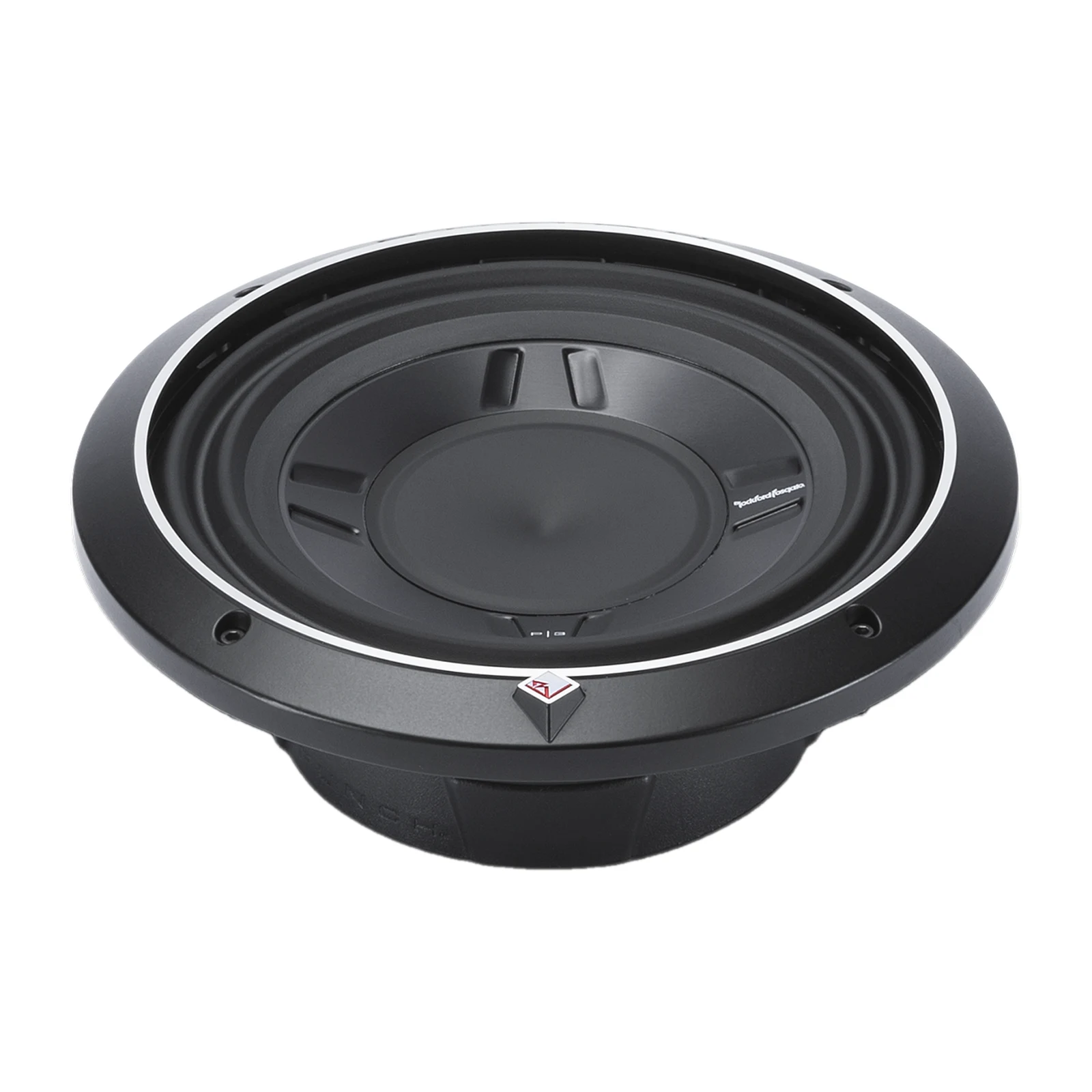

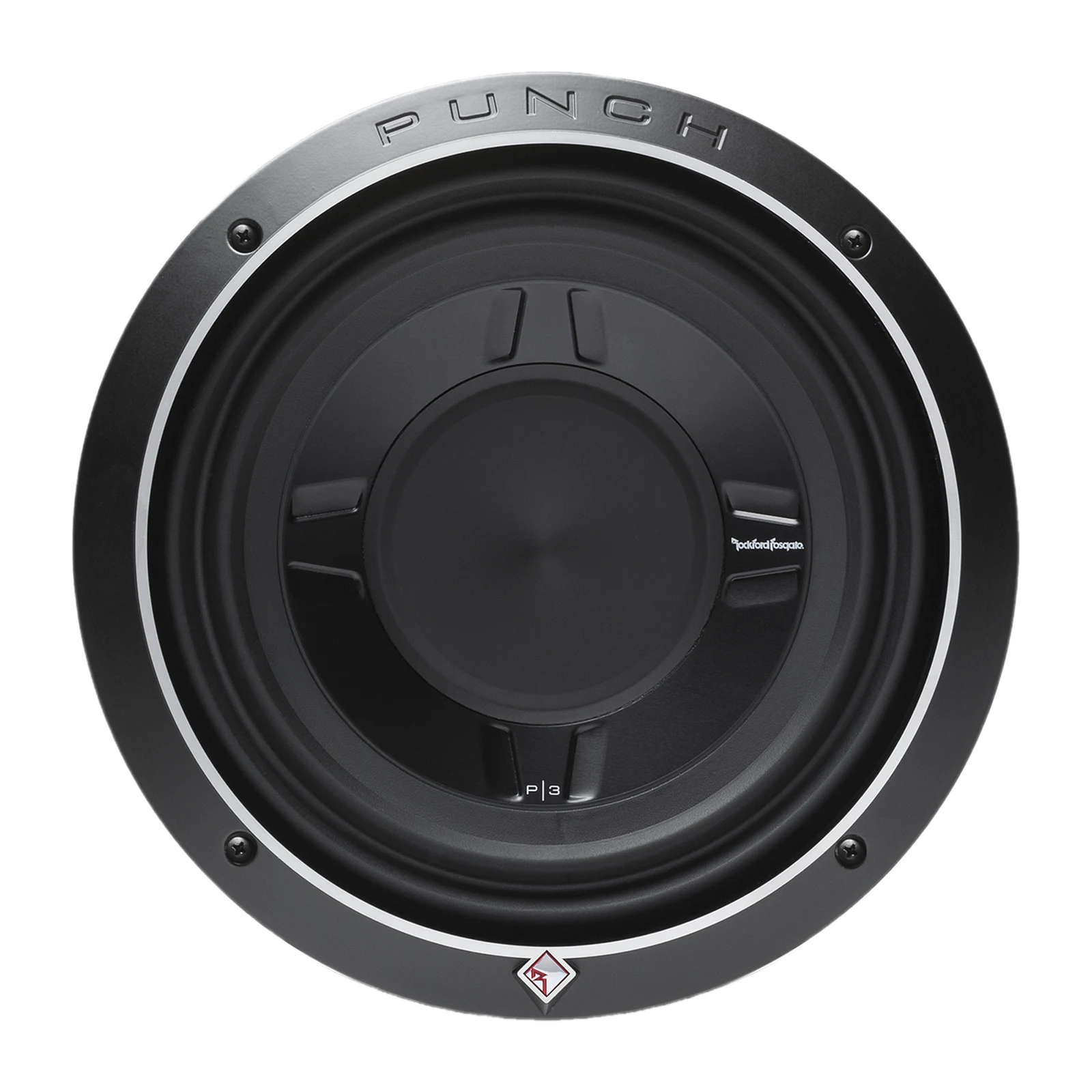

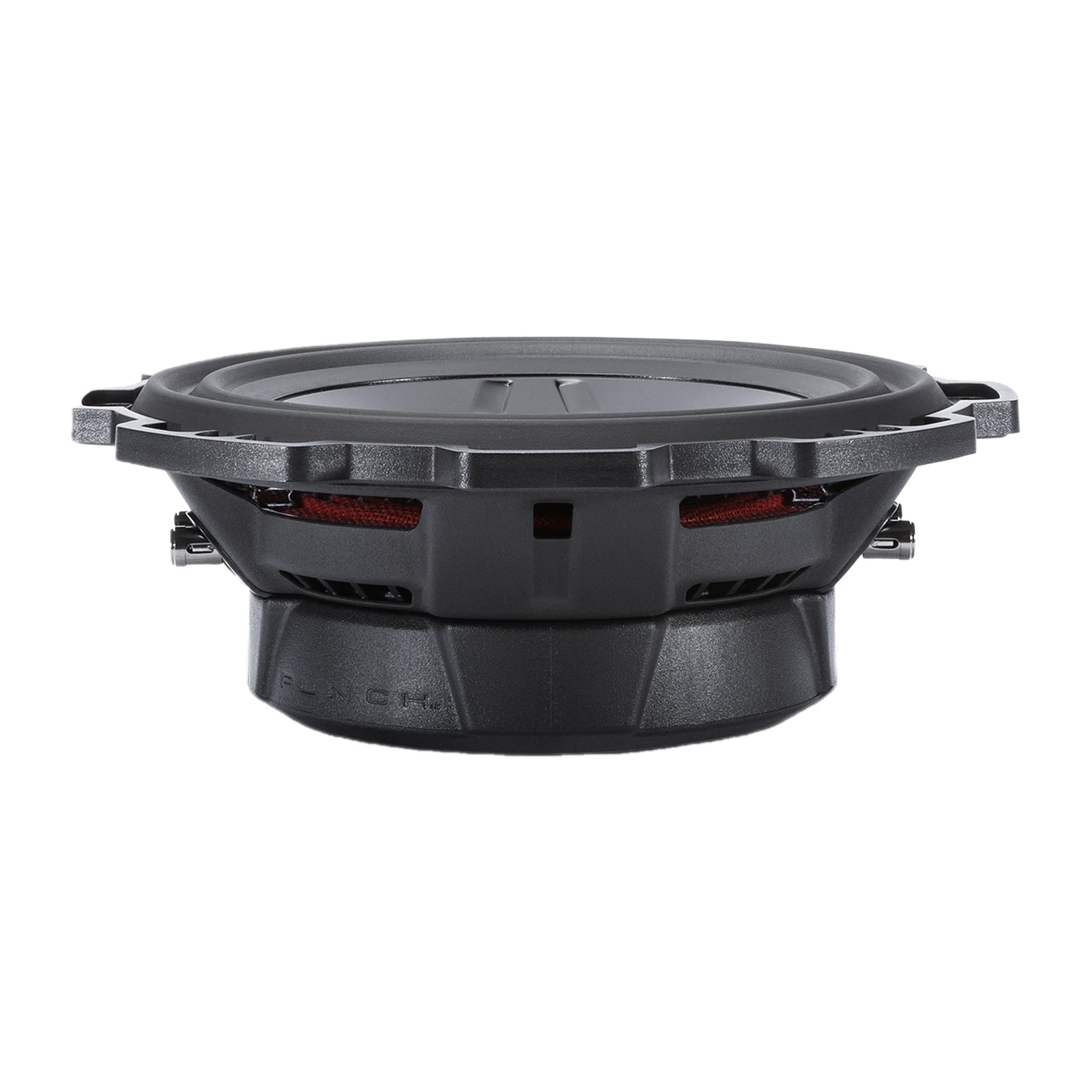

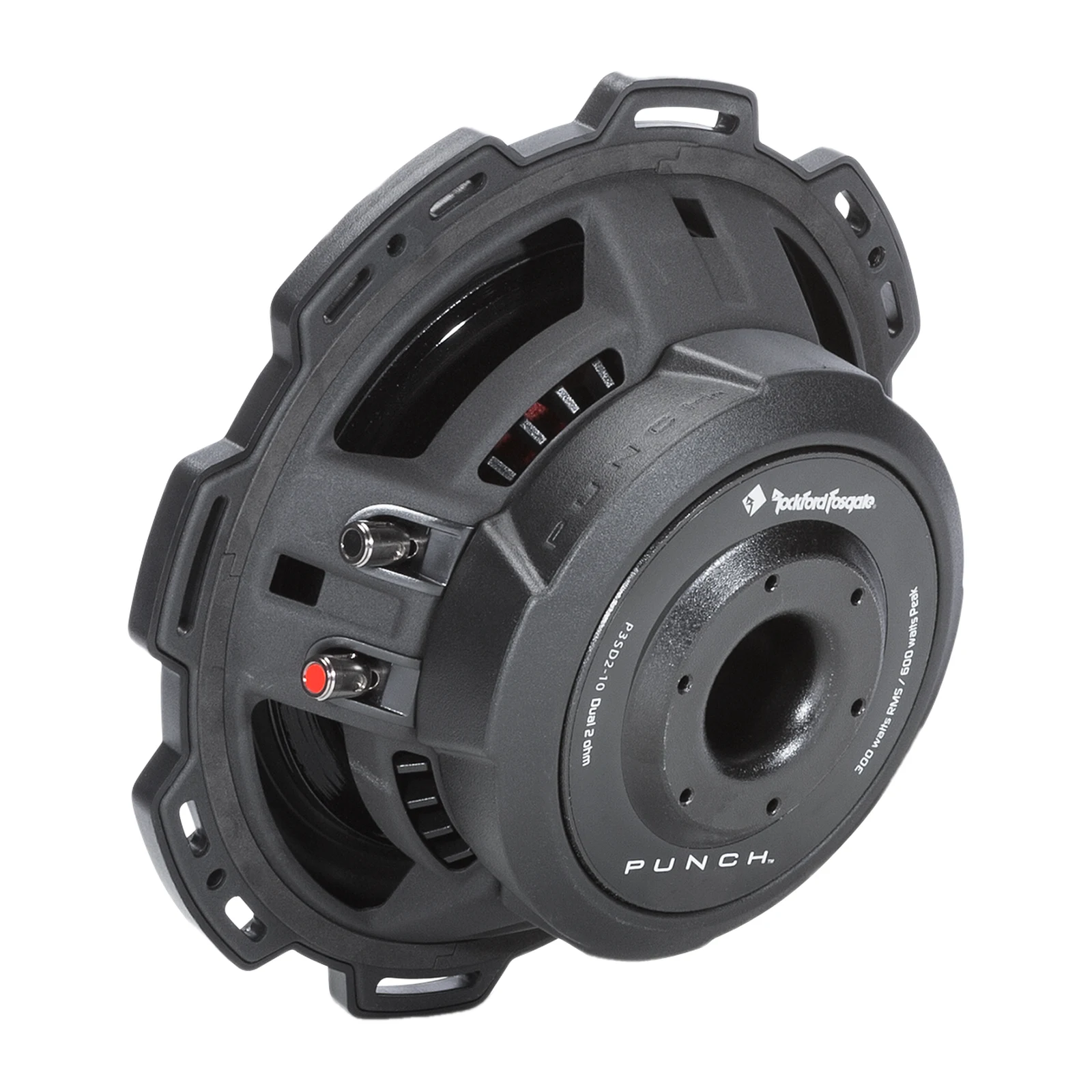

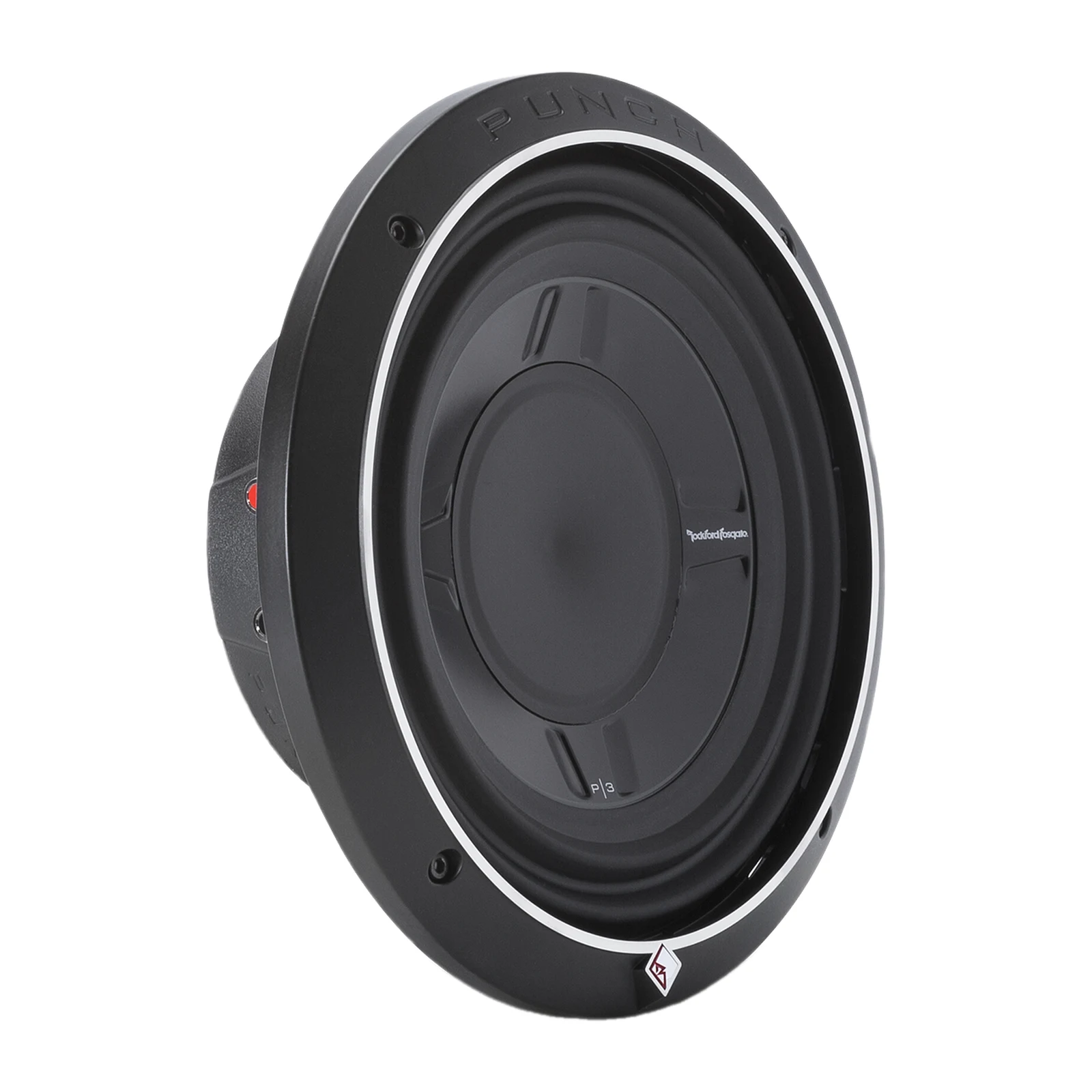

The Rockford Fosgate P3SD2-10 10-inch shallow-mount subwoofer brings powerful bass to depth-limited installations with 300 watts RMS of power handling, dual 2-ohm voice coils, and an anodized aluminum cone. It is optimized for sealed or vented enclosures, giving you flexible options for adding Punch to your vehicle.
$229.99
12 in stock
Bring deep rumble and solid low-frequency impact to spaces where a conventional subwoofer may not fit. The Rockford Fosgate P3SD2-10 is a 10-inch shallow-mount subwoofer designed to deliver Punch in depth-limited vehicle installations. Its anodized aluminum cone, durable suspension, and flexible dual voice-coil design make it a capable foundation for bass you can feel throughout the cabin.
| Subwoofer Specifications | |
|---|---|
| Sub Size | 10in |
| Sub Type | Shallow |
| Sub Power RMS | 300 Watts |
| Sub Max Power | 600 Watts |
| Sub Impedance | Dual 2 Ohm |
| Voice Coils | Dual |
| Voice Coil Diameter | 2.5in (65.5 mm) |
| Performance & Thiele/Small Parameters | |
|---|---|
| Maximum Linear Excursion (Xmax) | 8.4mm |
| Sound Pressure Level (SPL) @ 1W/1m | 83dB |
| Resonant Frequency (Fs) | 40Hz |
| DC Resistance (Re) | 3.40Ohm |
| Voice Coil Inductance (Le) | 2.8mH |
| Total Q (Qts) | 0.64 |
| Electrical Q (Qes) | 0.71 |
| Mechanical Q (Qms) | 6.20 |
| Equivalent Compliance Volume (Vas) | 14.3Liters |
| Effective Cone Area (Sd) | 333cm² |
| Fitment & Dimensions | |
|---|---|
| Woofer Displacement | 0.074 cu. ft. (2.1 Liters) |
| Mounting Depth | 3.50 in. (89.0 mm) |
| Cutout Diameter | 9.06 in. (230.0 mm) |
| Magnet Weight (oz) | 47 oz. ( 1.32 kg) |
| Sealed Box Volume (Vb) | 0.5 cu. ft. (14.1 Liters) |
| Vented Box Volume (Vb) | 1.0 cu. ft. (28.3 Liters) |
| Speaker Connector | Dual 10 AWG Compression |
| Shipping Weight | 11.9 Lbs. (5.39 kg.) |
| Weight | 12 lbs |
|---|---|
| Sub Size | |
| Sub Impedance | |
| Sub Max Power | 600 Watts Max |
| Sub Power RMS | |
| Sub Type | Shallow |
| Voice Coils | Dual |
| Series | Punch |
