Rockford Fosgate Power T1D412 12in Dual 4 Ohm 800 Watts Subwoofer

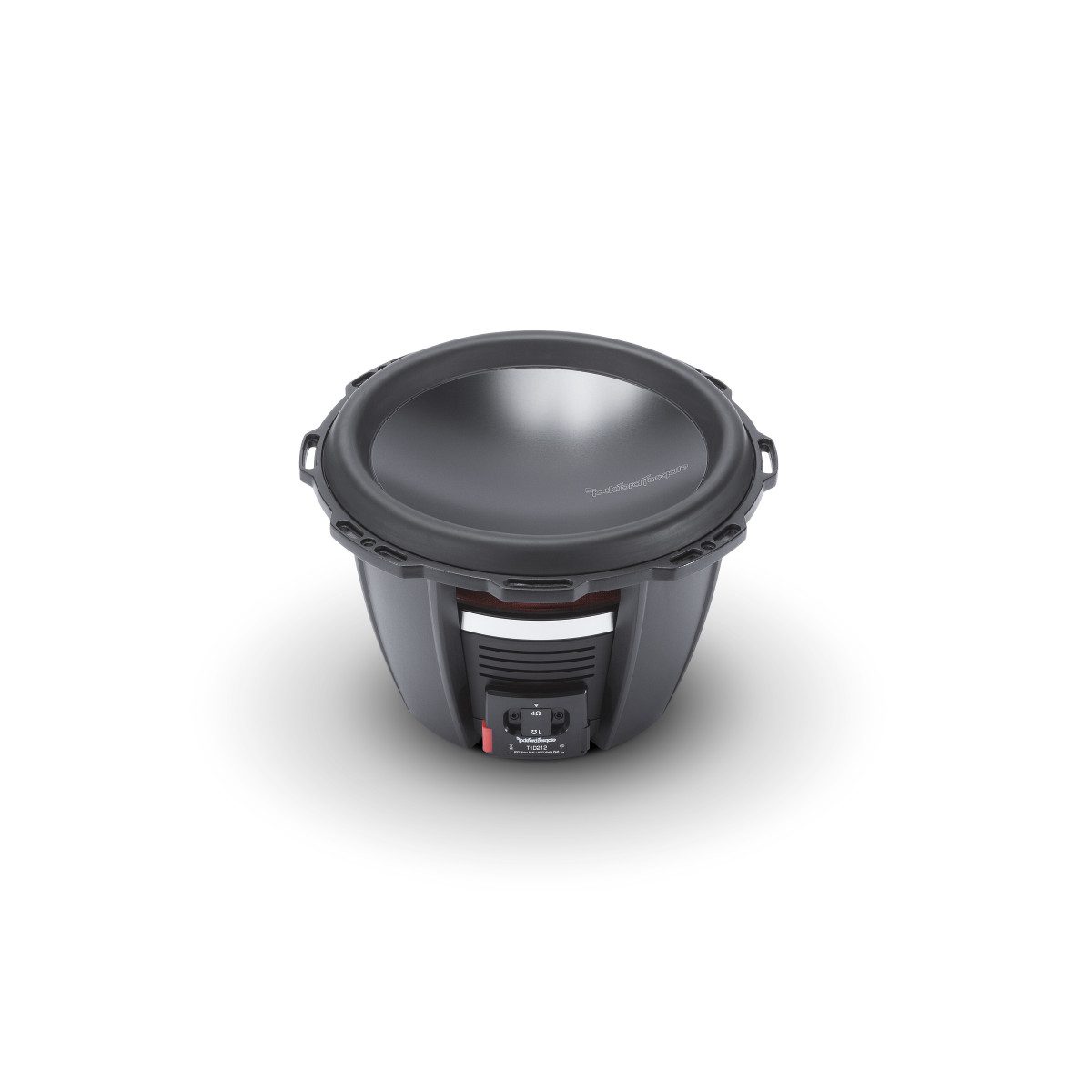

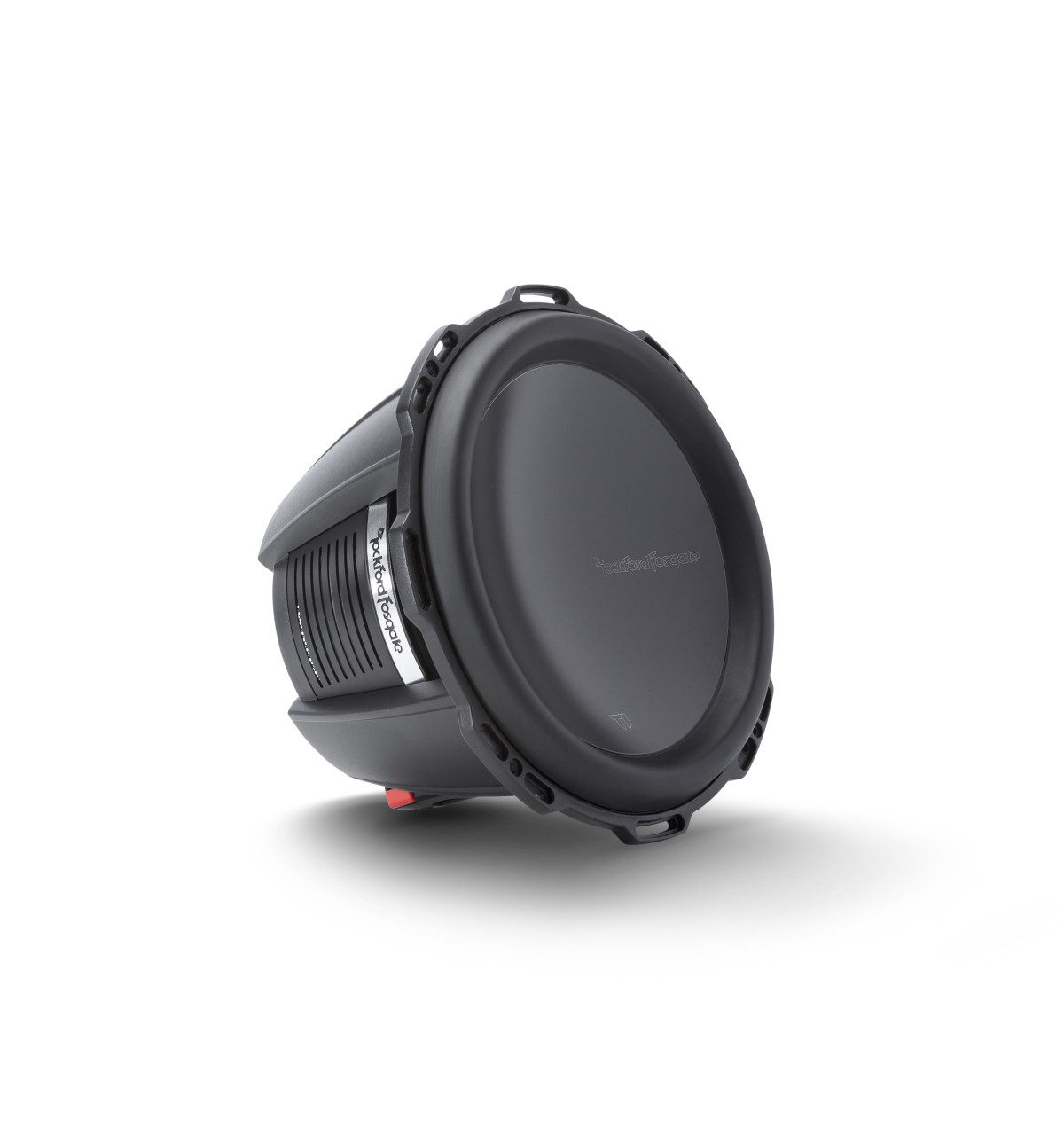

Rockford Fosgate T1D412 12-inch car subwoofer with dual 4-ohm voice coils, 800 watts RMS power handling, a Kevlar fiber-reinforced paper cone, VAST technology, and a rigid FlexFit aluminum basket.

$539.99

2 in stock

Description

The Sub At A Glance:

  • Power Handling: Handles 800 watts RMS and 1,600 watts maximum for forceful low-frequency output.
  • Dual Voice Coils: Dual 4-ohm voice coils with a 3-inch diameter provide flexible wiring options.
  • Reinforced Cone: Kevlar fiber-reinforced paper cone delivers the toughness needed for hard-hitting bass.
  • VAST Technology: Increases cone surface area by up to 25%, helping this 12-inch subwoofer perform like a larger woofer compared with the previous model.
  • Durable Suspension: Symmetrical dual progressive-roll, tear-resistant poly-cotton spiders support demanding cone movement.

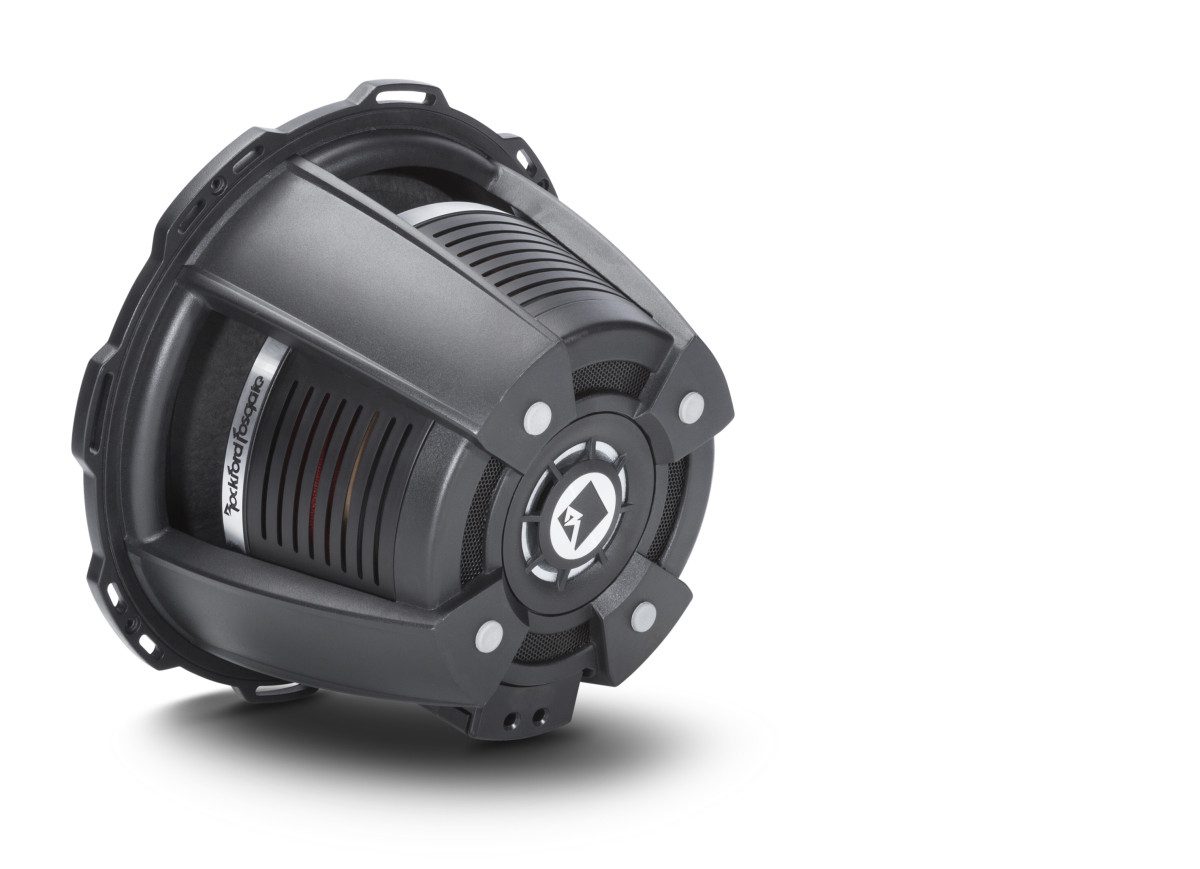

  • Rigid FlexFit Basket: Die-cast aluminum construction adds durability while providing flexibility for challenging installations.
  • Heat-Ready Construction: A high-temperature voice coil, spun-laced Nomex reinforcement collar, heat-sinking aluminum dust cap, and optimized venting help manage heat.

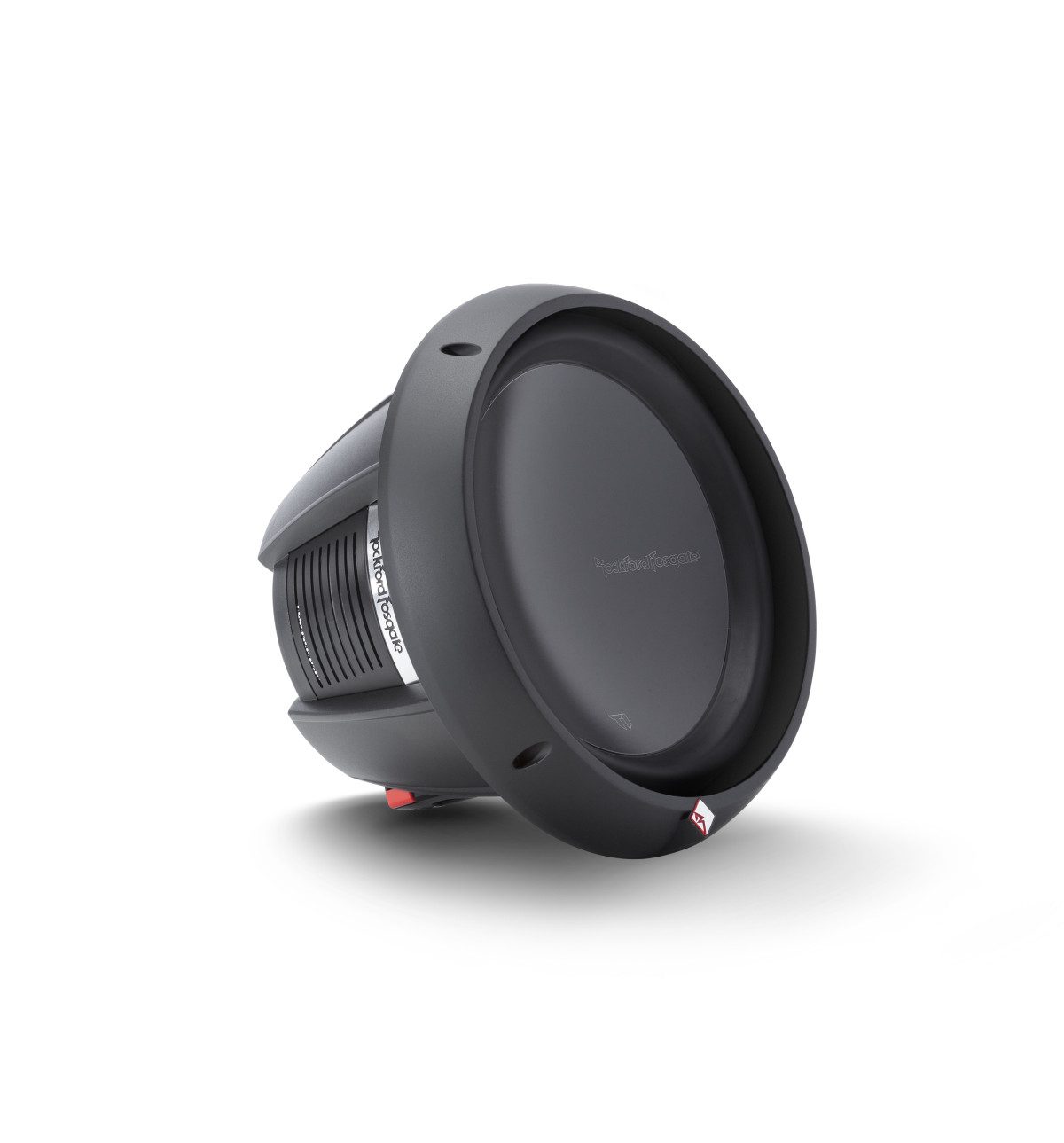

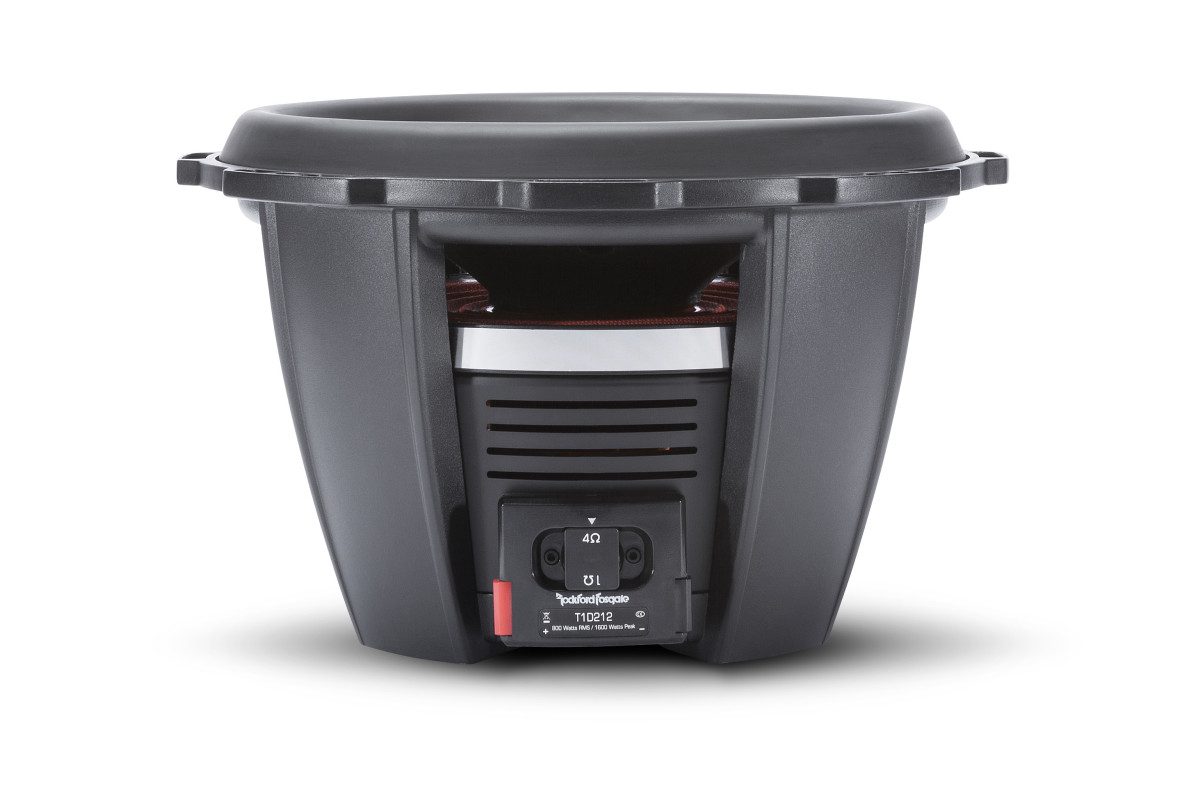

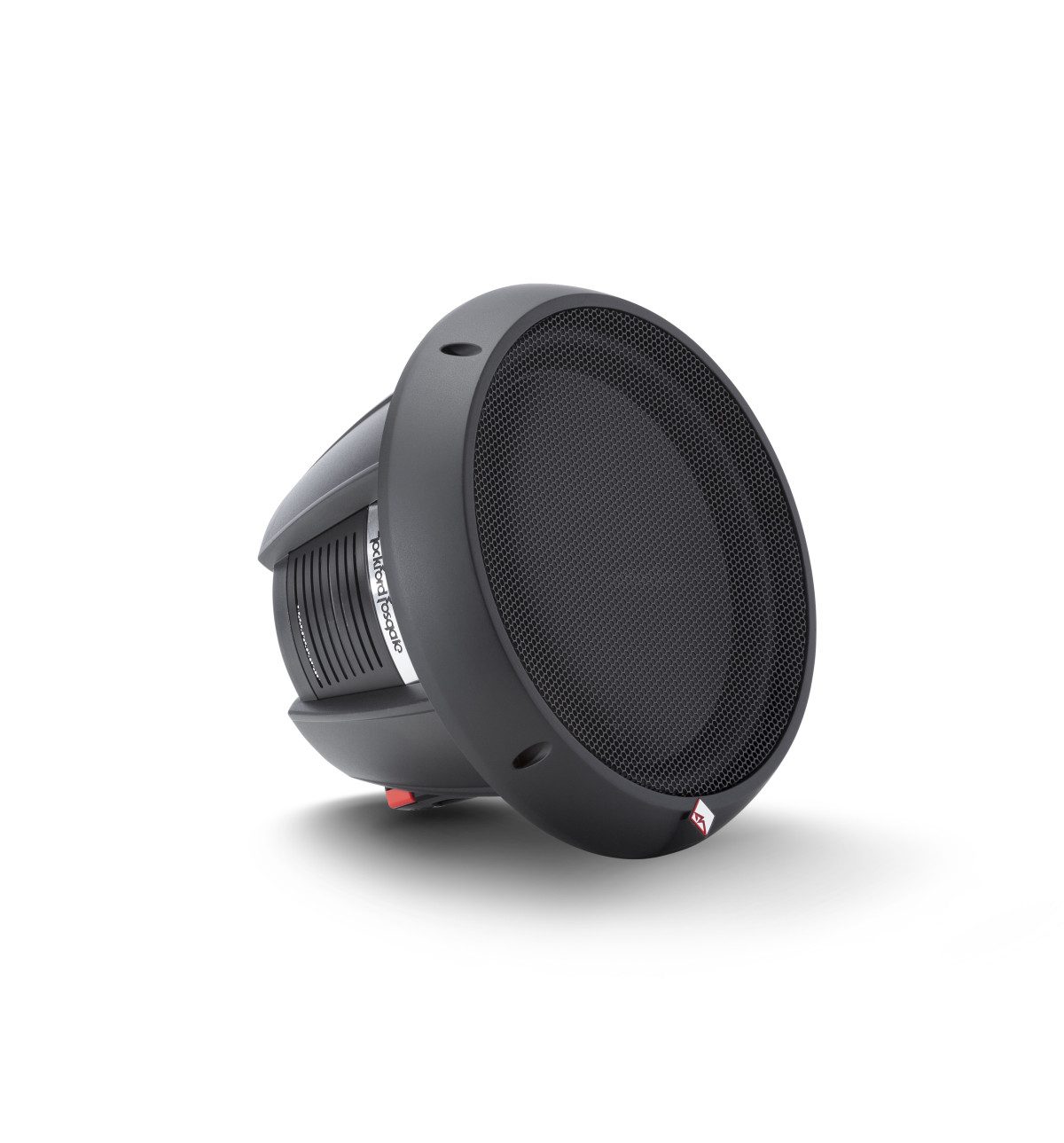

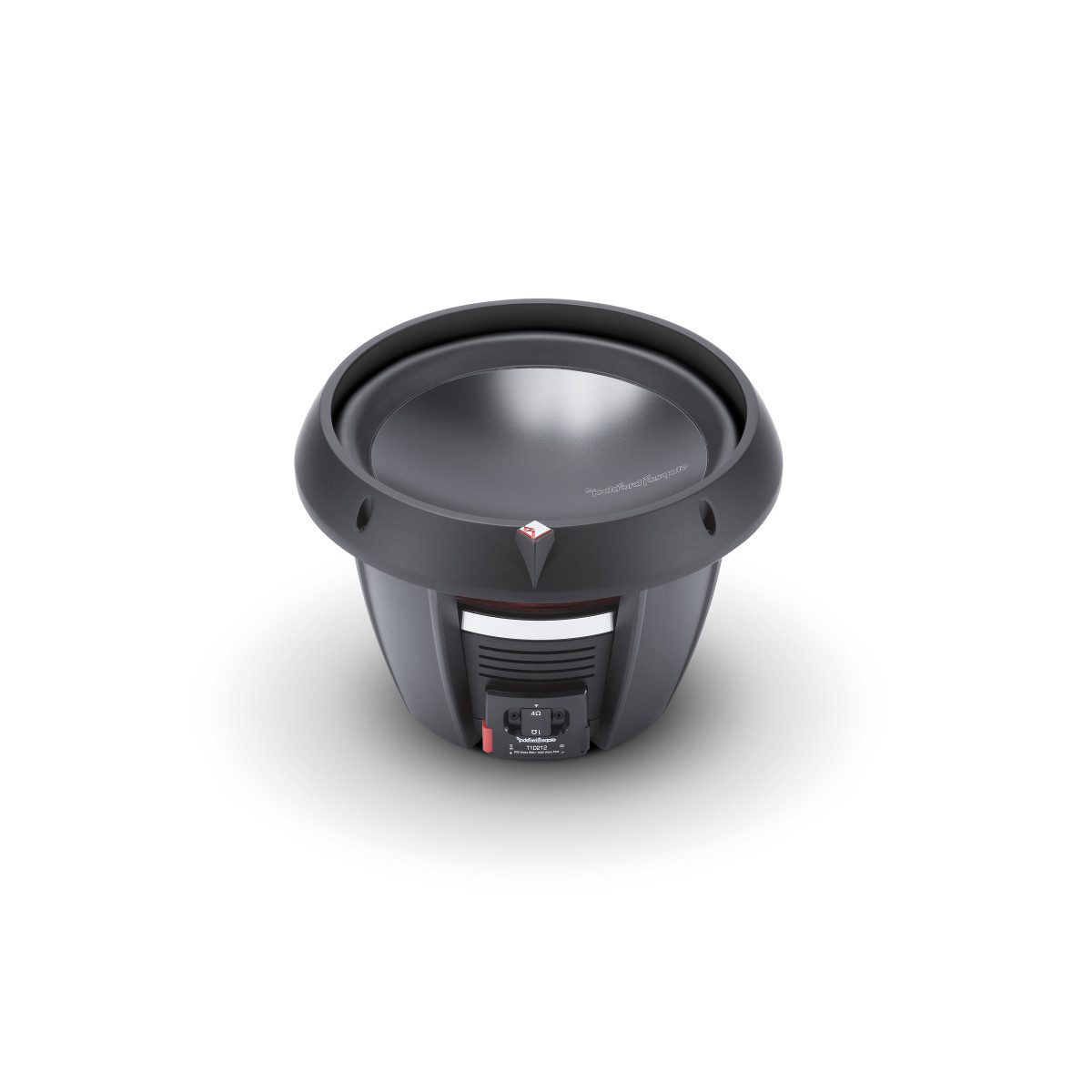

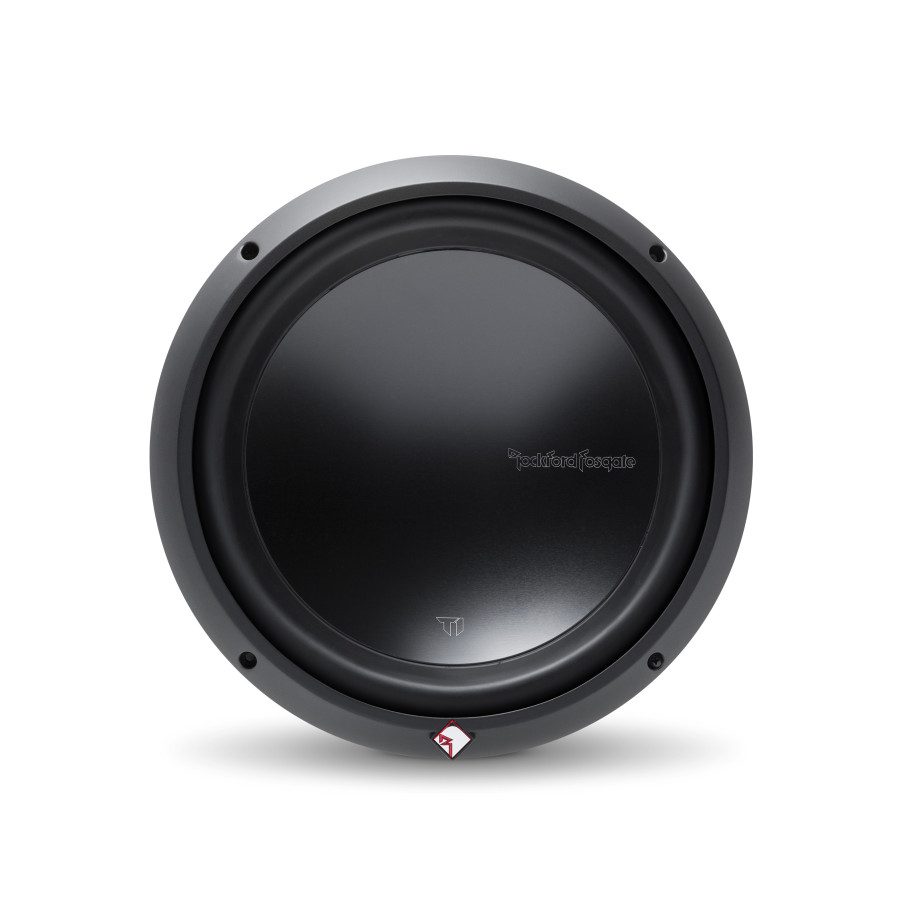

  • Installation Details: Proprietary 8 AWG insulated all-metal spring terminals and an included grille with an integral trim ring complete the package.

The T1D412 brings bass you can feel through the cabin, adding deep rumble beneath the music and solid impact when the beat drops. Its reinforced cone, durable suspension, and rigid aluminum basket are built to keep that low-end response controlled as the volume rises.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 800 Watts
Sub Max Power 1600 Watts
Sub Impedance Dual 4 Ohm
Voice Coils Dual
Voice Coil Diameter 3in (75.4 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 16mm
Sound Pressure Level (SPL) @ 1W/1m 85dB
Resonant Frequency (Fs) 29.2Hz
DC Resistance (Re) 6.50Ohm
Voice Coil Inductance (Le) 2.4mH
Total Q (Qts) 0.61
Electrical Q (Qes) 0.71
Mechanical Q (Qms) 4.50
Equivalent Compliance Volume (Vas) 55.8Liters
Effective Cone Area (Sd) 548cm²
Fitment & Dimensions
Woofer Displacement 0.106 cu. ft. (3.0 Liters)
Mounting Depth 6.75 in. (171 mm)
Cutout Diameter 11.25 in. (285 mm)
Magnet Weight (oz) 123 oz. (3.48 kg)
Sealed Box Volume (Vb) 1.25 cu. ft. (35.3 Liters)
Vented Box Volume (Vb) 1.75 cu. ft. (49.5 Liters)
Speaker Connector Compression Terminal
Shipping Weight 33.3 Lbs. (15.10 Kg.)
