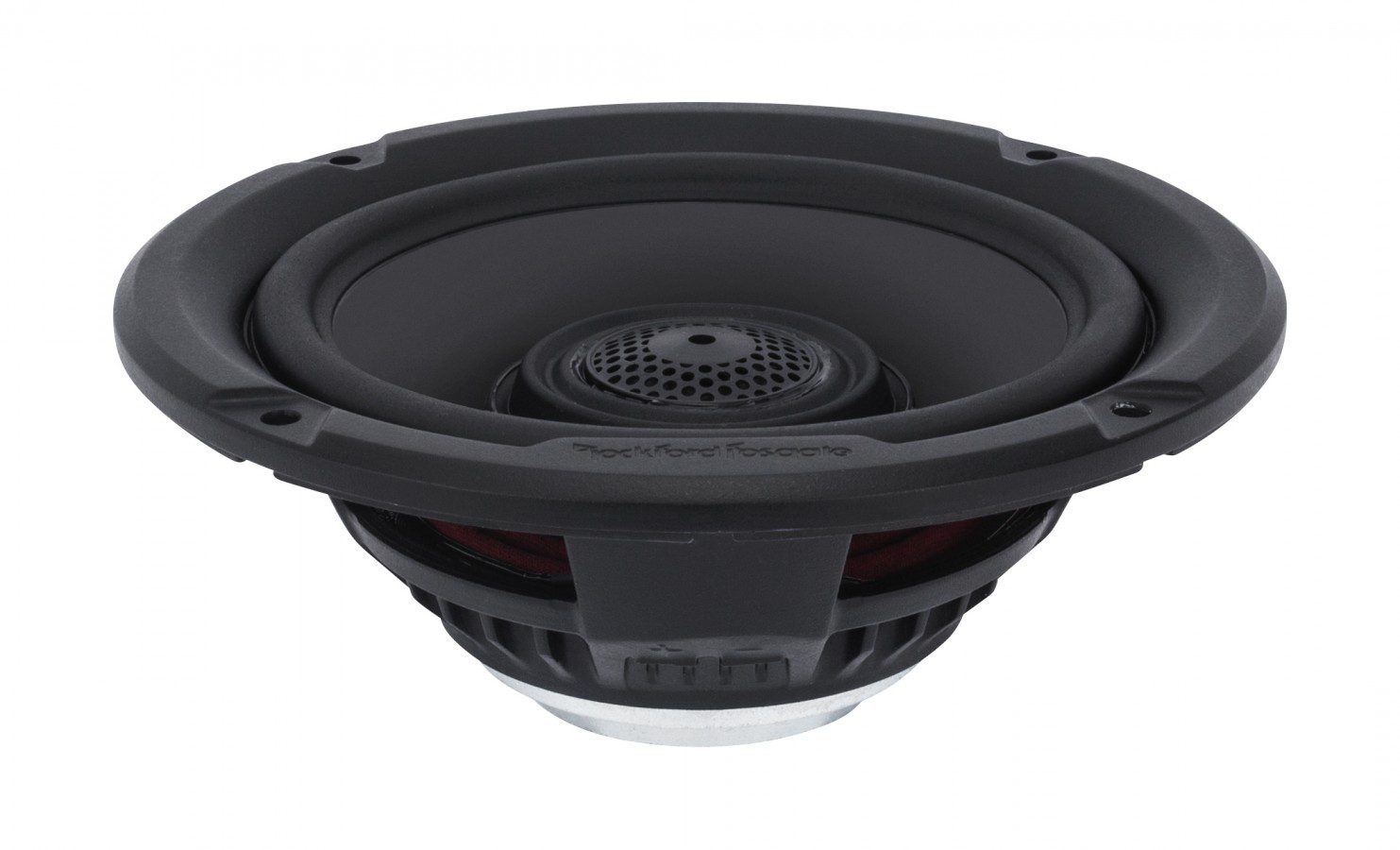

The TMS65 full range coaxial speaker is designed for direct fitment application in 2014 and newer Harley-Davidson motorcycle in both the fairing and Tour-Pak locations. This speaker directly replace the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies for both fairing and Tour-Pak applications.

Harley-Davidson is a registered trademark of Harley-Davidson Motor Company

Element Ready design that is weather and water resistant
Neodymium Tweeter with Integrated Phase Plug and ASA Grill
Ultra-Efficient 25mm Proprietary Film Dome Tweeter
Carbon-Fiber Re-Inforced Polypropylene Cone
Santoprene VAST Surround
Co-Molded Cone and Surround
Santoprene Front Isolation Spider
Poly-Cotton Spider
High Power 35mm Voice-Coil
Ultra-Efficient Neodymium Ring Magnet Motor
Ultra-High Temperature Glass Re-Inforced Polymer Frame
Integrated Spade Terminals
Integrated 6dB Crossover with High Power Polyester Capacitor
Low Profile Coaxial Tweeter Design
Discreet (Hidden) Tweeter Wire
Designed for 2014+ Harley-Davidson Street Glide/Road Glide and Tour-Pak

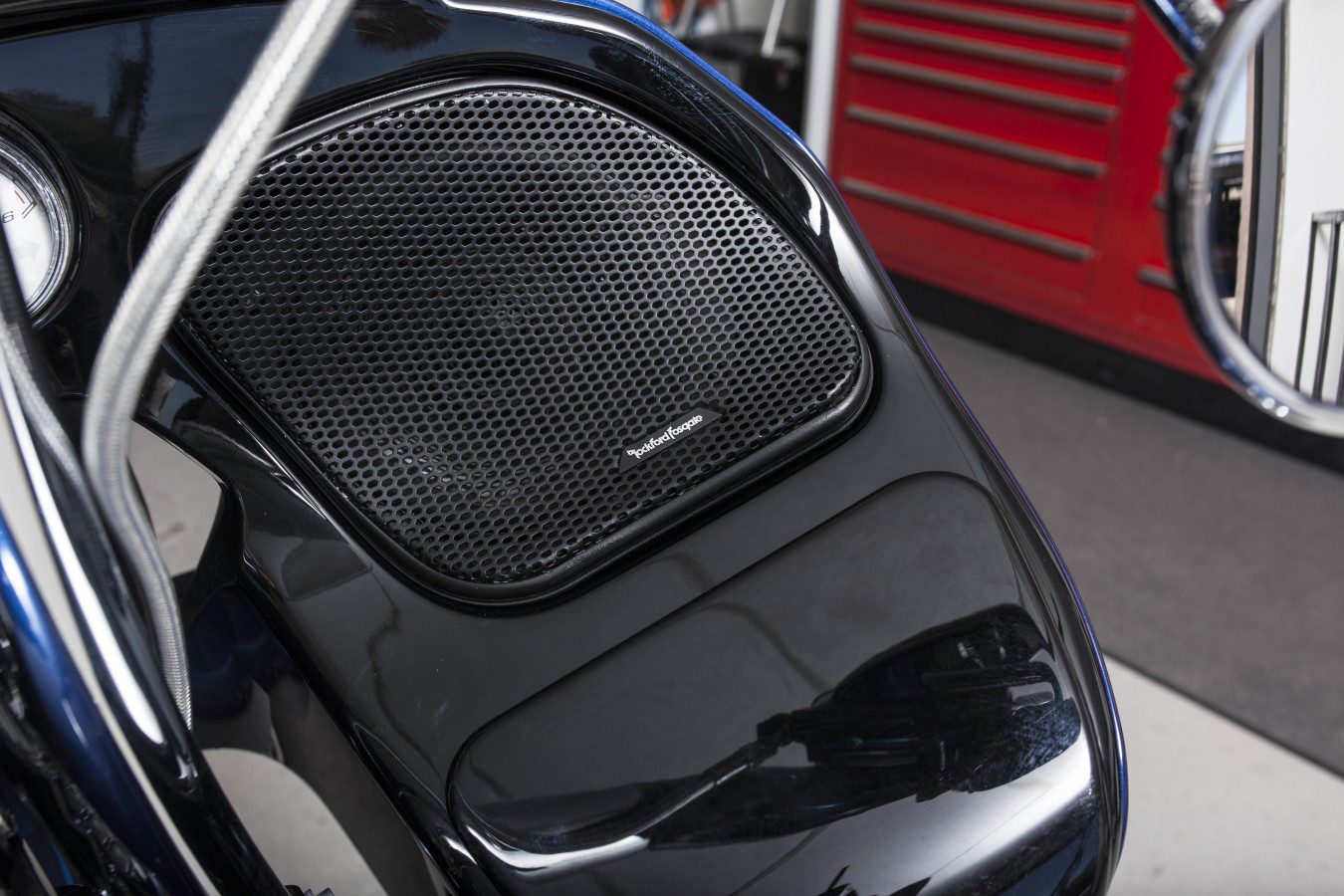

Grilles for Fairing and rear Tour-Pak included

Speaker Type: 2-Way Coax
Power Handling (RMS): 75 Watts RMS
Crossover: Built-in tweeter crossover
Vehicle Compatibility: Harley-Davidson Road Glide 2015+ Harley-Davidson Street Glide 2014+
Power Handling (MAX): 150 Watts MAX
Voice Coil Diameter (in/mm): 1.40" 35.56 mm
Frequency Response (Hz): 56 Hz - 20 kHz
Sensitivity (dB @ 1W/1M): 91 dB
Sensitivity (dB @ 2.83V/1M): 94 dB

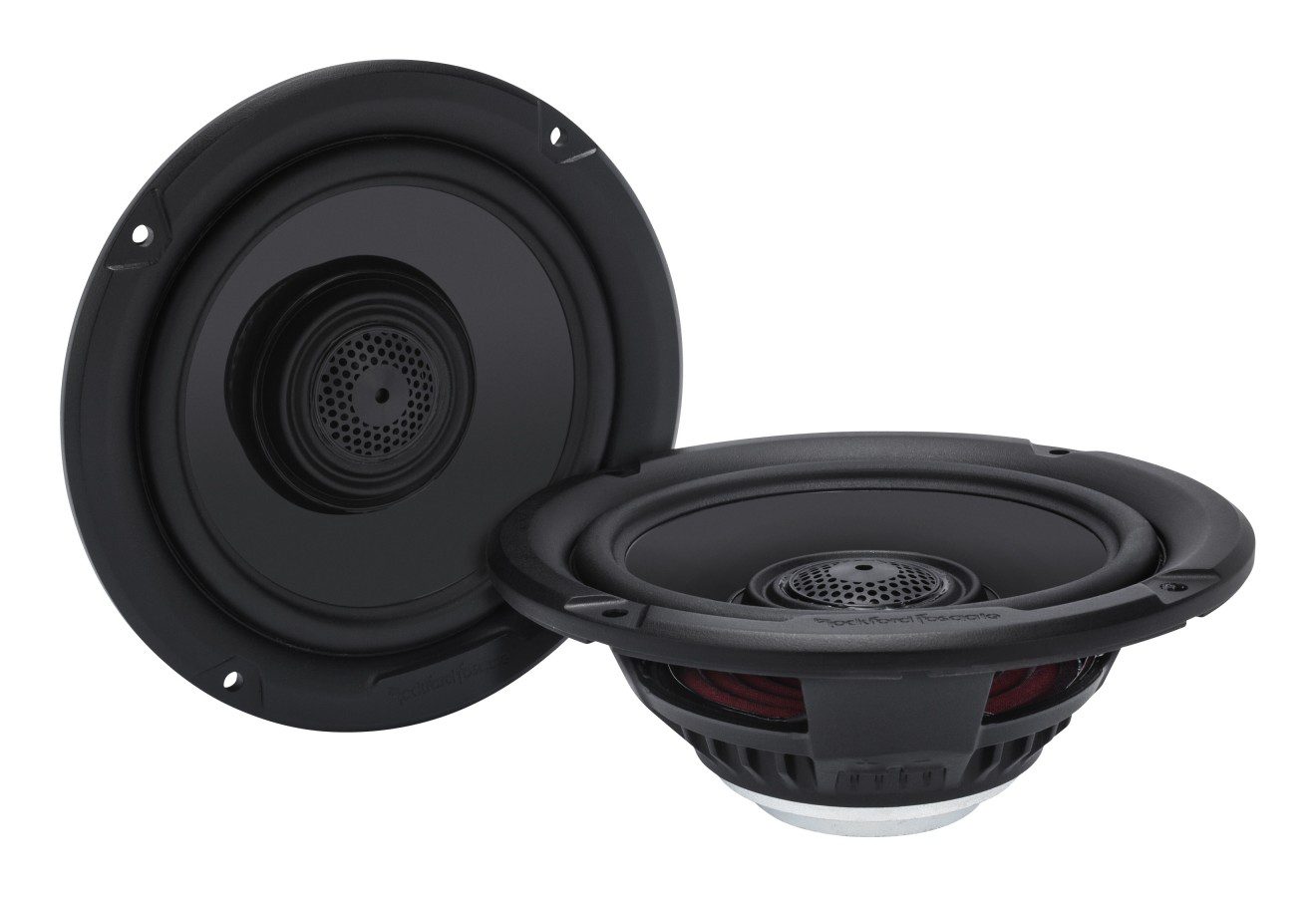

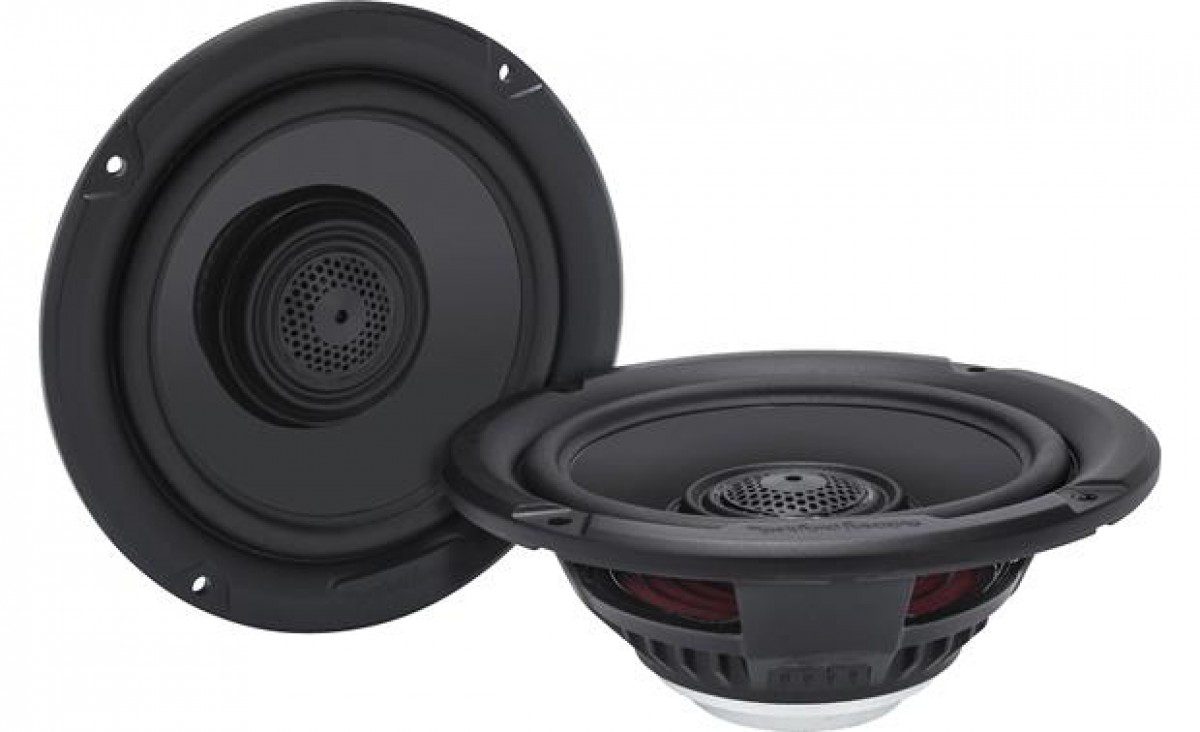

Included In The Box(2) Speakers

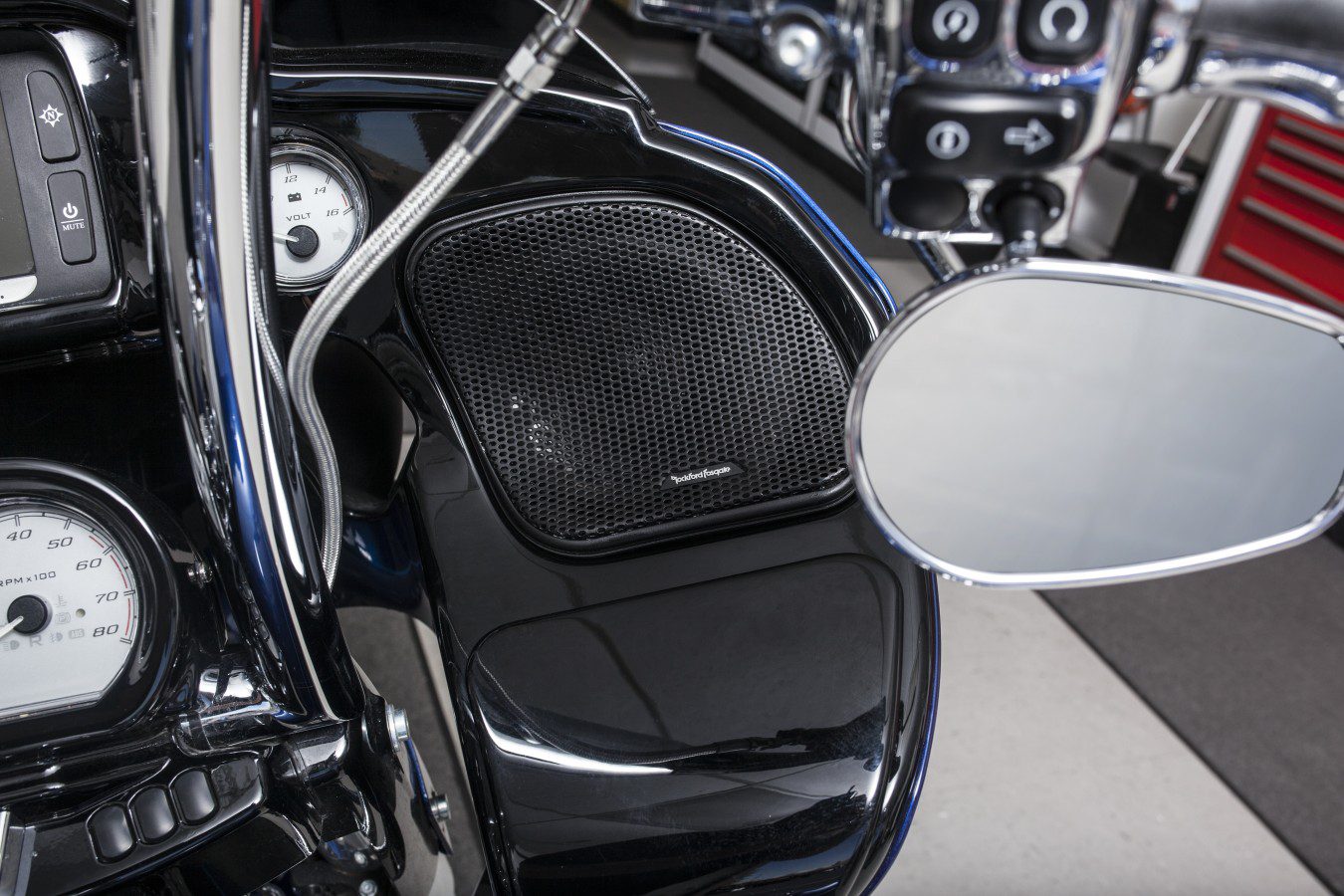

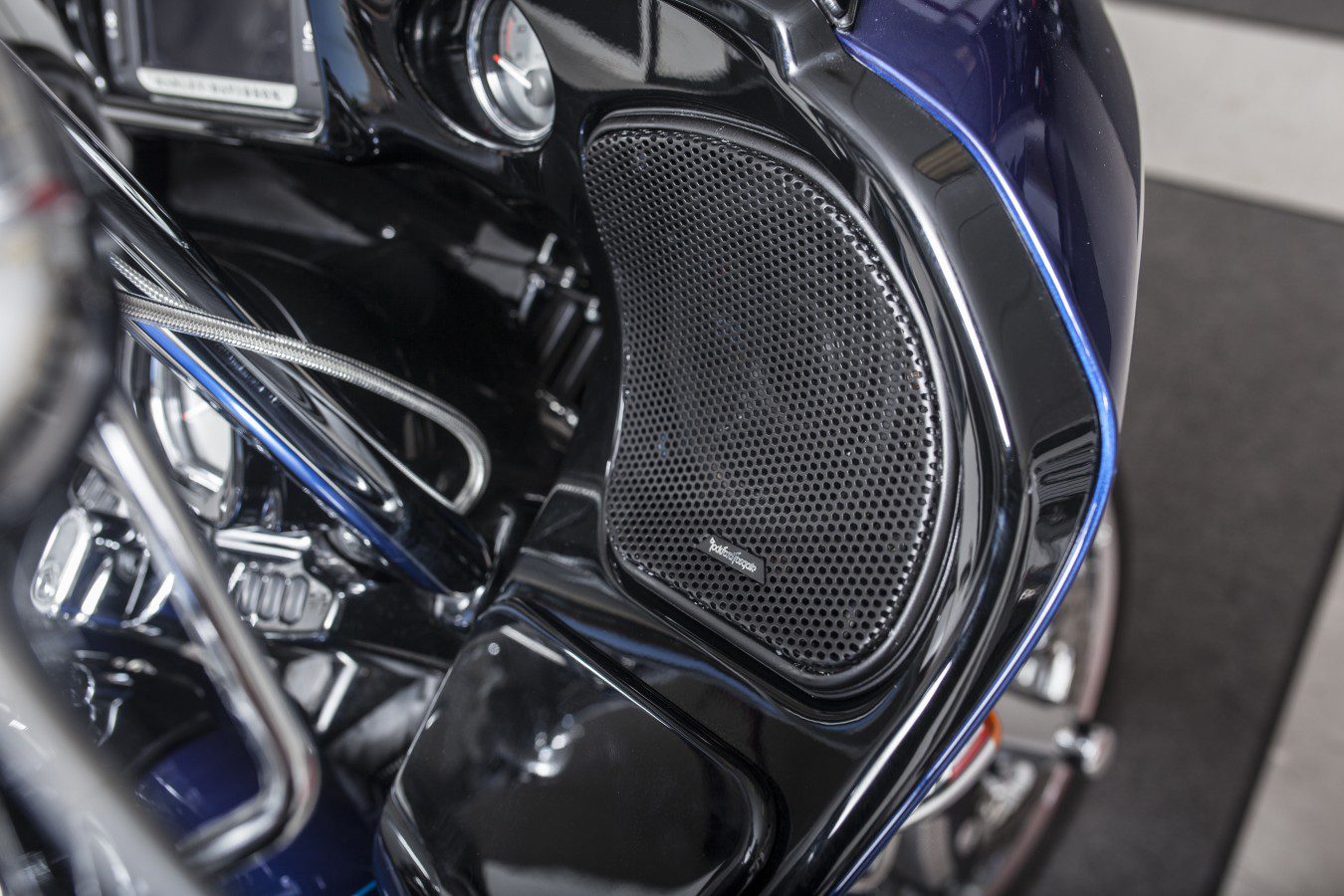

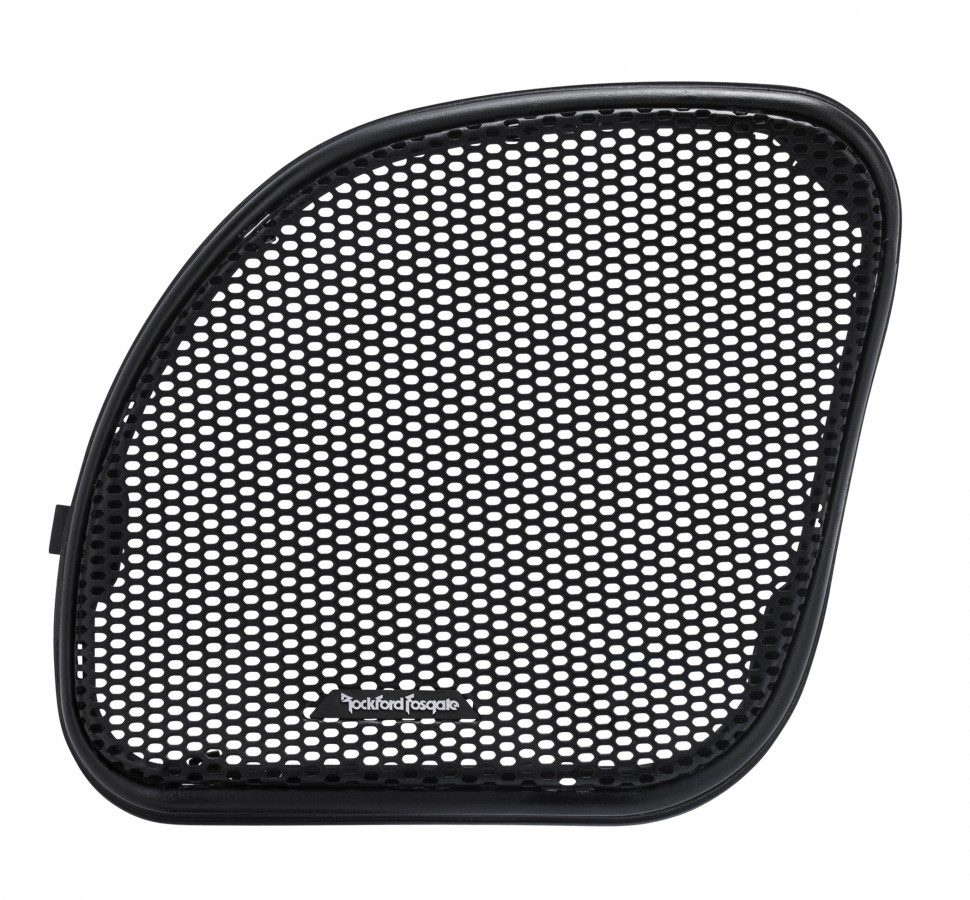

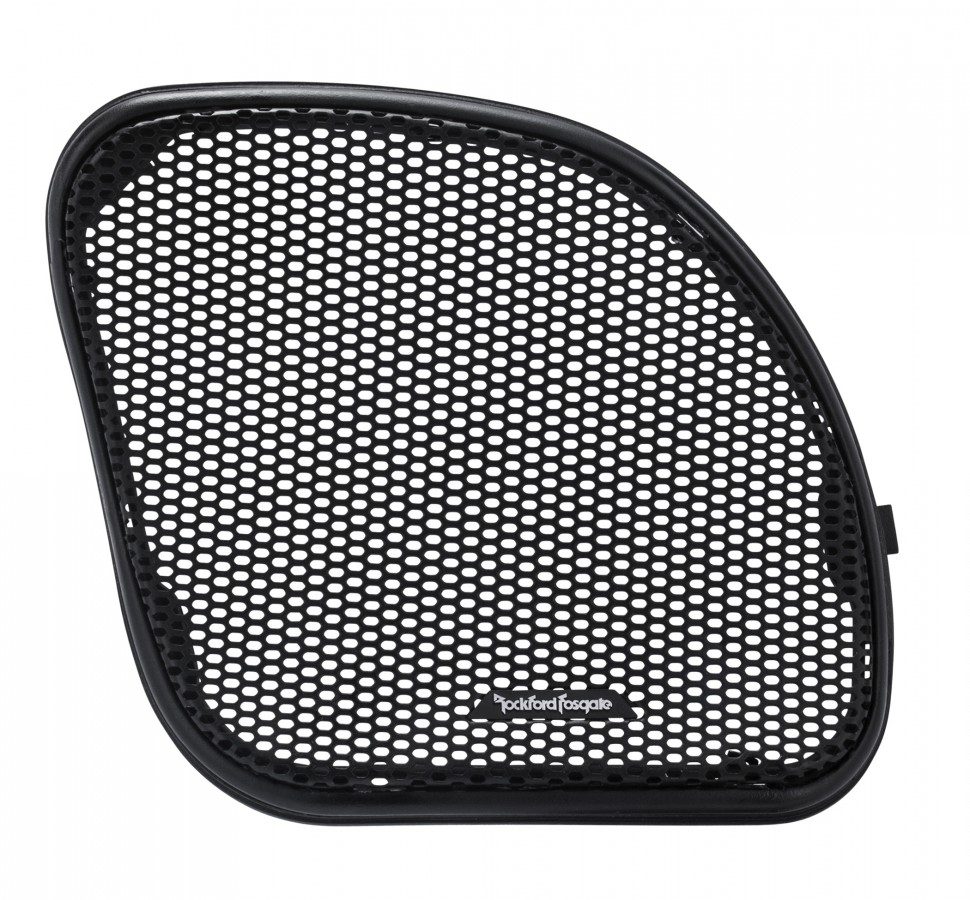

(2) 2015+ Road Glide Grilles

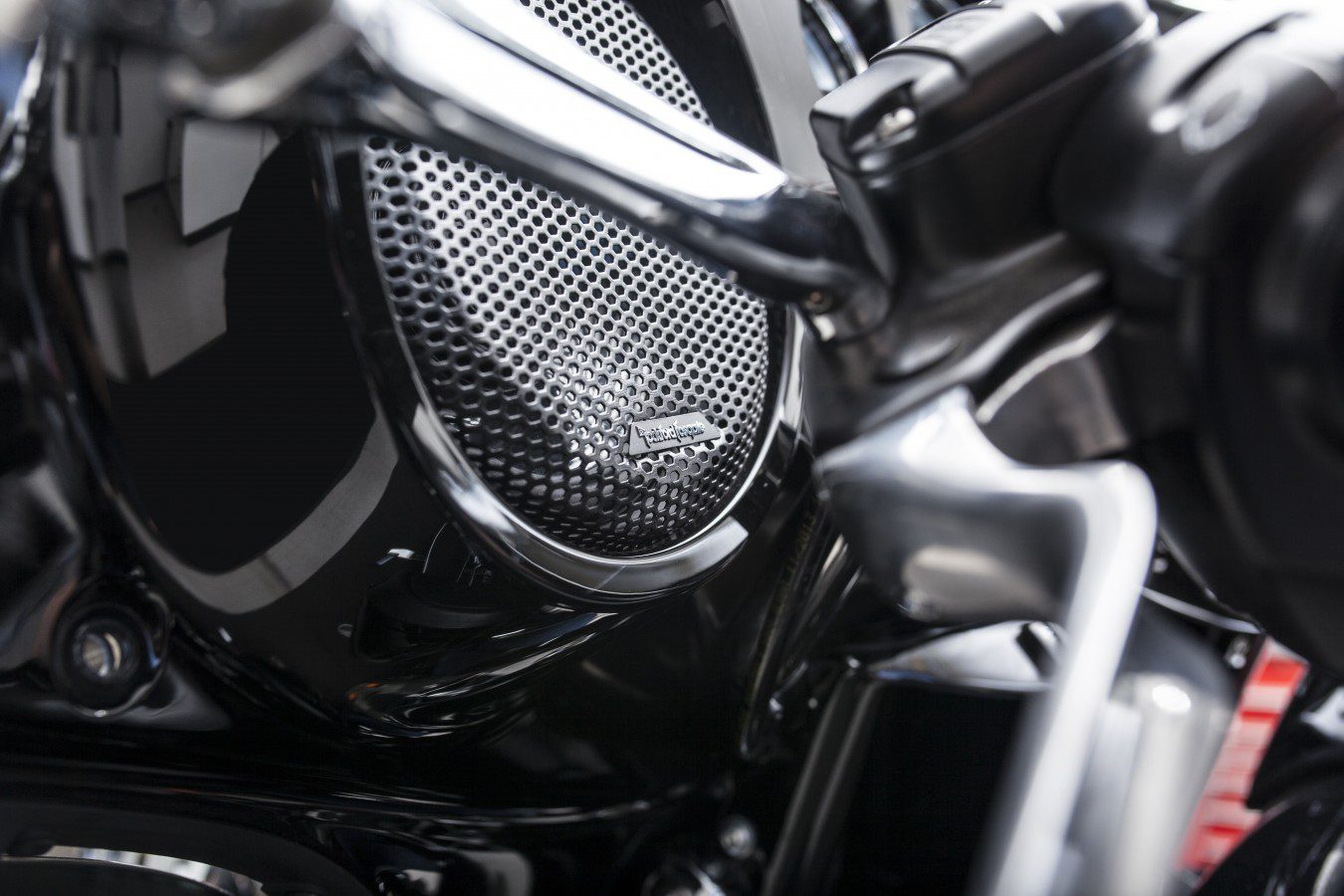

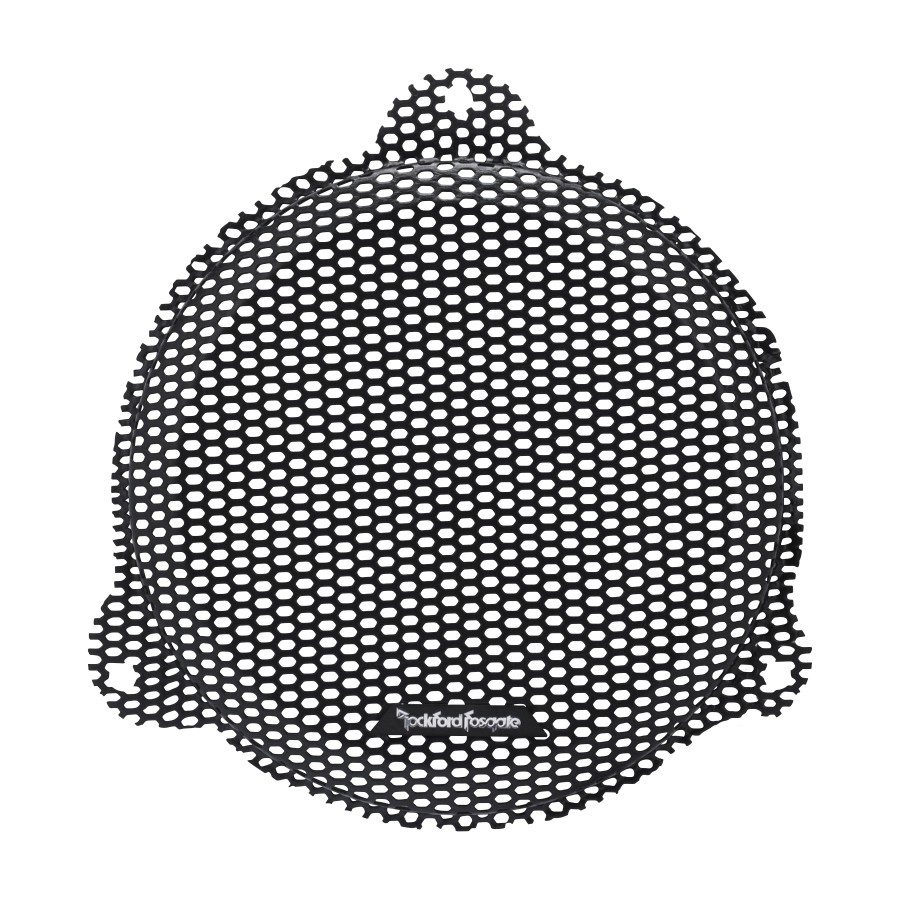

(2) 2014+ Street Glide Grilles
(2) 2014+ Tour-Pak Grilles
(1) Hardware Pack
Midrange Size (Nominal Diameter): 6.5"
Nominal Impedance (Ohms): 4-Ohm

Additional information

Weight 4 lbs
