HARLEY DAVIDSON HD14CVO-STG2

HARLEY DAVIDSON HD14CVO-STG2

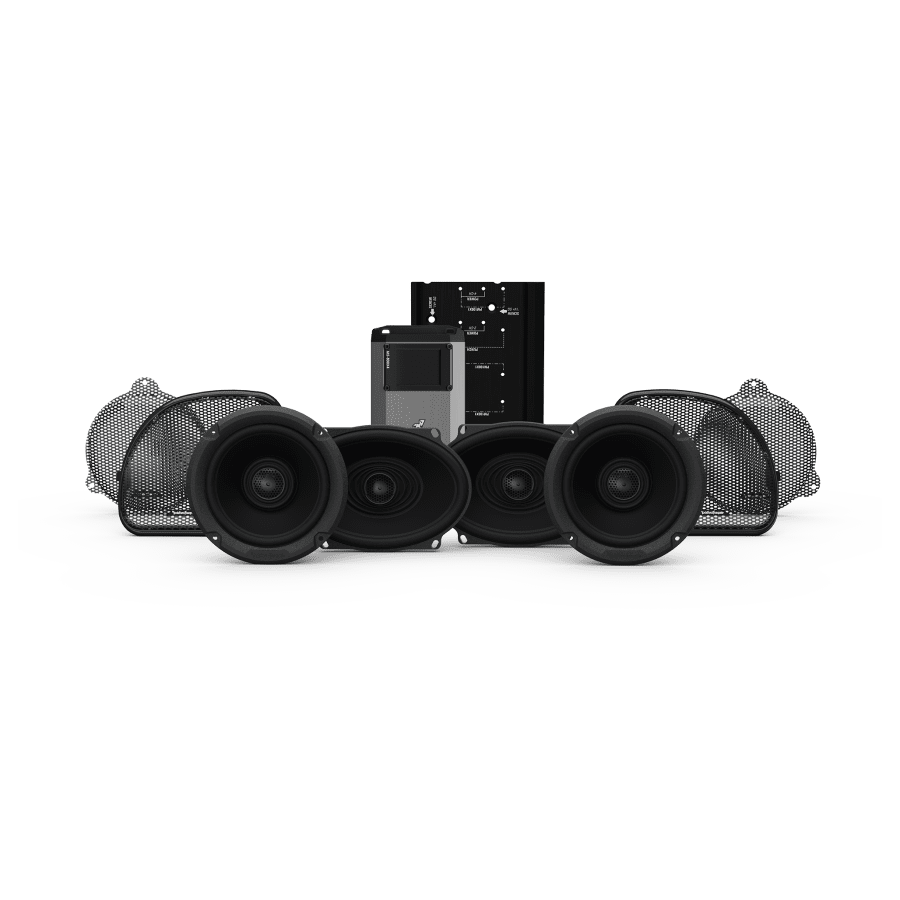

The HD14CVO-STG2 is a high-performance 4-speaker, 800-watt amplified audio system built for select 2014 and newer Harley Davidson CVO Road Glide and CVO Street Glide Motorcycles
Audio engineered to perform on the open road, our M5 audio kits are the loudest and clearest audio systems we’ve created. Featuring a simple plug-and-play installation, paired with full throttle output, this audio system delivers an exceptionally superior on-bike audio experience like no other
The Stage 2 kit includes the TMS65, a pair of powerful 6.5” full range fairing speakers featuring an ultra-efficient 25mm dome tweeter and the TMS57, a pair of Power 5"x7" full range baglid speakers, with integrated phase-aligned 25 mm tweeters
The HD14CVO-STG2 also includes our M5-800X4, 800-watt 4-channel IPX6 Element Ready amplifier and our RFK-HD14M5, amp install kit, with a direct connect wiring harnesses designed for select Harley-Davidson models
(Note: *You will need to flash your factory radio to use this kit) Famous Rockford Fosgate build quality with a full 2-year warranty when purchased from an authorized Rockford Fosgate reseller

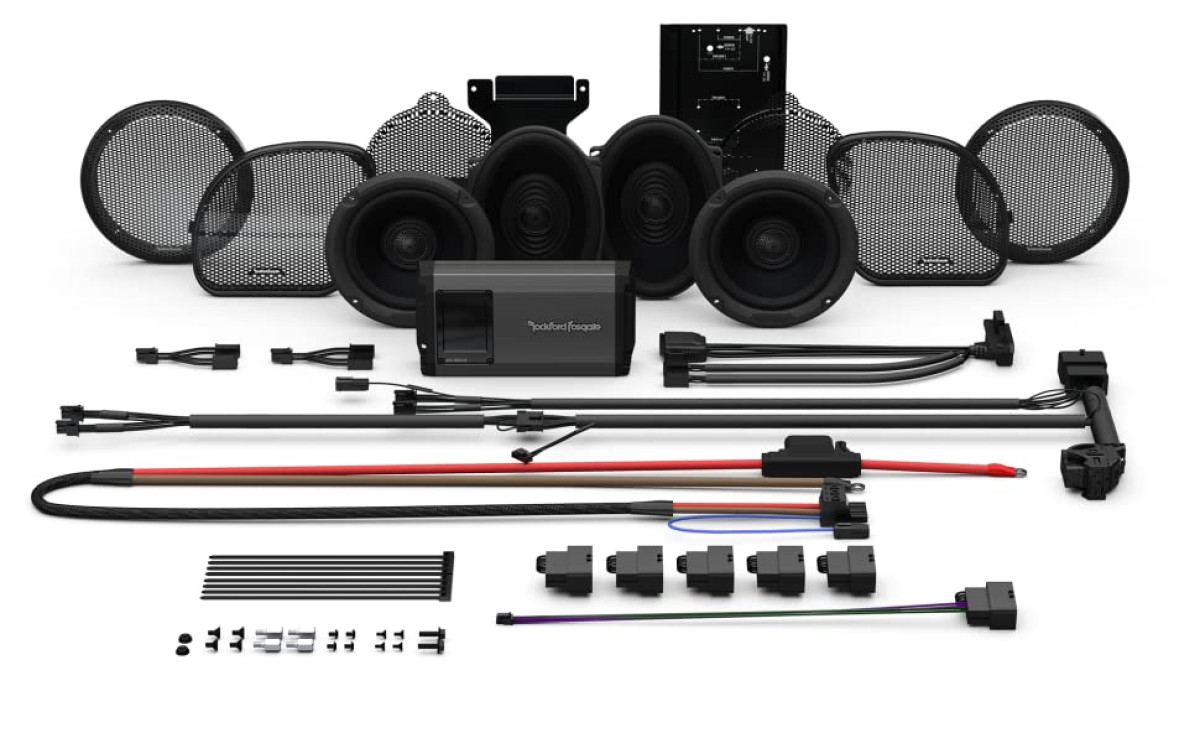

The HD14CVO-STG2 Audio Kit Includes:
Pair of Power TMS65, 6.5" 2-way Element Ready Fairing speakers with integrated phase-aligned 25 mm tweeter, and model specific grille inserts
Pair of Power TMS57, 5"x7" 2-way Element Ready Saddlebag speakers with integrated phase-aligned 25 mm tweeter
Our M5 Series, M5-800X4, 800-watt 4-channel IPX6 Element Ready amplifier
Our RFK-HD14M5, Amp install kit specifically built for the M5-800X4 on 2014+ Harley-Davidson models
Y-adaptors included in amp install kit supports expansion of lower fairing, saddlebag, or Tour-Pak speakers at a later time
T-harness integration supports front/rear fader control (requires "Rockford Fosgate 2014+ All Bikes" flash)
T-harness features loop-thru for Digital Signal Processor (Rockford Fosgate DSR1 sold separately)
90-degree harness included with amp install kit for Road Glide installations
All hardware needed for installation
No drilling or cutting required - Direct connect wiring harnesses for select Harley-Davidson models
HD14CVO-STG2
2-Step COMPATIBILITY CHECK!!
Step 1 - Confirm your Harley Davidson Motorcycle meets the below fitment criteria and you understand the use of this kit requires your factory HD radio to be flashed*
Step 2 - Confirm your Harley Davidson Motorcycle Model and Year is compatible · (see chart below – only models/years listed are compatible with this specific audio kit)
STEP 1 – Fitment Criteria & Notes for the HD14CVO-STG2 Audio Kit:

The wiring harness included in this kit is designed to interface only with factory Harley-Davidson radios (Required to have one of the following: BOOM! Box 4.3, BOOM! Box 6.5GT, or BOOM! Box GTS)
Requires factory Harley-Davidson radio to be flashed by an authorized Rockford Fosgate dealer or you will damage your speakers
Requires factory Harley-Davidson 5x7" Baglids and must be ABS plastic to insure proper fitment (Fiberglass bag-lids not compatible)
CVO Models with Factory equipped "Harley-Davidson Audio Powered by Rockford Fosgate" Speakers and Saddlebag amplifier are NOT compatible
STEP 2 - COMPATIBILITY CHART for HD14CVO-STG2 (Stage 2)
YEAR MAKE – MODEL – CHASSIS
2018 - 2020 Harley Davidson - CVO Road Glide - FLTRXSE
2015 - 2020 Harley Davidson - CVO Street Glide - FLHXSE
