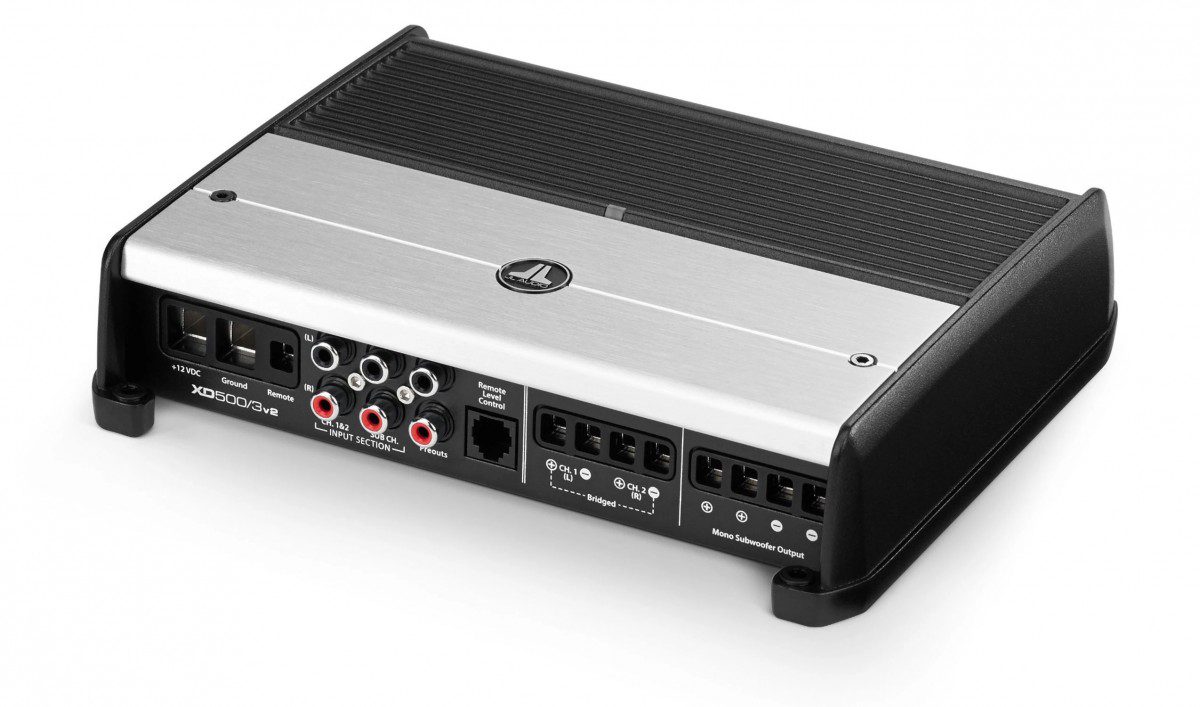

JL AUDIO XD500/3v2
JL AUDIO XD500/3v2 XD SERIES 500 WATT 3 CHANNEL
- Additional information
JL AUDIO XD500/3v2 XD SERIES
3-Channel Class D System Amplifier, 75 W x 2 @ 4 Ω + 300 W x 1 @ 2 Ω – 14.4V
This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.
The XD500/3v2 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.
The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier’s level can be directly controlled from the driver’s seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
Frequency Response (Main Channels) 12 Hz – 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz – 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >120 / 50 Hz
Damping Factor @ 2 Ω >60 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
|Dimensions||8.52 × 7.09 × 2.05 in|
