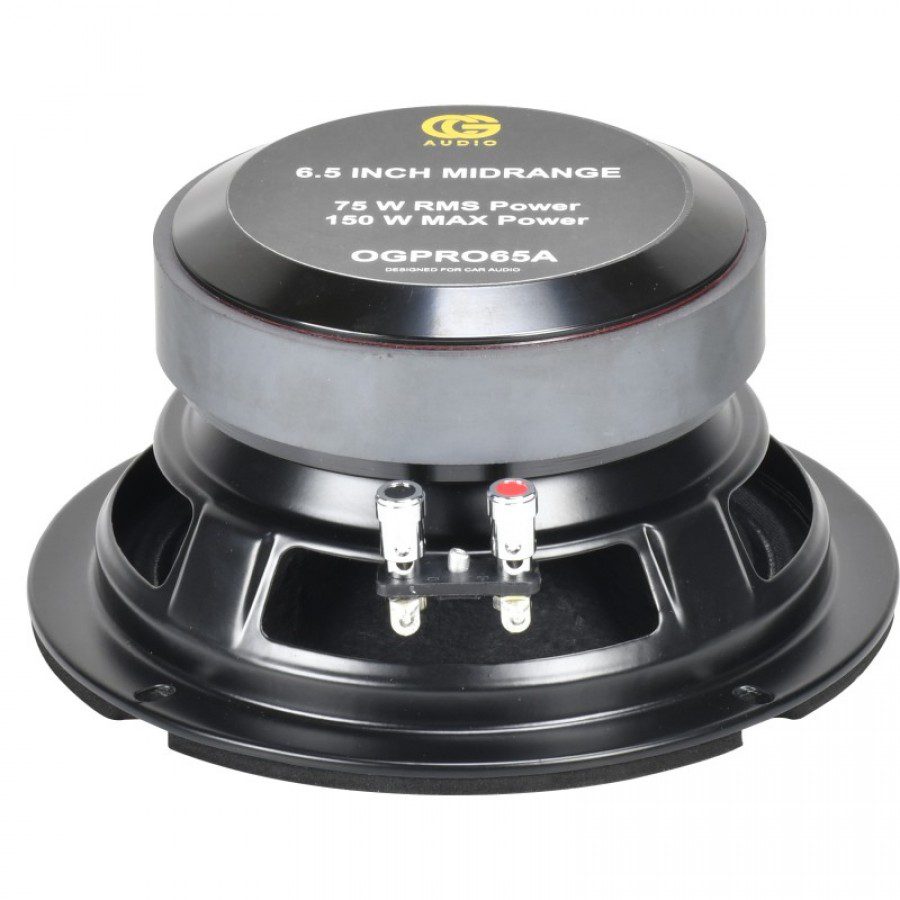

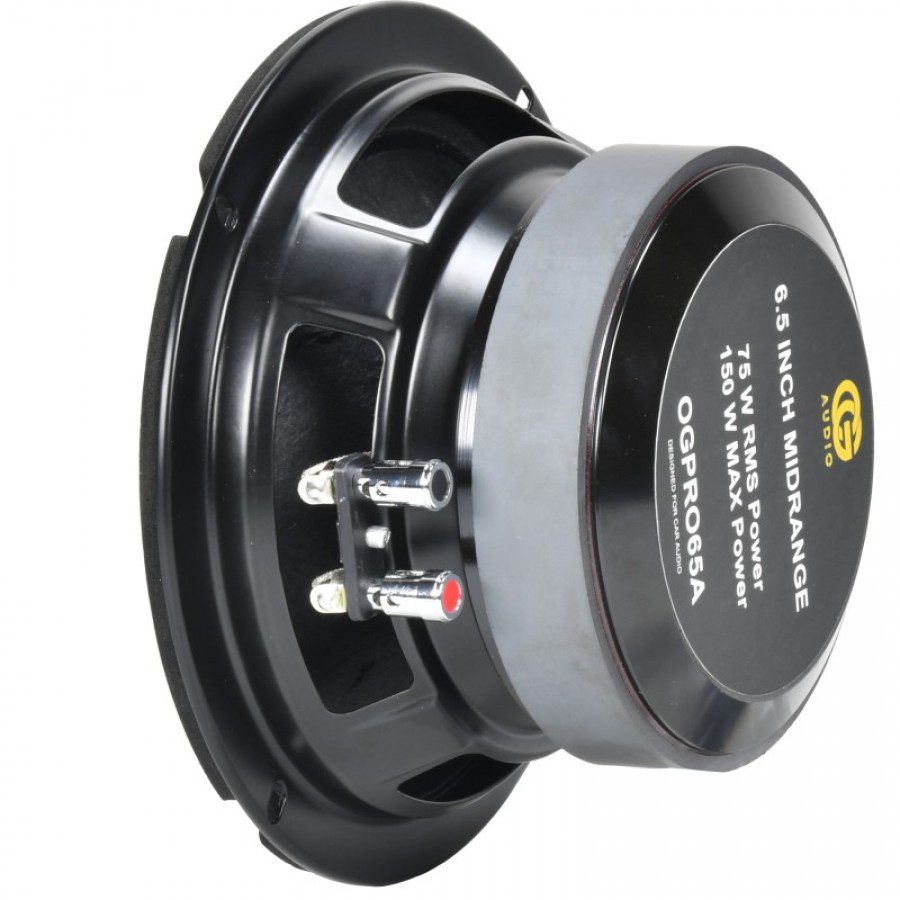

OG AUDIO OGPRO65A PRO 65A 6.50 IN MIDRANGE 150 WATT PEAK 75 RMS SPEAKER

OG AUDIO OGPRO65A
The OG Audio PRO65A subwoofer was designed to be the most responsive CAR MIDRANGE, powerful, and efficient 6.5 inch subwoofer on the market. Don't be fooled by the size, the OG-65 is one monster of a subwoofer, featuring a 2-layer 1.5" pure copper voice coil, and a powerful MAGNET SYSTEM TYPE FERITE . The small size of this driver allows it to be very versatile, as it can be used in a variety of applications where adding a woofer might not otherwise be possible.
Conservatively rated at 75 watts RMS Power, and 150 watts max power, the OG-65 features design diecast chassis which utilizes an advanced air flow cooling system to help dissipate heat. The suspension design of this subwoofer is highlighted by its unique Kapton coil bobbin - which connects to the coil former with premium stitched lead wires. All of these incredible features make the OG-65 the obvious choice when looking for a versatile 6.5-inch car subwoofer. IT'S really the best choice for midrange car.

General Data
Unit Overall Dimensions : 168*86mm
Nominal Power Handling : 75W
Transient Power: 10ms 150W
Sensitivity: 93.5 dB
Frequency Response: 145-10KHz
Cone Material: Paper
Net Weight: 2.2kg

Electrical Data
Nominal Impedance: Dual 4 Ohm
DC Resistance: Dual 3.2 Ohm

Voice Coil and Magnet Parameters
Voice Coil Diameter: 38.6mm
Voice Coil Height: 8.4mm
HE Magnetic Gap Height: 6mm
Max.Linear Excursion: 1.6mm
Voice Coil bobbin: Kapton
Voice Coil Wire: CCAW
Number Of Layers: 2 layers

Magnet System Type
Ferrite
BL Product 7.2

T-S Parameters
Suspension Compliance: Cms 0.11
Mechanical Q Factor: Qms 4.86
Electrical Q Factor: Qes 0.6
Total Q Factor: Qts 0.53
Moving Mass: Mms 10.5
Eq.Cas Air Load( liters): VAS 2.83 Liter
Resonant Frequency: Fs 145Hz
Effective Piston Area: SD 132.7cm²
