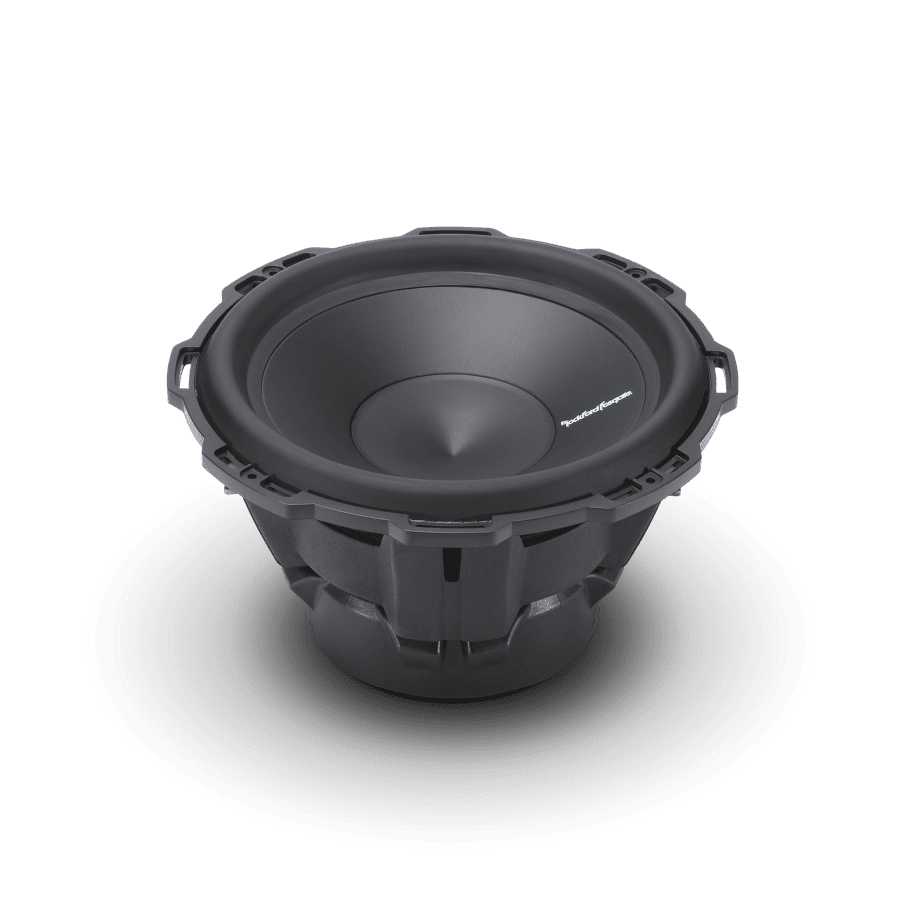

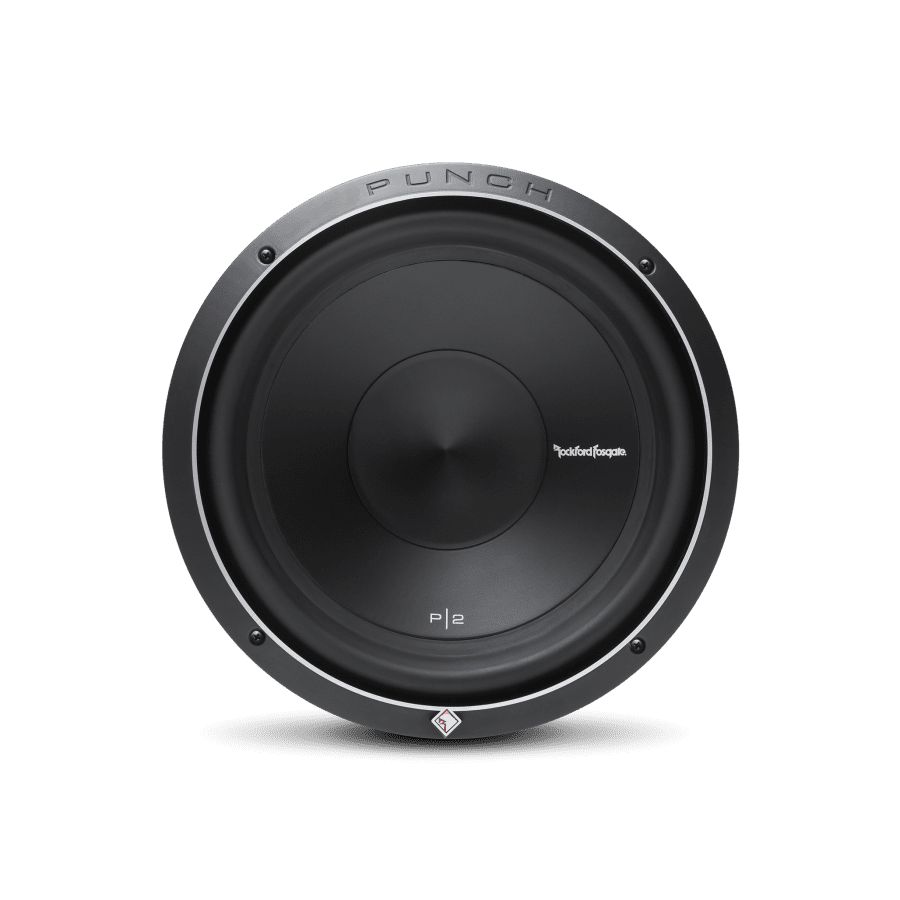

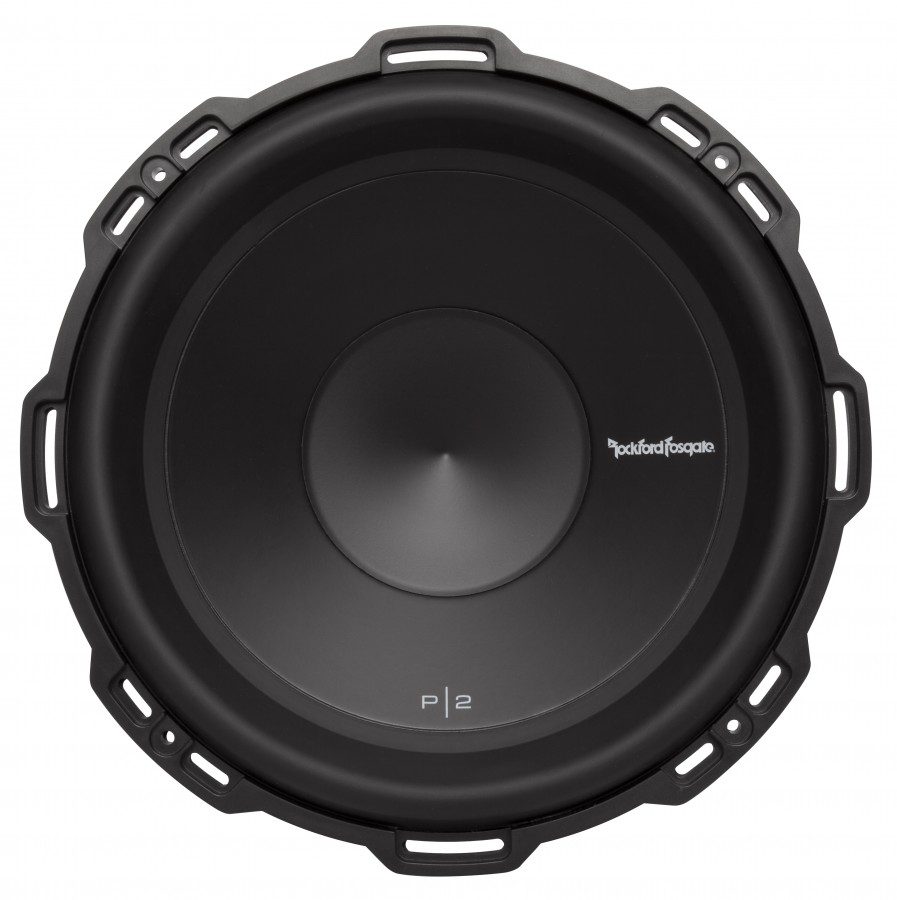

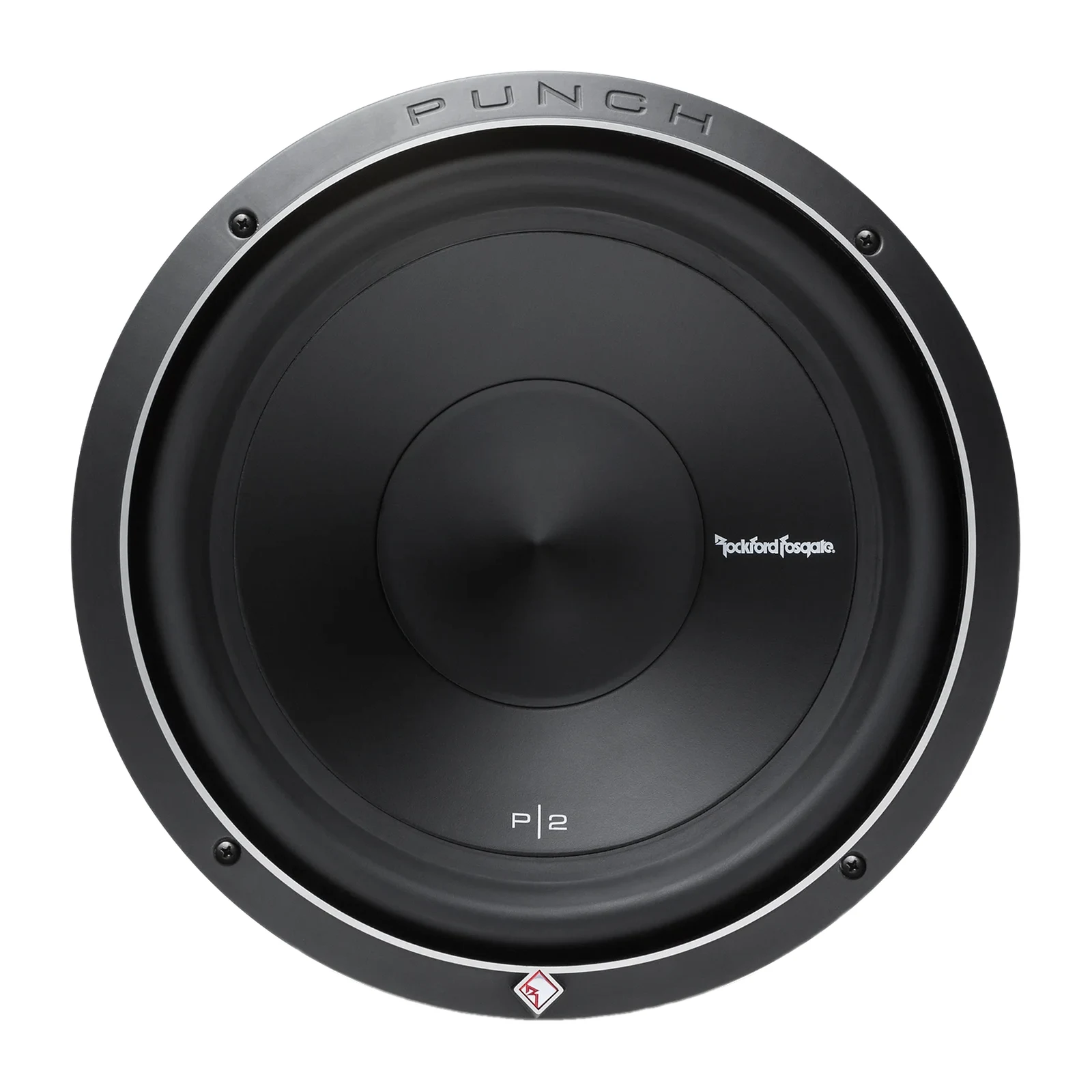

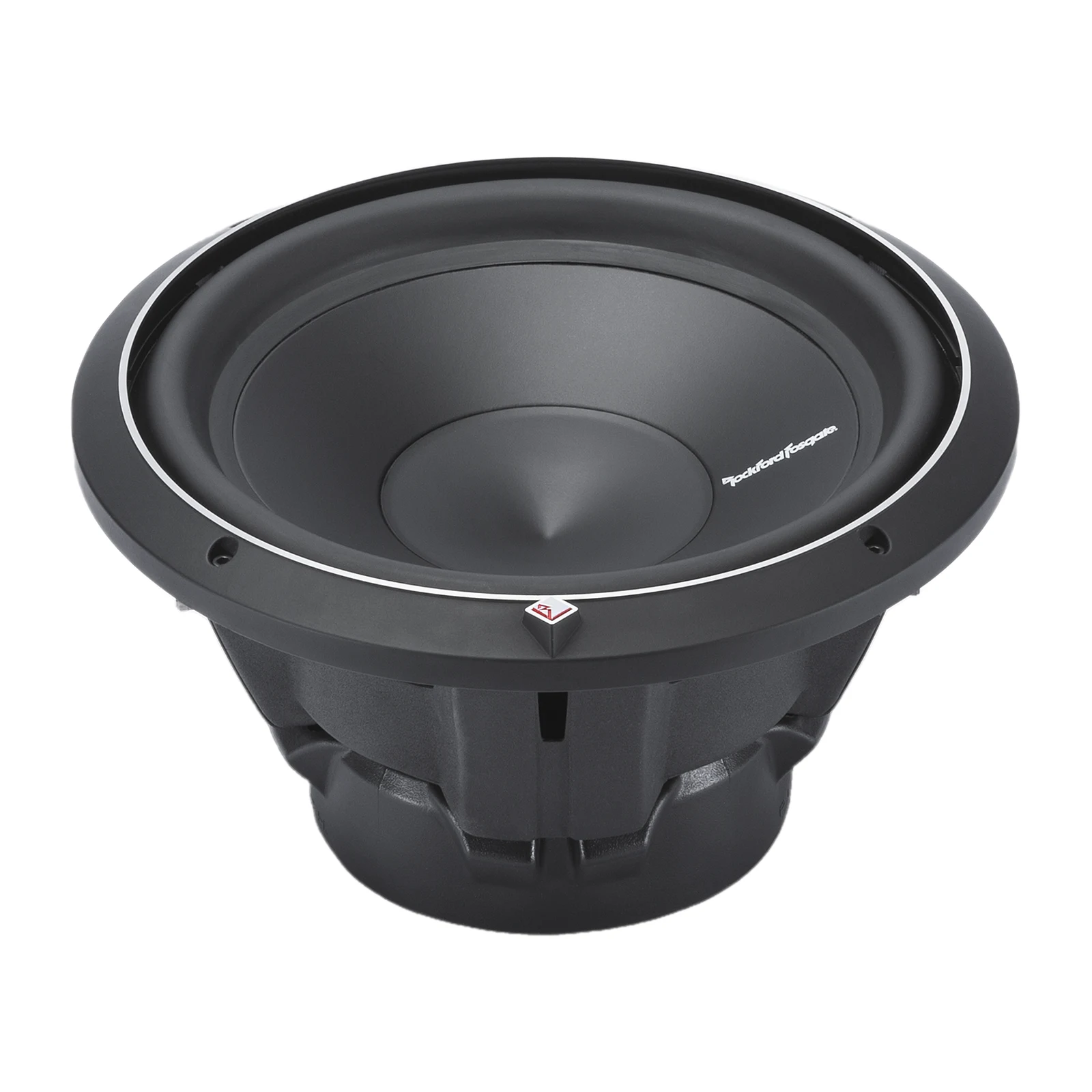

Rockford Fosgate Punch P2D2-12 12in Dual 2 Ohm 400 Watts Subwoofer

Rockford Fosgate P2D2-12 12-inch car subwoofer with dual 2-ohm voice coils, 400 Watts RMS power handling, a Kevlar fiber-reinforced paper cone, and sealed or vented enclosure compatibility.

$199.99

1 in stock

Description

The Sub At A Glance:

  • Power handling: Handles 400 Watts RMS and 800 Watts max power.
  • Dual voice coils: Dual 2-ohm configuration with a 2.25-inch high-temperature voice coil and spun-laced Nomex reinforcement collar.
  • Reinforced cone: Kevlar fiber-reinforced paper cone delivers bass impact you can feel.
  • VAST technology: Increases usable cone surface area by up to 25%.
  • Heavy-duty suspension: Dual linear spider with embedded 16-AWG tinsel leads.

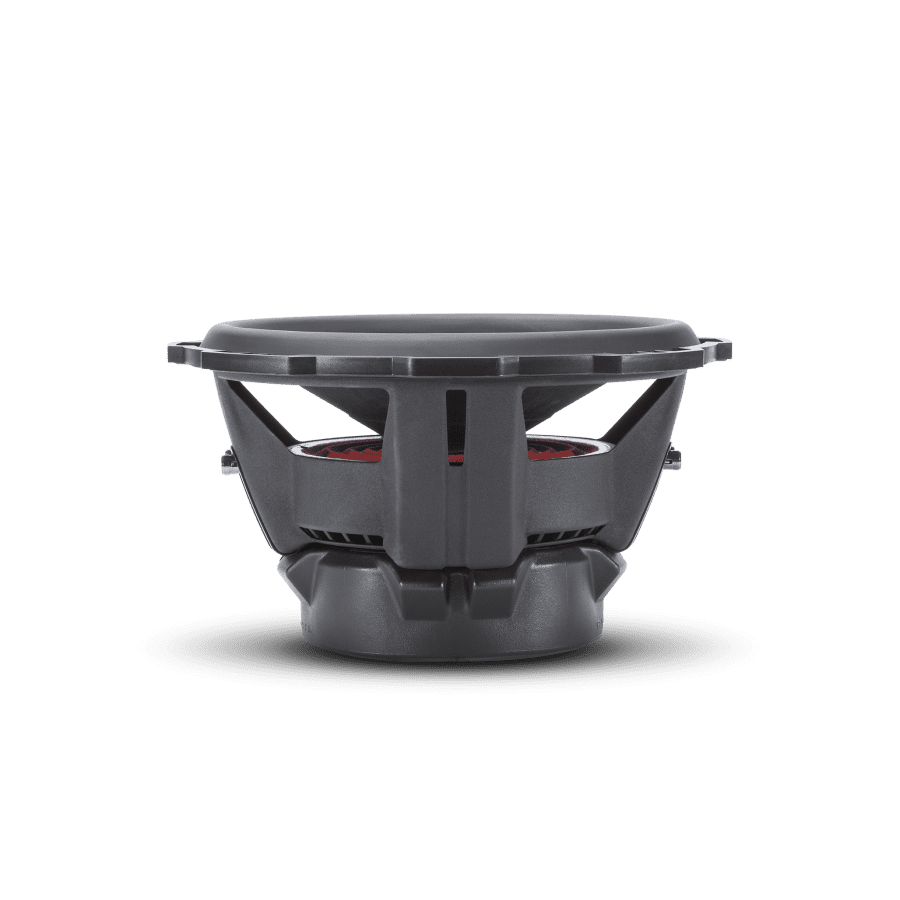

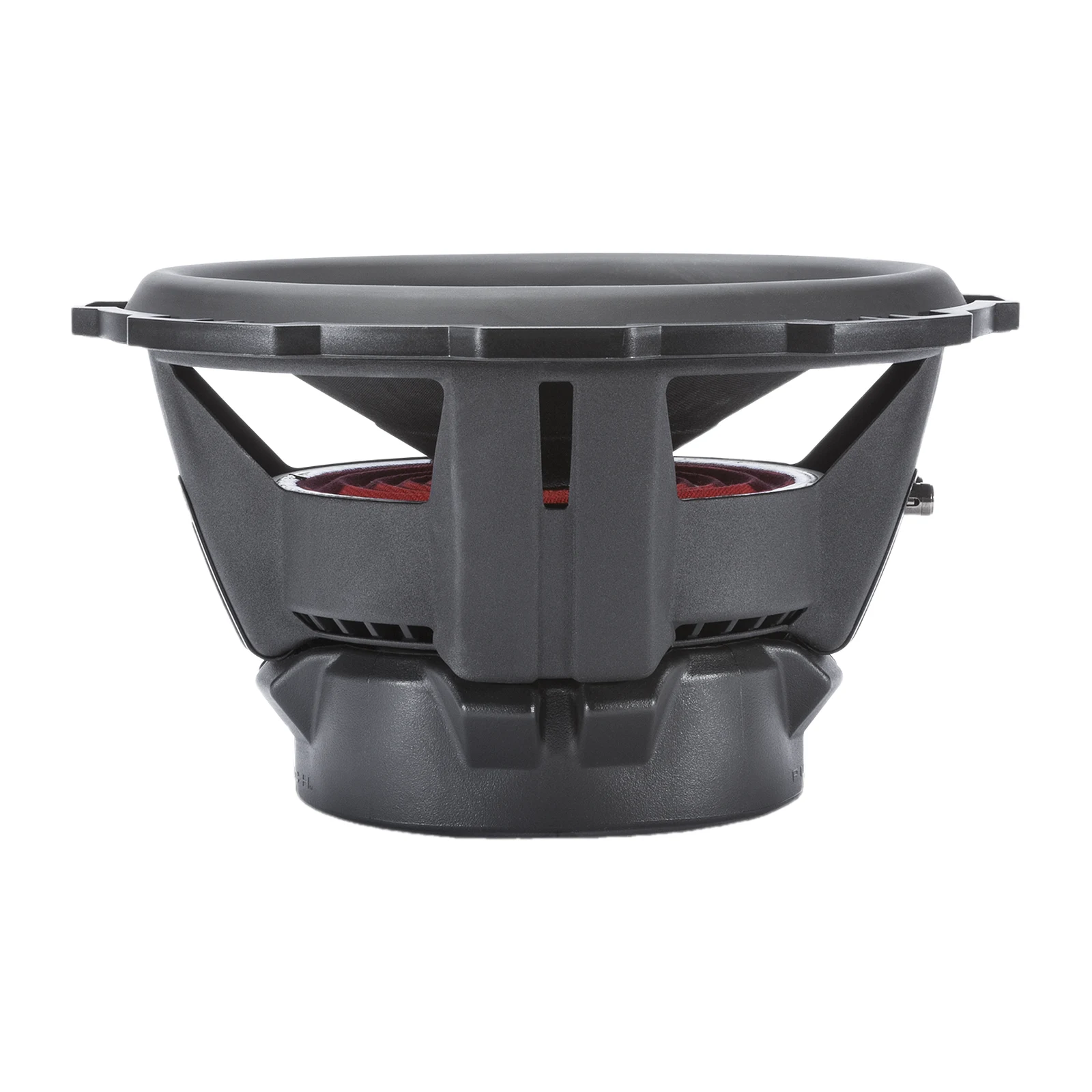

  • Durable frame: StampCast basket with integrated spider venting, plus a protective PVC-textured magnet cover.
  • Enclosure flexibility: Performs best in standard sealed and vented enclosures.

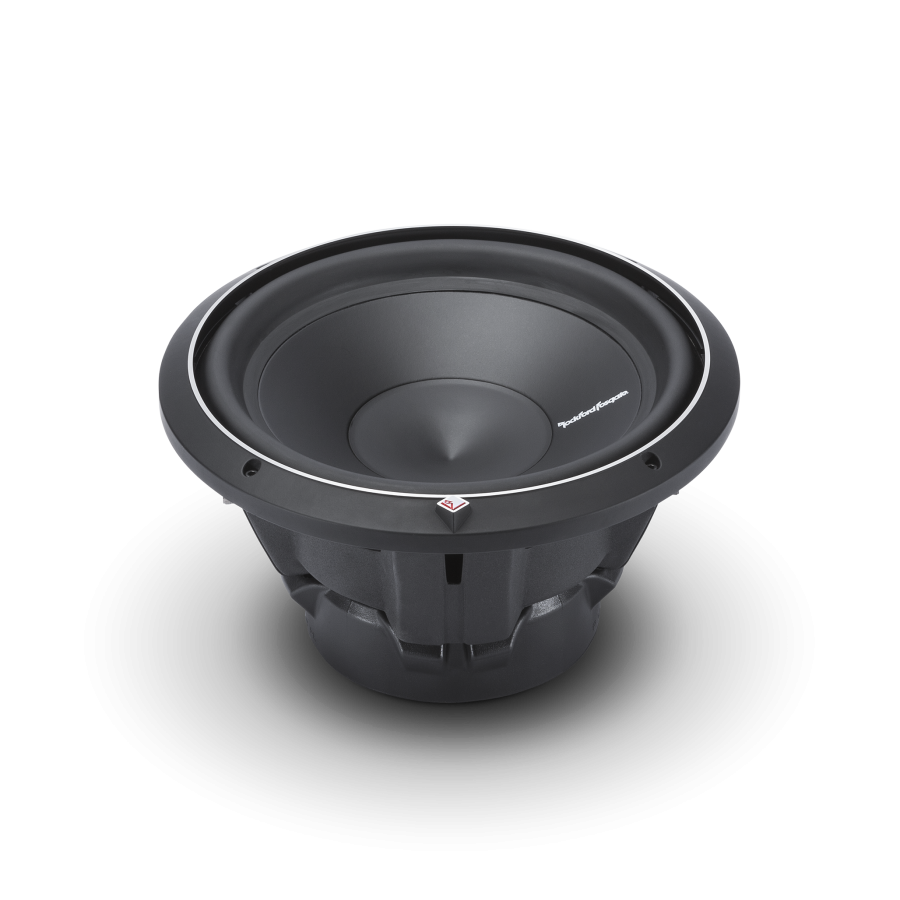

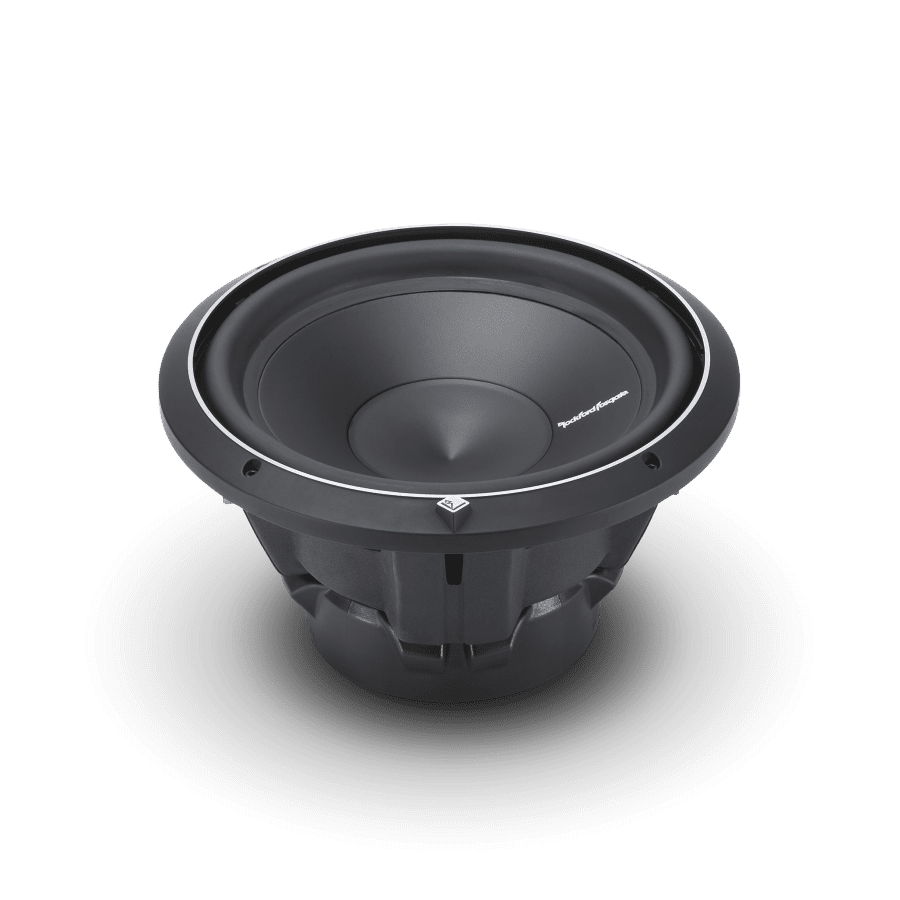

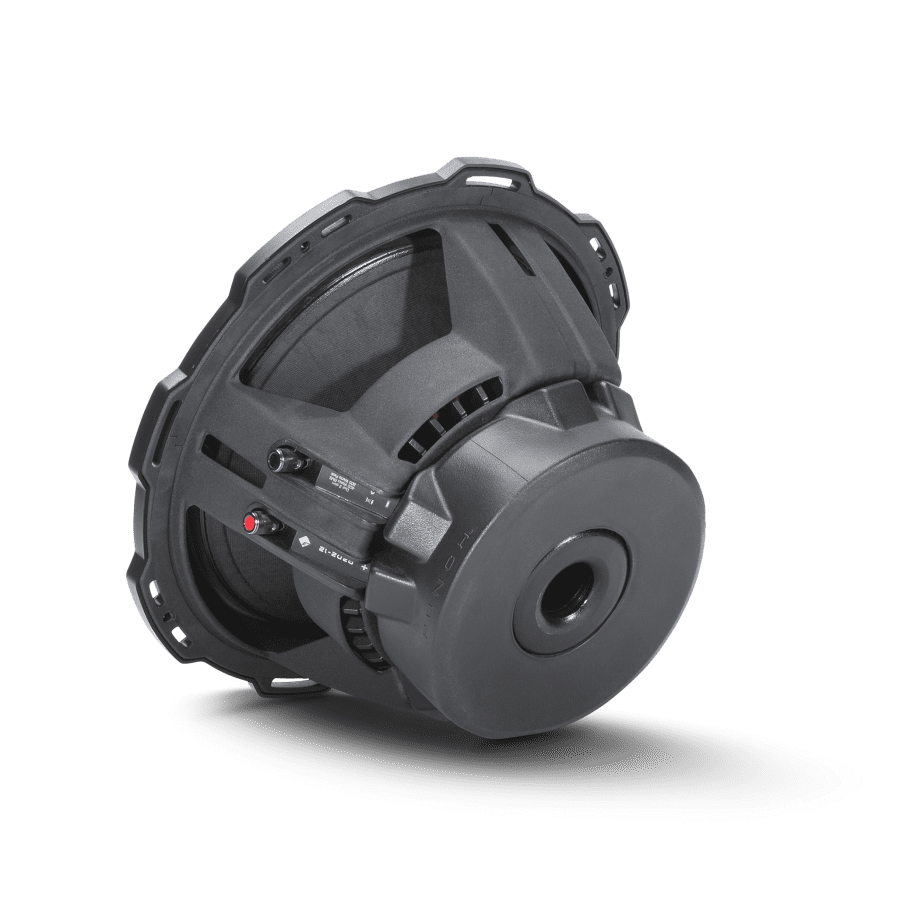

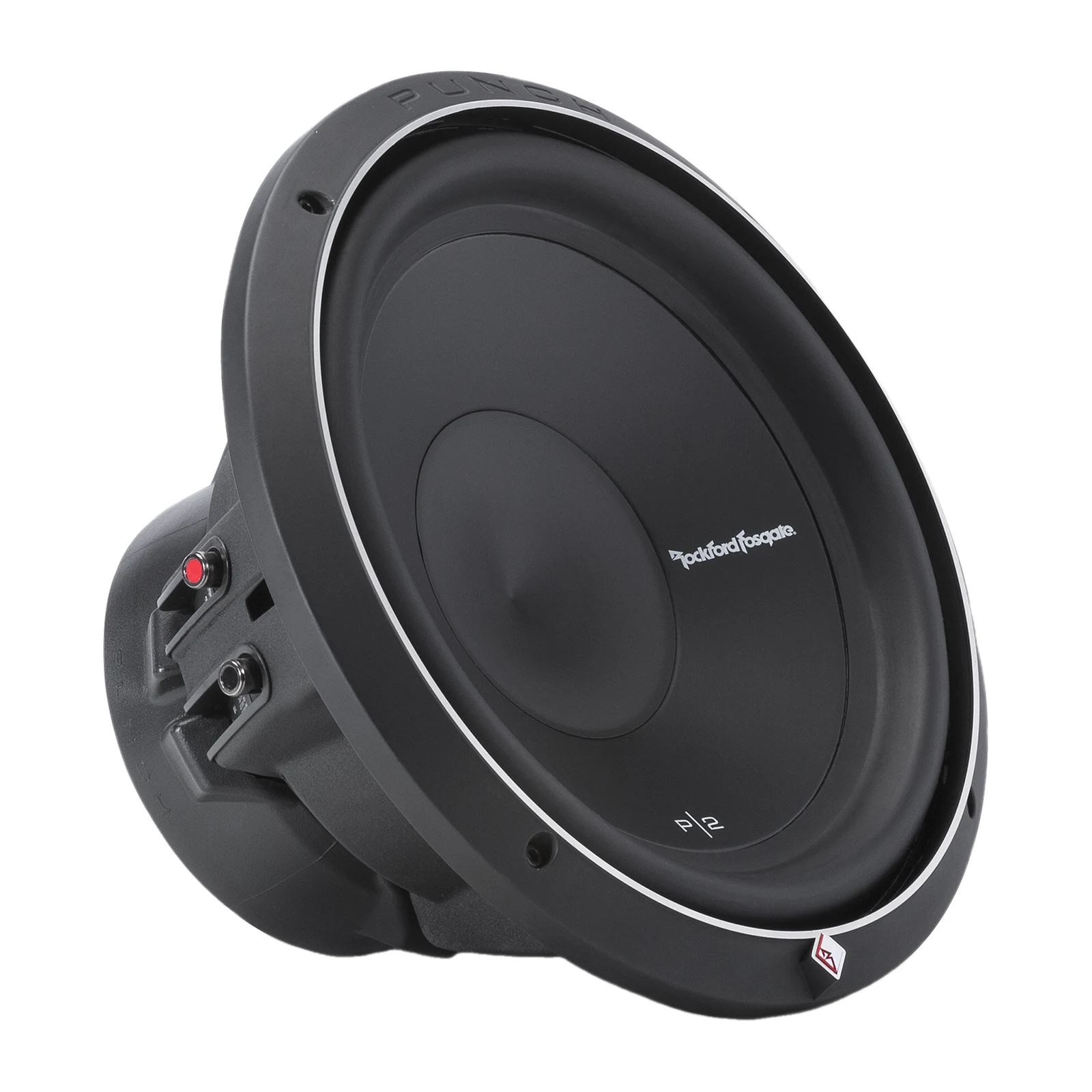

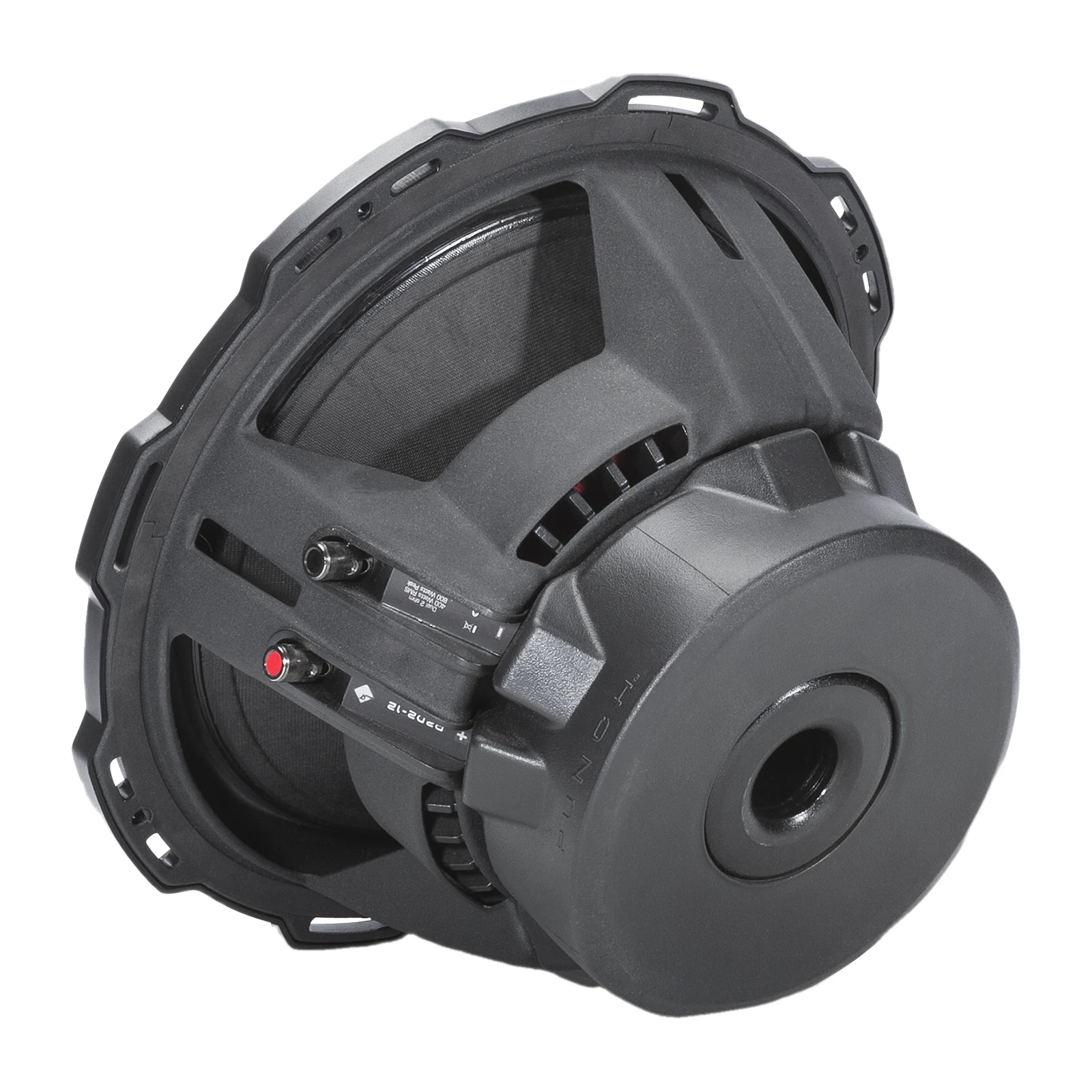

  • Installation-ready details: Custom 10-AWG nickel-plated push terminals and an included diamond-cut cast-aluminum trim ring that accepts an optional grille insert.

The Rockford Fosgate P2D2-12 brings the PUNCH tradition to your vehicle with low-end depth that adds weight and physical impact to every beat. Its reinforced cone and VAST technology move bass with an authoritative rumble, helping kick drums land harder and deep notes feel more substantial throughout the cabin. Whether installed in a standard sealed or vented enclosure, this 12-inch subwoofer is built to deliver the kind of bass presence you do not just hear—you feel.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 400 Watts
Sub Max Power 800 Watts
Sub Impedance Dual 2 Ohm
Voice Coils Dual
Voice Coil Diameter 2.25in (57.15 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 13.3mm
Sound Pressure Level (SPL) @ 1W/1m 86dB
Resonant Frequency (Fs) 26Hz
DC Resistance (Re) 3.30Ohm
Voice Coil Inductance (Le) 3.7mH
Total Q (Qts) 0.52
Electrical Q (Qes) 0.56
Mechanical Q (Qms) 6.50
Equivalent Compliance Volume (Vas) 81.5Liters
Effective Cone Area (Sd) 570cm²
Fitment & Dimensions
Woofer Displacement 0.085 cu. ft. (2.4 Liters)
Mounting Depth 6.40 in. (162 mm)
Cutout Diameter 11.22 in. (285 mm)
Magnet Weight (oz) 72.8 oz. (2.06 kg.)
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 15.6 Lbs. (7.07 kg)

Additional information

Weight 16 lbs
Sub Size

Sub Impedance

Sub Max Power

800 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Dual

Series

Punch
