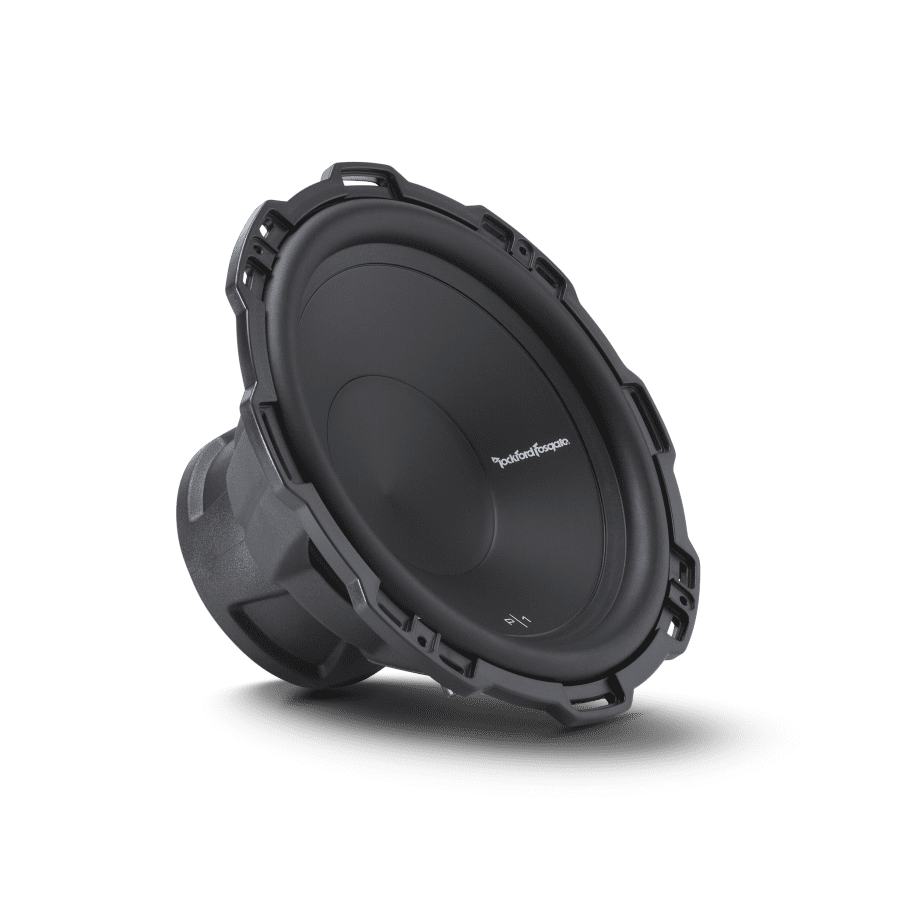

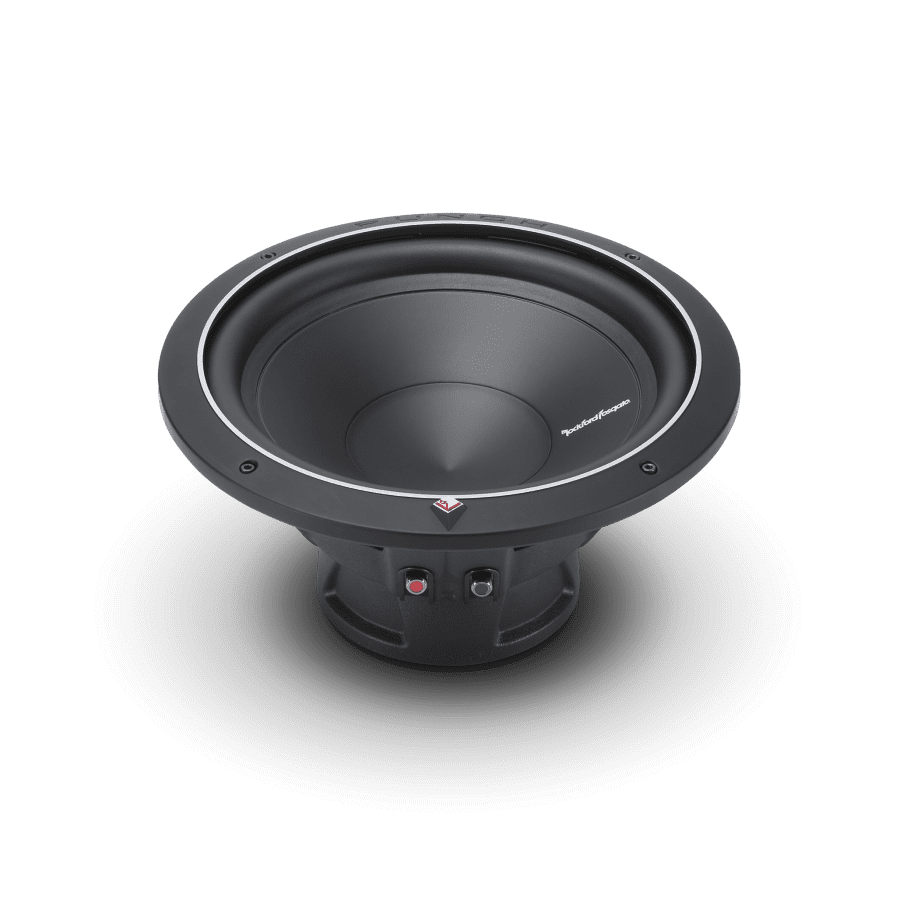

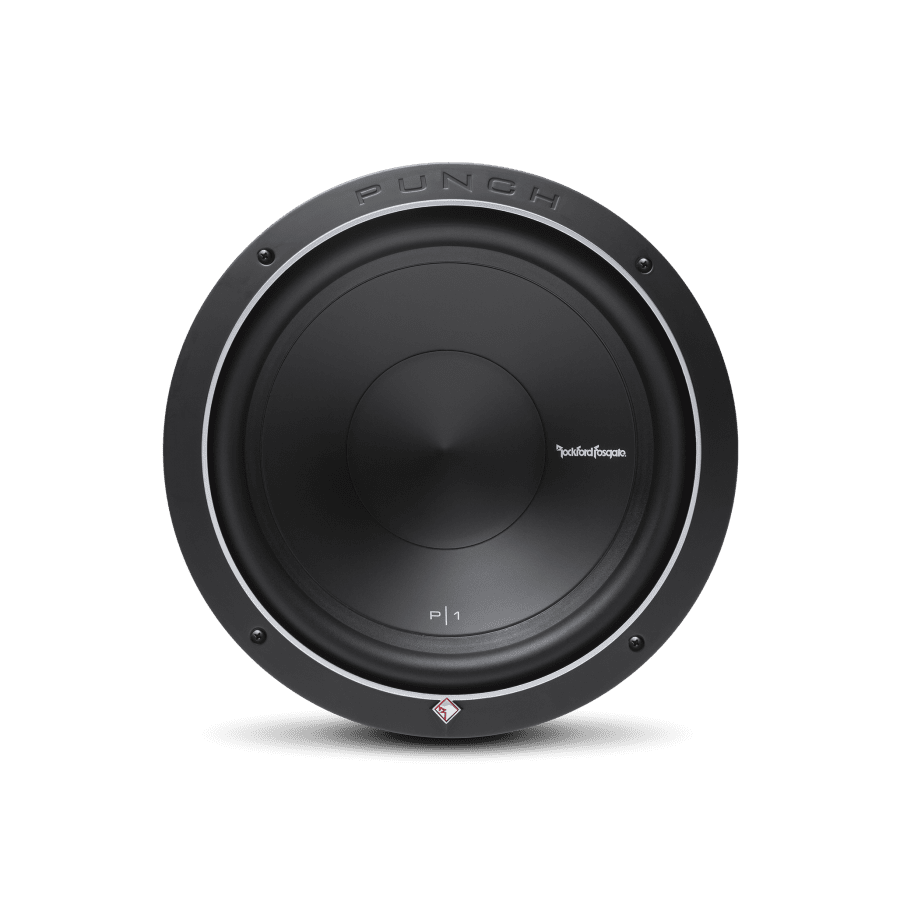

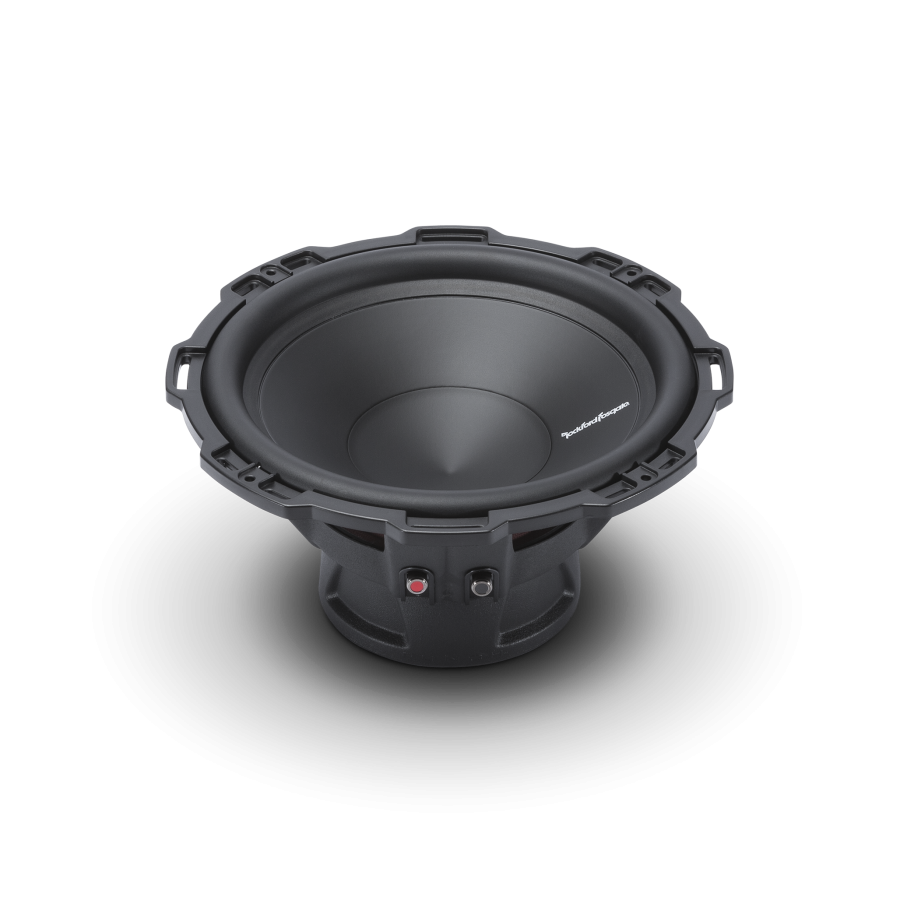

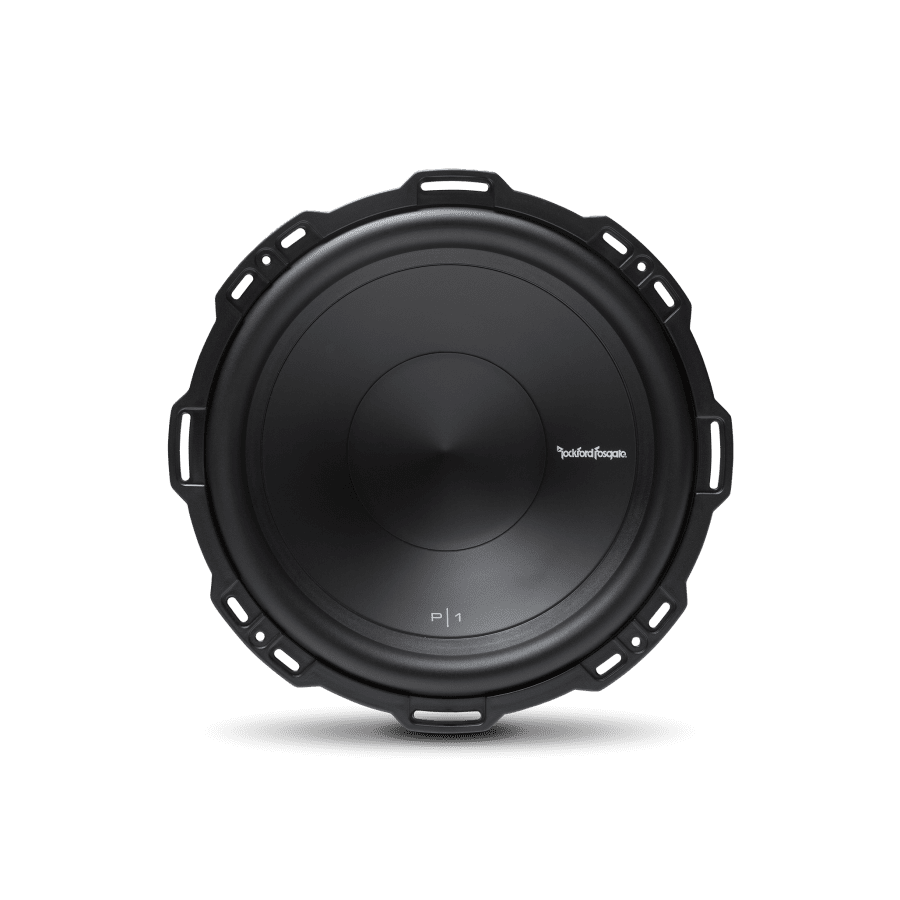

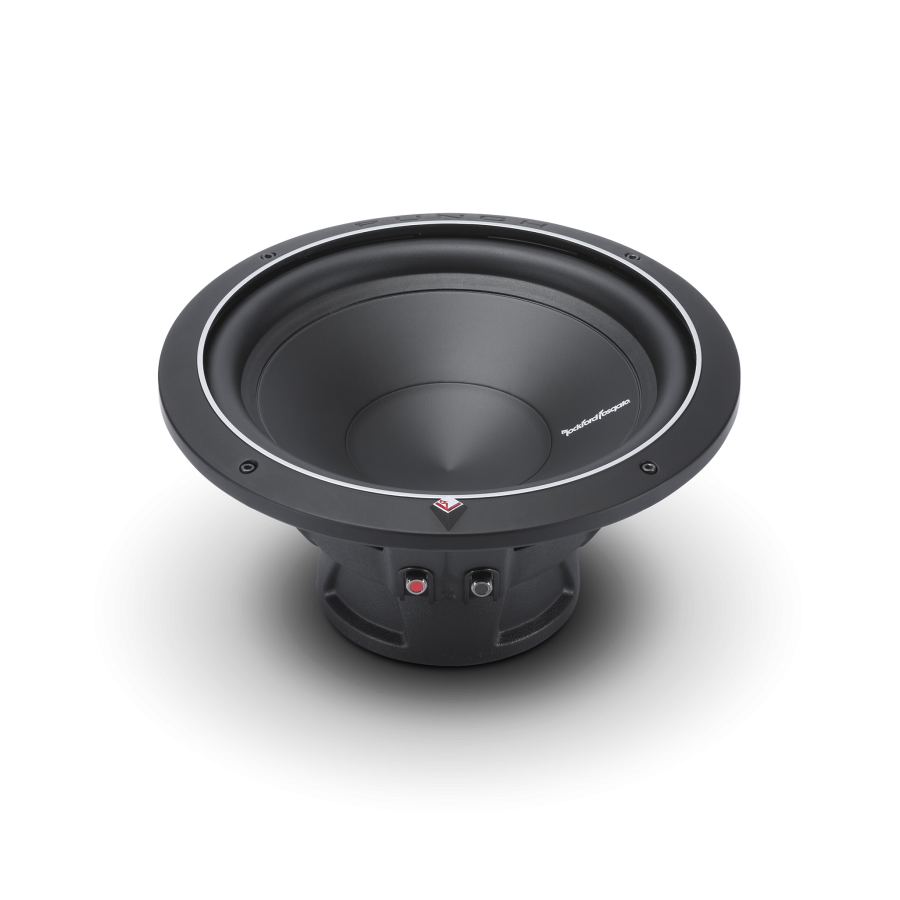

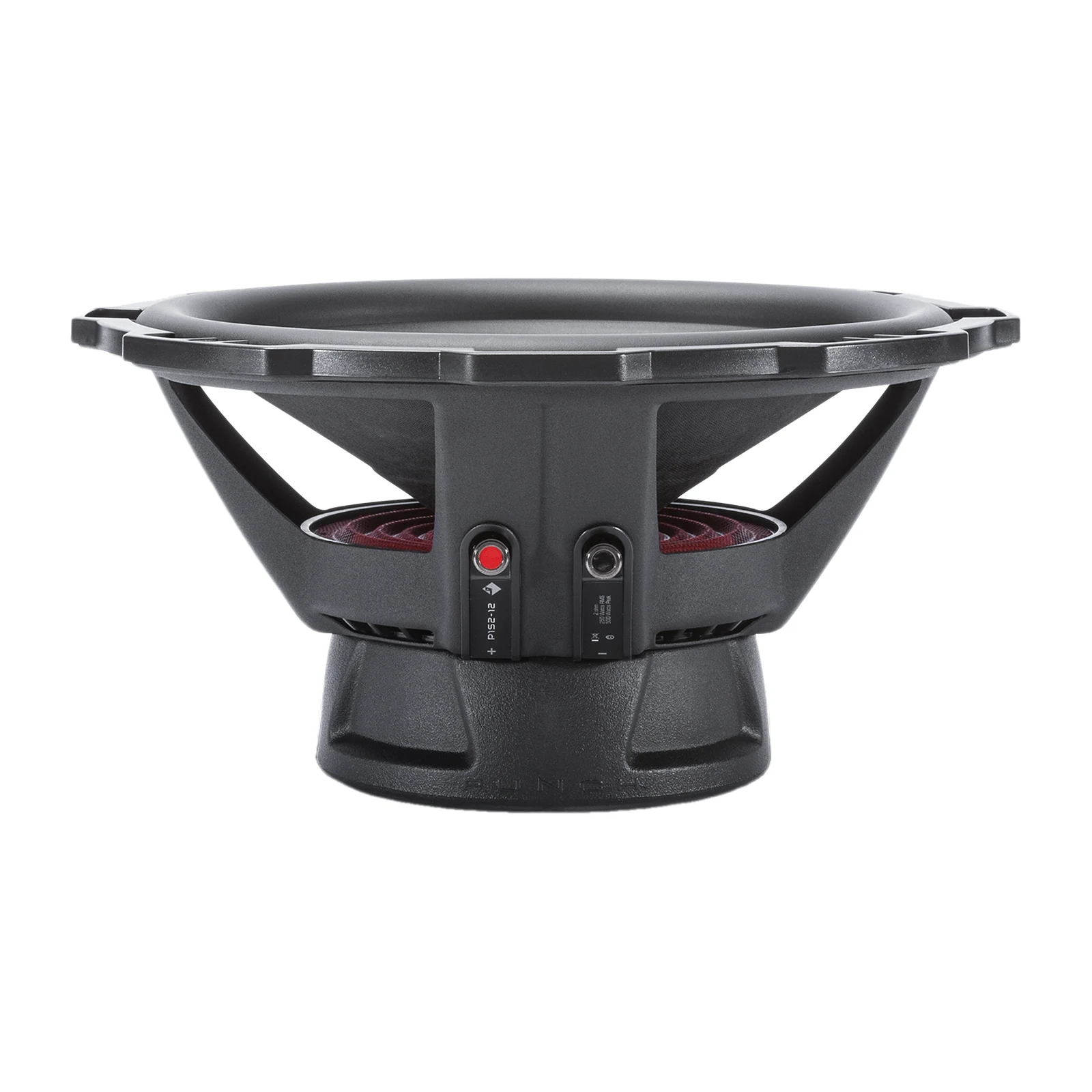

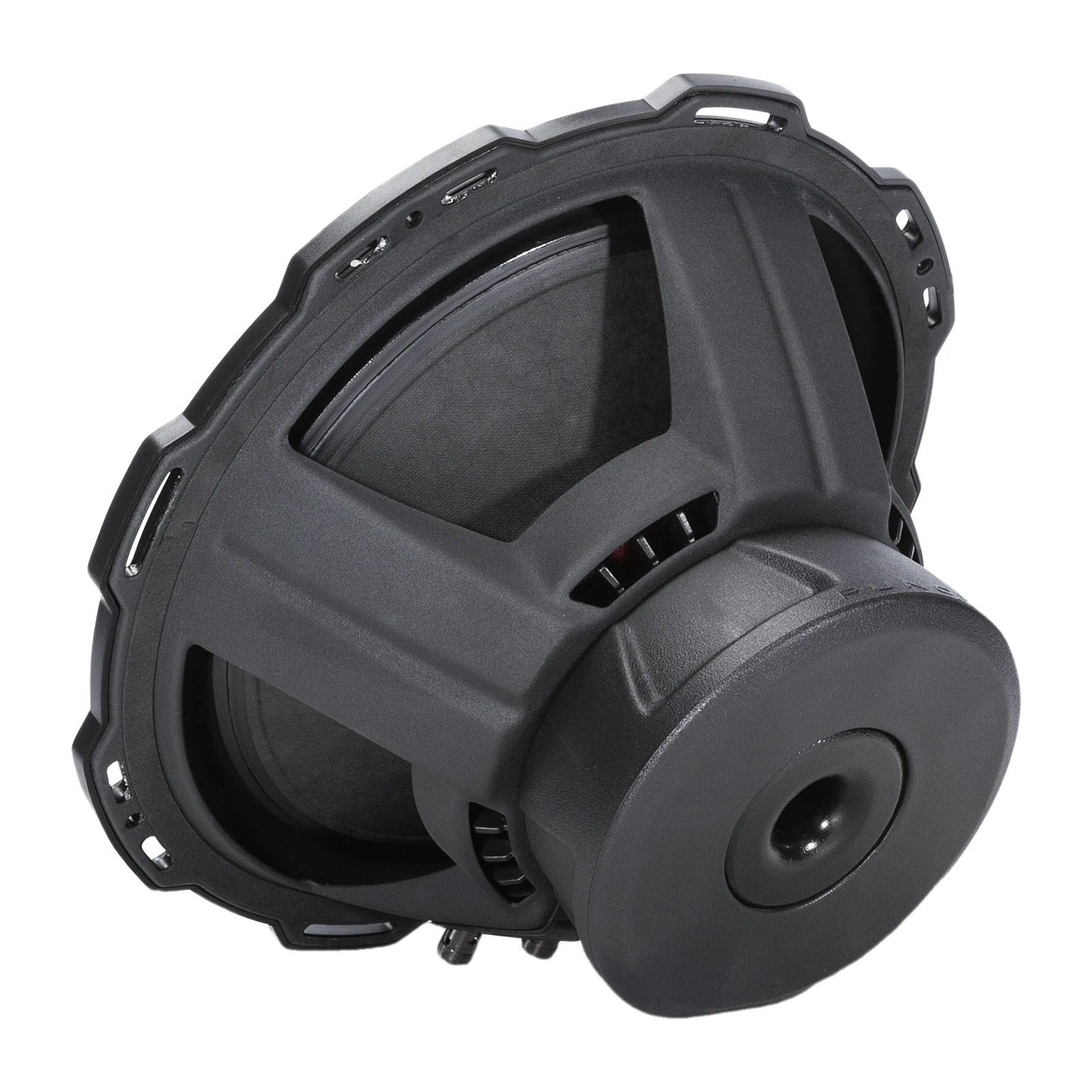

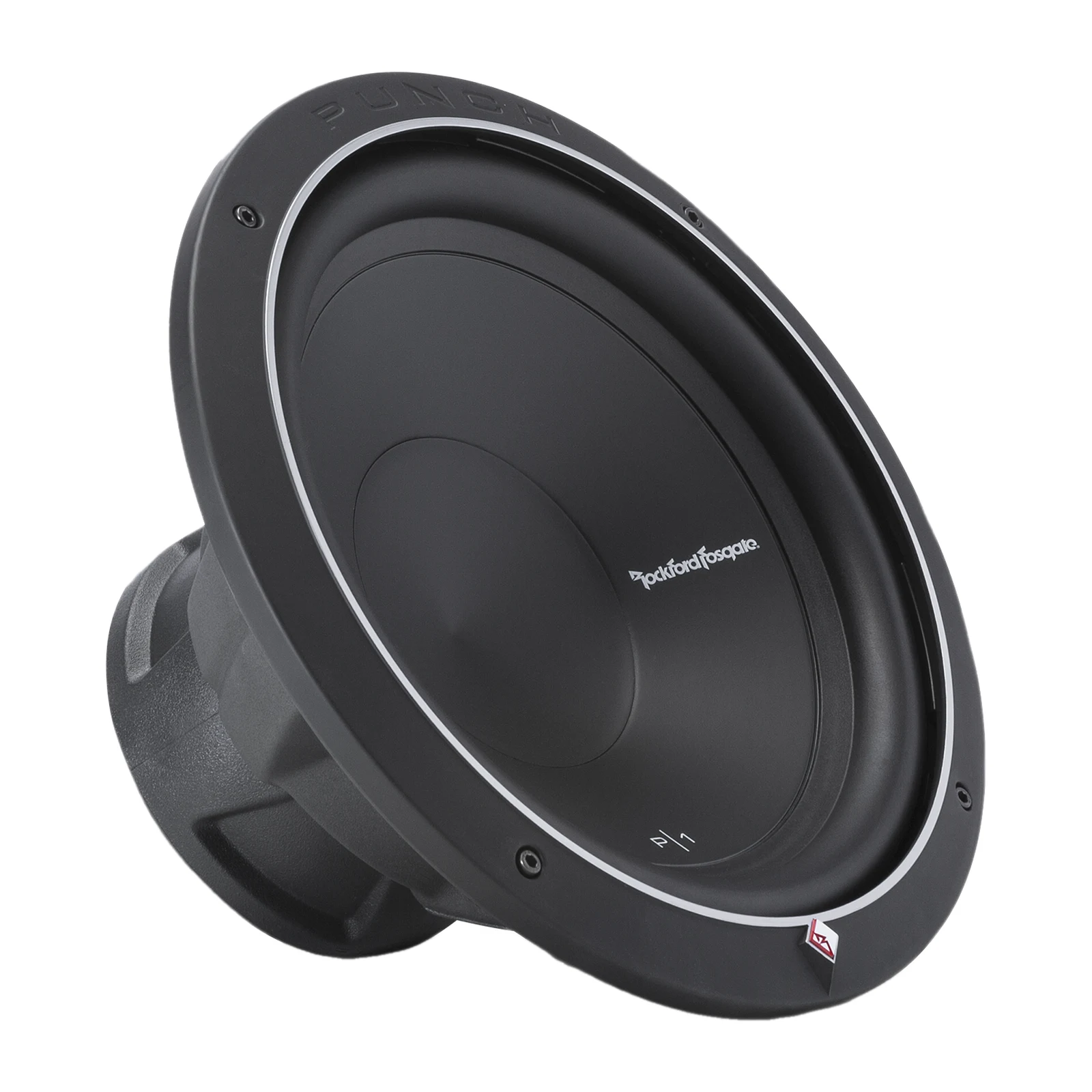

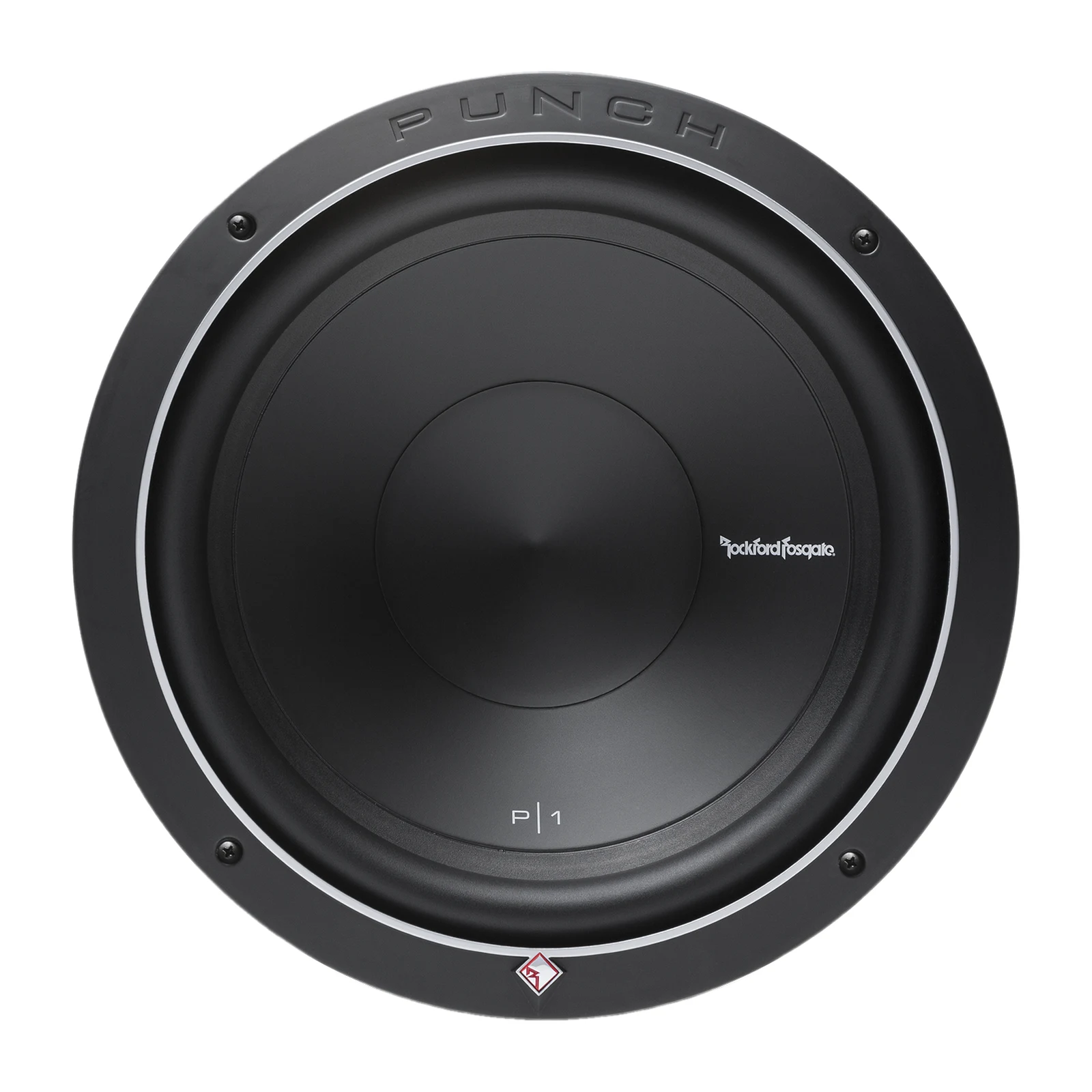

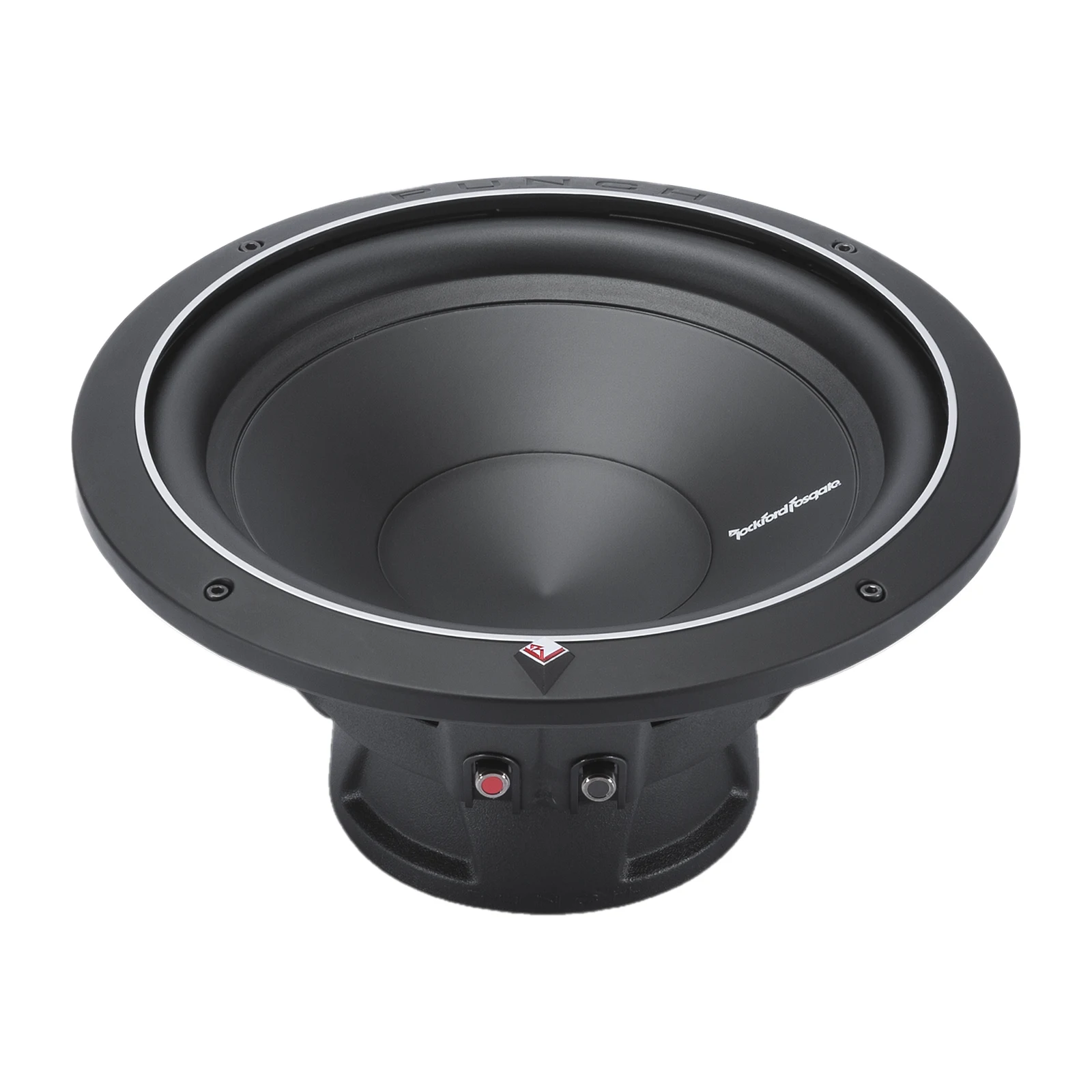

Rockford Fosgate Punch P1S4-12 12in 4 Ohm 250 Watts Subwoofer

Rockford Fosgate P1S4-12 12-inch car subwoofer with a single 4-ohm voice coil, 250 watts RMS power handling, a Kevlar fiber-reinforced paper cone, and sealed or vented enclosure flexibility.

$129.99

17 in stock

Description

The Sub At A Glance:

  • 250 watts RMS power handling: Delivers the authority needed for deep, physical bass impact.
  • Single 4-ohm voice coil: Uses a high-temperature design with a spun-laced Nomex reinforcement collar.
  • Kevlar fiber-reinforced paper cone: Combines strength with the responsive performance needed for hard-hitting bass.
  • VAST technology: Increases the woofer cone’s effective radiating area by up to 25%.

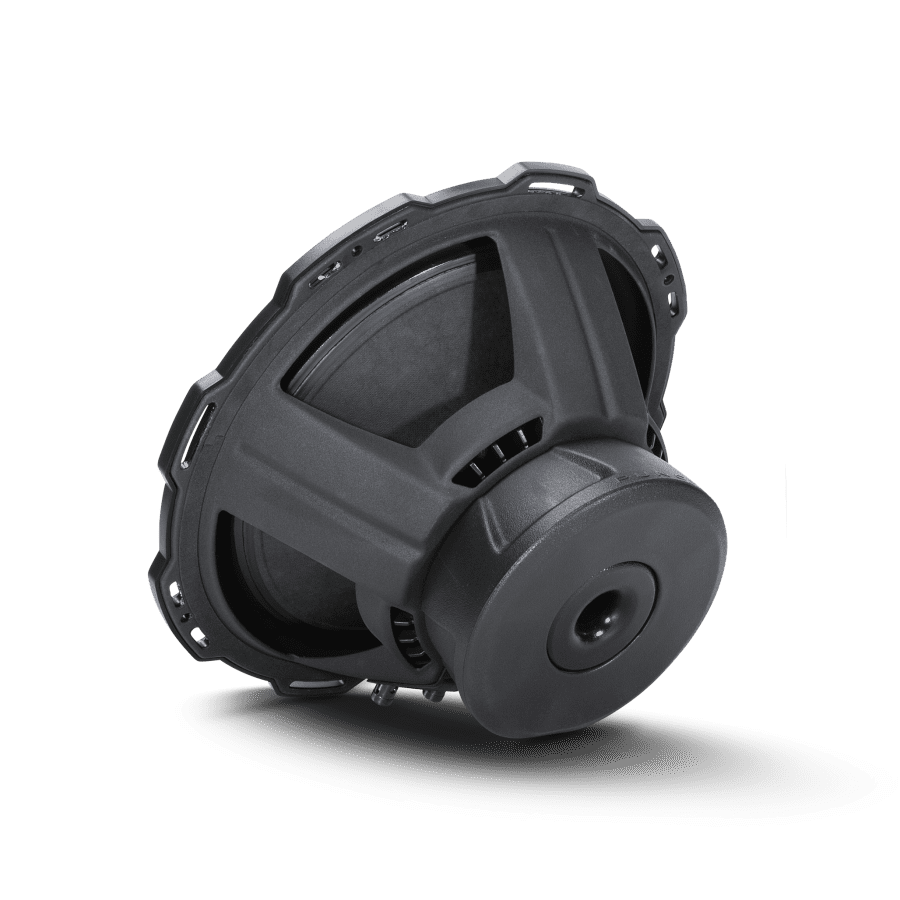

  • Durable StampCast basket: Features integrated spider venting, an extended pole piece, and a bumped vented backplate.
  • Linear spider: Includes embedded 16-AWG tinsel leads for a rugged suspension design.
  • Flexible enclosure options: Performs best in standard sealed and vented enclosures.
  • Protective finishing details: Includes a soft-touch rubberized ABS trim ring that accommodates an optional grille, plus a textured PVC magnet cover.

The Rockford Fosgate P1S4-12 brings the Punch family’s signature bass presence to cars and trucks. Its 12-inch cone moves the low notes with the depth and weight that make bass lines roll through the cabin, while kick drums land with a firm, satisfying impact. Whether installed in a sealed or vented enclosure, this subwoofer is built to add the rumble and low-frequency force that let you feel the music as much as hear it.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 250 Watts
Sub Max Power 500 Watts
Sub Impedance 4 Ohm
Voice Coils Single
Voice Coil Diameter 2.0in (51.6 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 9.0mm
Sound Pressure Level (SPL) @ 1W/1m 86dB
Sound Pressure Level (SPL) @ 2.8V/1m 89dB
Resonant Frequency (Fs) 25Hz
DC Resistance (Re) 3.6Ohm
Voice Coil Inductance (Le) 3.01mH
Total Q (Qts) 0.55
Electrical Q (Qes) 0.56
Mechanical Q (Qms) 3.40
Equivalent Compliance Volume (Vas) 88.3Liters
Effective Cone Area (Sd) 548cm²
Fitment & Dimensions
Woofer Displacement 0.081 cu. ft. (2.3 Liters)
Mounting Depth 6.0 in. (152.4 mm)
Cutout Diameter 11.22 in. (285 mm)
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)

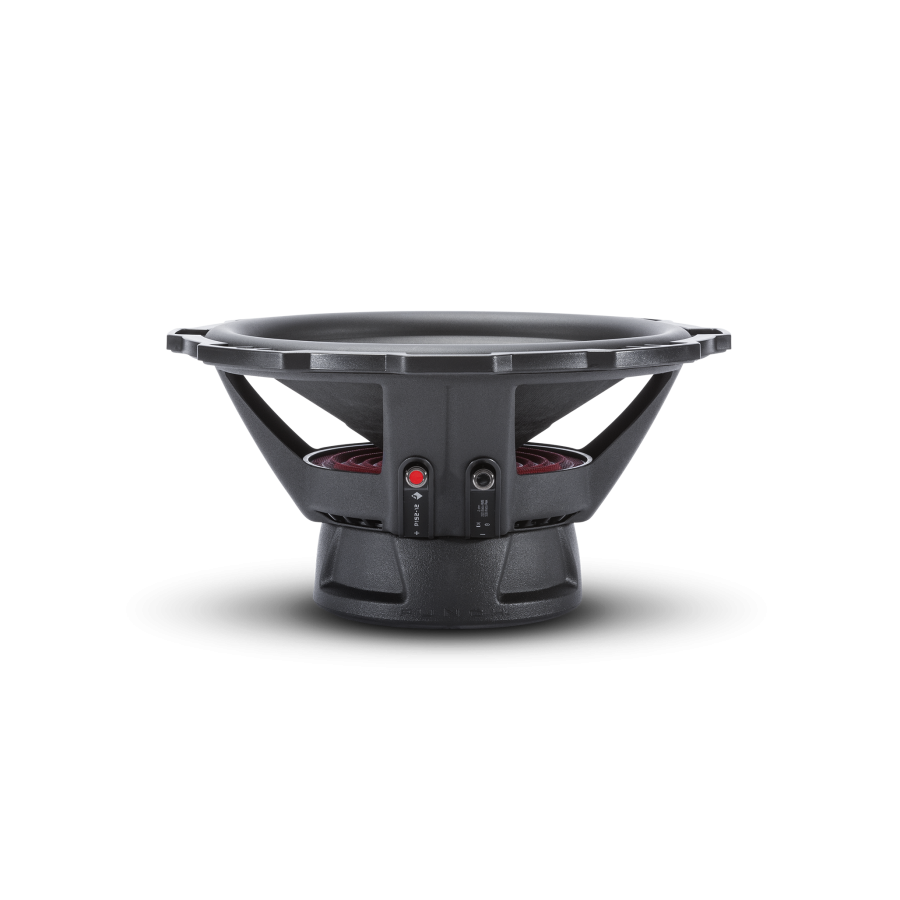

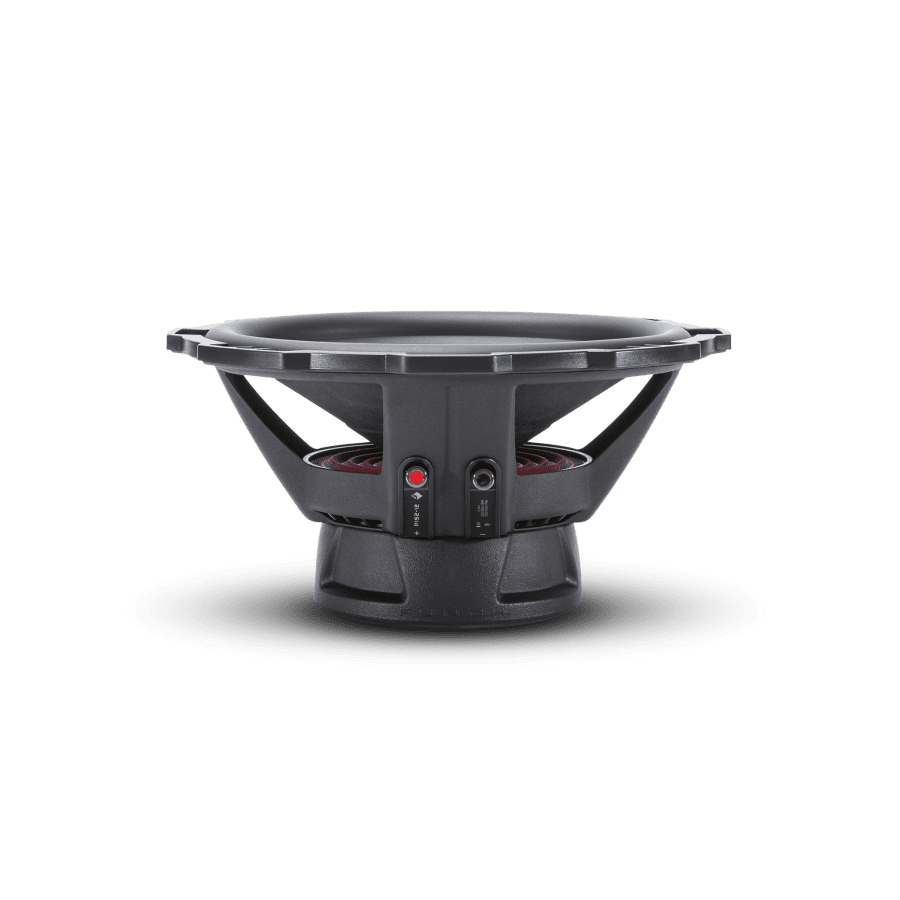

Speaker Connector Dual 10 AWG compression
Shipping Weight 11.7 Lbs. (5.3 kg)
Additional Specifications
Magnet Weight (oz) 45 oz. (1.28 kg.)

Additional information

Weight 12 lbs
Sub Size

Sub Impedance

Sub Max Power

500 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Single

Series

Punch
