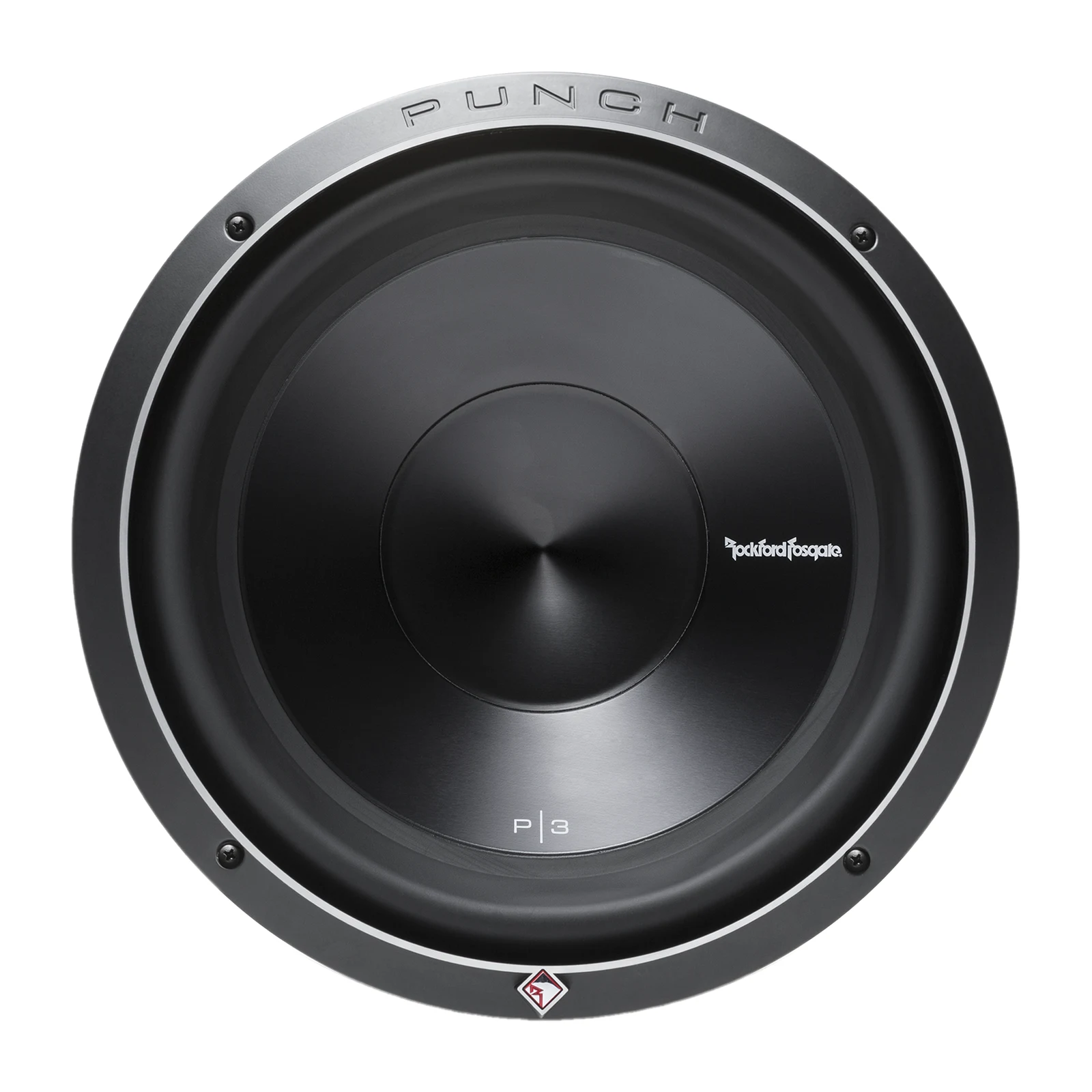

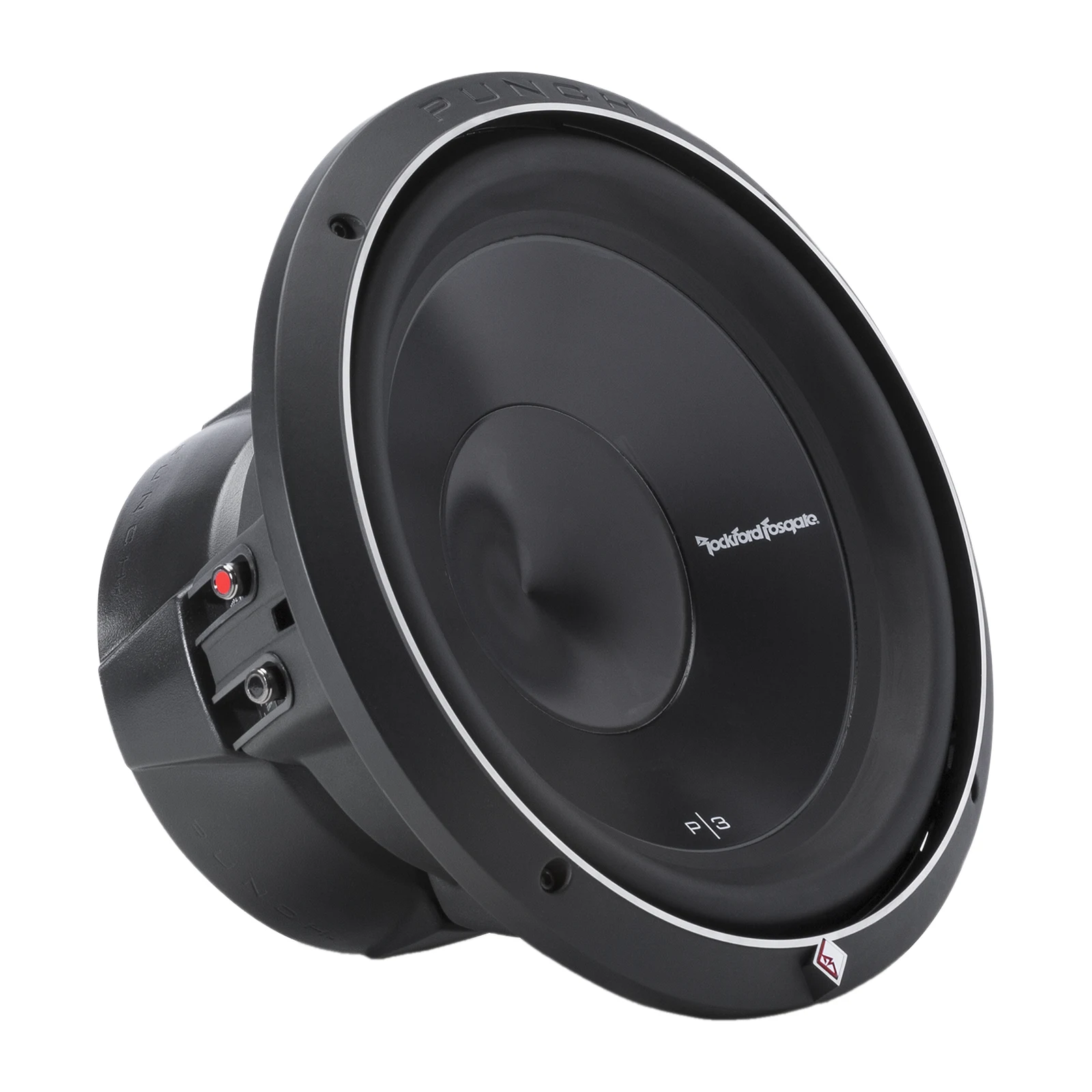

Rockford Fosgate Punch P3D4-12 12in Dual 4 Ohm 600 Watts Subwoofer

Rockford Fosgate P3D4-12 12-inch Punch subwoofer with dual 4-ohm voice coils, 600 watts RMS power handling, an anodized aluminum cone, VAST technology, and a durable StampCast basket.

$259.99

8 in stock

Description

The Sub At A Glance:

  • 600 watts RMS power handling: Built to deliver forceful low-frequency output in cars and trucks.
  • Dual 4-ohm voice coils: Dual voice coils provide versatile system wiring options.

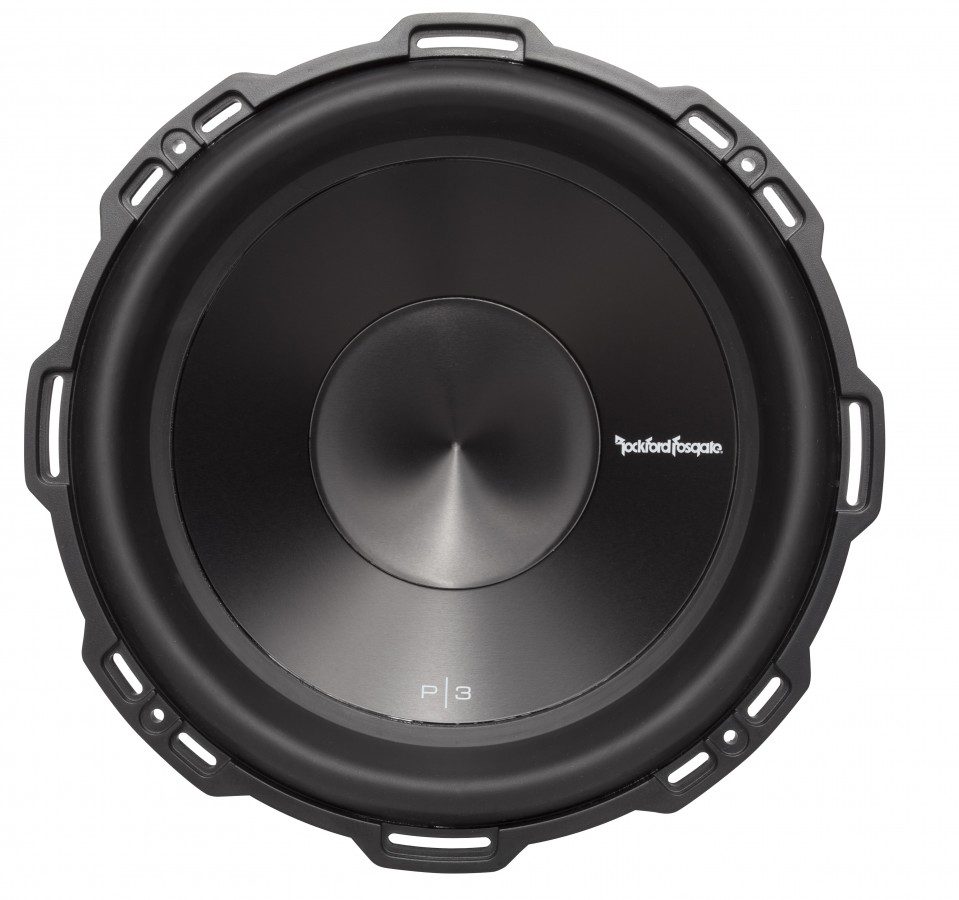

  • Anodized aluminum cone and dustcap: A rigid, durable moving surface designed for authoritative bass reproduction.
  • VAST technology: Increases usable cone surface area by up to 25% for greater output.
  • Dual linear spider: Features embedded 16-AWG tinsel leads, while integrated spider venting helps keep the motor cooler than previous versions.

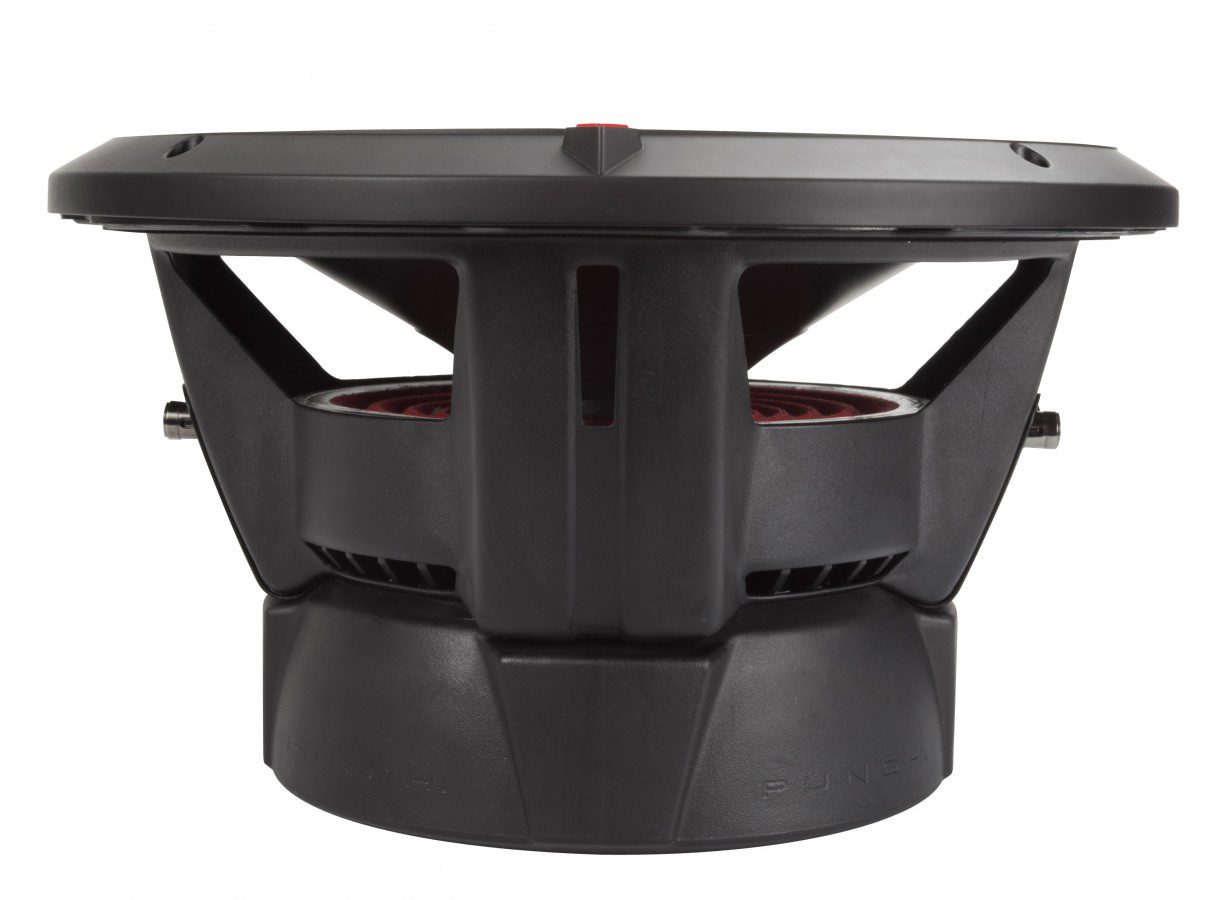

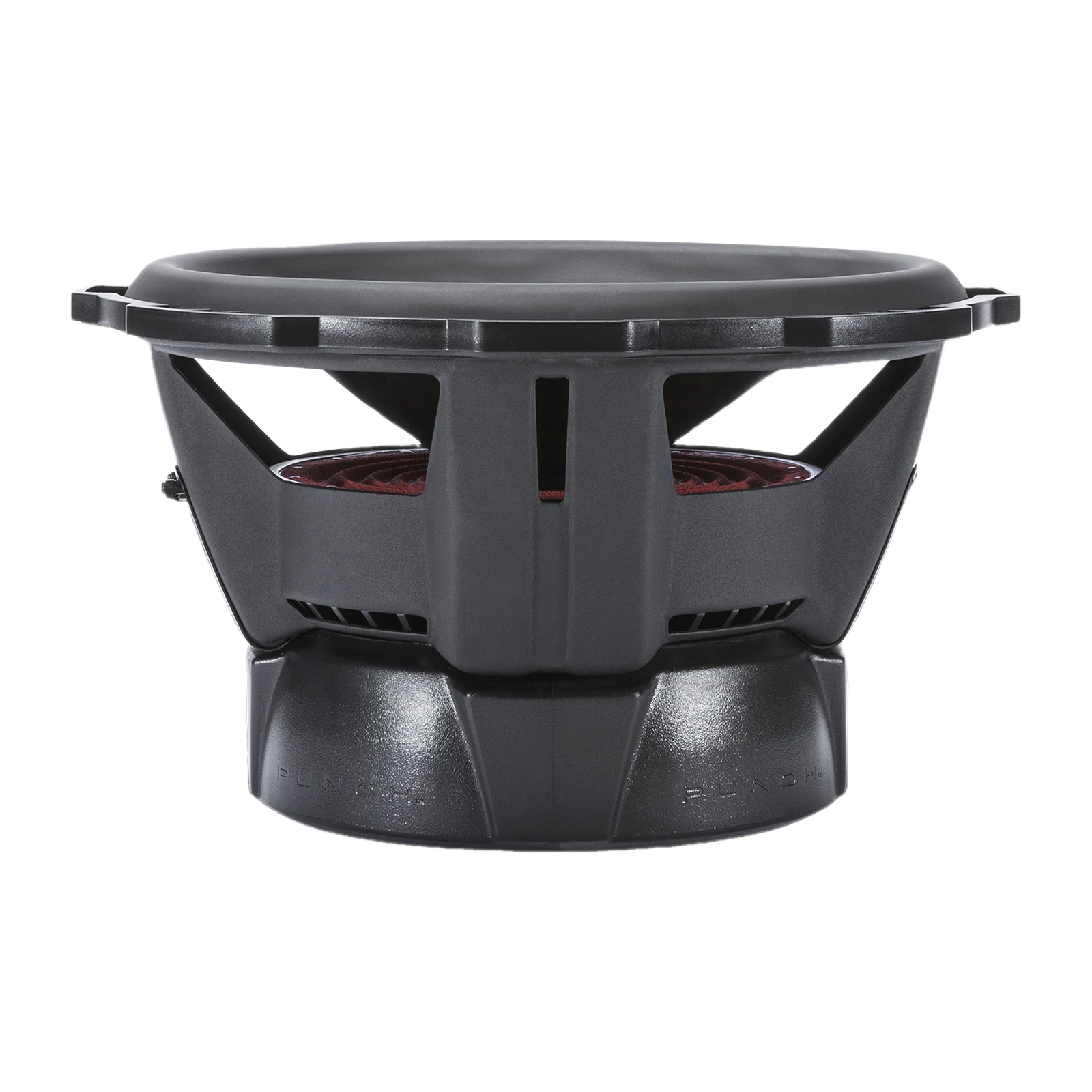

  • Hybrid StampCast basket: Combines strength with minimized weight and resonance, while the FlexFit design supports demanding installations.

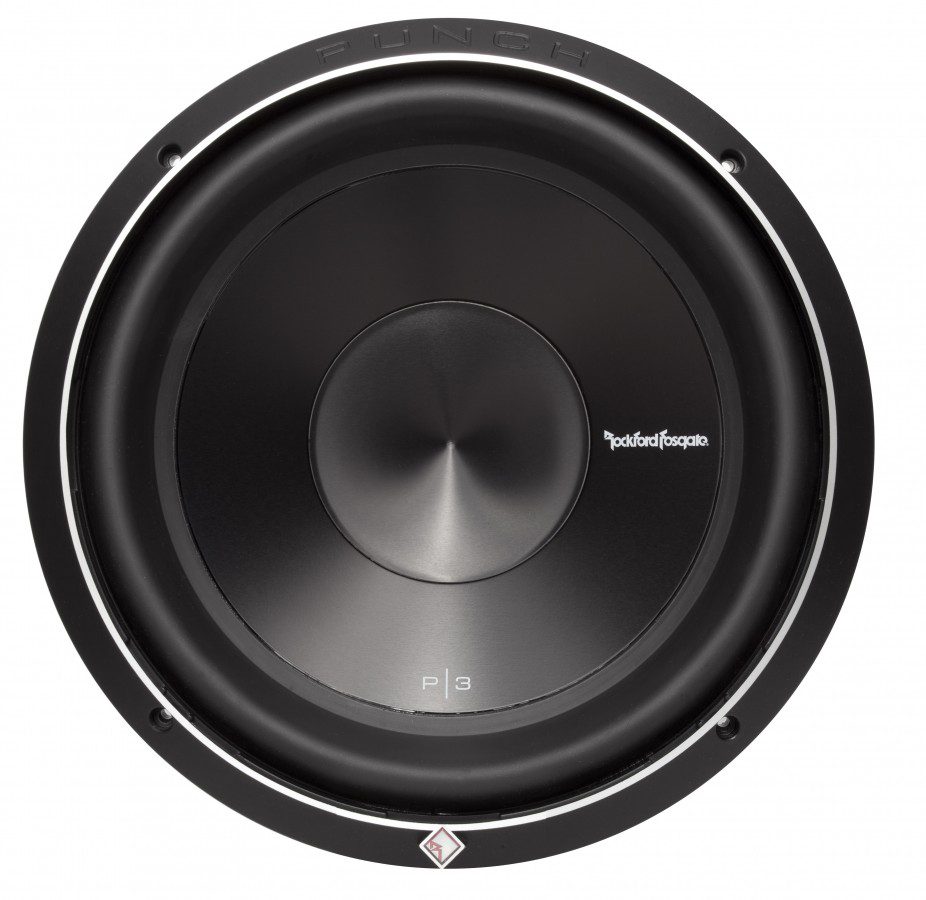

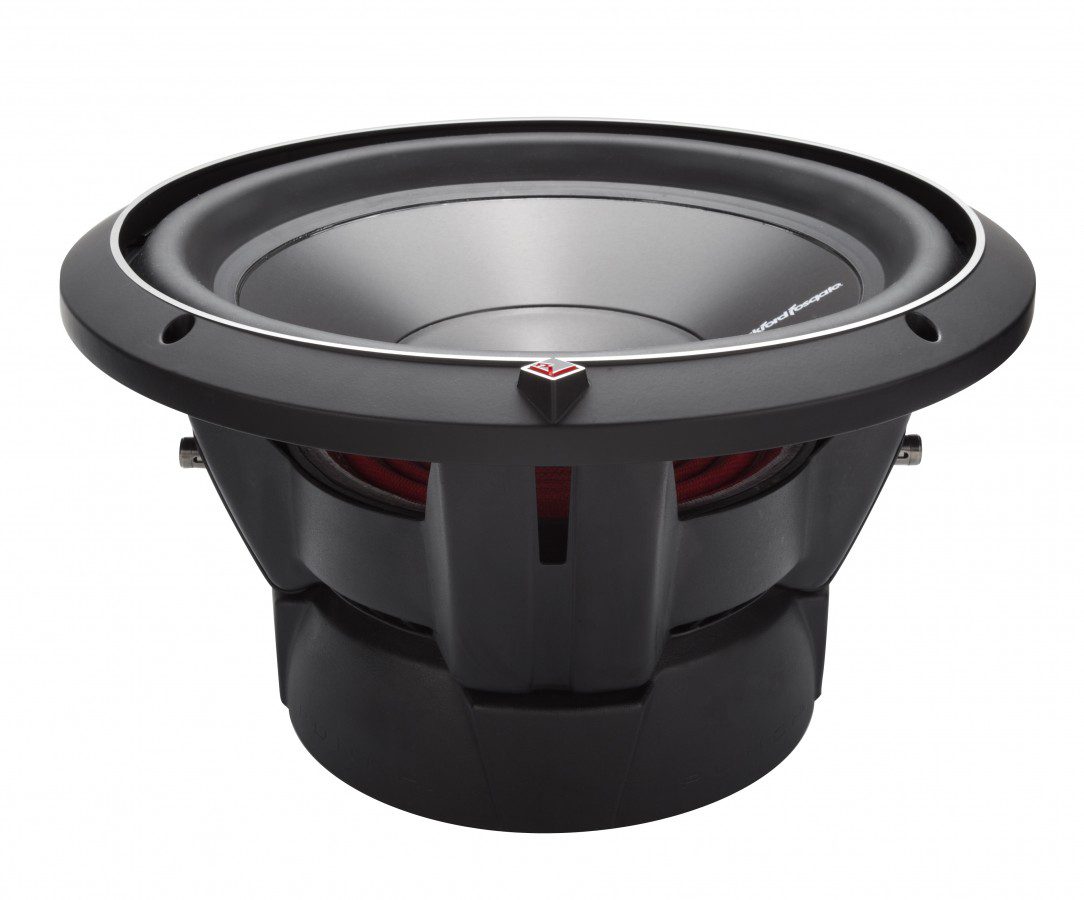

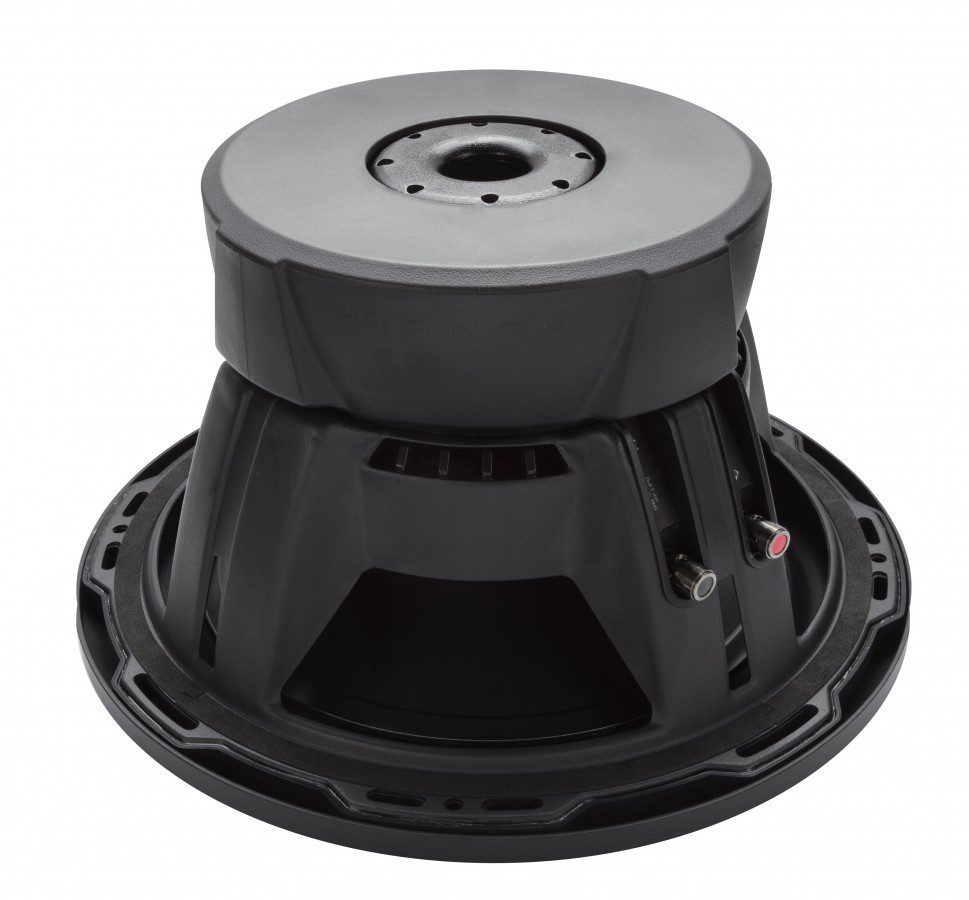

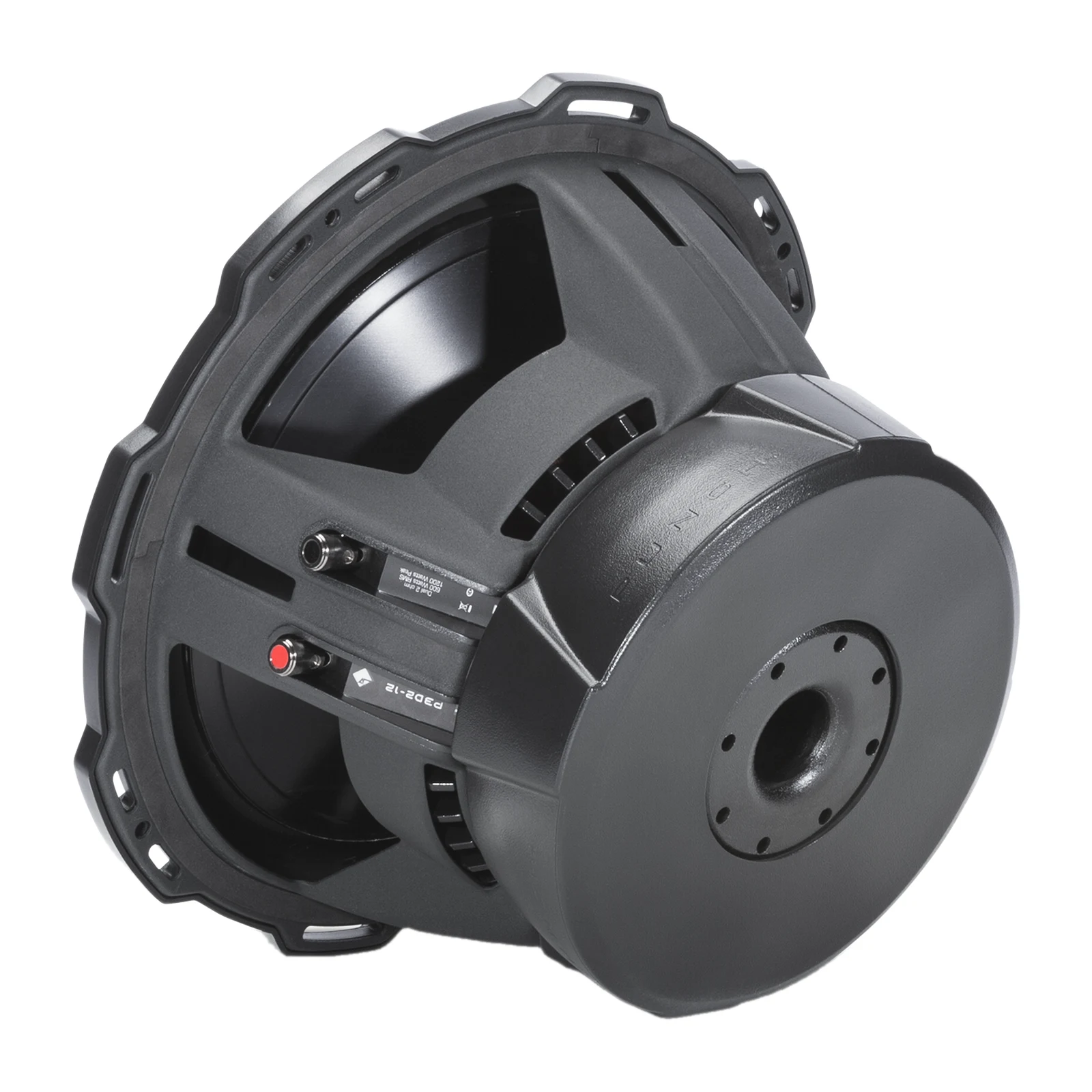

  • Installation-ready details: Includes custom 10-AWG nickel-plated push terminals and a diamond-cut cast aluminum trim ring that accommodates an optional grille.

The P3D4-12 brings the kind of bass you feel through the seat and across the cabin. Its 12-inch cone moves with authority, giving deep notes a heavy rumble and sharp bass hits a solid, physical impact. With 600 watts RMS power handling and the rugged construction of Rockford Fosgate’s Punch P3 series, it is ready to add weight, depth, and presence to music in cars and trucks.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 600 Watts
Sub Max Power 1200 Watts
Sub Impedance Dual 4 Ohm
Voice Coils Dual
Voice Coil Diameter 2.5in (65.5 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 15.9mm
Sound Pressure Level (SPL) @ 1W/1m 85dB
Resonant Frequency (Fs) 27.7Hz
DC Resistance (Re) 6.40Ohm
Voice Coil Inductance (Le) 6.94mH
Total Q (Qts) 0.52
Electrical Q (Qes) 0.57
Mechanical Q (Qms) 5.60
Equivalent Compliance Volume (Vas) 57.7Liters
Effective Cone Area (Sd) 570cm²
Fitment & Dimensions
Woofer Displacement 0.106 cu. ft. (3.0 Liters)
Mounting Depth 6.66 in. (169.3 mm)
Cutout Diameter 11.25 in. (285 mm)
Magnet Weight (oz) 96 oz. (2.73 kg.)
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 20.9 Lbs. (9.48 kg)
Additional Specifications
Power Handling 600 Watts RMS
1200 Watts Max

Additional information

Weight 21 lbs
Sub Size

Sub Impedance

Sub Type

Standard

Voice Coils

Dual

Series

Punch

Sub Max Power

1200 Watts Max

Sub Power RMS
