ROCKFORD FOSGATE PS-8

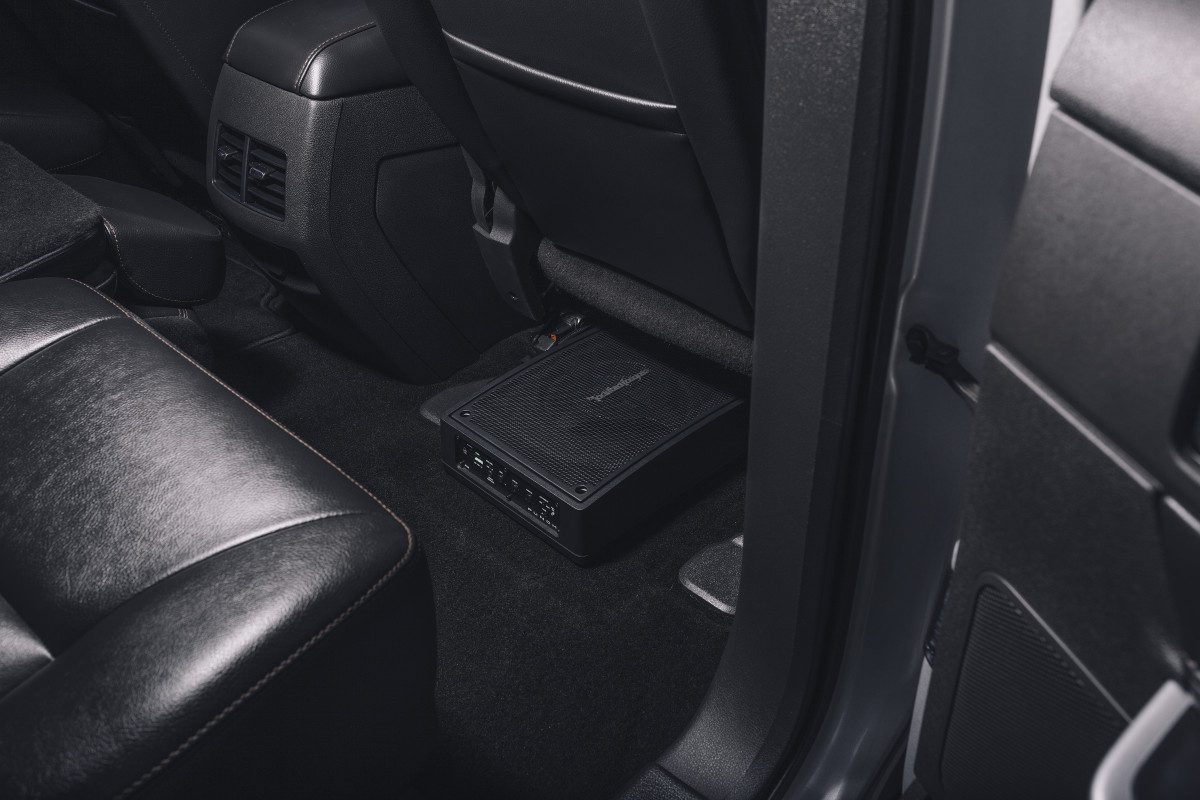

If you need to quickly add bass to a system but don't have much space or height to make it happen? Then the PS-8 is a perfect candidate! The PS-8 features a Punch 8” subwoofer in a custom sealed enclosure and is powered by a mighty 150 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. Features a durable exterior that resists scrapes and bumps while in the trunk or cargo area.

"Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
150 Watt Class D Amplifier and 8" Shallow Woofer
Adjustable 12db/Octave low pass crossover
Built-in adjustable bass boost EQ
Remote bass level control included
Hi-level/low-level inputs
Built-in 0°/180° phase switch
Remote/DC Offset/Signal Sense turn on select
Short circuit, thermal, and reverse polarity protection
Quick disconnect power and signal connections

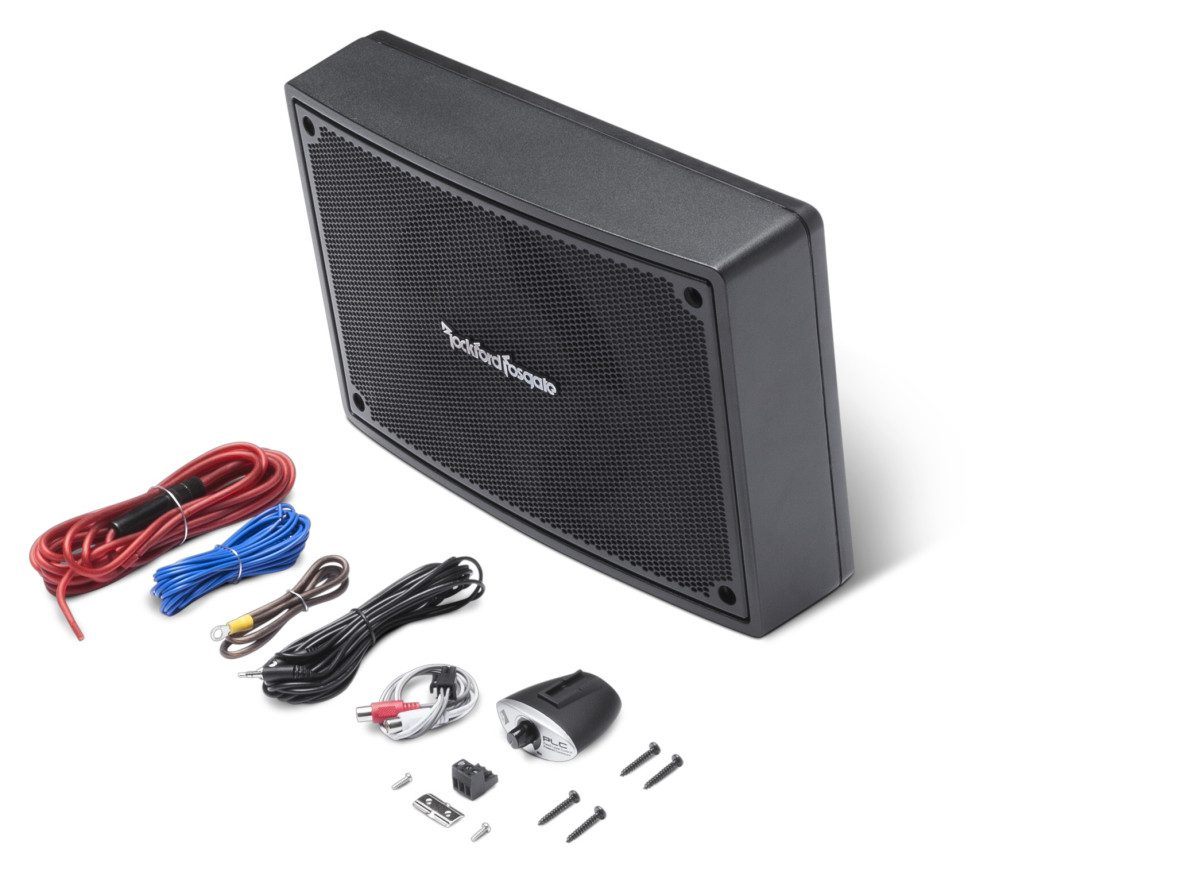

Includes all power, ground, and turn-on wires
Includes mounting hardware
1 Year Warranty

Enclosure TypeAmplified
Enclosure MaterialCast aluminum w/ ABS backplate
Woofer Quantity1
Woofer Size8"
Woofer SeriesProprietary
Nominal Impedance (ea)—
Frequency Response25 Hz to 150 Hz
Integrated Amplifier150 Watts RMS
Power Handling (Watts RMS)150 Watts RMS
Speaker ConnectorN/A
Crossover ControlsVariable 50 Hz to 120 Hz
12dB/Octave Butterworth
Tone ControlsGain & Bass Boost
Signal InputLow-Level: 1 RCA Pair
High-Level: Left/Right Summed Inputs
Power Input ConnectorRemovable Connector
Power/Ground/Remote
Replacement 1130-59232-01
Remote ControlIncluded
Visual IndicatorsPower
Protect
Power Wire GaugeIncluded
Heat Sink TypeCast Aluminum
CoolingConvection
Circuit Topology ClassClass-D
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)14.4 x 9.4 x 3.3 (in)
36.5 x 23.8 x 8.3 (cm)
